Pulsar RACKPACK Enclosure for 4x18Ah batteries RACK 19" 2U

149,69 EUR including 23.00% VAT
Product code: #45087
Manufacturer: Pulsar
  • Power supply output: 20 A / 60 V DC; BAT – 2-pin pluggable screw connector (7.62mm pitch)
  • Dimensions of battery space: 4 x 18Ah/12V (SLA) or 4 x 20Ah/12V (LiFePO4)
  • Mounting dimensions: 19" x 2U; front mounting, 4 M6 screws + cage nuts included; recommended mount…
  • Dimensions: 483 x 88 x 430 [+/-2 mm]
  • Protections: SCP
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,46 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar RACKPACK Enclosure for 4x18Ah batteries RACK 19" 2U


TECHNICAL DATA:

  • Power supply output: 20 A / 60 V DC; BAT – 2-pin pluggable screw connector (7.62mm pitch)
  • Dimensions of battery space: 4 x 18Ah/12V (SLA) or 4 x 20Ah/12V (LiFePO4)

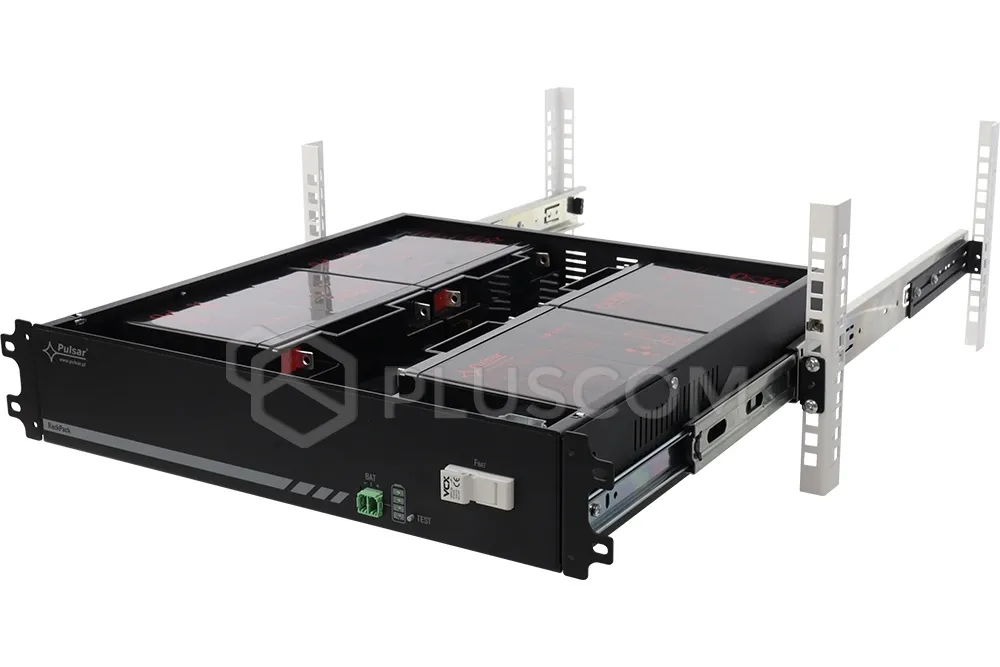

  • Mounting dimensions: 19" x 2U; front mounting, 4 M6 screws + cage nuts included; recommended mount by using ARAS...N / RASM... rails – additional accessory

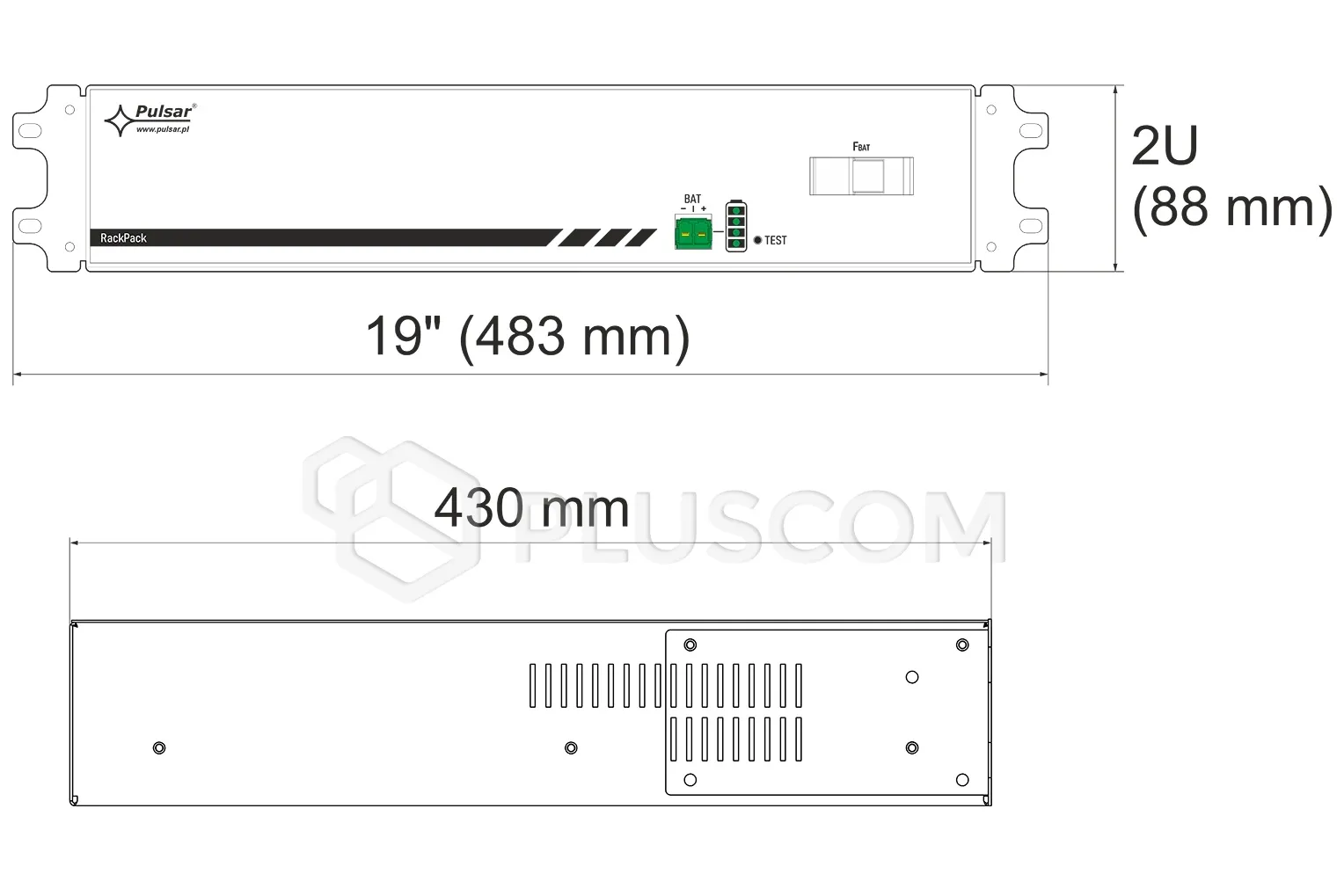

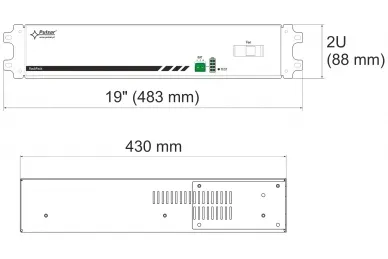

  • Dimensions: 483 x 88 x 430 [+/-2 mm]
  • Protections: SCP
  • Indication: LED battery charge level indicator (triggered by the TEST button)
  • Warranty: 2 years

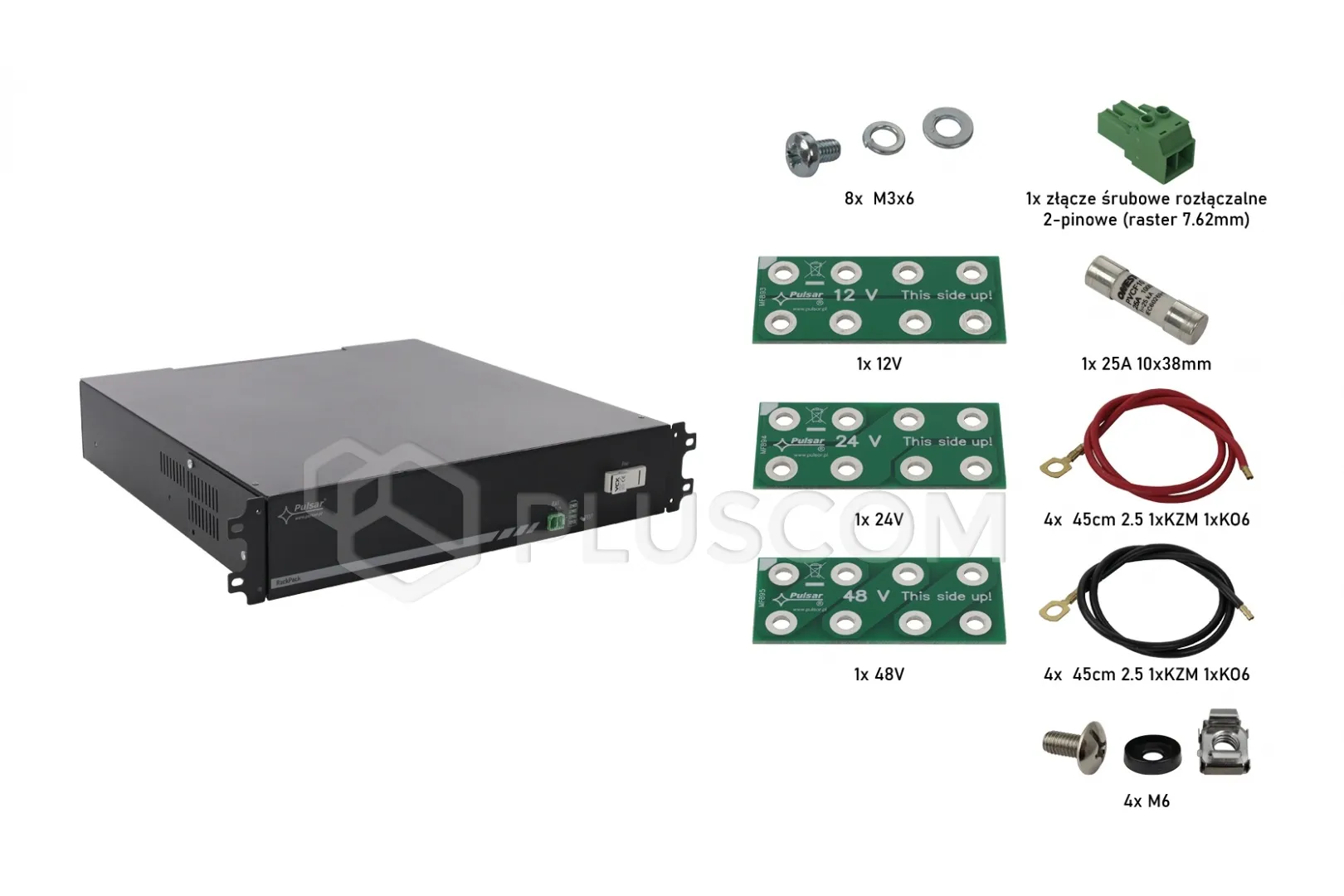

  • Notes: equipped with a “Selector Board” PCB for configuring the operating voltage of the battery pack: 12 / 24 / 48 V
