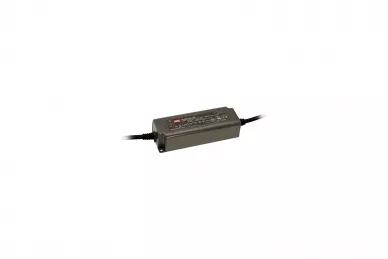

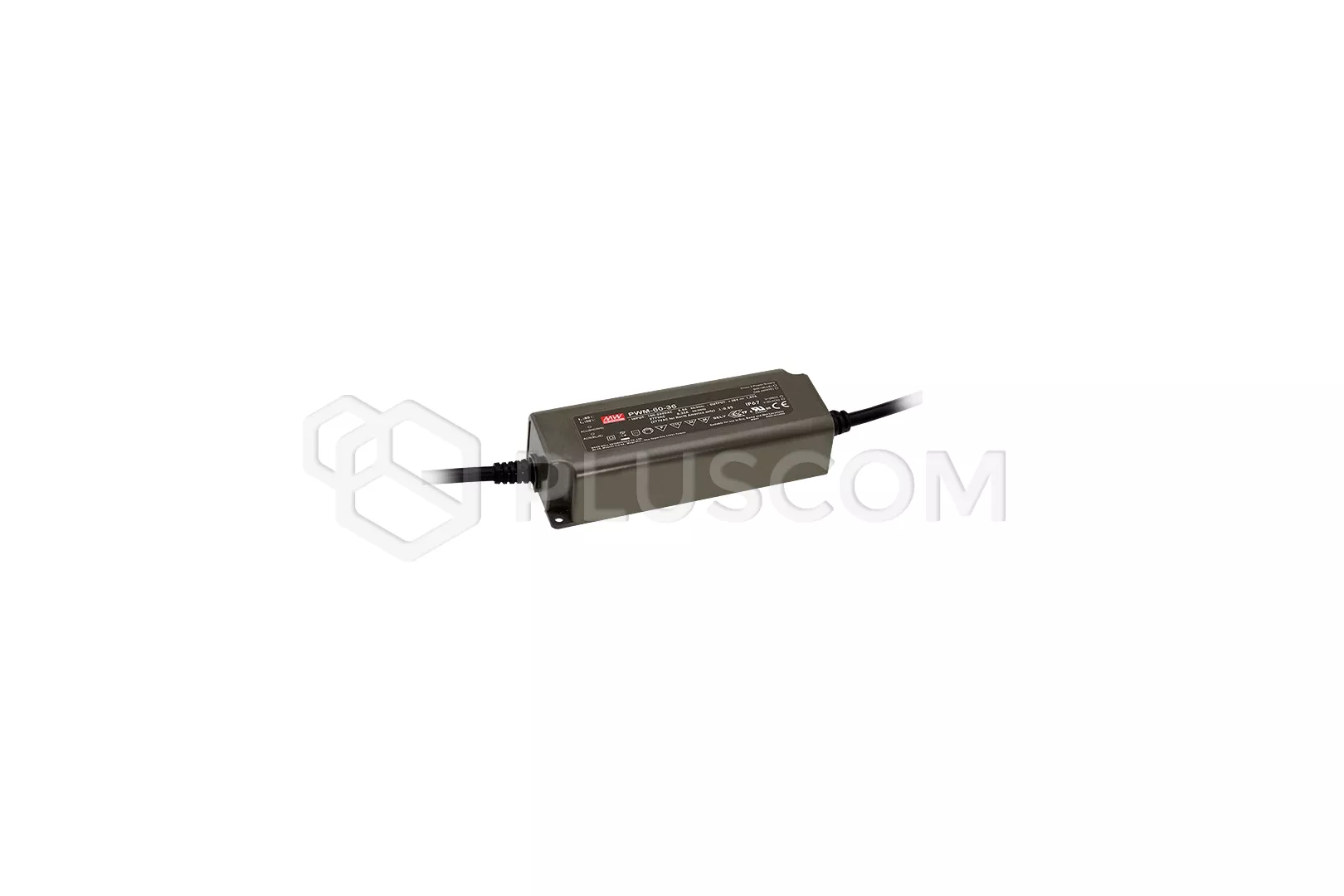

Pulsar PWM-60-24 PWM 24V/60W/2.5A LED power supply

47,33 EUR including 23.00% VAT
Product code: #27456
Manufacturer: Pulsar
  • Power supply: 90 - 305 V AC, 127 - 431 V DC
  • Efficiency: 89%
  • Dimensions: 150 x 35 x 53 [+/-2 mm]
  • Protections: SCP, OLP, OVP, OHP
  • Cable: AC power: 0.3mDC power: 0.3m
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar PWM-90-24DA PWM 24V/90W/3.75A LED power supply Pulsar PWM-60-24DA PWM 24V/60W/2.5A LED power supply Pulsar PWM-60-12DA PWM 12V/60W/5A LED power supply Pulsar PWM-40-12 PWM 12V/40W/3.34A LED power supply Pulsar PWM-120-24KN PWM 24V/120W/5A LED power supply Pulsar PWM-120-24DA PWM 24V/120W/5A LED power supply Pulsar PWM-120-12KN PWM 12V/120W/10A LED power supply Pulsar PWM-60-24KN PWM 24V/60W/2.5A LED power supply Pulsar PWM-120-12DA PWM 12V/120W/10A LED power supply Pulsar PWM-60-24DA2 PWM 24V/60W/2.5A LED power supply

Pulsar PWM-60-24 PWM 24V/60W/2.5A LED power supply


Technical parameters:

  • Power supply: 90 - 305 V AC, 127 - 431 V DC
  • Power supply output: 2.5 A / 24 V DCoutput current adjustment range: 0 - 2.5 A DCconstant voltage power supplypossibility of remote control of output current – input DIN 3W1 (1÷10VDC / PWM/ resistance)
  • Efficiency: 89%
  • Dimensions: 150 x 35 x 53 [+/-2 mm]
  • Protections: SCP, OLP, OVP, OHP
  • Cable: AC power: 0.3mDC power: 0.3m
  • IP protection class: IP 67
  • Warranty: 5 years
  • Notes: - II Insulation class - built-in active power correction function (active PFC)
Download
CE declaration 0.39 MB
Data sheet 0.69 MB
