Pulsar PSUPS10A12CR 13,8V 10A 17Ah backup power supply with space for the recorder

Pulsar PSUPS10A12CR 13,8V/10A buffer power supply for 8 HD cameras and recorder  with space for the battery and recorder

• output current 8x0,75A + 4A recorder + 1A battery charging

• output current 8x0,3A + 4A recorder + 1A battery charging
• 12V DC maintained regardless of the state of battery charge

During normal operation, the PSU supplies a stabilized DC 13,8V voltage to the output and charges the connected battery, in the event of loss of AC input voltage, an automatic (uninterruptible) switchover to battery operation takes place.

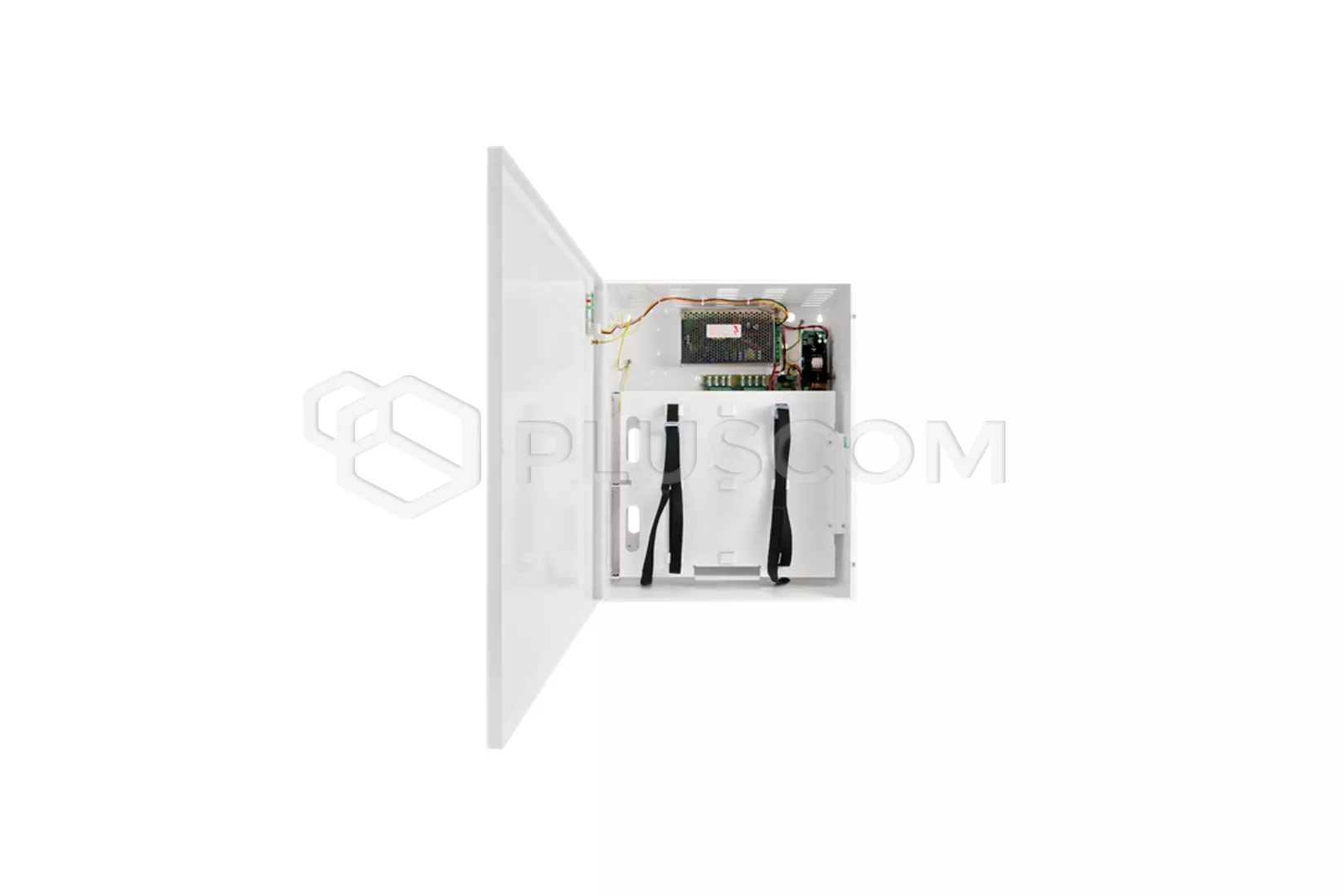

The power supply was placed in a housing with space for a 17Ah 12V battery. It also has a tilted plate to mount the recorder. On the front there are LED indicators informing about the status of the power supply. In the rear part of the housing there are numerous cable entries. The housing has a sensor informing about opening the door or detaching the housing from the ground.

Pulsar PSUPS10A12CR

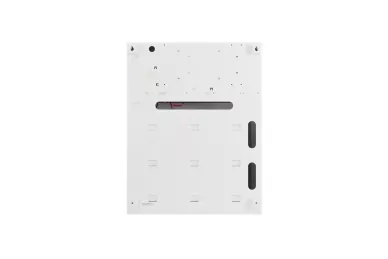

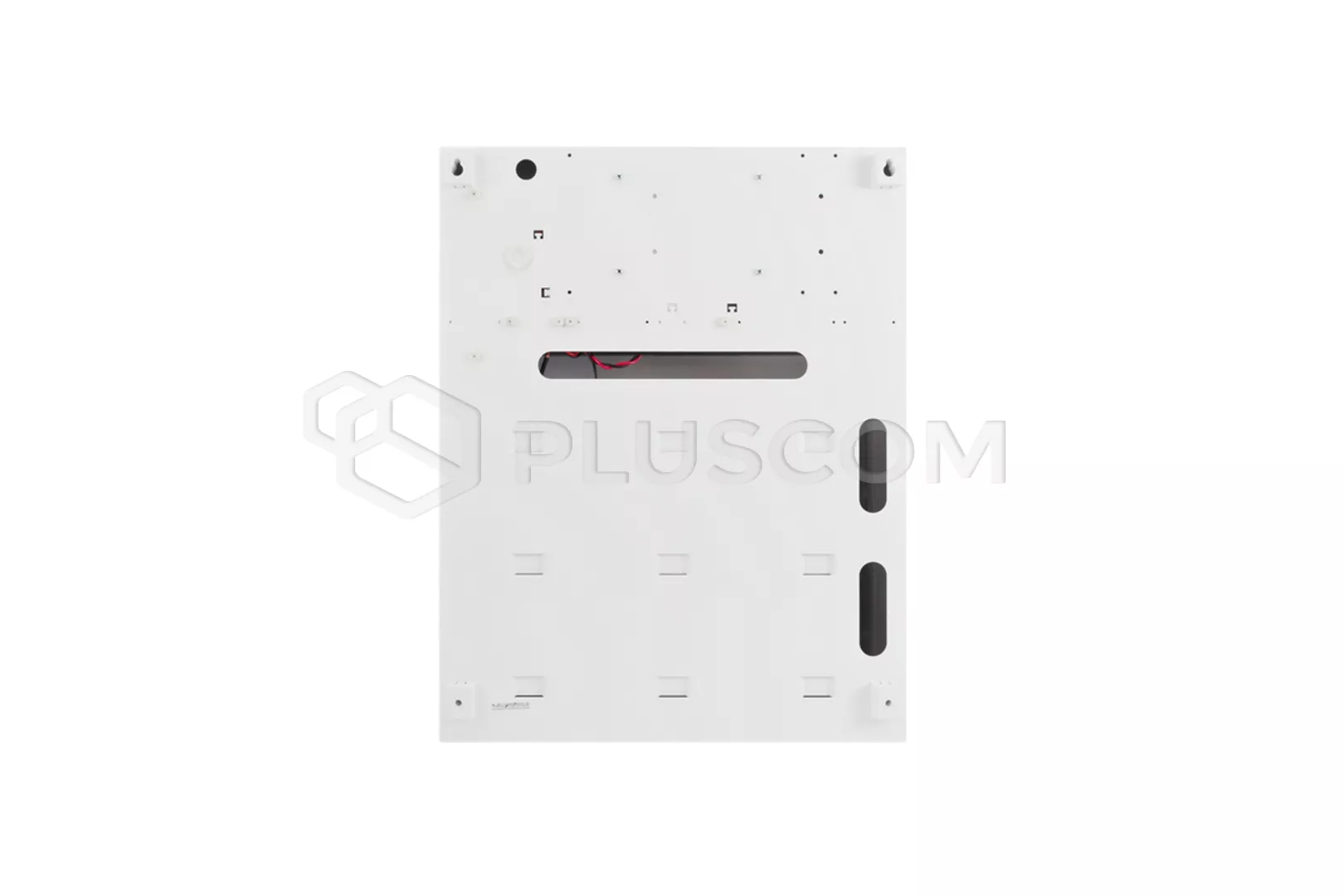

View from the back:



• Mains supply: 176÷264V AC
• Current consumption: 1,3A
• Efficiency 80%
• Output voltage;

  • 11-13,8V - buffer operation
  • 9.5-13,8V - battery-assisted operation
  • 12V DC maintained regardless of the state of battery charge

• Output voltage adjustment range 12÷14V DC
• Output current:

• • 8x0,75A + 4A recorder + 1A battery charging
  • 8x0,3A + 4A recorder + 1A battery charging
  • 12V DC maintained regardless of the state of battery charge
• Approximate backup time: 1h 30min

• Dimensions: 420x535x193+14mm
• Recorder space 380x320x65

• Weight: 11.8kg

• Working temperature: -10°C...+40°C

• Protection type:
• • SCP short-circuit protection
  • OLP overload protection
  • OVP over voltage protection
  • OHP overheat protection

  • surge protection
  • against sabotage
