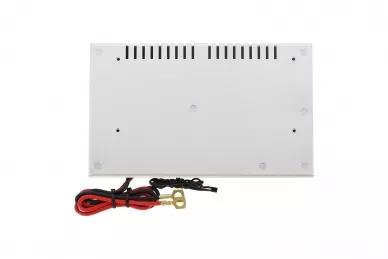

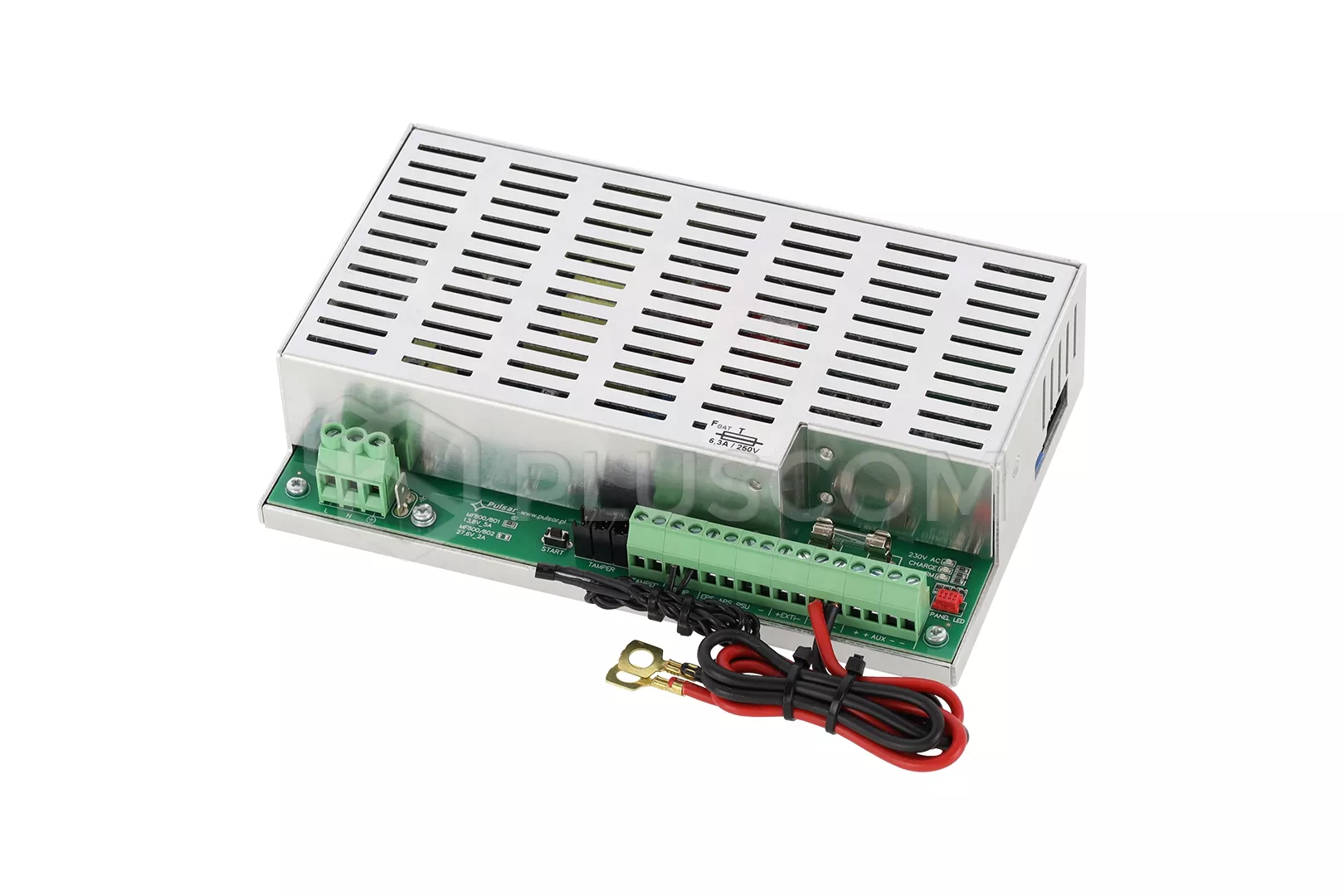

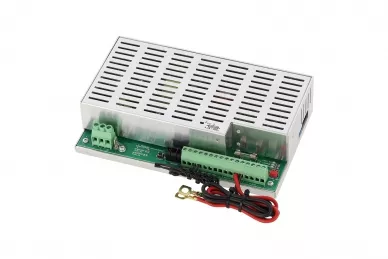

Pulsar PSG3-12V5A-D PSG3 13,8V/5A/40Ah enclosed switch mode power supply unit with battery backup Grade 3

203,95 EUR including 23.00% VAT
Product code: #30739
Manufacturer: Pulsar
  • Power supply: 200 - 240 V AC
  • Battery charging current: 1.8A
  • Current consumption by PSU systems: 30mA max.
  • Efficiency: 82%
  • Dimensions: 200 x 48 x 120 [+/-2 mm]
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar PSG3-12V5A-C PSG3 13,8V/5A/17Ah enclosed switch mode power supply unit with battery backup Grade 3 Pulsar PSG3-12V3A-C PSG3 13,8V/3A/17Ah enclosed switch mode power supply unit with battery backup Grade 3 Pulsar PSG3-12V2A-B PSG3 13,8V/2A/7Ah enclosed switch mode power supply unit with battery backup Grade 3 Pulsar PSG3-12V10A-E PSG3 13,8V/10A/65Ah enclosed switch mode power supply unit with battery backup Grade 3

Pulsar PSG3-12V5A-D PSG3 13,8V/5A/40Ah enclosed switch mode power supply unit with battery backup Grade 3


Technical parameters:

  • Power supply: 200 - 240 V AC
  • Power supply output: 5.5 A / 13.8 V DC (total output current with charging) - for general purpose application 3.3 A / 13.8 V DC - GRADE 1÷2 1.3 A / 13.8 V DC - GRADE 3 function START allows running PSU from battery power
  • Compliant with standards: construction compliant with EN50131-6, GRADE 1÷3Access control norm EN60839-11
  • Battery charging current: 1.8A
  • Current consumption by PSU systems: 30mA max.
  • Efficiency: 82%
  • Dimensions: 200 x 48 x 120 [+/-2 mm]
  • Protections: SCP, OLP, OVP, UVP
  • Technical outputs OC type: EPS – AC power failurePSU – power supply failureAPS – battery failure
  • Technical input: EXT IN – external failure
  • Indication: LED optical indication
  • Warranty: 3 years
Download
Data sheet 0.38 MB
Instruction 1.36 MB
