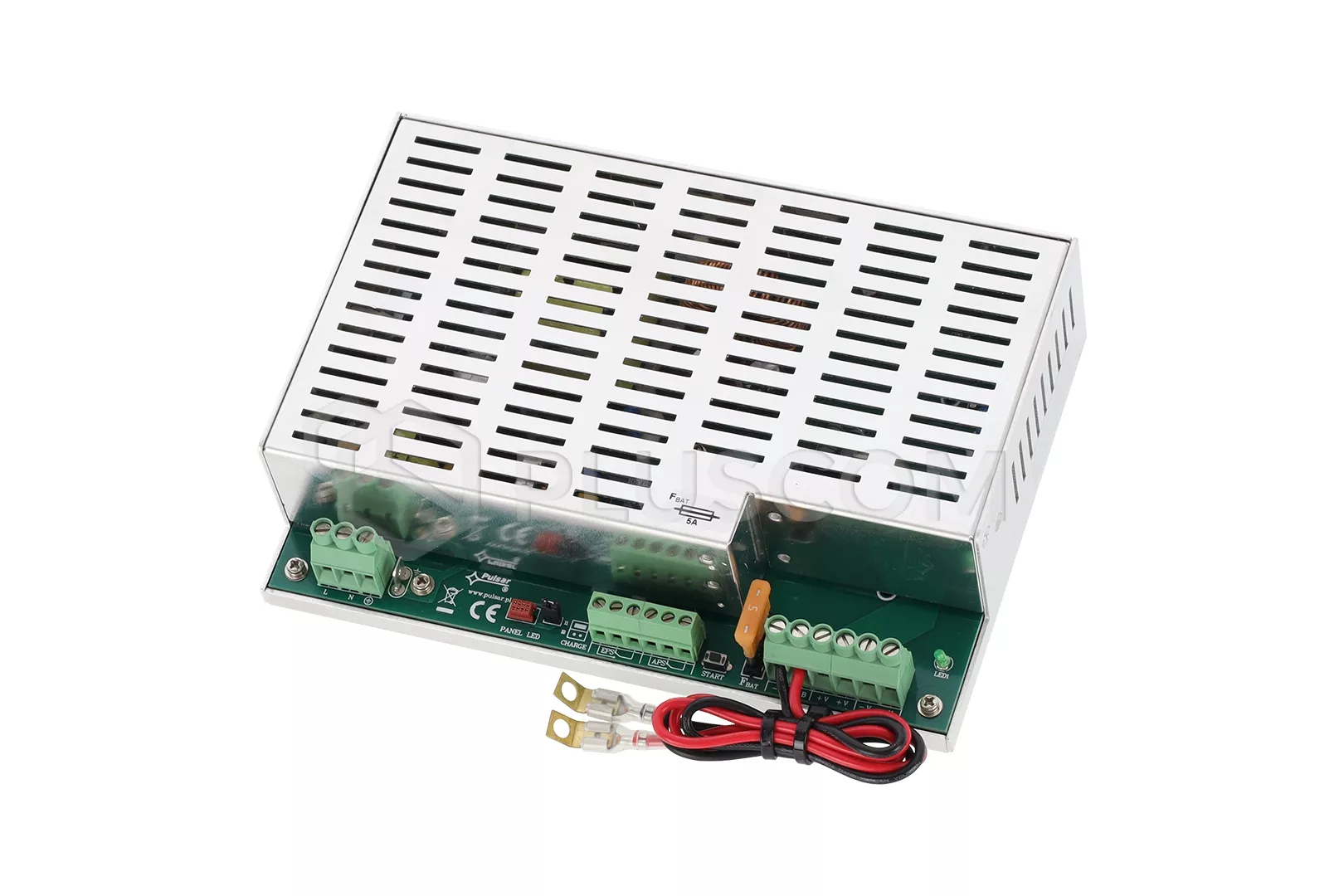

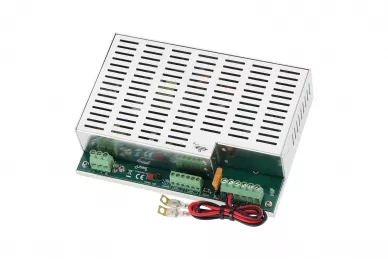

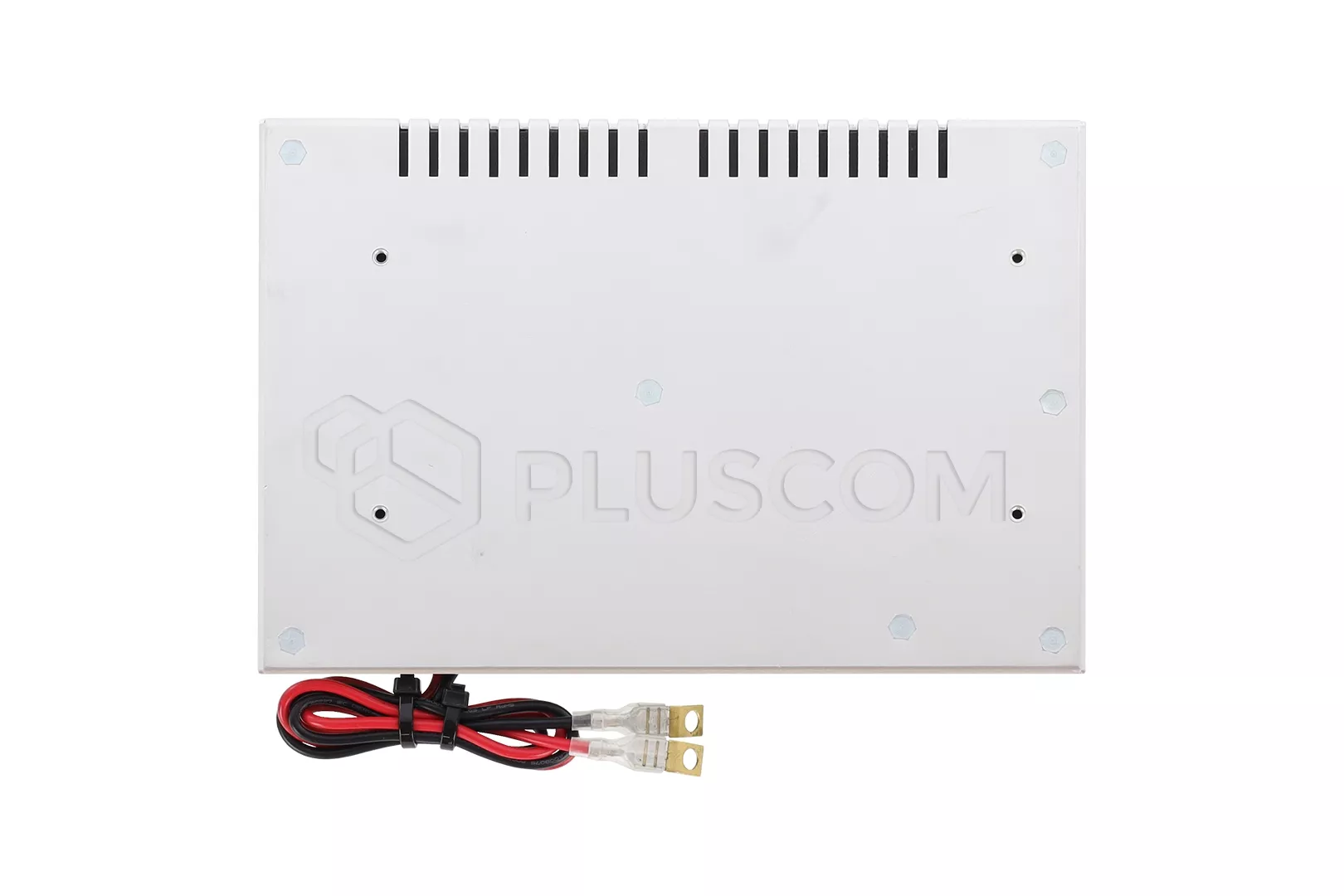

Pulsar PSG2-24V5A PSG2 27,6V/5A Enclosed buffer switch mode power supply unit Grade 2

79,40 EUR including 23.00% VAT
Product code: #30734
Manufacturer: Pulsar
  • Power supply: 200 - 240 V AC
  • Battery charging current: 1A/2A
  • Efficiency: 89%
  • Dimensions: 204 x 141 x 52 [+/-2 mm]
  • Protections: SCP, OLP, OVP, UVP

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar PSG2-24V3A built-in buffer power supply 27.6V 3A Pulsar PSG2-24V2A built-in buffer power supply 27.6V 2A Pulsar PSG2-24V10A built-in buffer power supply 27.6V 10A Pulsar DIN4 holder for power supplies Pulsar DIN3 holder for power supplies

Pulsar PSG2-24V5A PSG2 27,6V/5A Enclosed buffer switch mode power supply unit Grade 2


Technical parameters:

  • Power supply: 200 - 240 V AC
  • Power supply output: 5 A / 27.6 V DC (total output current with charging)function START allows running PSU from battery power
  • Compliant with standards: Construction compliant with EN50131, GRADE 1÷2Access control norm EN60839-11, Grade 1÷2
  • Battery charging current: 1A/2A
  • Efficiency: 89%
  • Dimensions: 204 x 141 x 52 [+/-2 mm]
  • Protections: SCP, OLP, OVP, UVP
  • Technical outputs relay type: EPS – AC power failureAPS – battery failure
  • Warranty: 2 years
  • Notes: - an automatic battery test performed every 5 minutes - for mounting on a DIN rail, required bracket: DIN4 - Additional accessories: set of LED optical indication PKAZ168

  • Download
    Data sheet 0.22 MB
    Instruction 0.8 MB
