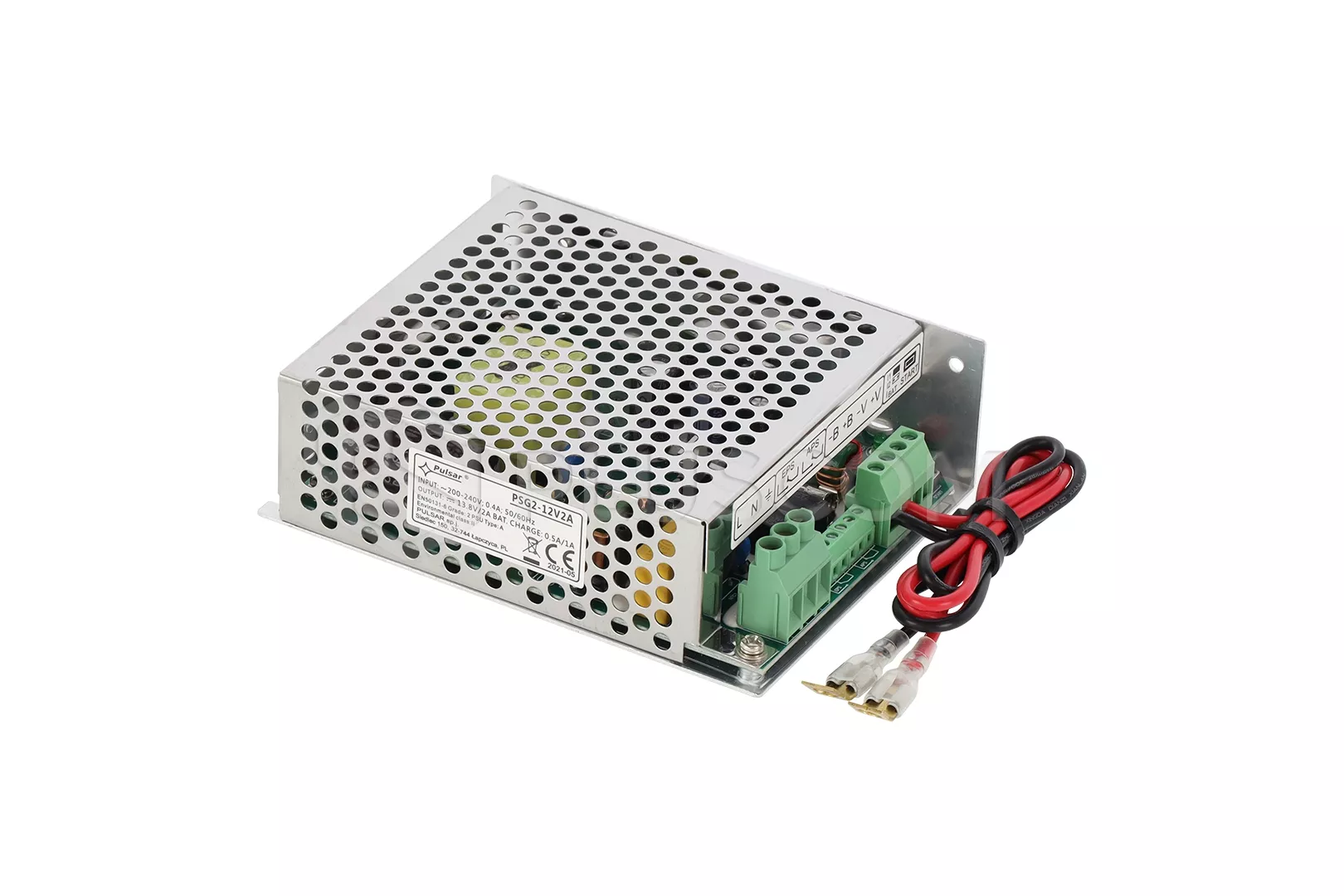

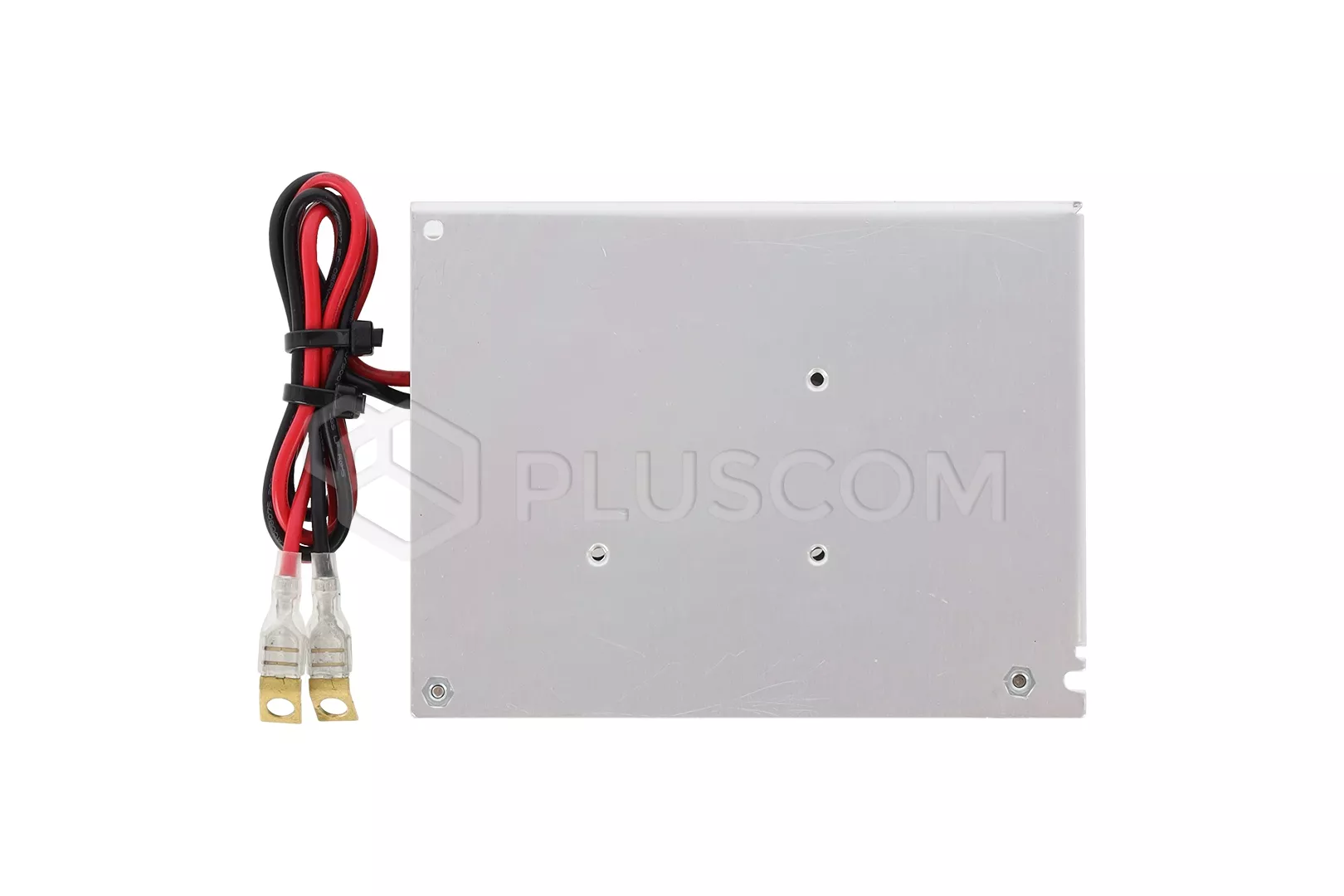

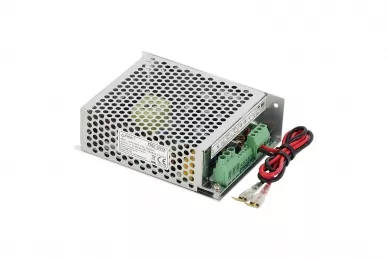

Pulsar PSG2-12V2A PSG2 13,8V/2A Enclosed buffer switch mode power supply unit Grade 2

37,37 EUR including 23.00% VAT
Product code: #30733
Manufacturer: Pulsar
  • Power supply: 200 - 240 V AC
  • Battery charging current: 0.5A/1A
  • Efficiency: 86%
  • Dimensions: 129 x 98 x 40 [+/-2 mm]
  • Protections: SCP, OLP, OVP, UVP
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar PSG2-12V3A built-in buffer power supply 13.8V 3A Pulsar PSG2-12V20A built-in buffer power supply 13.8V 20A Pulsar PSG2-12V1A built-in buffer power supply 13.8V 1A Pulsar DIN4 holder for power supplies Pulsar DIN2 holder for power supplies and transformers Pulsar DIN3 holder for power supplies Pulsar PSG2-12V10A PSG2 13,8V/10A Enclosed buffer switch mode power supply unit Grade 2 Pulsar PSG2-12V7A built-in buffer power supply 13.8V 7A Pulsar PSG2-12V5A built-in buffer power supply 13.8V 5A

Pulsar PSG2-12V2A PSG2 13,8V/2A Enclosed buffer switch mode power supply unit Grade 2


Technical parameters:

  • Power supply: 200 - 240 V AC
  • Power supply output: 2.5 A / 13.8 V DC (total output current with charging)function START allows running PSU from battery power
  • Compliant with standards: Construction compliant with EN50131, GRADE 1÷2Access control norm EN60839-11, Grade 1÷2
  • Battery charging current: 0.5A/1A
  • Efficiency: 86%
  • Dimensions: 129 x 98 x 40 [+/-2 mm]
  • Protections: SCP, OLP, OVP, UVP
  • Technical outputs relay type: EPS – AC power failureAPS – battery failure
  • Warranty: 2 years
  • Notes: - an automatic battery test performed every 5 minutes - for mounting on a DIN rail, required bracket: DIN2 - Additional accessories: set of LED optical indication PKAZ168
    • Download
    Data sheet 0.22 MB
    Instruction 0.8 MB
