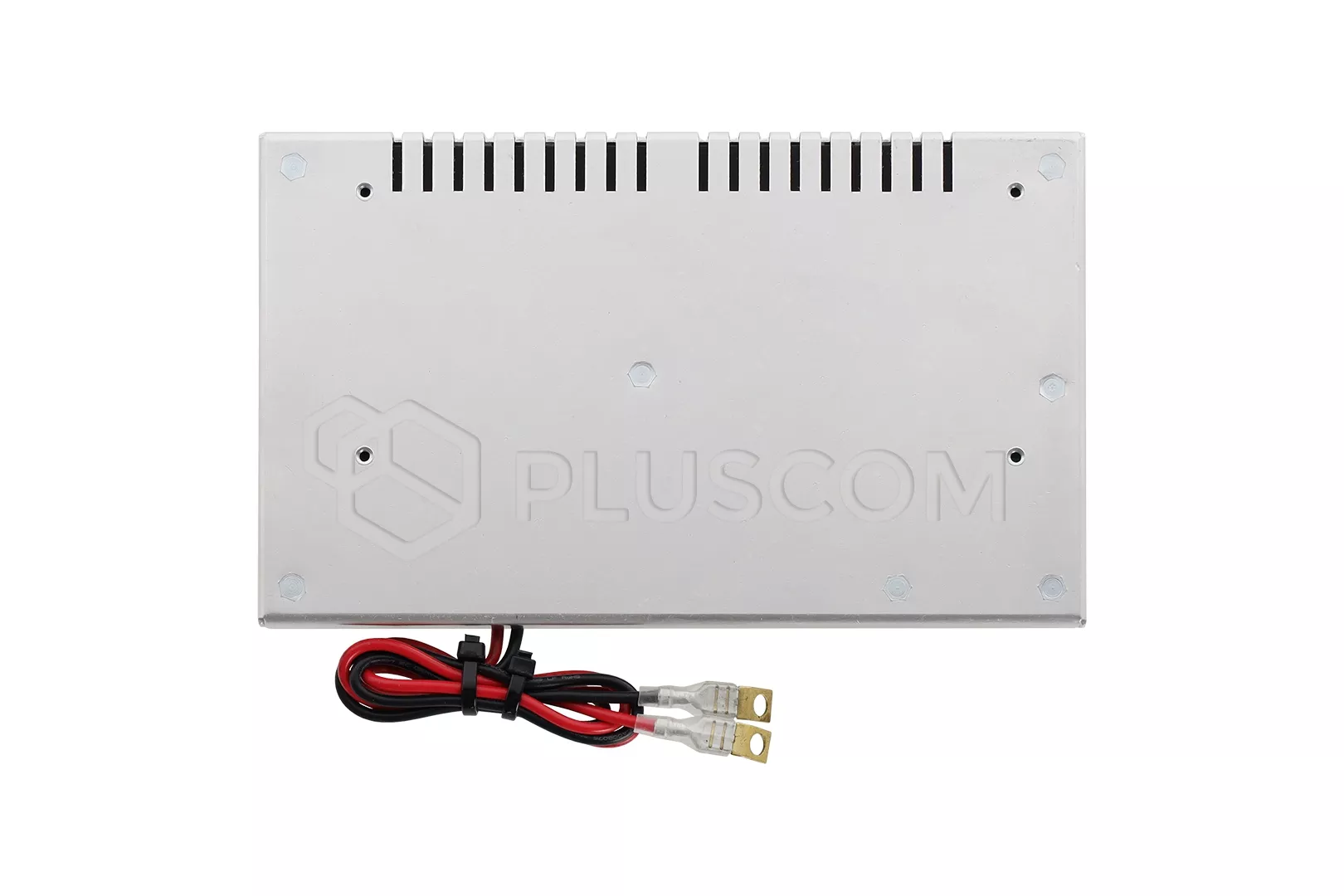

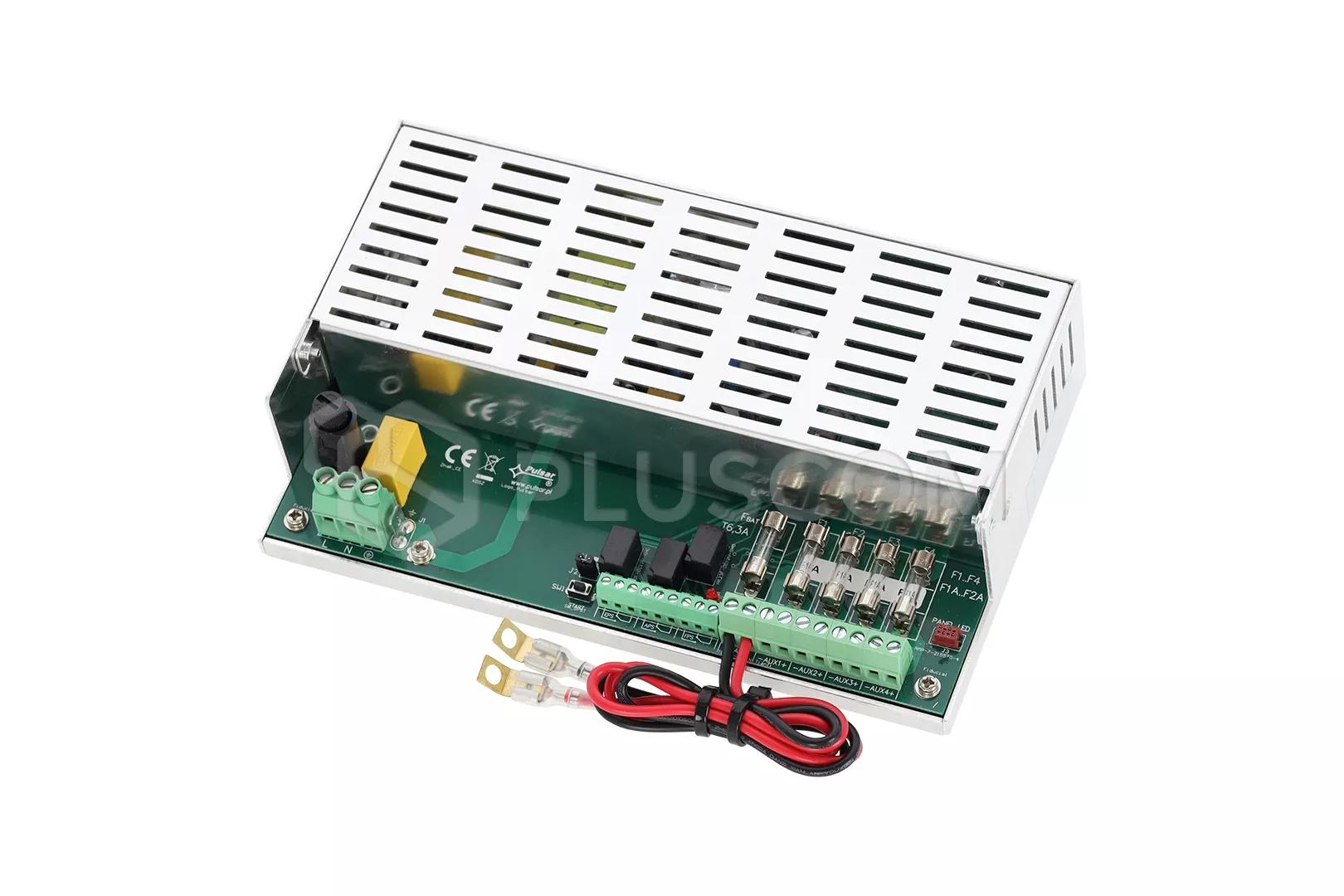

Pulsar PSDCG2-12V4X1A PSDCG2 13,8V/4A/4x1A multi-output buffer switch-mode power supply unit Grade 2

57,29 EUR including 23.00% VAT
Product code: #27437
Manufacturer: Pulsar
  • Power supply: 200 - 240 V AC
  • Fuse: 4 x 1A (glass fuse)
  • Battery charging current: 0.5A/1A
  • Efficiency: 85%
  • Dimensions: 200 x 48 x 120 [+/-2 mm]
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar PSDCG2-12V8X1A PSDCG2 13,8V/8A/8x1A multi-output buffer switch-mode power supply unit Grade 2

Pulsar PSDCG2-12V4X1A PSDCG2 13,8V/4A/4x1A multi-output buffer switch-mode power supply unit Grade 2


Technical parameters:

  • Power supply: 200 - 240 V AC
  • Power supply output: 4 x 1 A / 13.8 V DC (∑ 5 A max. - total output current with charging)function START allows running PSU from battery power
  • Compliant with standards: Construction compliant with EN50131, GRADE 1÷2Access control norm EN60839-11, Grade 1÷2
  • Fuse: 4 x 1A (glass fuse)
  • Battery charging current: 0.5A/1A
  • Efficiency: 85%
  • Dimensions: 200 x 48 x 120 [+/-2 mm]
  • Protections: SCP, OLP, OVP, UVP
  • Technical outputs relay type: FPS – indication of output fuse activationEPS – AC power failureAPS – battery failure
  • Indication: LED optical indication
  • Warranty: 2 years
  • Notes: - for mounting on a DIN rail, required bracket: DIN4 - Additional accessories: set of LED optical indication PKAZ168
Download
Data sheet 0.49 MB
Instruction 0.99 MB
