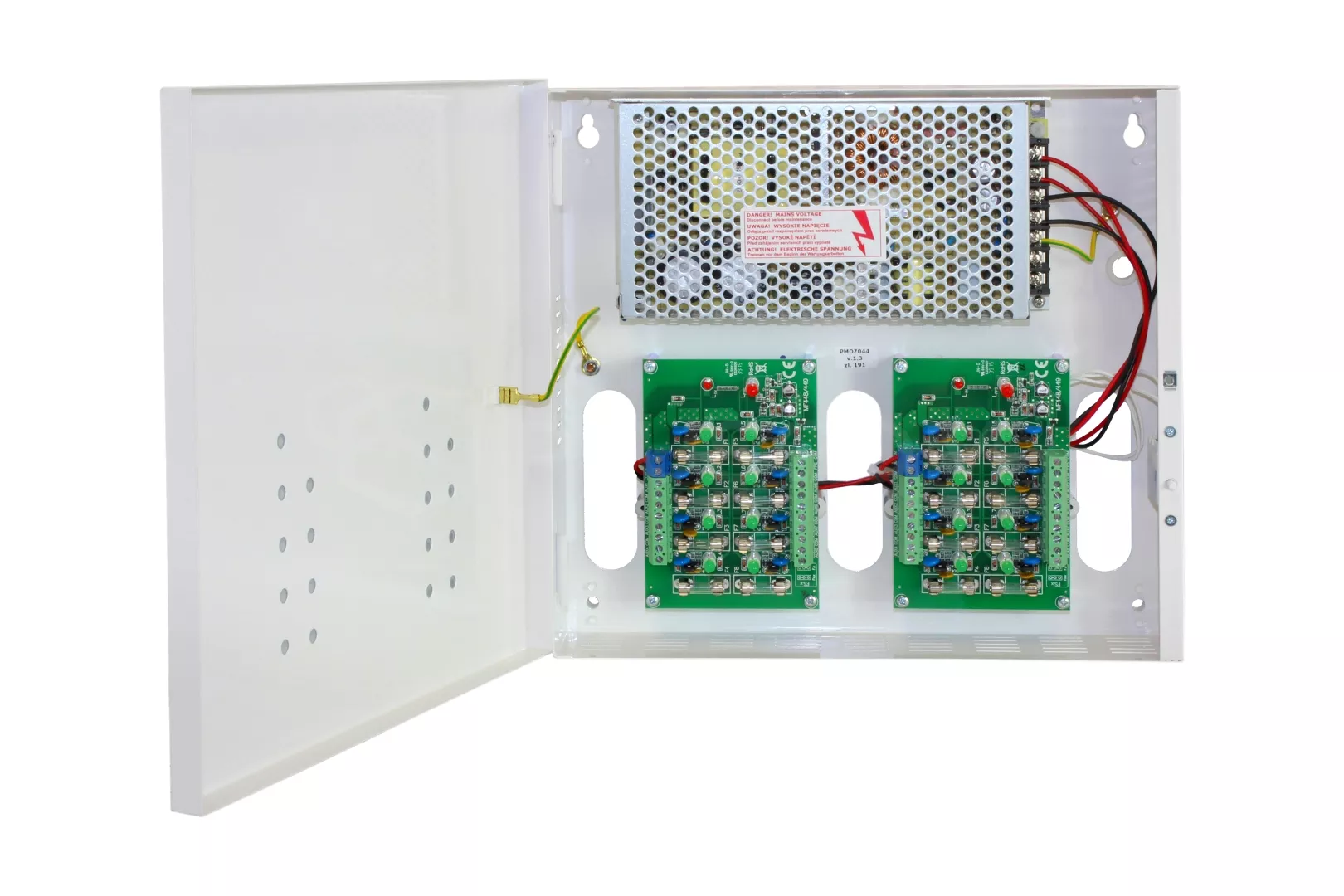

Pulsar PSDC16128 power supply for up to 16 cameras

132,34 EUR including 23.00% VAT
Product code: #7771
Manufacturer: Pulsar
  • 16x DC 12V/0,5A power output
  • 16 outputs protected with 0,5A fuses
  • LED indication
  • FPS technical output of fuse activation indication
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar PSDC16128 Power supply for up to 16 HD cameras

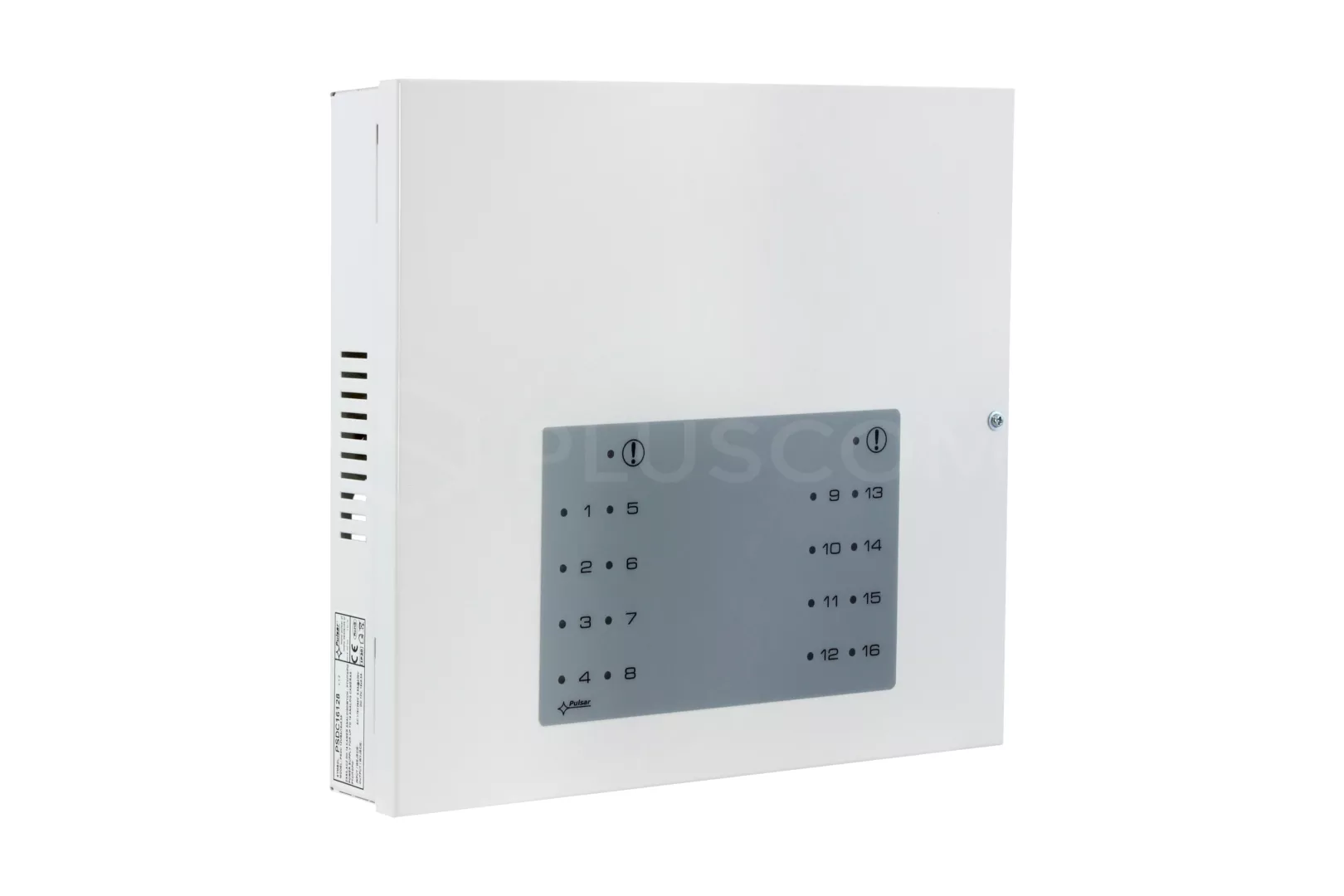

Front view:

Front view:

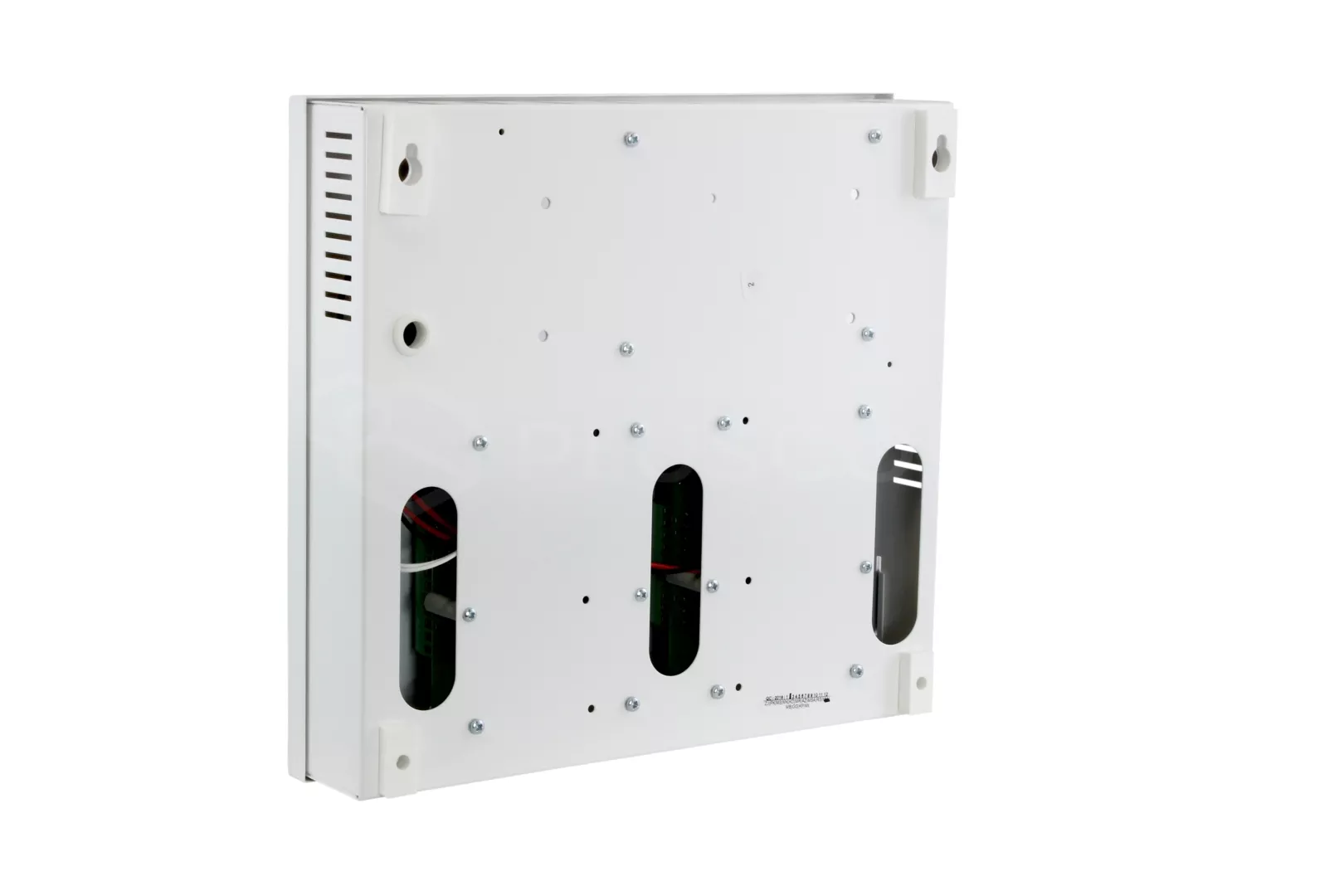

Rear view:

Rear view:

Stabilised power up to 16 HD cameras or other devices that require an alarm system voltage of 12V DC. The value of the output voltage can be adjusted by potentiometer in the range of 12-15V.
Each output is protected no matter polymer fuses / topic. Short circuit at one of the outputs will fuse and cut off the power supply circuit without causing a power outage on the other outputs.

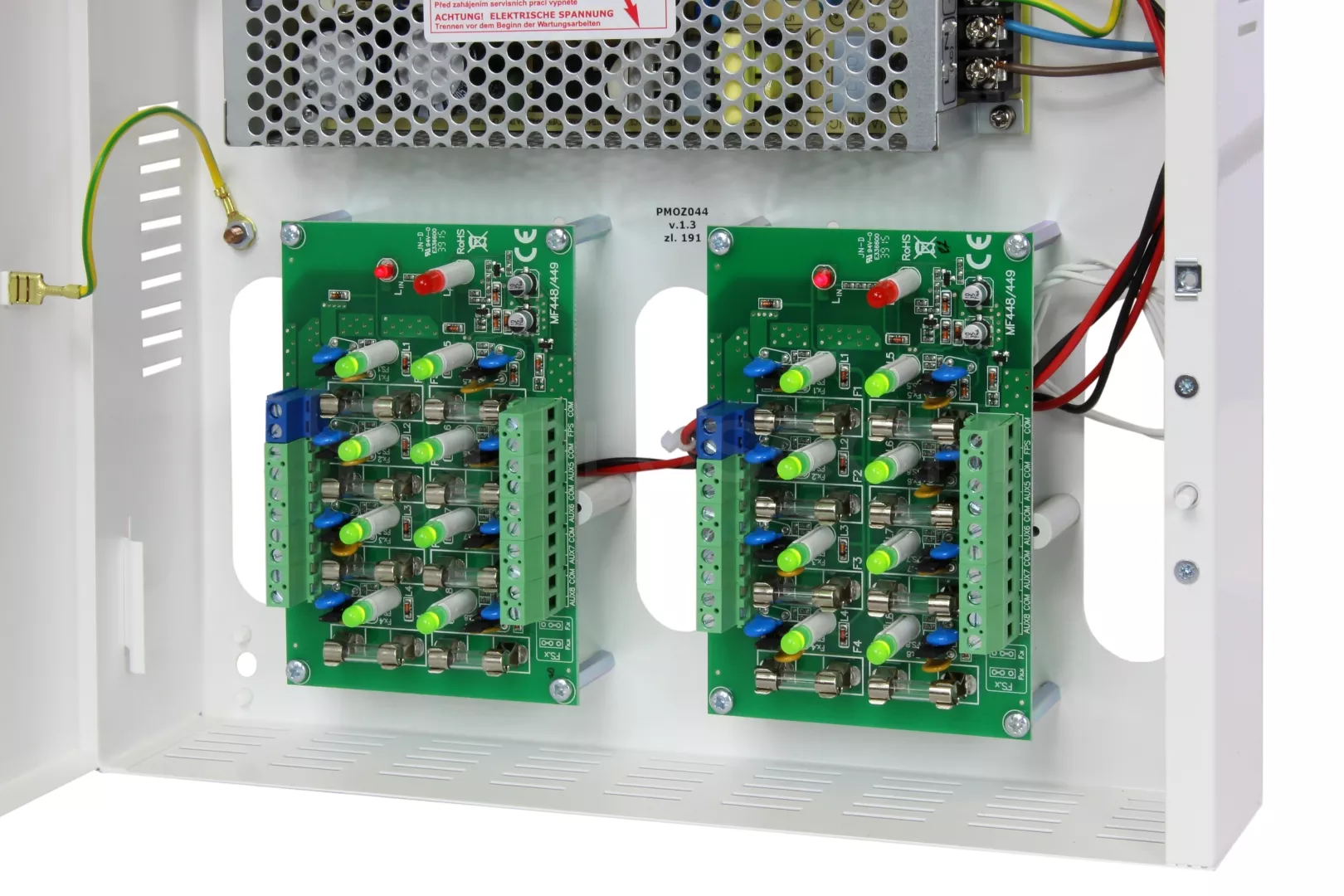

Power distributor module:

Power distributor module:

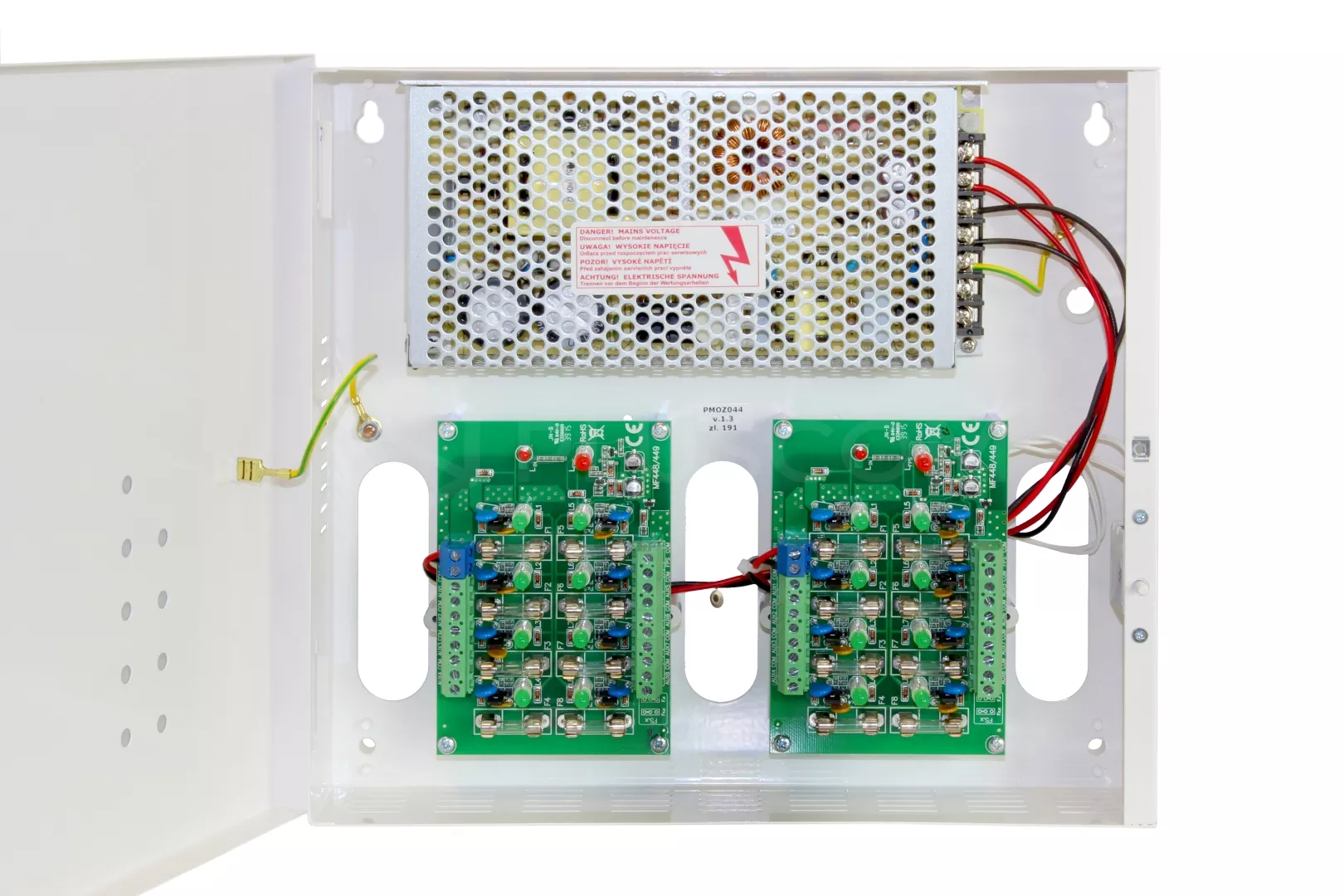

Power supply has been placed in a metal housing. PSU cooling takes place on the free flow of air. On the front panel is signaling LED.
  • Green LEDs indicate the presence of voltage at the output
  • A red LED indicates fuse.
The housing has a tamper sensor in the form of open housing.

TECHNICAL PARAMETERS
  • 16x power outputs
  • 16 outputs fused 0,5A (type fuse PTC / TOPIC selected with a jumper)
  • FPS technical output OC - signaling fuse
  • optical signal for each output,
  • voltage / current output: DC 12V / 0,5A
  • adjustable output voltage: DC 12-15V
  • a wide range of supply voltage: AC 176-264V
  • High efficiency: 83%
  • protection:
    • SCP - short circut protection
    • OVP - over voltage protection
    • surge protection
    • OLP - overload protection
    • against tampering
  • housing dimensions: 280x256x60+8mm
  • sheet steel DC01 0.7mm white RAL9003
  • closing way: screwed - screw at the front

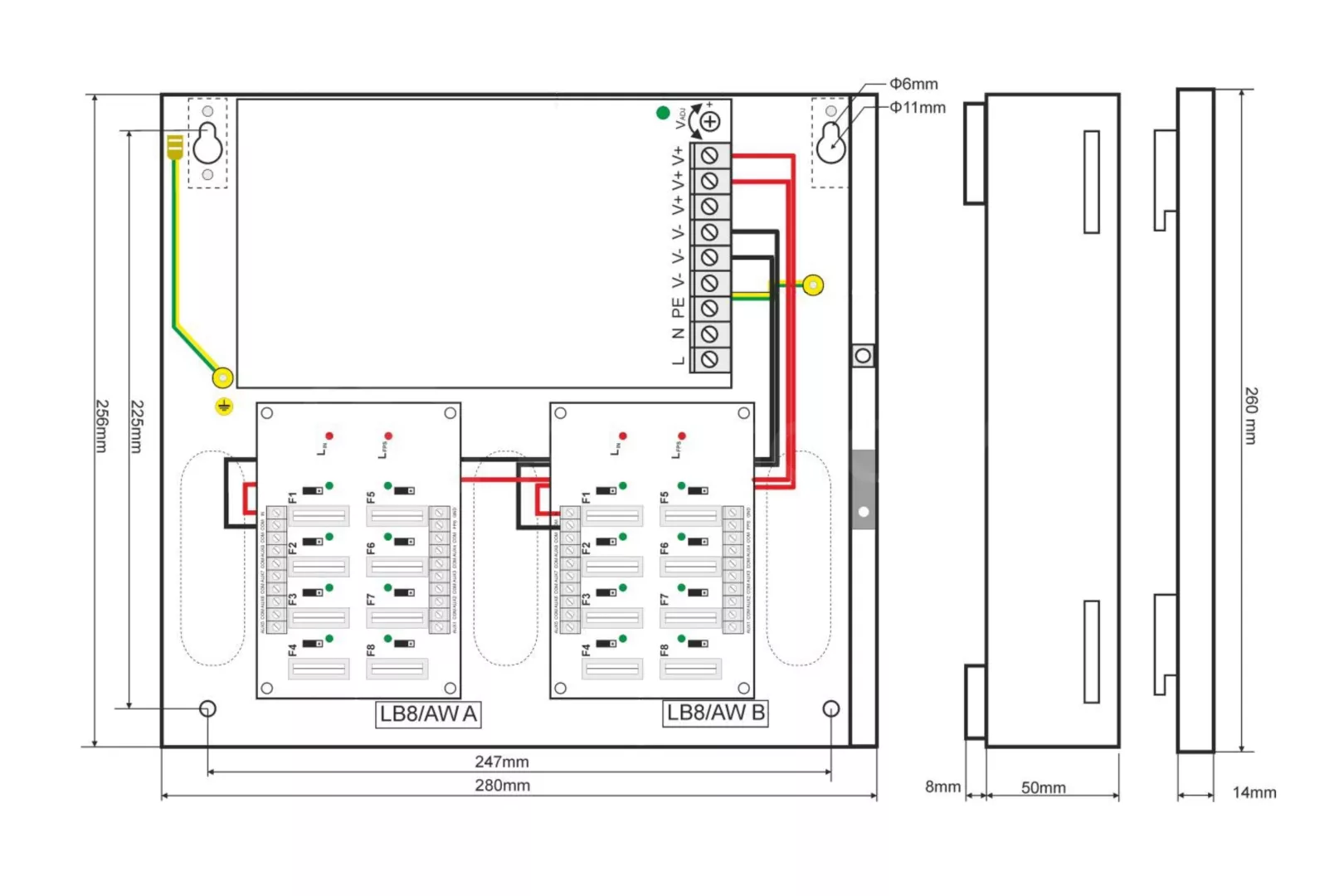

Dimensions and construction of the power supply:

Dimensions and construction of the power supply:
