Pulsar PSDC161212T power supply for up to 16 cameras

88,74 EUR including 23.00% VAT
Product code: #11090
Manufacturer: Pulsar
  • 16x DC 12V/0,8A power output
  • 16 outputs protected with 0.8A fuses
  • LED indication
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar PSDC161212T Power supply for up to 16 analog cameras

The stabilized PSU PSDC161212T stabilized power supply is designed to supply HD cameras or otherdevices requiring stabilized voltage 12V DC. The output voltage adjustment range is adjusted via a potentiometer within the range of 12V ÷ 15V DC. The PSU features 16 outputs protected independently by glass fuses. A failure (ashort circuit) in the output circuit makes a fuse blow or an activation of the polymer fuse and disconnection of the circuit from the DC power supply (+U). The PSU is housed in a metallic enclosure with an indication panel.
Pulsar PSDC161212T power supply for up to 16 cameras

Pulsar PSDC161212T power supply for up to 16 cameras

Pulsar PSDC161212T

Pulsar PSDC161212T

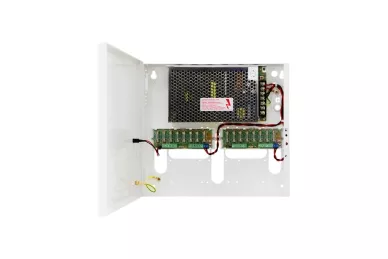

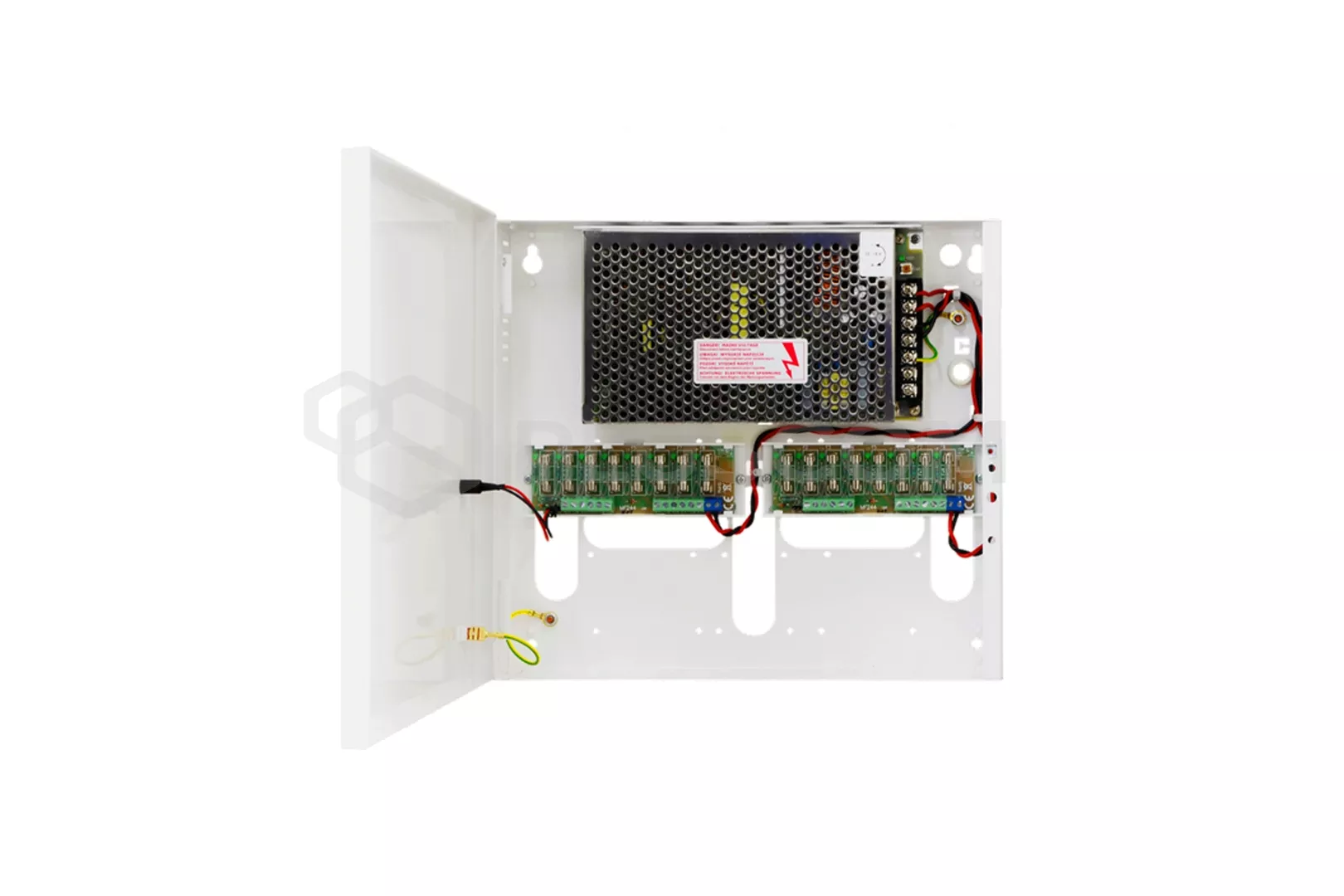

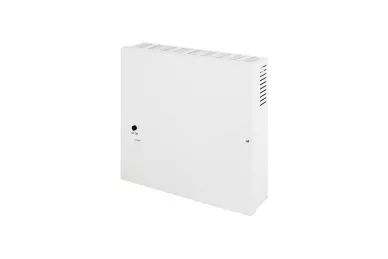

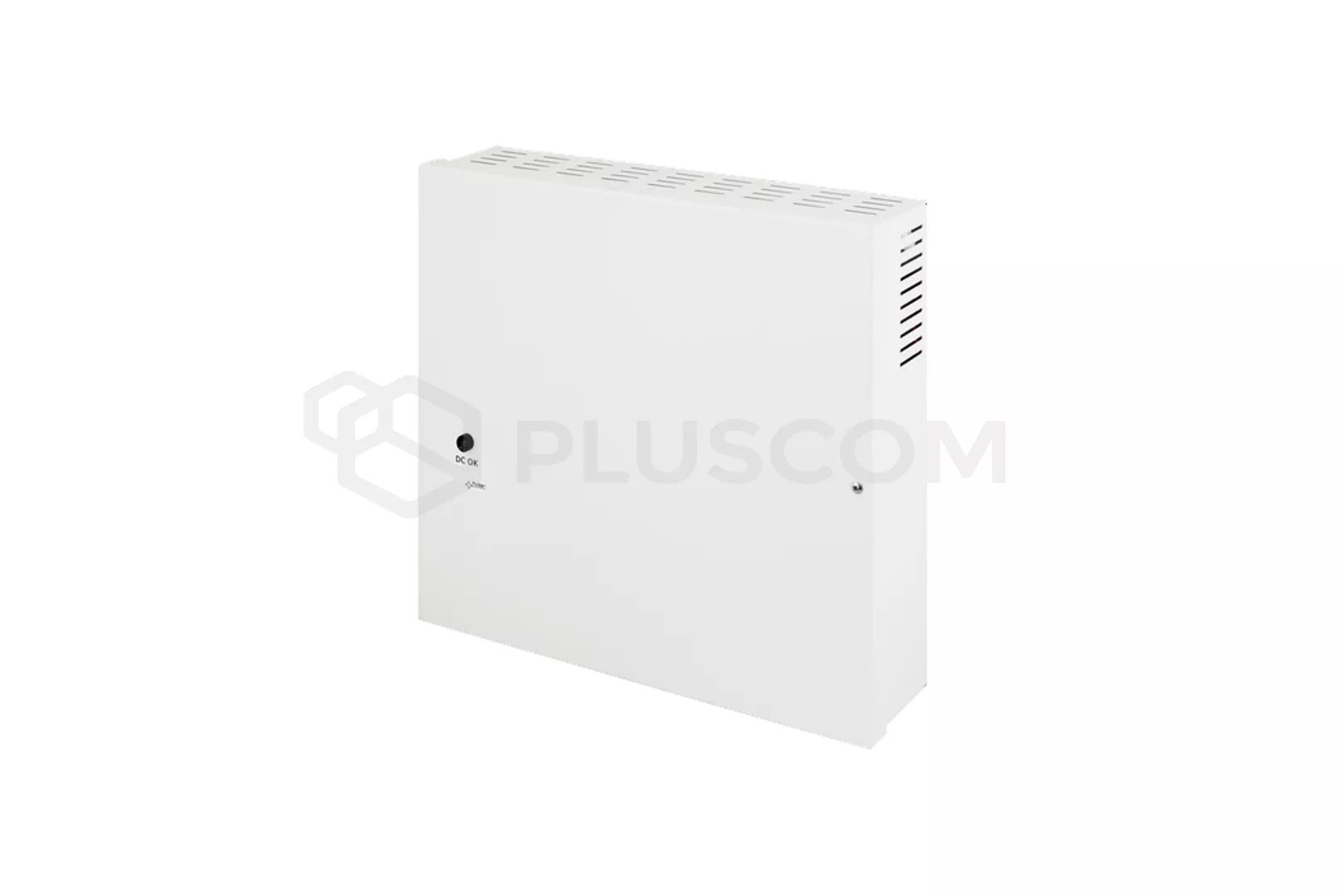

Power supply has been placed in a metal housing. PSU cooling takes place on the free flow of air. On the front panel is signaling LED.

TECHNICAL PARAMETERS
  • 16x power outputs
  • 16 outputs fused 0,8A
  • optical signal
  • voltage / current output: DC 12V / 0,8A
  • adjustable output voltage: DC 12-15
  • a wide range of supply voltage: AC 176-264V
  • High efficiency: 83%
  • housing dimensions: 294x260x52+8mm
  • sheet steel DC01 0.7mm white RAL9003
  • closing way: screwed - screw at the front
  • protection:
    • SCP - short circut protection
    • OVP - over voltage protection
    • surge protection
    • OLP - overload protection

Pulsar PSDC161212T

Pulsar PSDC161212T


Download
Data Sheet 2.14 MB
Instruction 3.34 MB
Declaration CE 0.32 MB
