Pulsar PSDC09125T power supply for up to 9 cameras

76,91 EUR including 23.00% VAT
Product code: #7775
Manufacturer: Pulsar
  • 9x DC 12V/0,5A power output
  • 9 outputs protected with F0,5A fuses
  • LED indication
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar PSDC09125T Power supply for up to 9 HD cameras

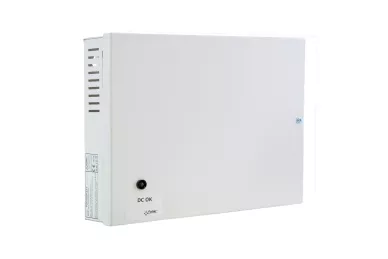

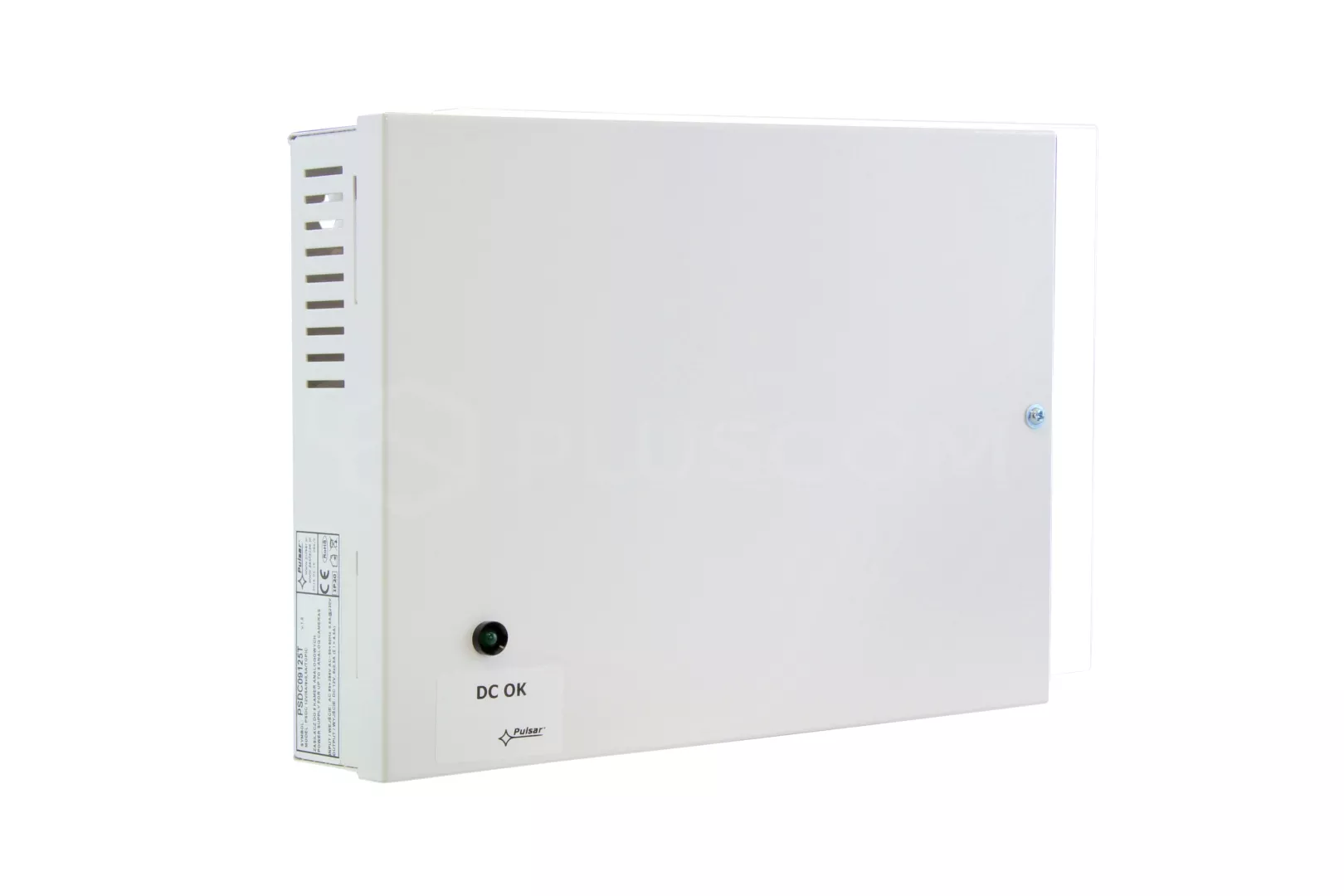

Front view:

Front view:

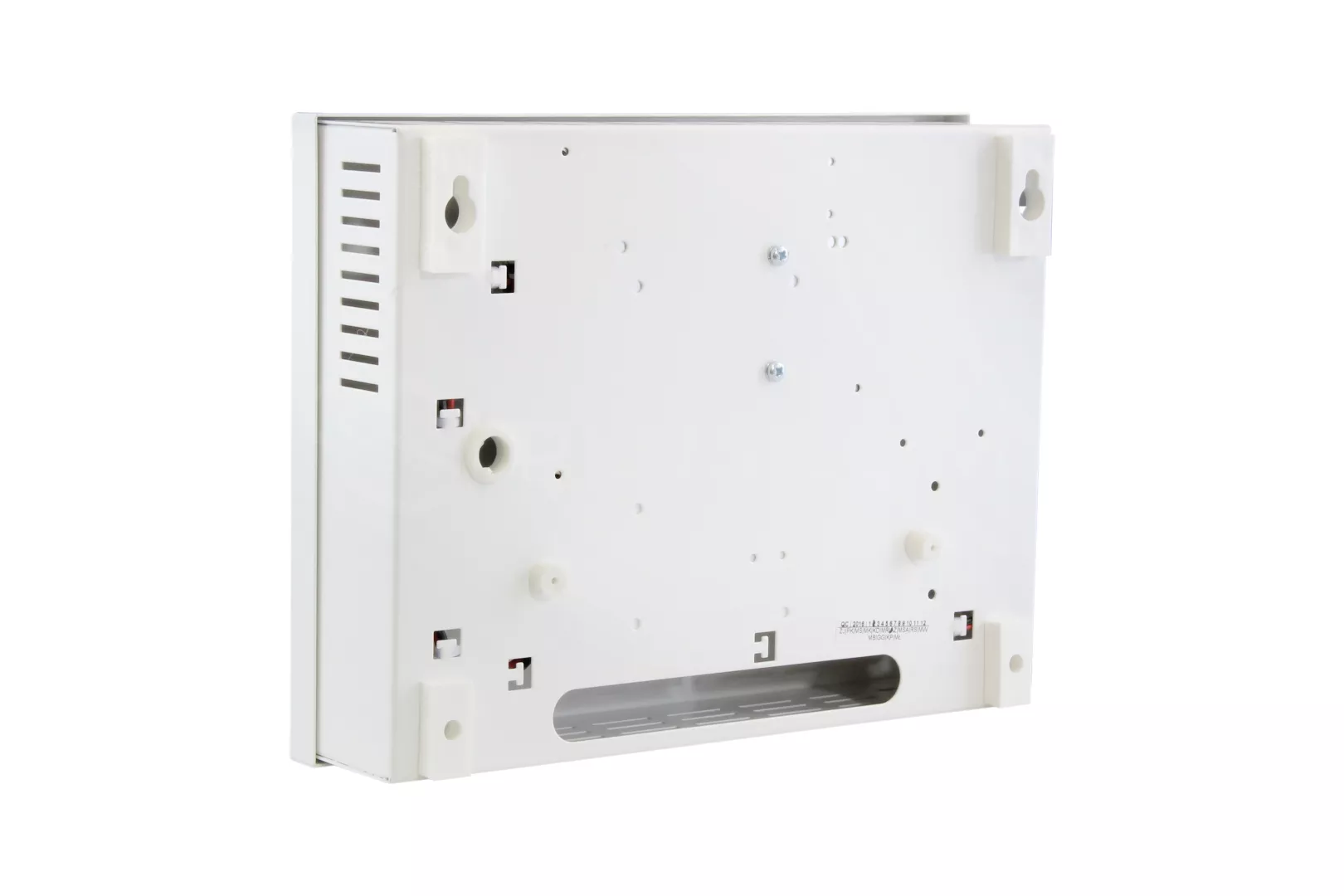

Rear view:

Rear view:

Stabilised power up to 9 HD cameras or other devices that require an alarm system voltage of 12V DC. The value of the output voltage can be adjusted by potentiometer in the range of 12-15V.

Each output is protected topic fuses. Short circuit at one of the outputs will fuse and cut off the power supply circuit without causing a power outage on the other outputs.

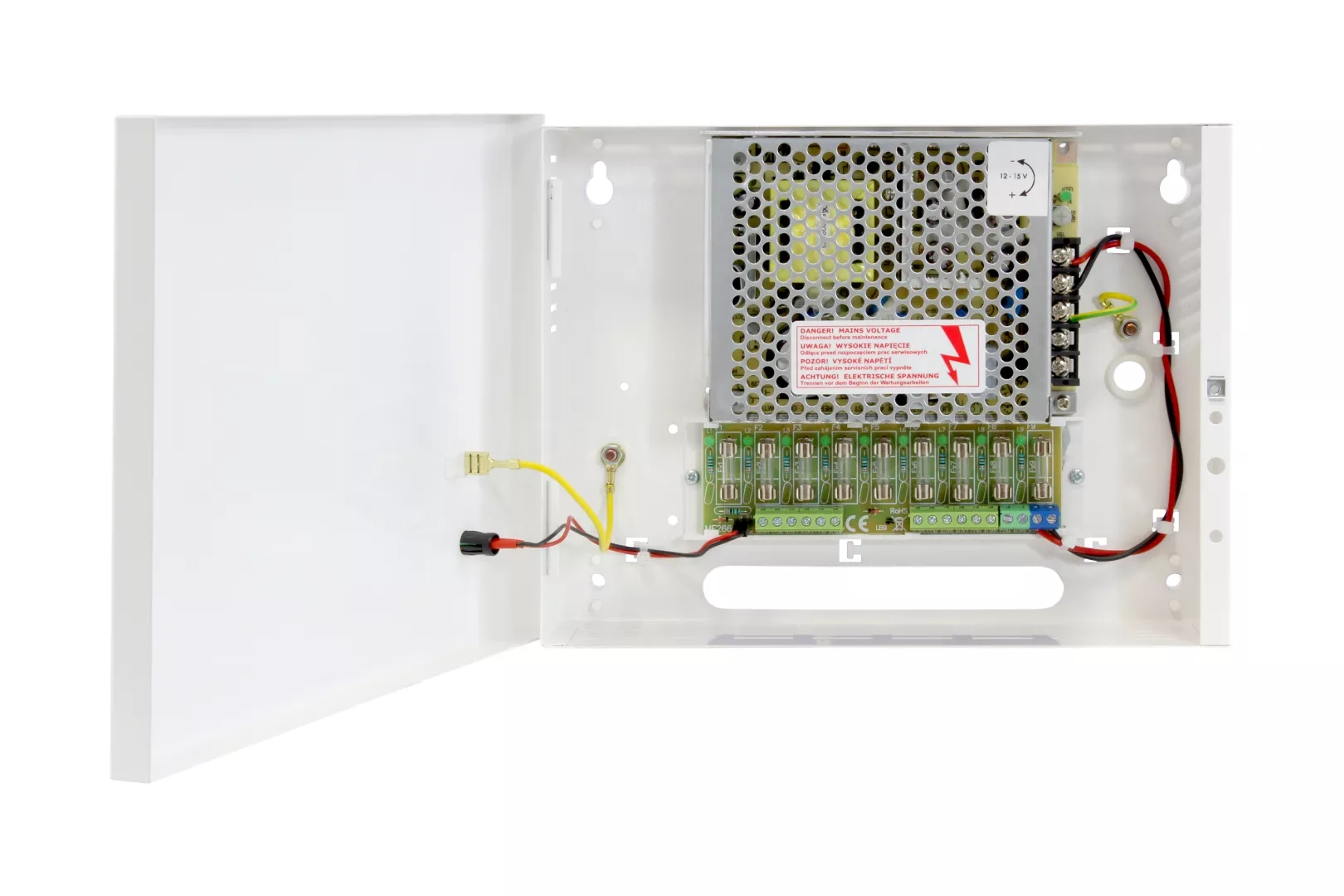

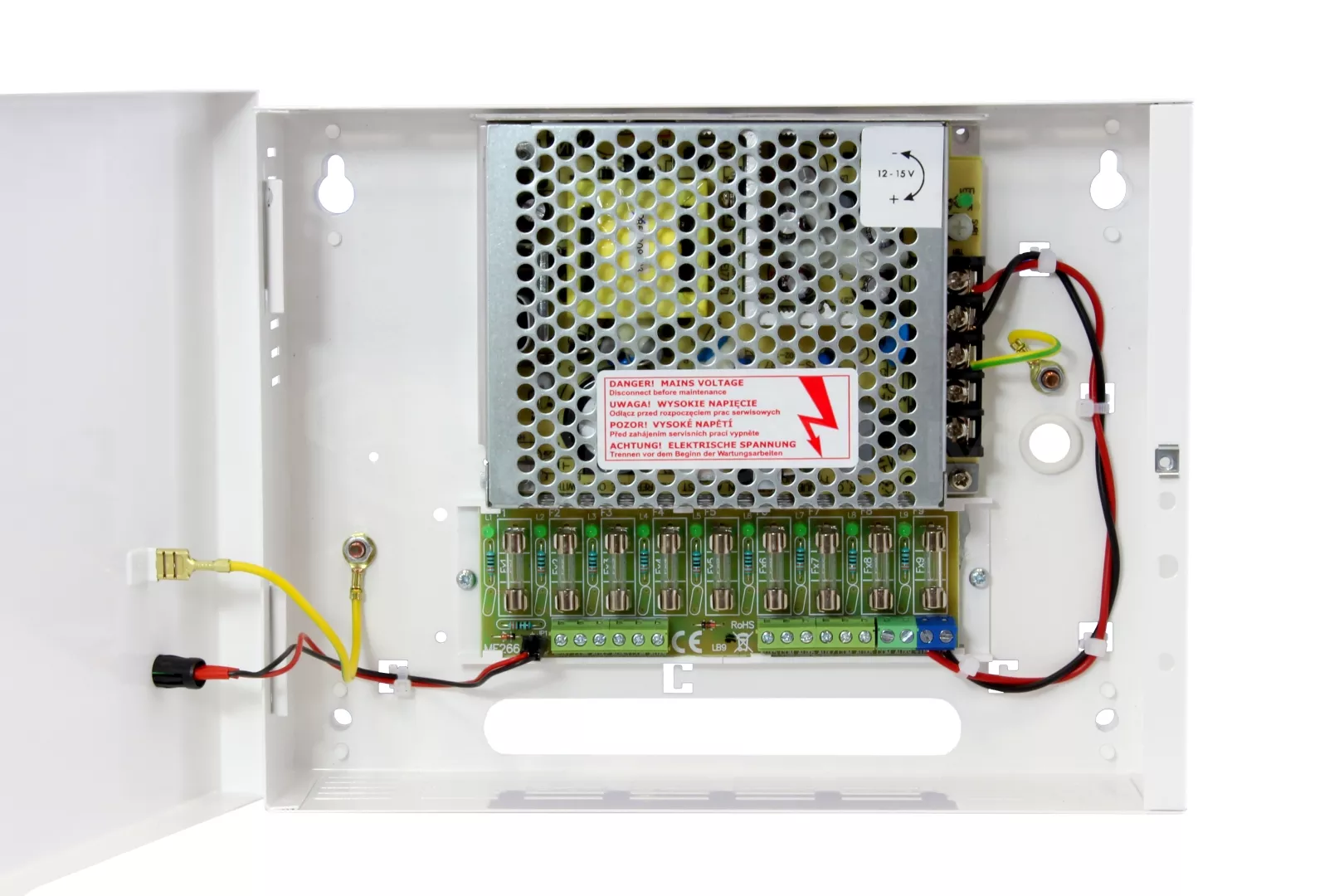

The inside of the power supply, power distributor module:

The inside of the power supply, power distributor module:



Power supply has been placed in a metal housing. PSU cooling takes place on the free flow of air. On the front is a LED indicating the status of the DC main power supply module.

TECHNICAL PARAMETERS
  • 9x power outputs
  • 9 outputs fused F0,5A
  • optical signal for each output,
  • voltage / current output: DC 12V / 0,5A
  • adjustable output voltage: DC 12-15V
  • a wide range of supply voltage: AC 85-264V
  • High efficiency: 80%
  • protection:
    • SCP - short circut protection
    • OVP - over voltage protection
    • surge protection
    • OLP - overload protection
    • against tampering
  • housing dimensions: 230x176x51+8mm
  • sheet steel DC01 0.7mm white RAL9003
  • closing way: screwed - screw at the front

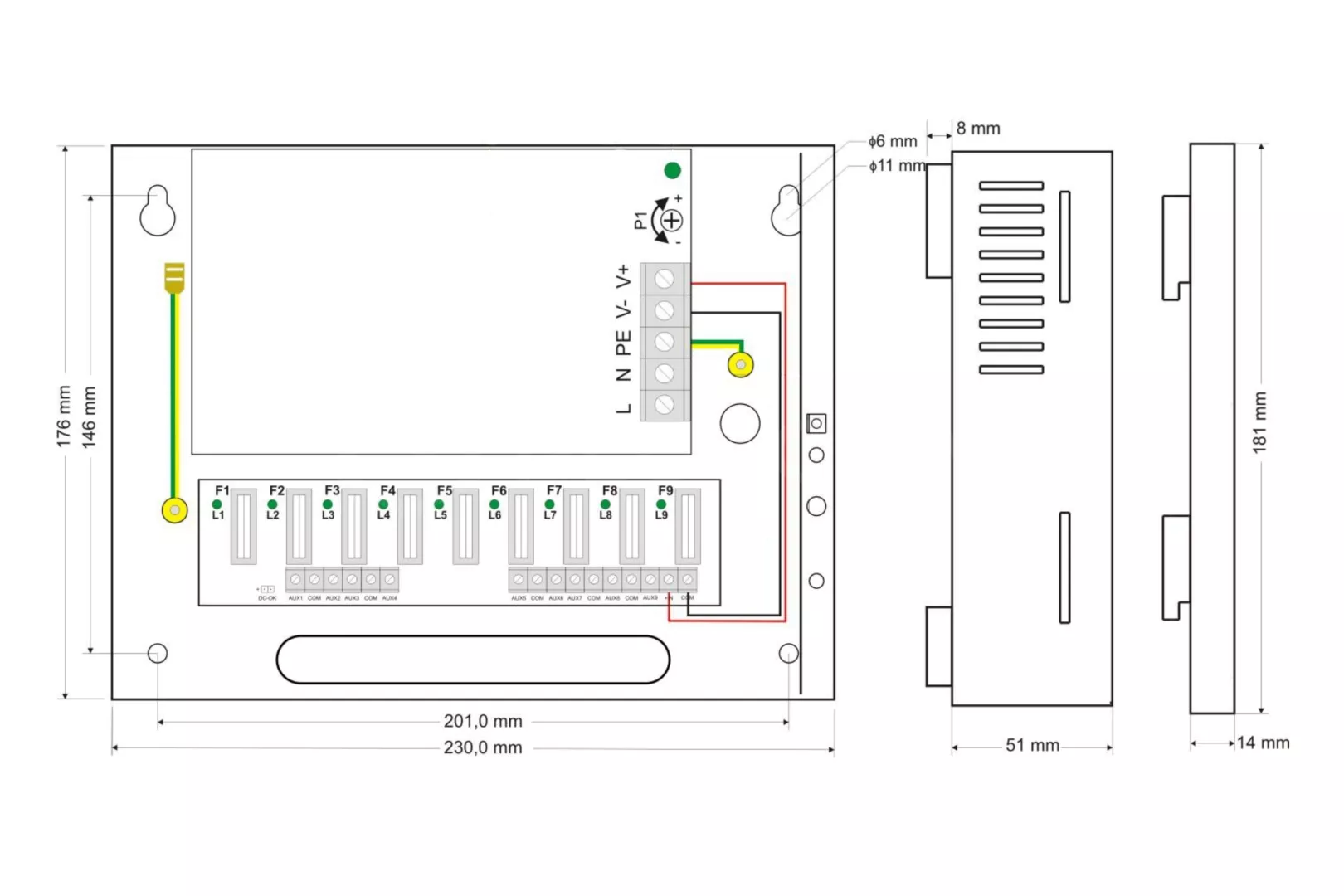

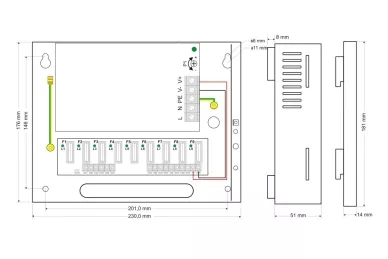

Dimensions and construction of the power supply:

Dimensions and construction of the power supply:

Download
Datasheet 0.48 MB
CE Declaration 0.32 MB
Instruction 3.09 MB
