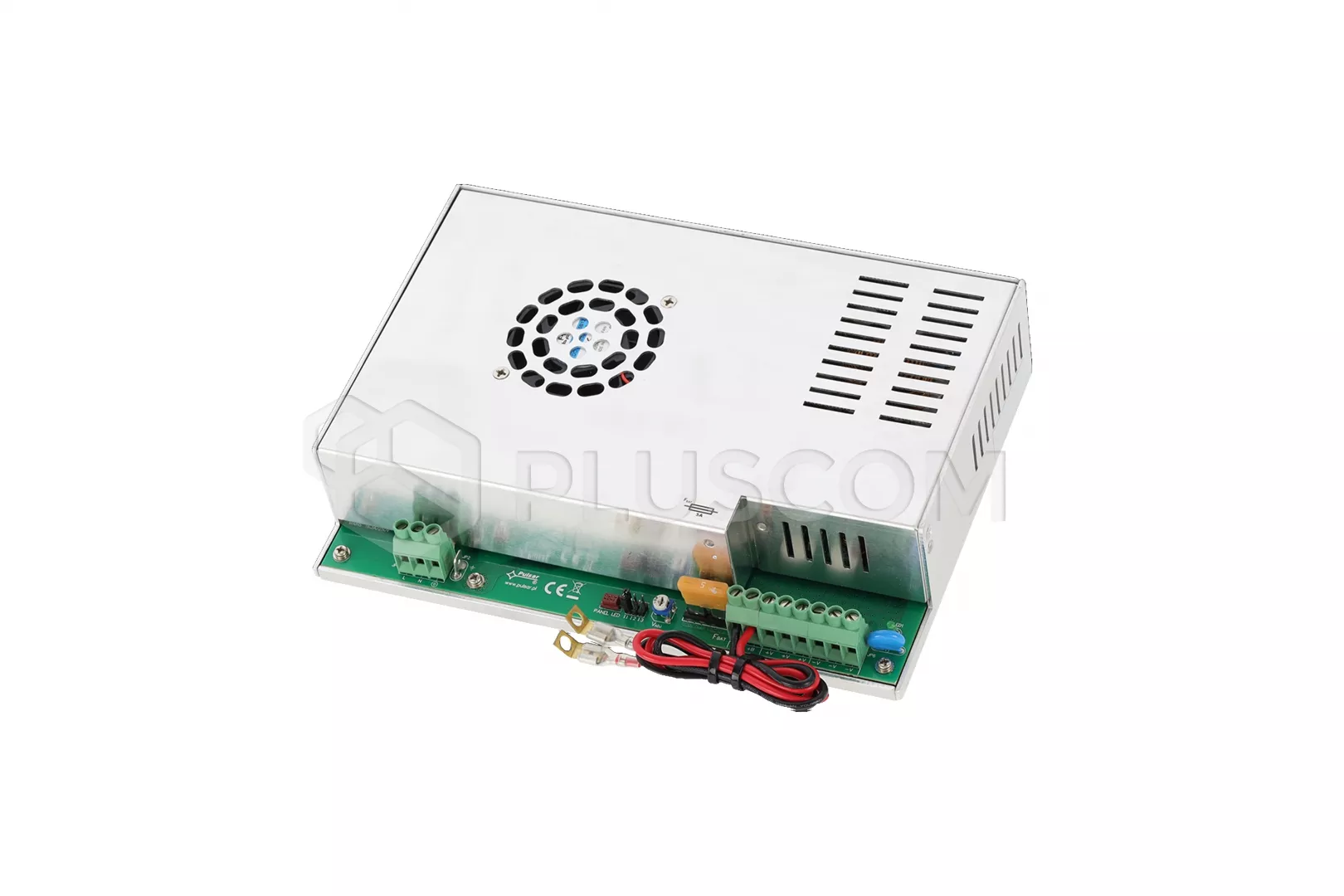

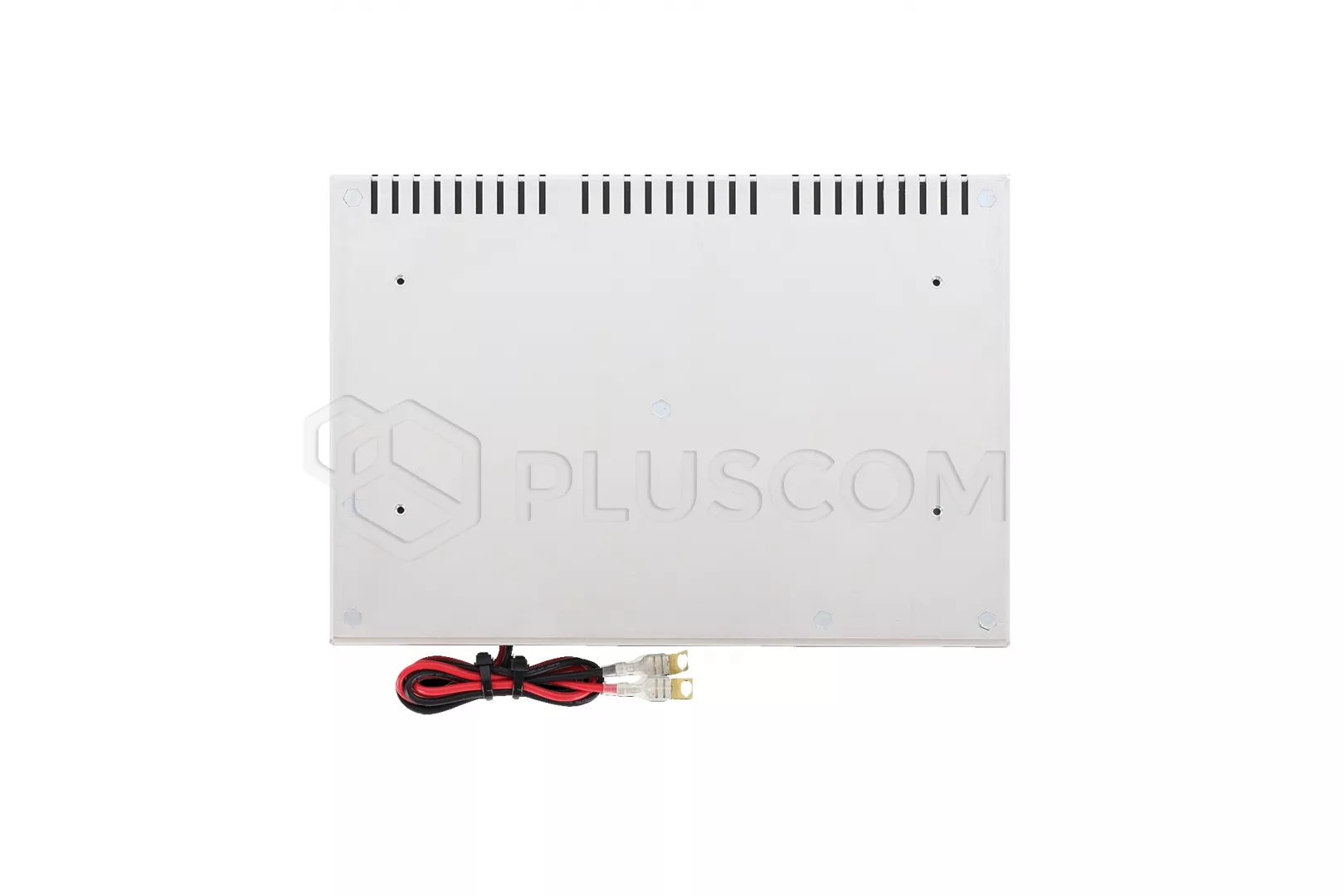

Pulsar PSB-48V5A built-in buffer power supply 48V 5A

Pulsar PSB-48V5A built-in buffer power supply 48V 5A

A buffer power supply with stable parameters, high efficiency and small size dimensions is designed to supply system devices from the 230 V mains alarm systems, monitoring systems and other devices that require constant voltage 48V DC.
The power supply provides voltage U=54V DC with current efficiency:

• output current 4.5A + 0.5A battery charging
• output current 4A + 1A battery charging
• output current 3A + 2A battery charging

The total current of receivers + battery is max. 5A.
In the event of a mains voltage failure, it immediately switches to battery powered
Forced cooling with built-in fan.
The power supply is equipped with the following protections:

• short-circuit protection SCP

• overload OLP

• overvoltage OVP
• surge
• thermal OHP

The most important features of the power supply

• wide input voltage range
• built-in power factor correction (PFC)
• battery charging and maintenance control
• protection of the battery against excessive discharge (UVP)
• battery charging current 0.5A/1A/2A, jumper switchable
• protection of the battery output against short circuit and reverse connection
• forced cooling
• output voltage presence indicator
• chassis height: 54mm
• possible optional mounting on a DIN rail by using special ones fasteners

• optional equipment: a set of external optical LED signaling PKAZ168, DIN4 mounting plate

TECHNICAL PARAMETERS:

• Power: 200-240V
• Inrush current: 60A
• PSU power: 270 W max.
• Efficiency: 87%
• Output voltage:
• • 44-54V DC – buffer operation
  • 38-54 V DC - battery operation
• Output current: 5A
• Output voltage adjustment range: 53-56V DC
• Ripple voltage: 150 mV p-p max.
• Operating temperature: -10°C...40°C

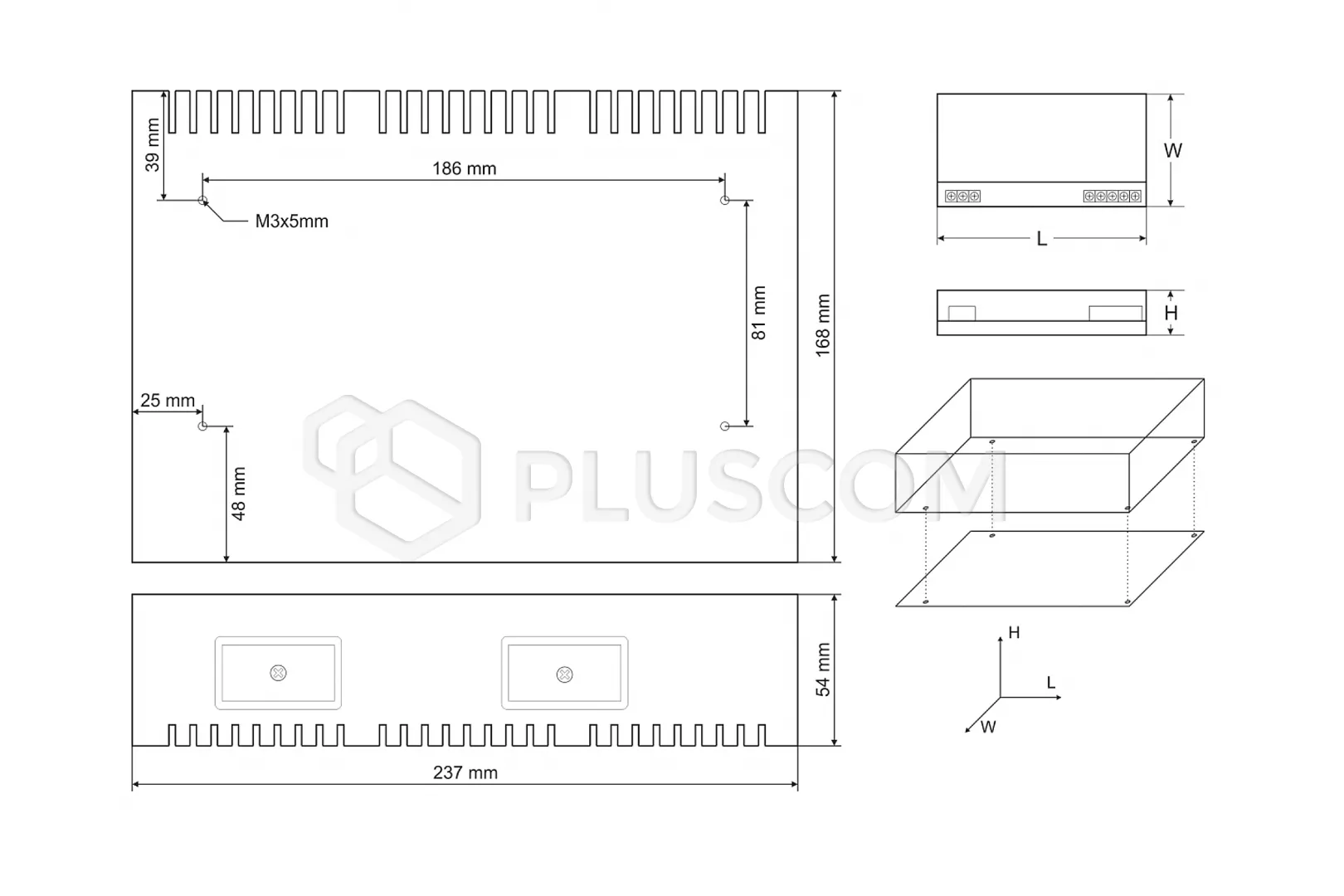

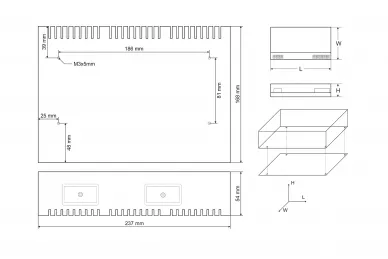

• Dimensions: 237x168x54mm
• Weight: 1.31kg
