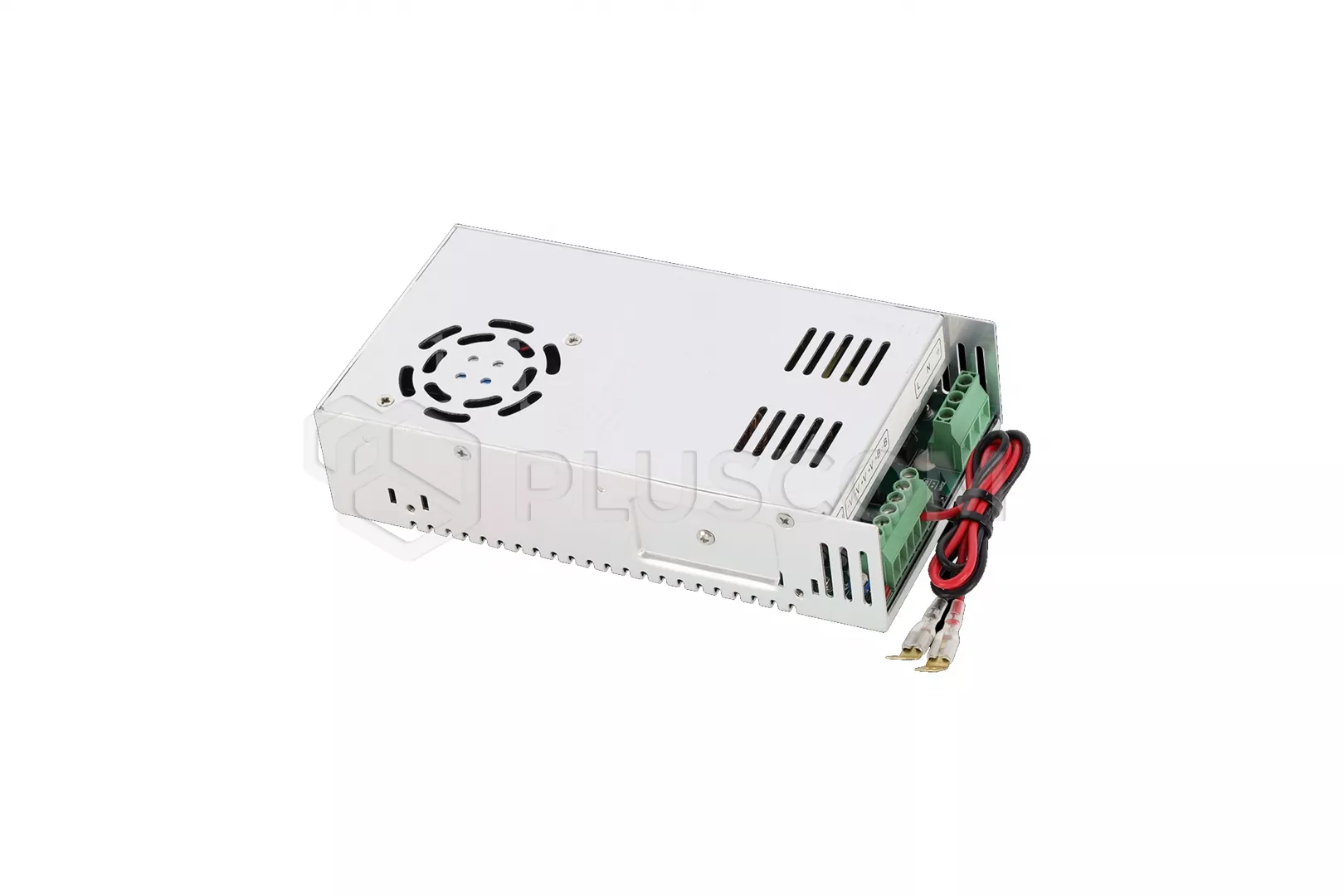

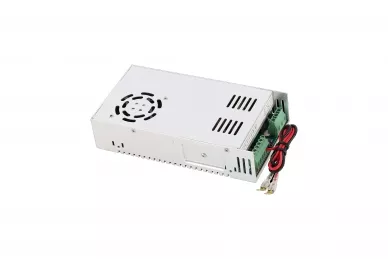

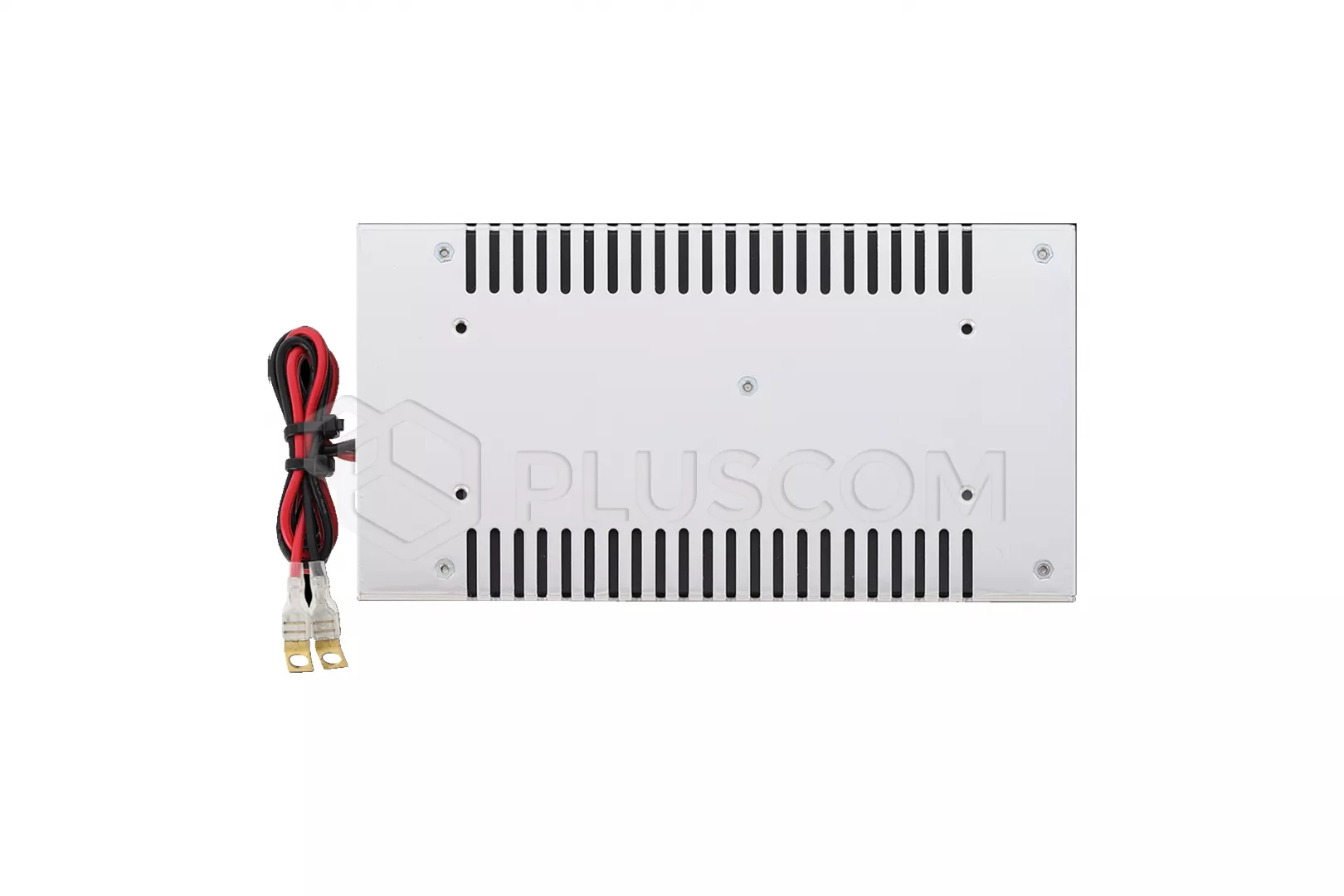

Pulsar PSB-24V7A built-in buffer power supply 27.6V 7A

75,98 EUR including 23.00% VAT
Product code: #27431
Manufacturer: Pulsar
  • Output voltage: DC 27.6V
  • Current efficiency of the power supply: 7A
  • Battery charging and maintenance check
  • LED optical signaling
  • Forced cooling

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar DIN4 holder for power supplies Pulsar PKAZ168 Set of optical indication Pulsar DIN3 holder for power supplies

  • short-circuit protection SCP
  • overload OLP
  • overvoltage OVP
  • surge
The most important features of the power supply
  • wide input voltage range
  • battery charging and maintenance control
  • protection of the battery against excessive discharge (UVP)
  • battery charging current 1 A/2 A, jumper selectable
  • protection of the battery output against short circuit and reverse connection
  • forced cooling
  • output voltage presence indicator
  • casing height: 50mm
  • possible optional mounting on a DIN rail by using special ones fasteners
  • optional equipment: a set of external optical LED signaling PKAZ168, DIN3 mounting plate

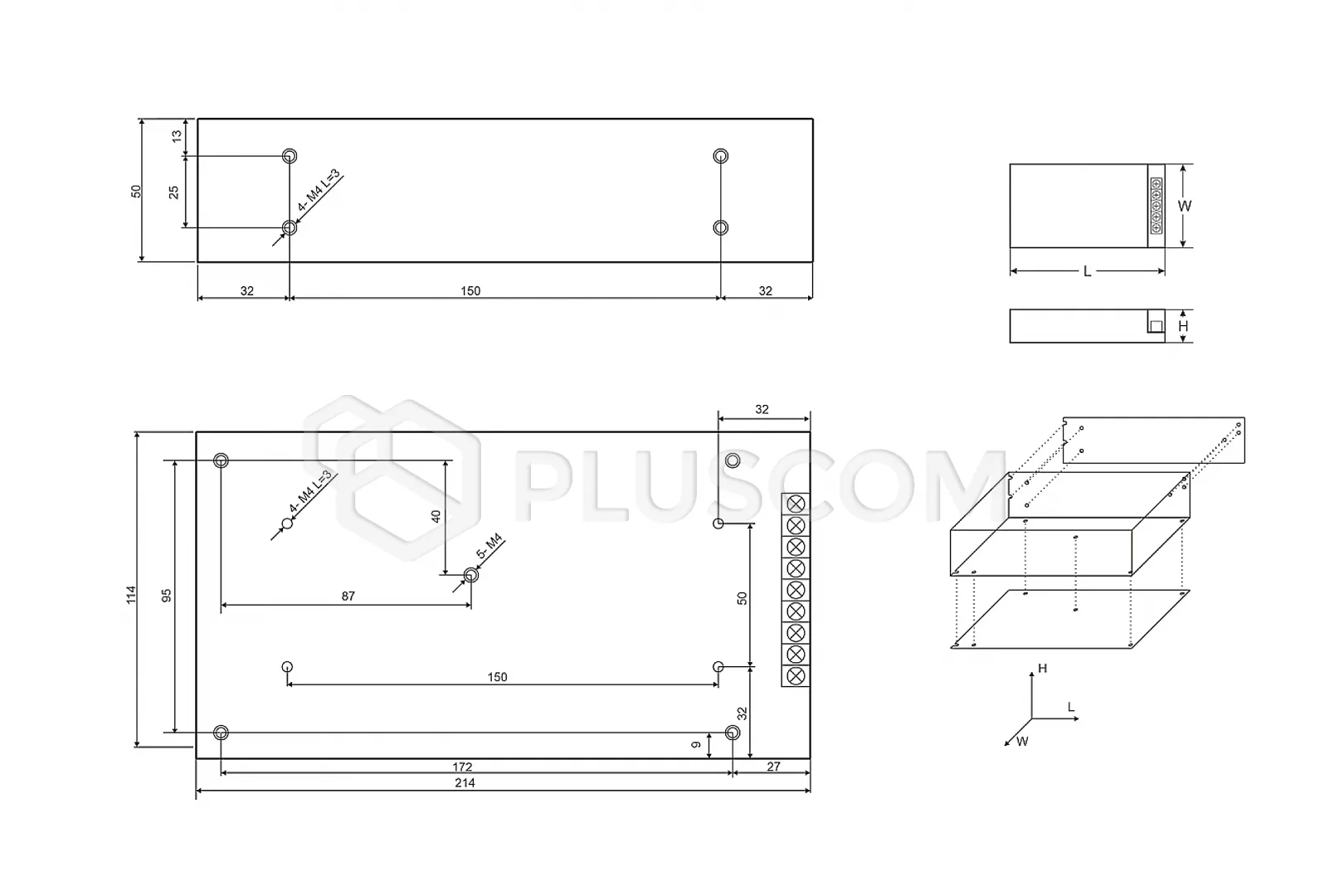

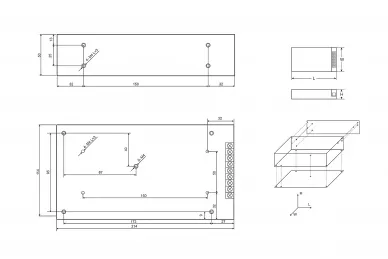

Dimensioning and fitting

Dimensioning and fitting


TECHNICAL PARAMETERS:
  • Power: 200-240V
  • Inrush current: 60A
  • PSU power: 194 W max.
  • Efficiency: 88%
  • Output voltage:
    • 22-27.6 V DC - buffer operation
    • 19-27.6 V DC - battery operation
  • Output current: 7A
  • Output voltage adjustment range: 27-28.8 V DC
  • Ripple voltage: 150 mV p-p max.
  • Operating temperature: -10°C...40°C
  • Dimensions: 214x114x50mm
  • Weight: 0.85kg
