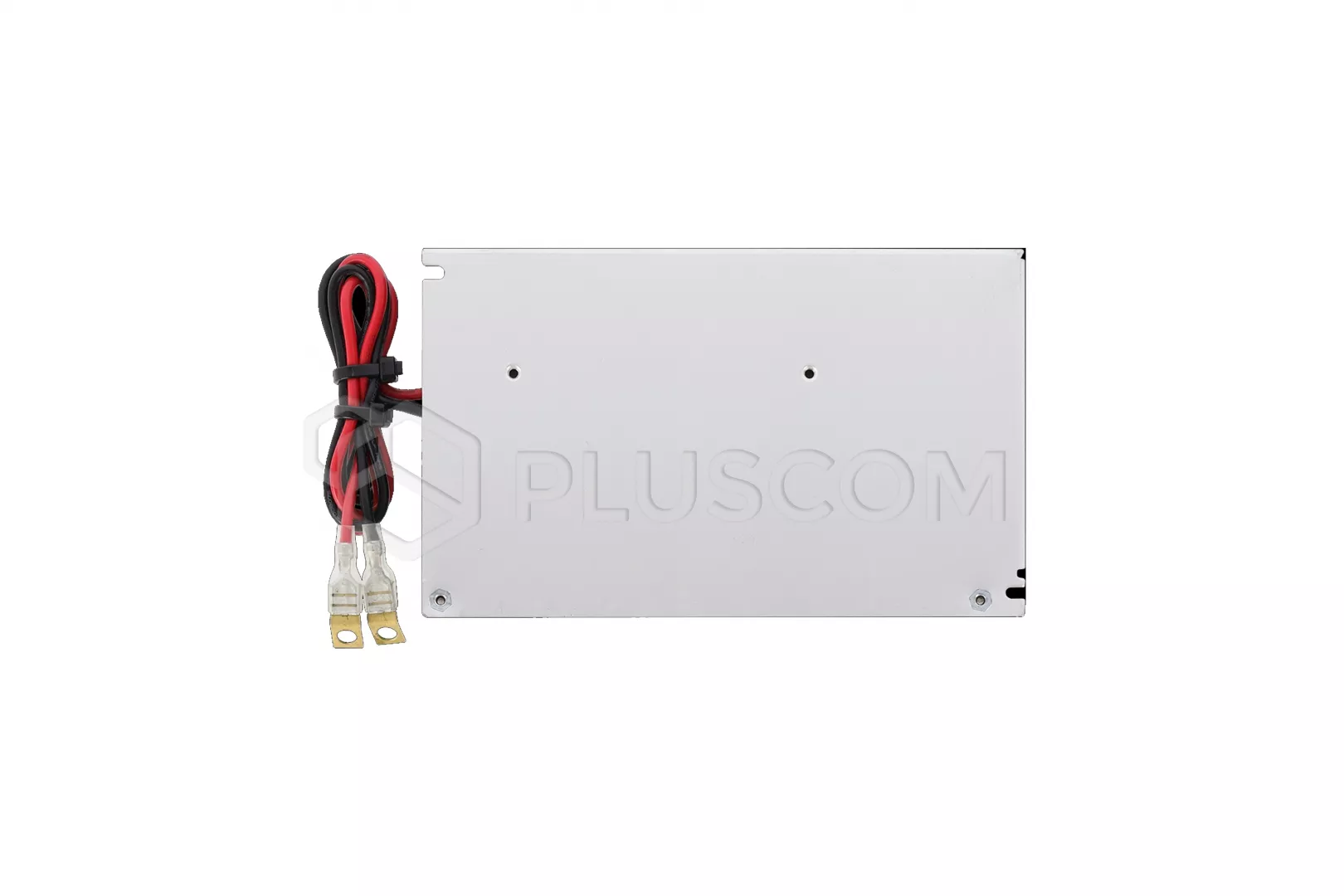

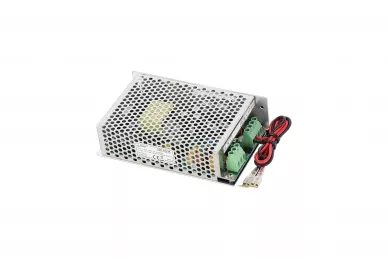

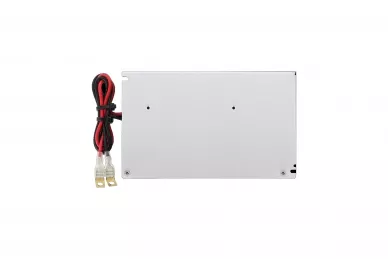

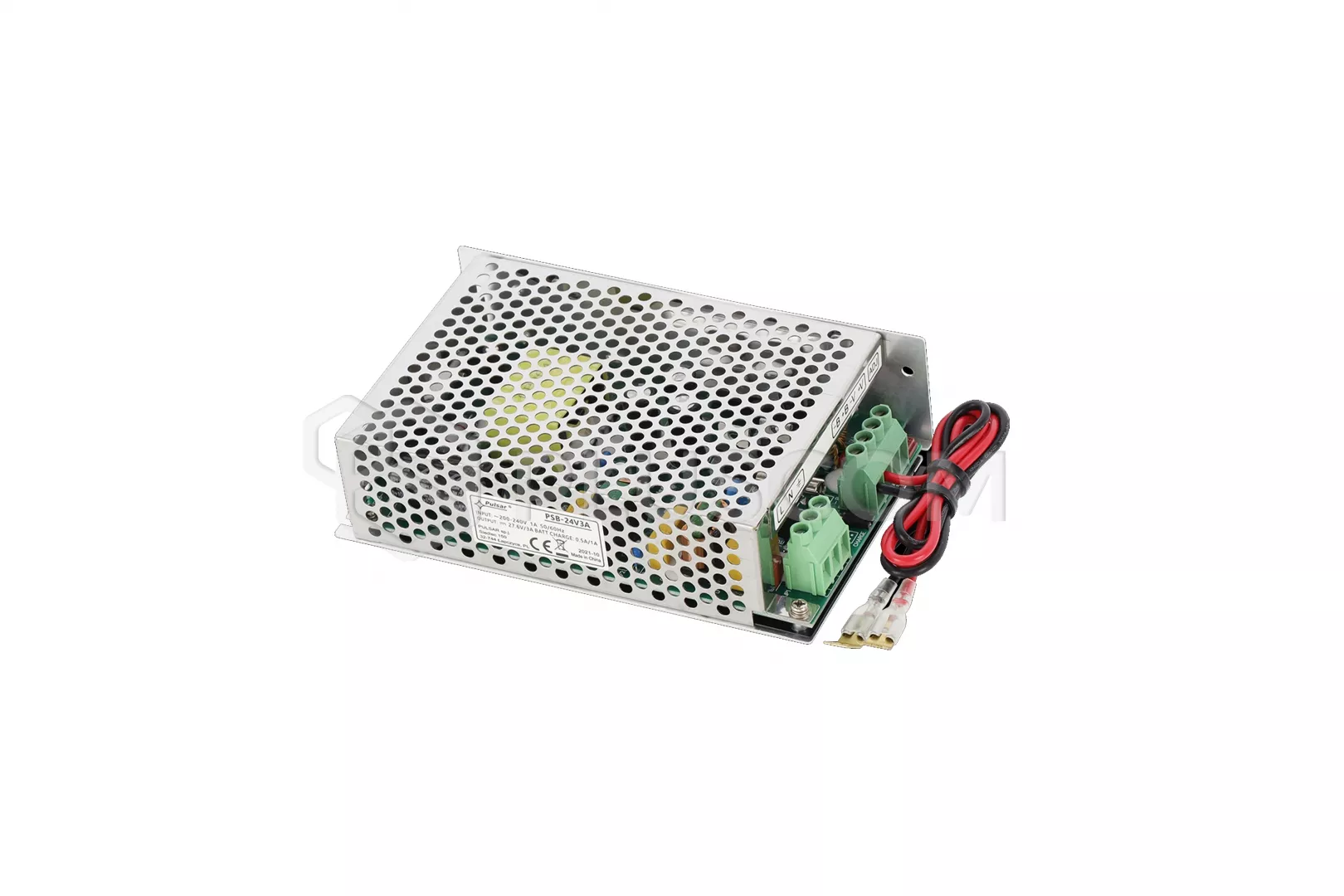

Pulsar PSB-24V3A built-in buffer power supply 27.6V 3A

Pulsar PSB-24V3A built-in buffer power supply 27.6V 3A

A buffer power supply with stable parameters, high efficiency and small size dimensions is designed to supply system devices from the 230 V mains alarm systems, monitoring systems and other devices that require constant voltage 24 V DC.
The power supply supplies voltage U=27.6 V DC with current efficiency:

• output current 3 A + 0.5 A battery charge
• 2.5A output current + 1A battery charge

The total current of receivers + battery is max. 3.5 A.
In the event of a mains voltage failure, it immediately switches to battery powered
Cooling takes place in a passive way, with free air circulation.
The power supply is equipped with the following protections:

• short-circuit protection SCP

• overload OLP

• overvoltage OVP
• surge


The most important features of the power supply

• wide input voltage range
• battery charging and maintenance control
• protection of the battery against excessive discharge (UVP)
• battery charging current 0.5 A/1 A, jumper switchable
• protection of the battery output against short circuit and reverse connection
• passive cooling
• output voltage presence indicator
• casing height: 42mm
• possible optional mounting on a DIN rail by using special ones fasteners

• optional equipment: a set of external optical LED signaling PKAZ168, DIN3 mounting plate

TECHNICAL PARAMETERS:

• Power: 200-240V
• Inrush current: 40A
• PSU power: 97 W max.
• Efficiency: 87%
• Output voltage:
• • 22-27.6 V DC - buffer operation
  • 19-27.6 V DC - battery operation
• Output current: 3.5A
• Output voltage adjustment range: 27-28.8 V DC
• Ripple voltage: 100 mV p-p max.
• Operating temperature: -10°C...40°C

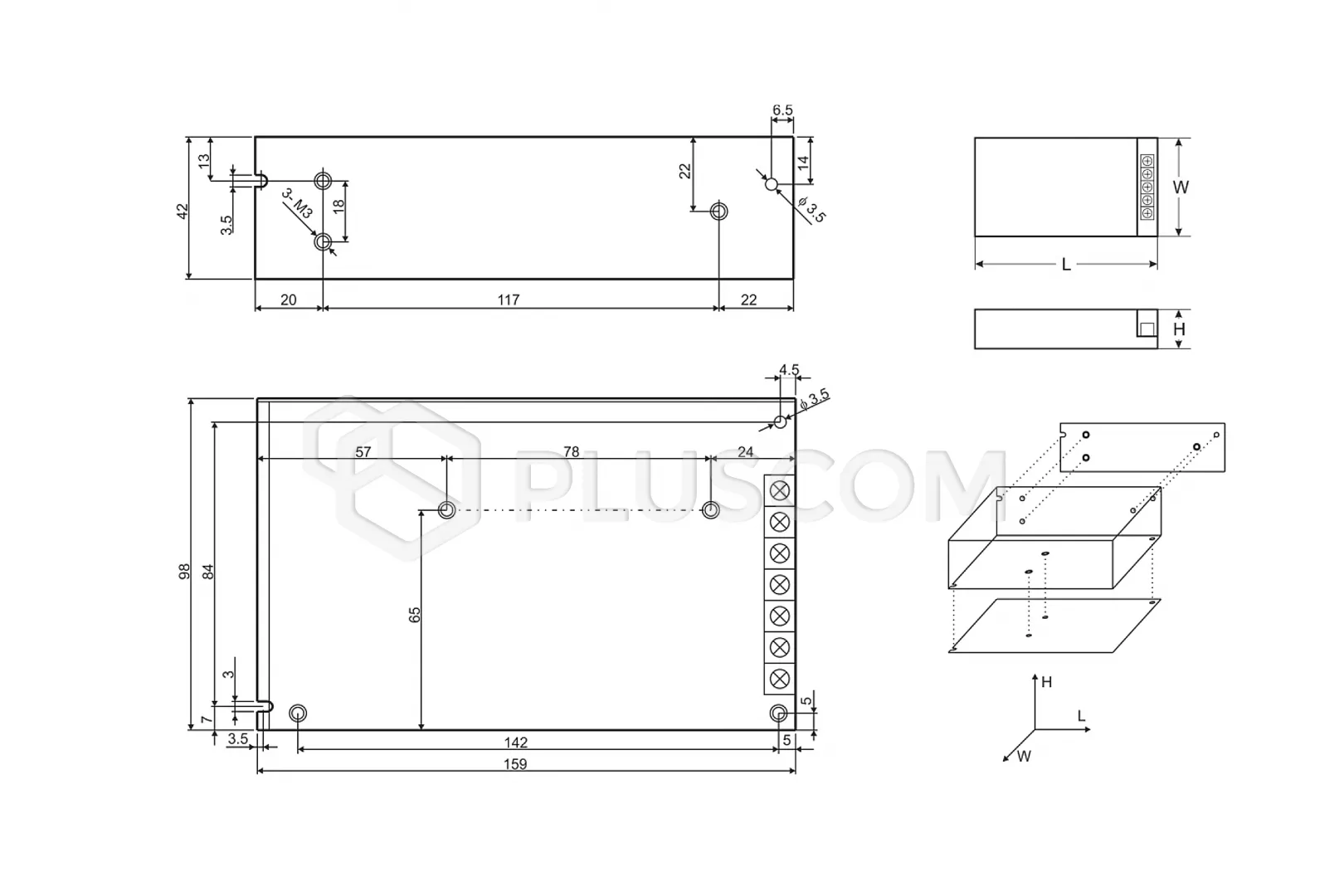

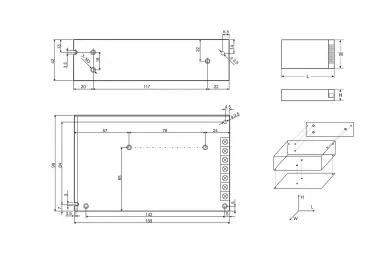

• Dimensions: 159x98x42mm
• Weight: 0.45kg
