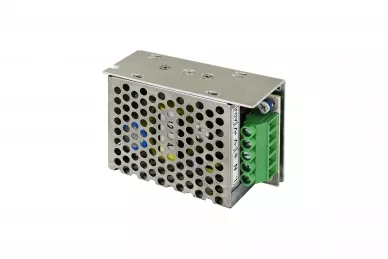

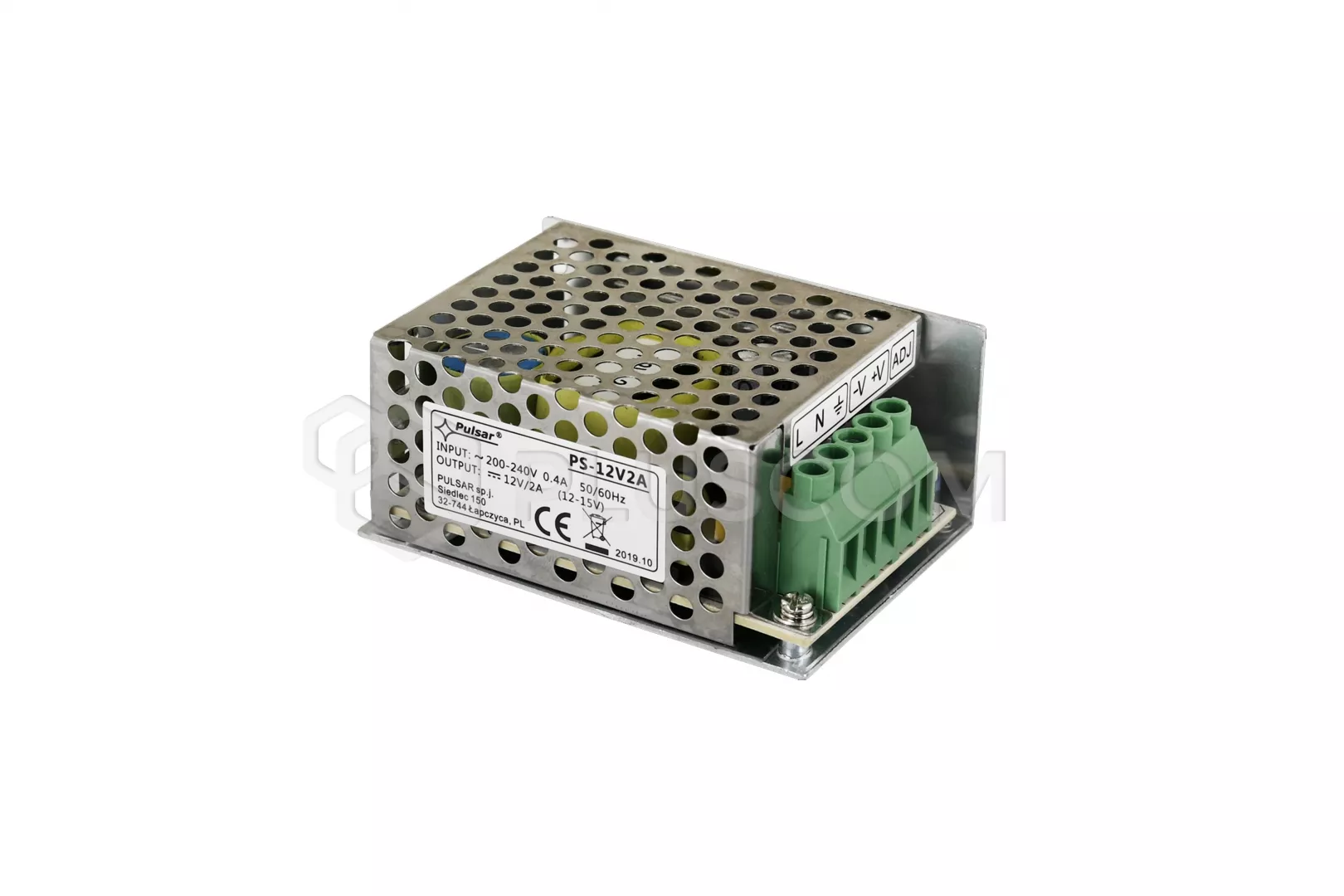

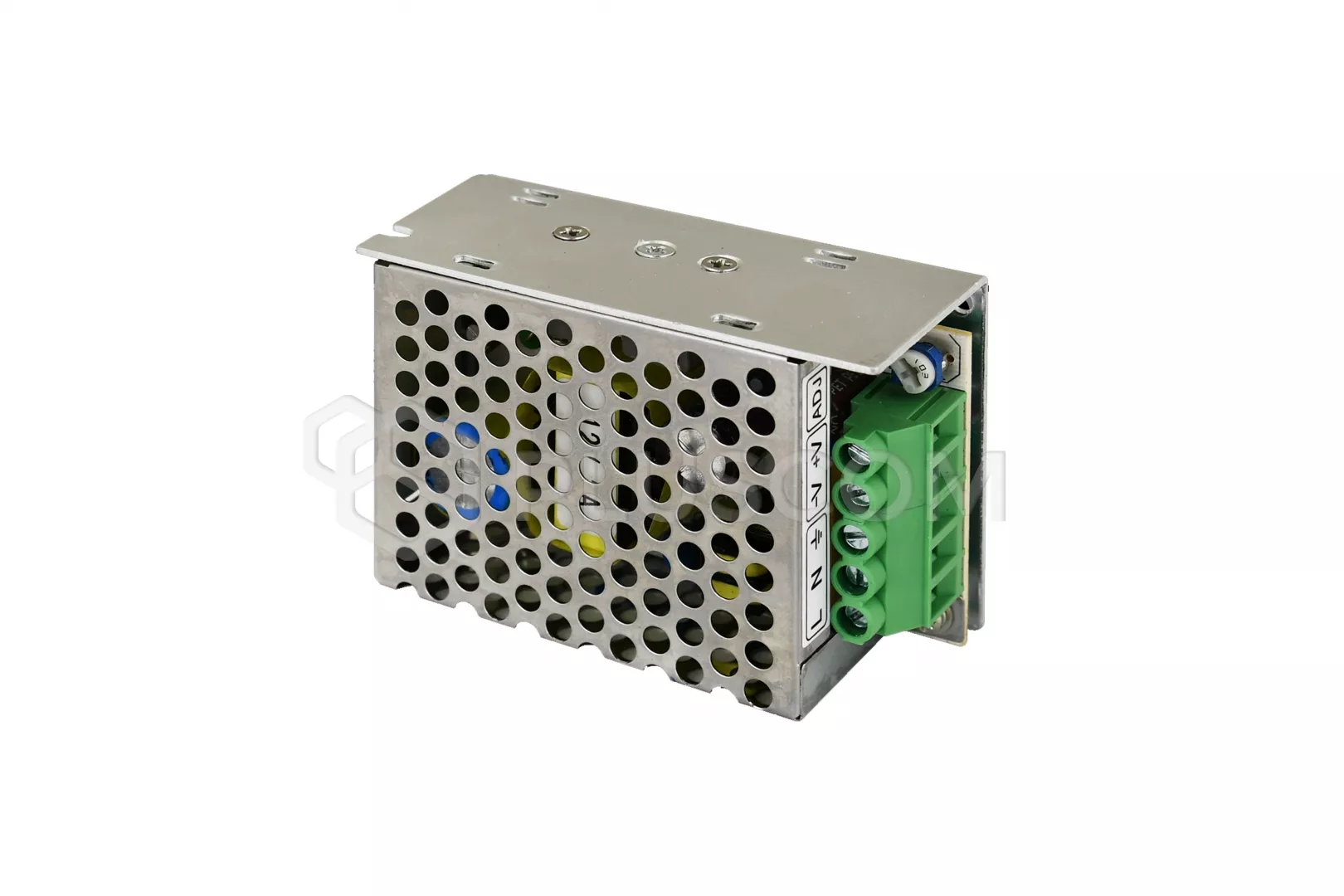

Pulsar PS-12V2A built-in switching power supply 12V 2A

7,48 EUR including 23.00% VAT
Product code: #27424
Manufacturer: Pulsar
  • Output voltage: DC 12V
  • Current efficiency of the power supply: 2A
  • Output voltage adjustment range: 12 - 15 V DC
  • LED optical signaling
  • Passive cooling

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar DIN2 holder for power supplies and transformers Pulsar DIN1 holder for power supplies Pulsar AWO385 Casing for for mounting built-in power supplies of the following Pulsar AWO384 Casing for for mounting built-in power supplies of the following

Pulsar PS-12V2A built-in switching power supply 12V 2A


The power supply is designed to supply system devices from the 230 V mains alarm systems, monitoring systems and other devices that require constant voltage 12 V DC. The power supply allows you to adjust the output voltage in in the range of 12-15V using a potentiometer, which allows you to compensate for voltage drops when powering remote devices, e.g. CCTV cameras.
Cooling is done by free air flow.
The power supply is equipped with the following protections:
  • short-circuit protection SCP
  • overload OLP
  • overvoltage OVP
  • surge
The most important features of the power supply
  • wide input voltage range
  • passive cooling
  • output voltage presence indicator
  • casing height: 37mm
  • possible optional mounting on a DIN rail by using special ones fasteners

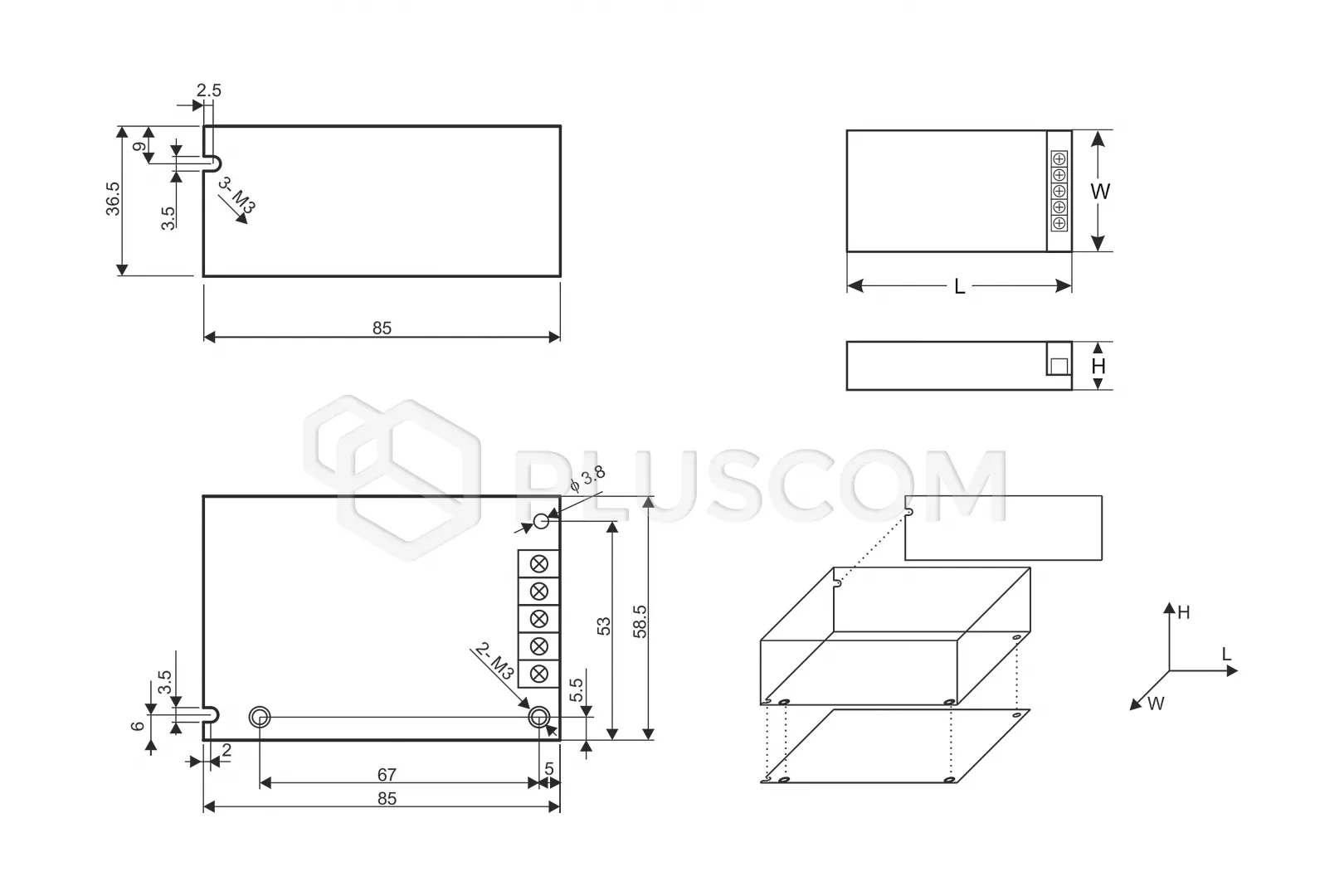

Dimensioning and fixing the power supply

Dimensioning and fixing the power supply


TECHNICAL PARAMETERS:
  • Power: 200-240V
  • Inrush current: 40A
  • PSU power: 24 W max.
  • Efficiency: 84%
  • Output voltage: 12V DC
  • Output current: 2A
  • Output voltage adjustment range: 12 V - 15 V DC
  • Ripple voltage: 100 mV p-p max.
  • Operating temperature: -10°C...40°C
  • Dimensions: 85x60x37mm
  • Weight: 0.17kg
