Pulsar PCSB-12V3A-B PCSB 13,8V/3A/7Ah battery backup switch mode power supply unit with technical outputs

45,97 EUR including 23.00% VAT
Product code: #45080
Manufacturer: Pulsar
  • Power supply: 200 - 240 V AC
  • Power supply output: 3.5 A / 13.8 V DC / 48 W (total output current with charging); SW1 button…
  • Battery charging current: 0.5A
  • Battery: 1 x 7Ah / 1 x 9Ah; Dimensions of battery space : 155 x 100 x 70 [+/-2 mm]
  • Efficiency: 88%
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,46 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar PCSB-12V3A-B PCSB 13,8V/3A/7Ah battery backup switch mode power supply unit with technical outputs


TECHNICAL DATA:

  • Power supply: 200 - 240 V AC
  • Power supply output: 3.5 A / 13.8 V DC / 48 W (total output current with charging); SW1 button - function allows running PSU from battery circuit
  • Battery charging current: 0.5A
  • Battery: 1 x 7Ah / 1 x 9Ah; Dimensions of battery space : 155 x 100 x 70 [+/-2 mm]
  • Efficiency: 88%
  • Technical outputs relay type: AC FAILURE - AC power failure; BT LOW VOLTAGE - low battery voltage

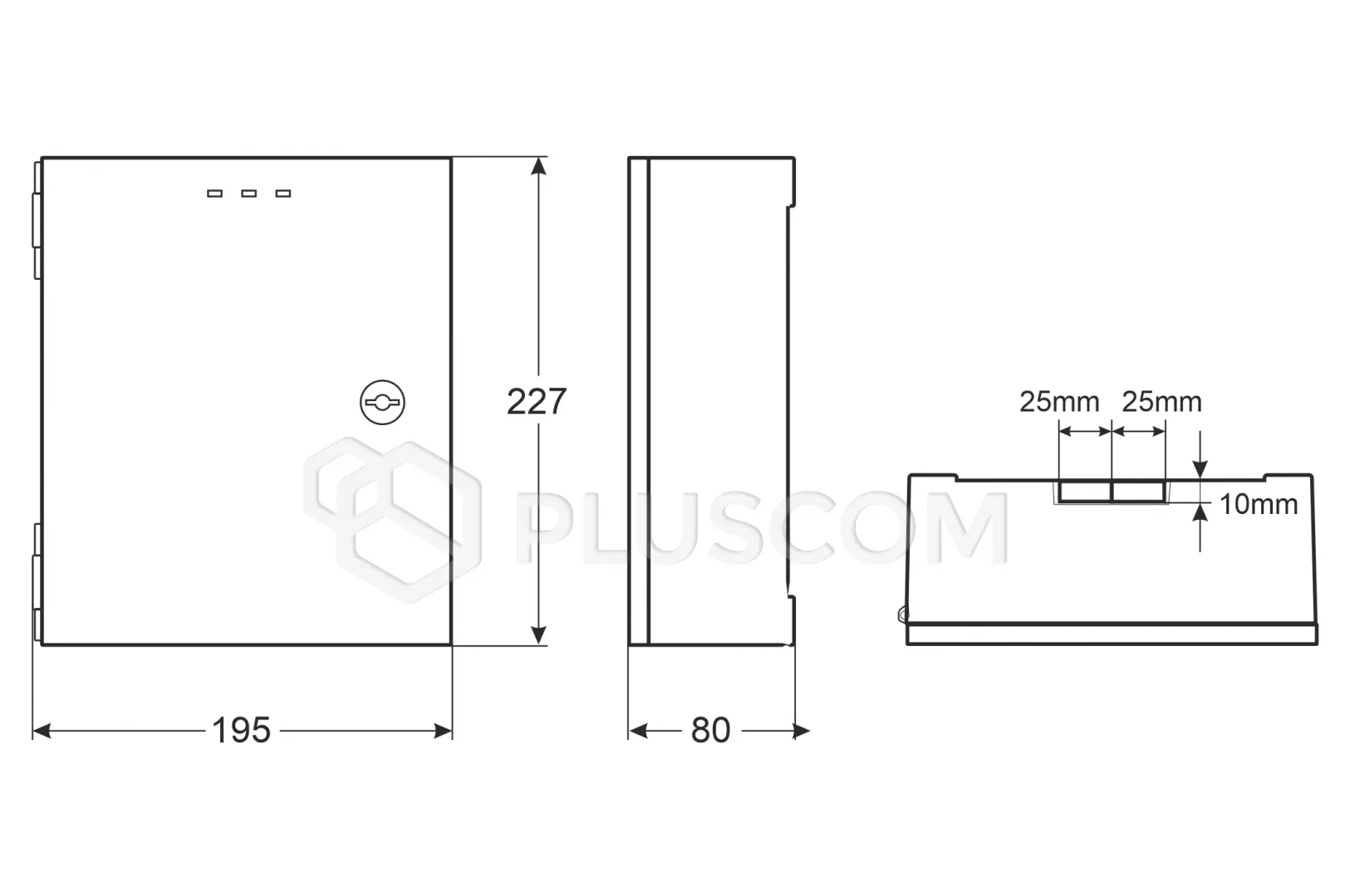

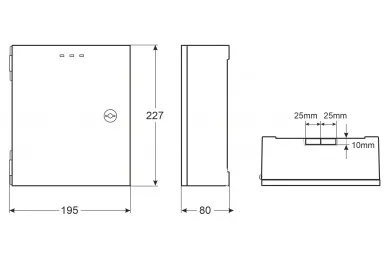

  • Dimensions: 195 x 227 x 80 [+/-2 mm]
  • Protections: surge protection, OVP, OLP, Tamper protection - opening enclosure, UVP, SCP
  • Closing: bolted
  • Installation: surface-mounted (plastic enclosure)
  • Indication: LED optical indication
  • Material: RAL9003 (white), plastic
  • Protection grade EN60529: IP 20
  • Warranty: 2 years

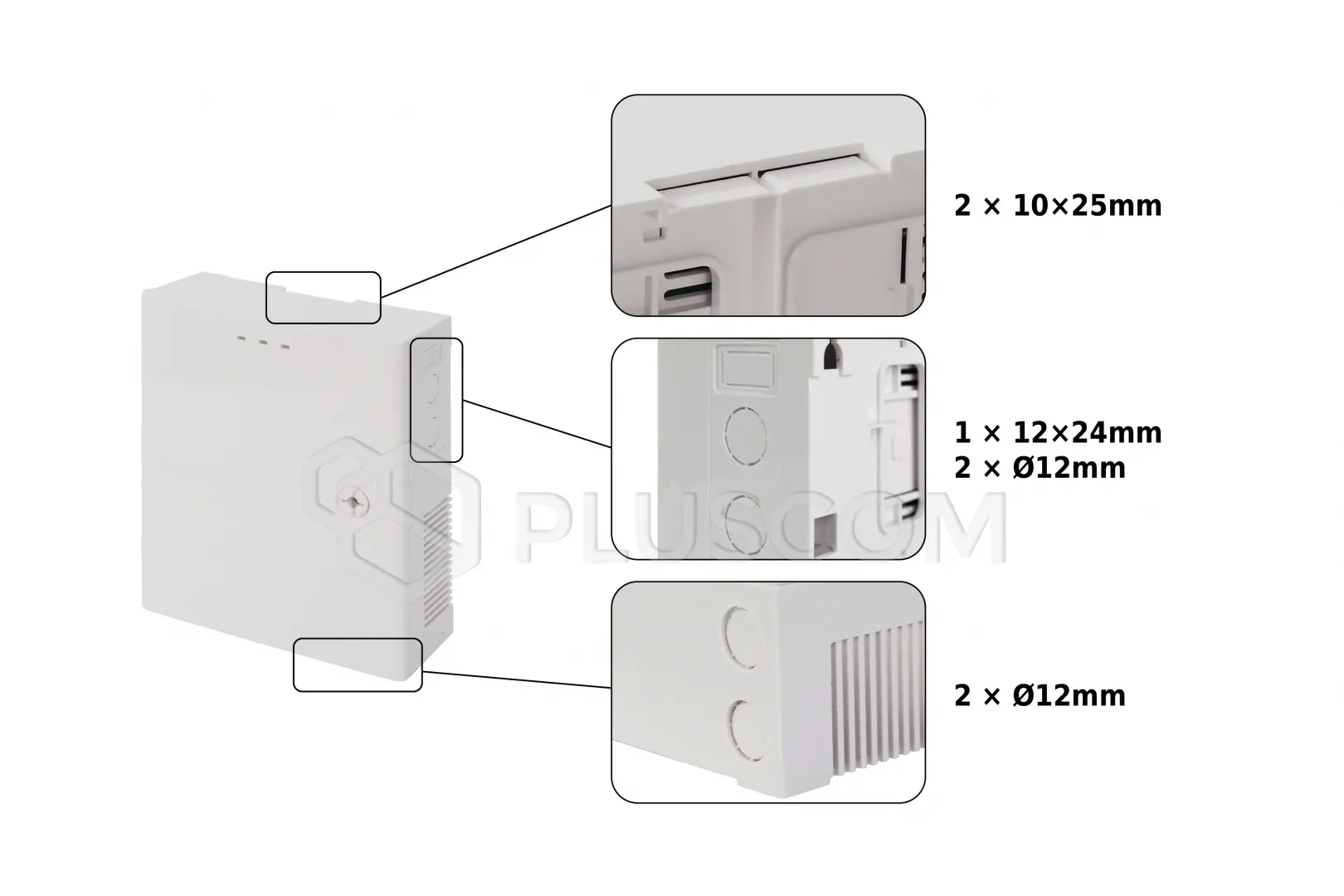

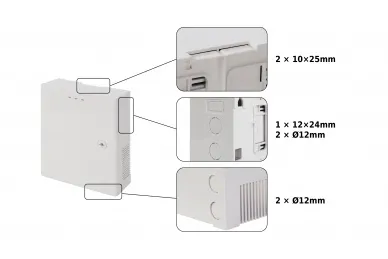

  • Notes: Cable grommets to be knocked out: top of power supply - 2 x 10x25mm / side of power supply - 2 x Ø12mm + 1 x 12x24mm / bottom of power supply - 2 x Ø12mm.
