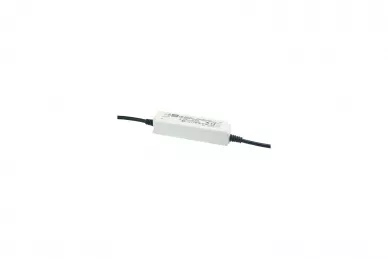

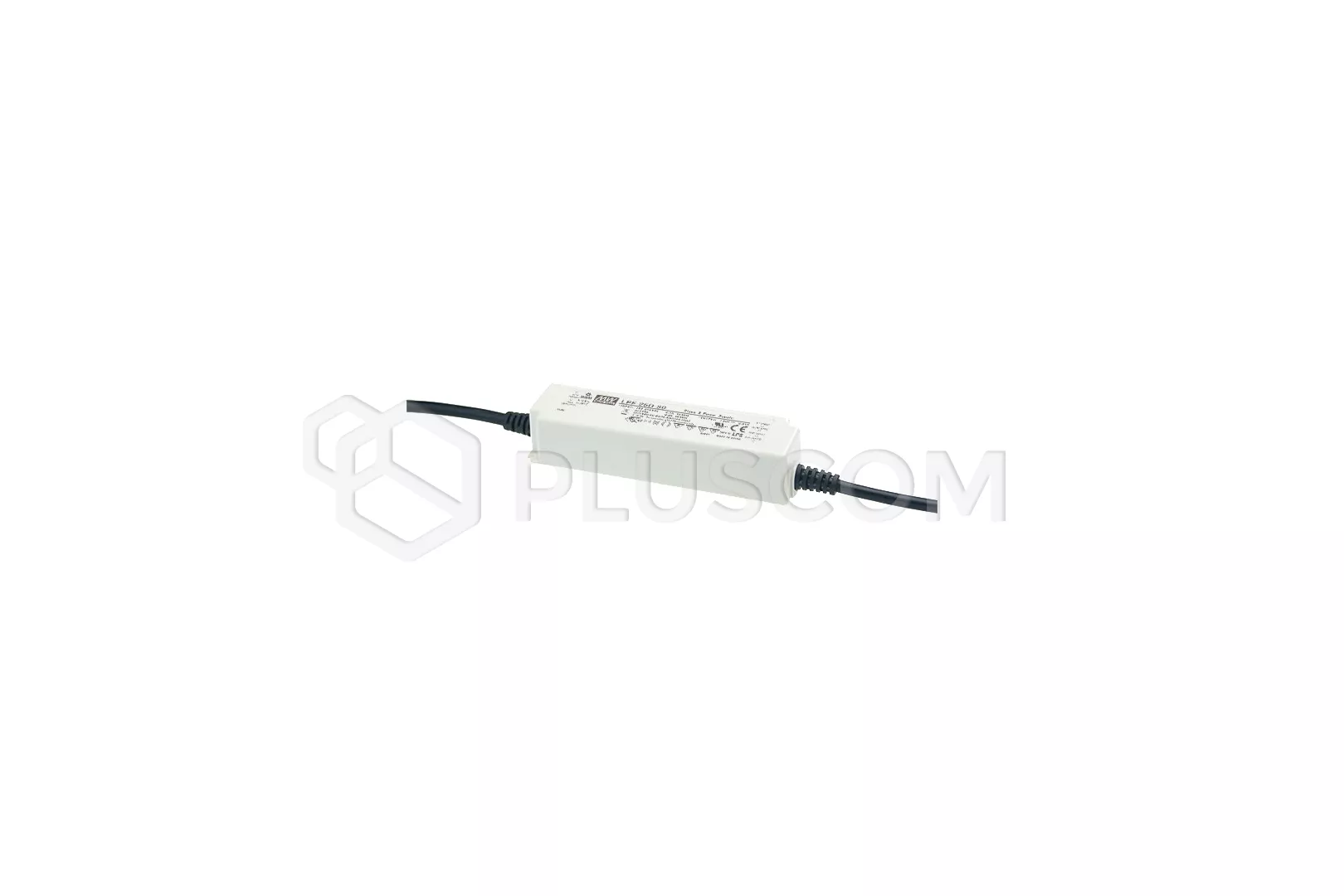

Pulsar LPF-25D-36 LPF 36V/25W/0.7A LED power supply

40,17 EUR including 23.00% VAT
Product code: #27405
Manufacturer: Pulsar
  • Power supply: 90 - 305 V AC, 127 - 431 V DC
  • Power supply output: 0.7 A/19.8&
  • Efficiency: 85.5%
  • Dimensions: 148 x 32 x 40 [+/-2 mm]
  • Protections: SCP, OVP, OHP
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar LPF-25-24 LPF 24V/25W/1.05A LED power supply Pulsar LPF-90D-36 LPF 36V/90W/2.5A LED power supply Pulsar LPF-90-24 LPF 24V/90W/3.75A LED power supply Pulsar LPF-40-42 LPF 42V/40W/0.96A LED power supply Pulsar LPF-25D-48 LPF 48V/25W/0.53A LED power supply Pulsar LPF-25D-24 LPF 24V/25W/1.05A LED power supply Pulsar LPF-60D-36 LPF 36V/60W/1.67A LED power supply Pulsar LPF-60-24 LPF 24V/60W/2.5A LED power supply Pulsar LPF-60-12 Pulsar LPF-40-54 LPF 54V/40W/0.76A LED power supply

Pulsar LPF-25D-36 LPF 36V/25W/0.7A LED power supply


Technical parameters:

  • Power supply: 90 - 305 V AC, 127 - 431 V DC
  • Power supply output: 0.7 A/19.8&
  • 247;36 V DCoutput current adjustment range: 0.07 - 0.7 A DCconstant current power supplypossibility of remote control of output current – input DIN 3W1 (1÷10VDC / PWM/ resistance):
  • Efficiency: 85.5%
  • Dimensions: 148 x 32 x 40 [+/-2 mm]
  • Protections: SCP, OVP, OHP
  • Cable: AC power: 0.3mDC power: 0.3m
  • IP protection class: IP 67
  • Warranty: 5 years
  • Notes: - II Insulation class - built-in active power correction function (active PFC)
Download
CE declaration 0.11 MB
Data sheet 0.08 MB
