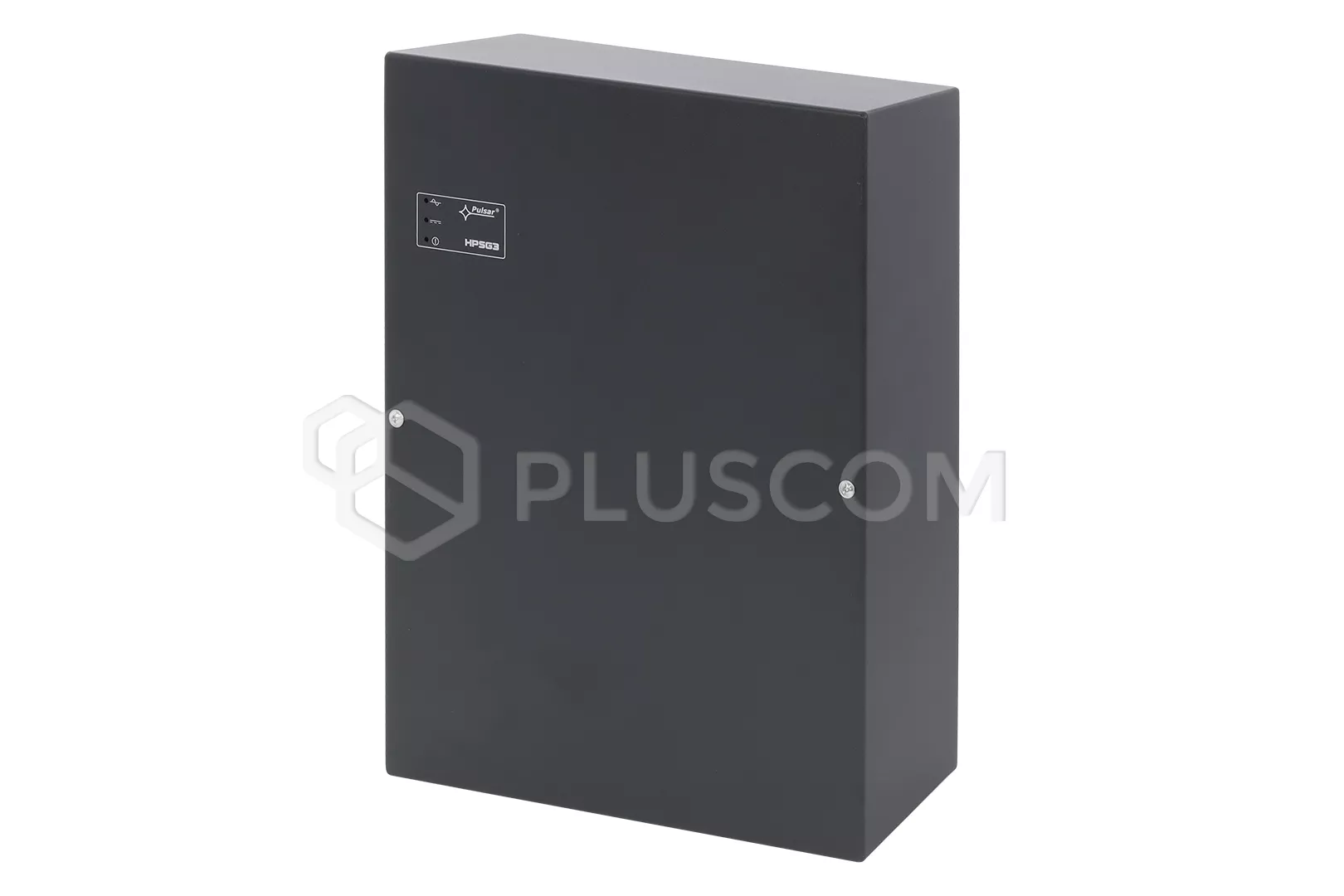

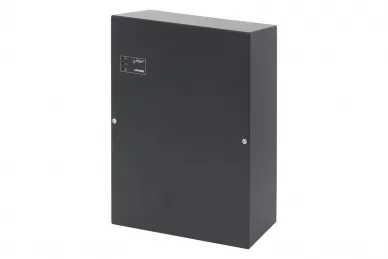

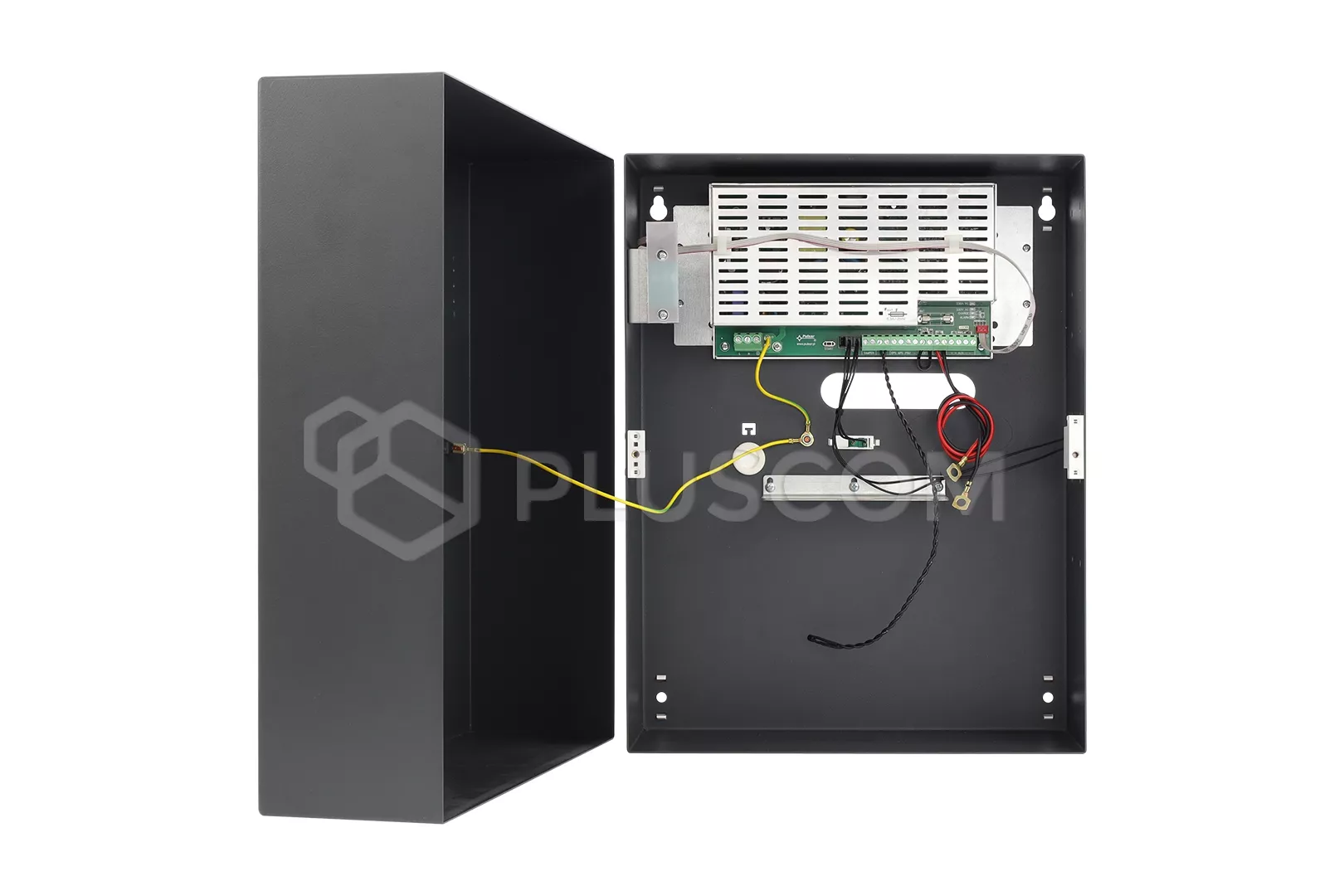

Pulsar HPSG3-12V5A-C HPSG3 13,8V/5A/17Ah switch mode power supply unit with battery backup Grade 3

325,83 EUR including 22.00% VAT
Product code: #30686
Manufacturer: Pulsar
  • Power supply: 200 - 240 V AC
  • Battery charging current: 0.8A
  • Battery: 1 x 7Ah / 1 x 17Ah
  • Current consumption by PSU systems: 35mA max.
  • Efficiency: 82%

Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar HPSG3-12V10A-E HPSG3 13,8V/10A/65Ah switch mode power supply unit with battery backup Grade 3 Pulsar HPSG3-12V5A-D HPSG3 13,8V/5A/40Ah switch mode power supply unit with battery backup Grade 3 Pulsar HPSG3-12V3A-C HPSG3 13,8V/3A/17Ah switch mode power supply unit with battery backup Grade 3

Pulsar HPSG3-12V5A-C HPSG3 13,8V/5A/17Ah switch mode power supply unit with battery backup Grade 3


Technical parameters:

  • Power supply: 200 - 240 V AC
  • Power supply output: 5.5 A / 13.8 V DC (total output current with charging) - for general purpose application 1.39 A / 13.8 V DC - GRADE 1÷2 0.54 A / 13.8 V DC - GRADE 3 function START allows running PSU from battery power
  • Compliant with standards: construction compliant with EN50131-6, GRADE 1÷3Access control norm EN60839-11
  • Battery charging current: 0.8A
  • Battery: 1 x 7Ah / 1 x 17Ah
  • Current consumption by PSU systems: 35mA max.
  • Efficiency: 82%
  • Dimensions: 314 x 408 x 110 [+/-2 mm]
  • Protections: SCP, OLP, OVP, UVP, tamper – opening of enclosure, tamper – detachment from the wall
  • Technical outputs OC type: EPS – AC power failurePSU – power supply failureAPS – battery failure
  • Technical input: EXT IN – external failure
  • Closing: bolted
  • Installation: surface-mounted
  • Indication: LED optical indication
  • Warranty: 3 years
