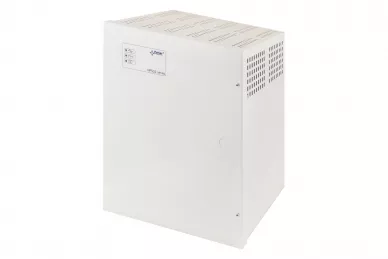

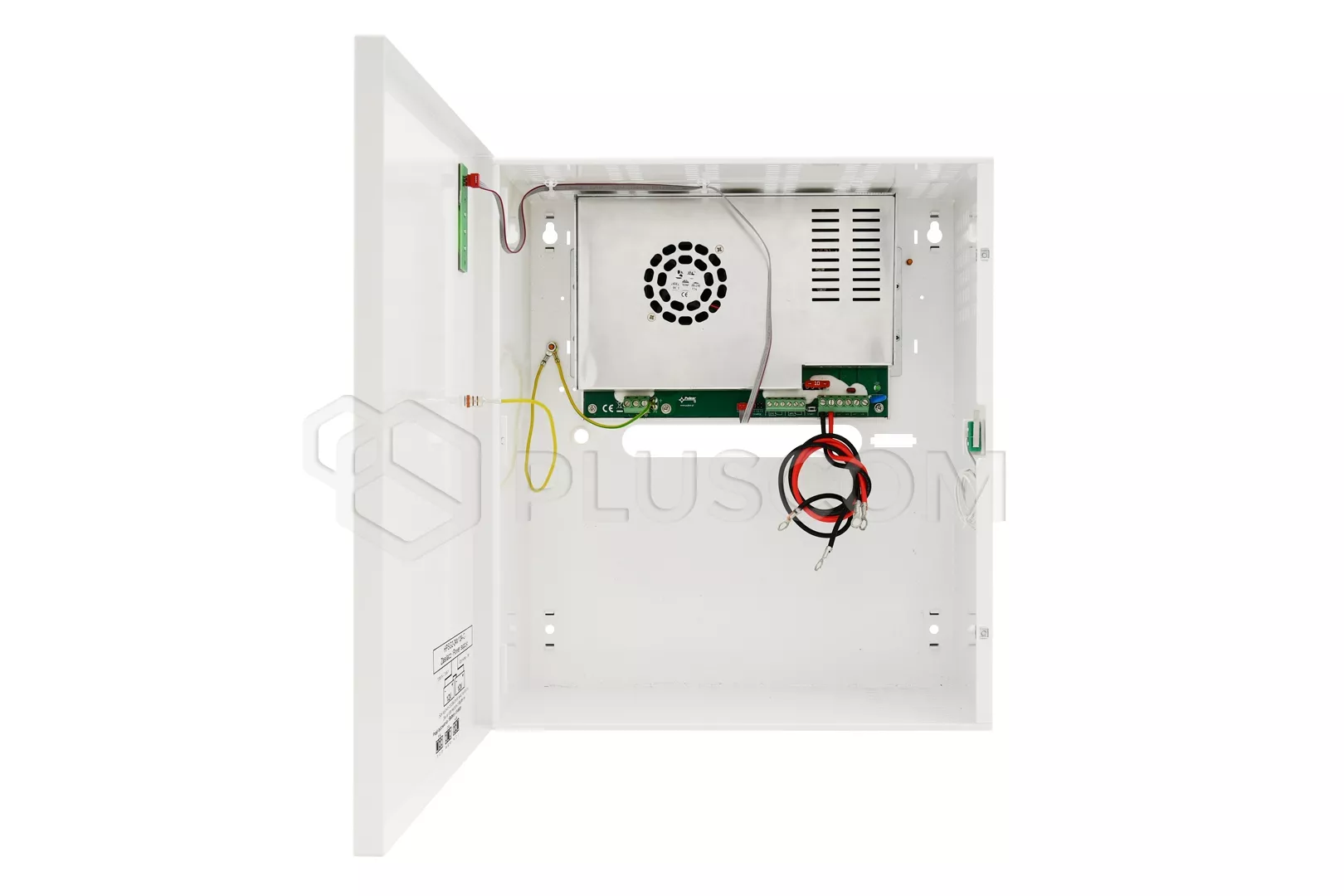

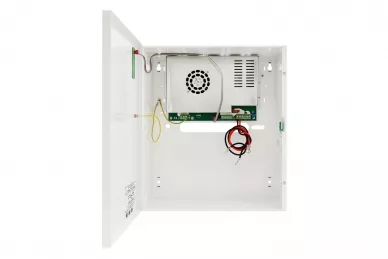

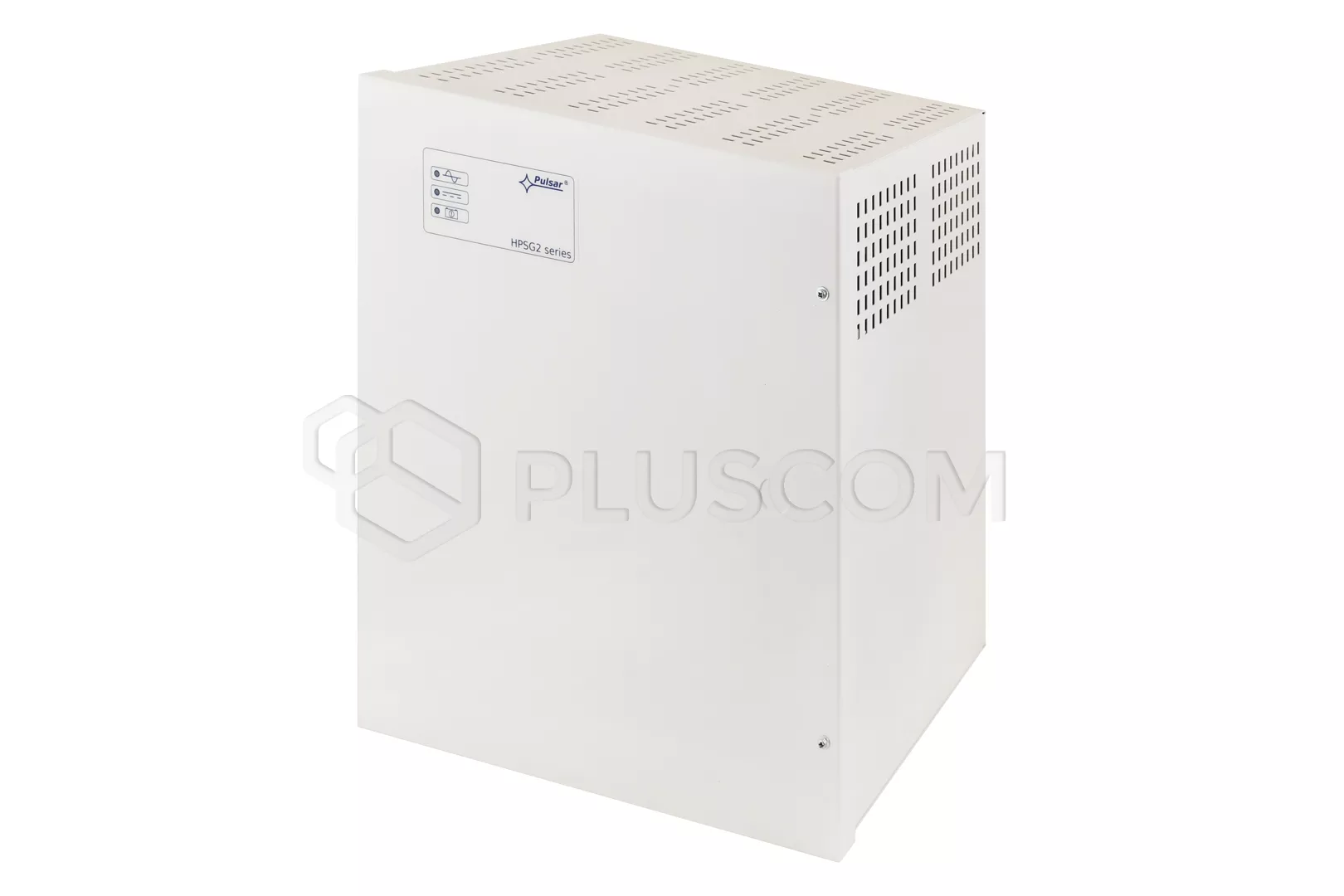

Pulsar HPSG2-24V10A-C HPSG2 27,6V/10A/2x17Ah buffer, switch mode power supply unit Grade 2

219,52 EUR including 23.00% VAT
Product code: #27384
Manufacturer: Pulsar
  • Power supply: 200 - 240 V AC
  • Battery charging current: 1A/2A/4A
  • Battery: 2 x 17AhDimensions of battery space : 325 x 178 x 168 [+/-2 mm]
  • Efficiency: 87%
  • Dimensions: 330 x 380 x 173 [+/-2 mm]distance from surface: 14 mm

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar HPSG2-24V3A-C HPSG2 27,6V/3A/2x17Ah buffer, switch mode power supply unit Grade 2 Pulsar HPSG2-24V5A-D HPSG2 27,6V/5A/2x40Ah buffer, switch mode power supply unit Grade 2 Pulsar HPSG2-24V5A-C HPSG2 27,6V/5A/2x17Ah buffer, switch mode power supply unit Grade 2 Pulsar HPSG2-24V3A-B HPSG2 27,6V/3A/2x7Ah buffer, switch mode power supply unit Grade 2 Pulsar HPSG2-24V2A-B HPSG2 27,6V/2A/2x7Ah buffer, switch mode power supply unit Grade 2 Pulsar HPSG2-24V10A-D HPSG2 27,6V/10A/2x40Ah buffer, switch mode power supply unit Grade 2

Pulsar HPSG2-24V10A-C HPSG2 27,6V/10A/2x17Ah buffer, switch mode power supply unit Grade 2


Technical parameters:

  • Power supply: 200 - 240 V AC
  • Power supply output: 10 A / 27.6 V DC (total output current with charging)function START allows running PSU from battery power
  • Compliant with standards: Construction compliant with EN50131, GRADE 1÷2Access control norm EN60839-11
  • Battery charging current: 1A/2A/4A
  • Battery: 2 x 17AhDimensions of battery space : 325 x 178 x 168 [+/-2 mm]
  • Efficiency: 87%
  • Dimensions: 330 x 380 x 173 [+/-2 mm]distance from surface: 14 mm
  • Protections: SCP, OLP, OVP, UVP, tamper – opening of enclosure
  • Technical outputs relay type: EPS – AC power failureAPS – battery failure
  • Closing: bolted (lock assembly possible)
  • Installation: surface-mounted
  • Indication: LED optical indication
  • Material: steel DC01, 1mm, RAL9003 (white), metallic
  • IP protection class: IP 20
  • Warranty: 2 years

  • Download
    Data sheet 0.38 MB
    Instruction 1.12 MB
