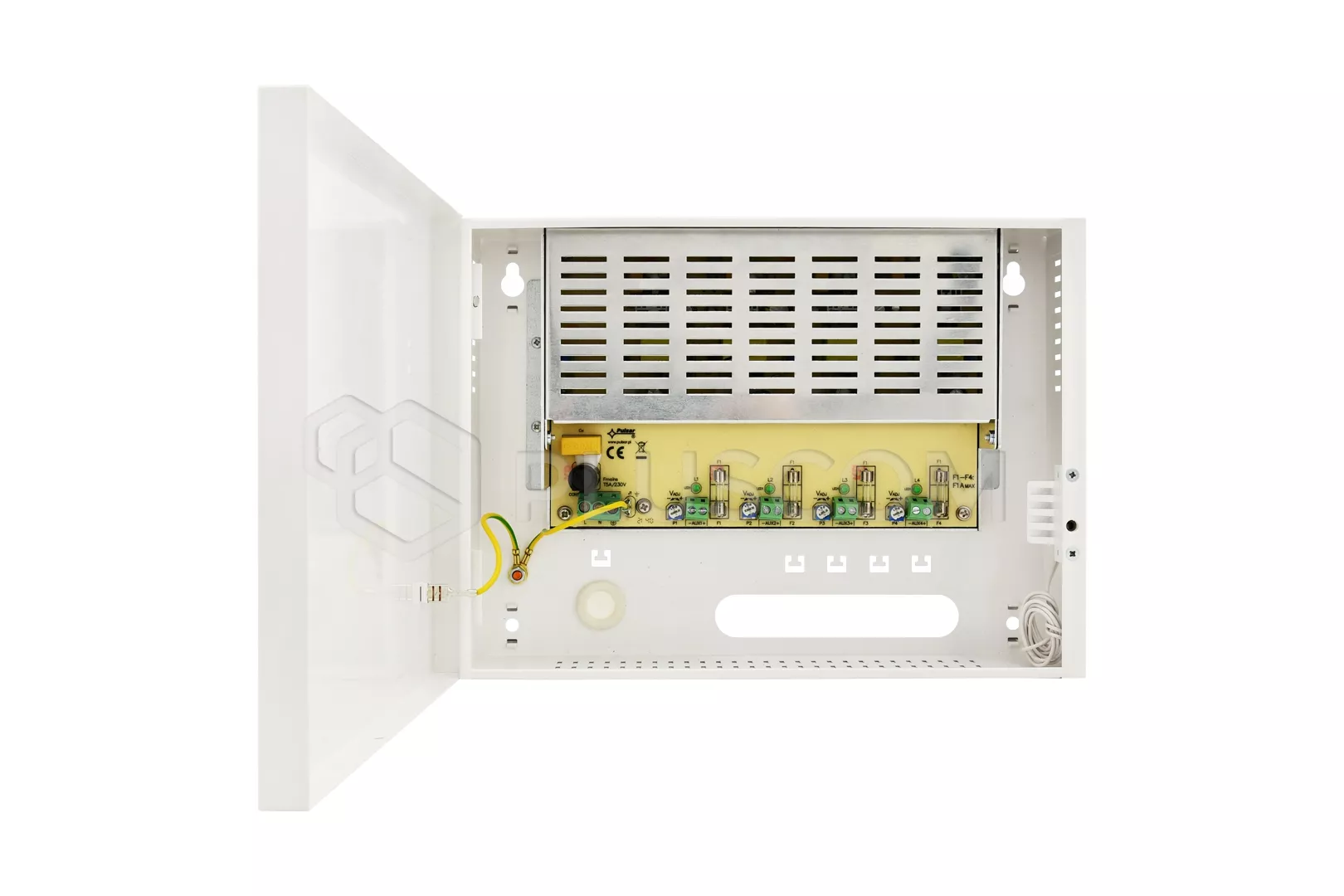

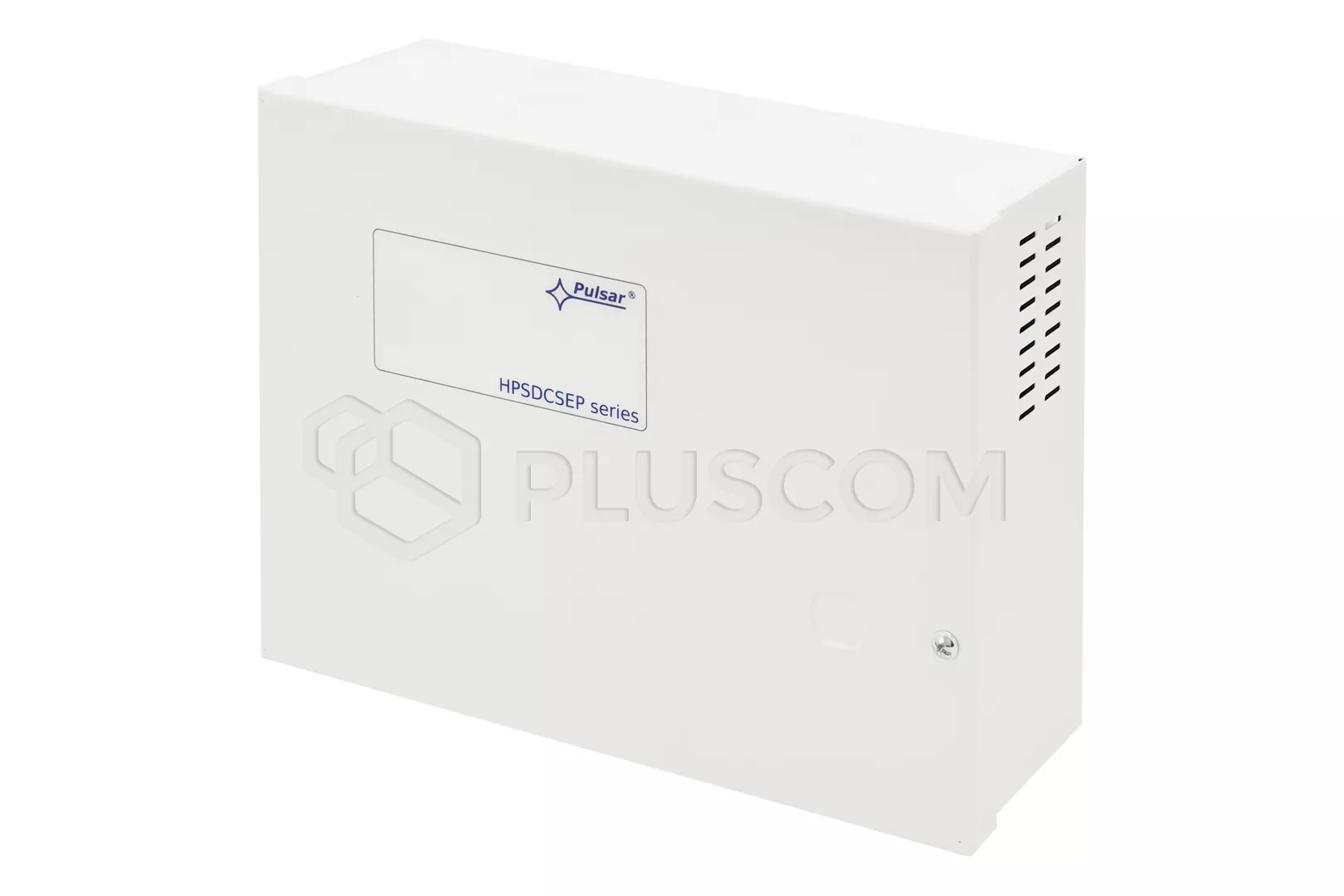

Pulsar HPSDCSEP-12V4X1A HPSDCSEP 12V/4A/4x1A power supply with 4 separated outputs

91,86 EUR including 23.00% VAT
Product code: #30677
Manufacturer: Pulsar
  • Power supply: 100 - 240 V AC
  • Fuse: 4 x 1A (glass fuse)
  • Efficiency: 82%
  • Dimensions: 270 x 200 x 67 [+/-2 mm]distance from surface: 8 mm
  • Protections: SCP, OLP, OVP, tamper – opening of enclosure

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar HPSDCSEP-12V4X1A HPSDCSEP 12V/4A/4x1A power supply with 4 separated outputs


Technical parameters:

  • Power supply: 100 - 240 V AC
  • Power supply output: 4 x 1 A / 12 V DCvoltage adjustment range: 12 - 15 V DCindependent adjustment for each channel galvanic separation of each output
  • Fuse: 4 x 1A (glass fuse)
  • Efficiency: 82%
  • Dimensions: 270 x 200 x 67 [+/-2 mm]distance from surface: 8 mm
  • Protections: SCP, OLP, OVP, tamper – opening of enclosure
  • Closing: bolted (lock assembly possible)
  • Indication: LED optical indication
  • Material: steel DC01, RAL9003 (white), metallic
  • Warranty: 2 years

  • Download
    Data sheet 0.2 MB
    Instruction 0.57 MB
