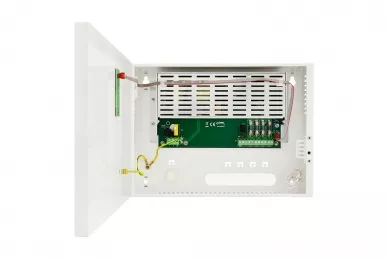

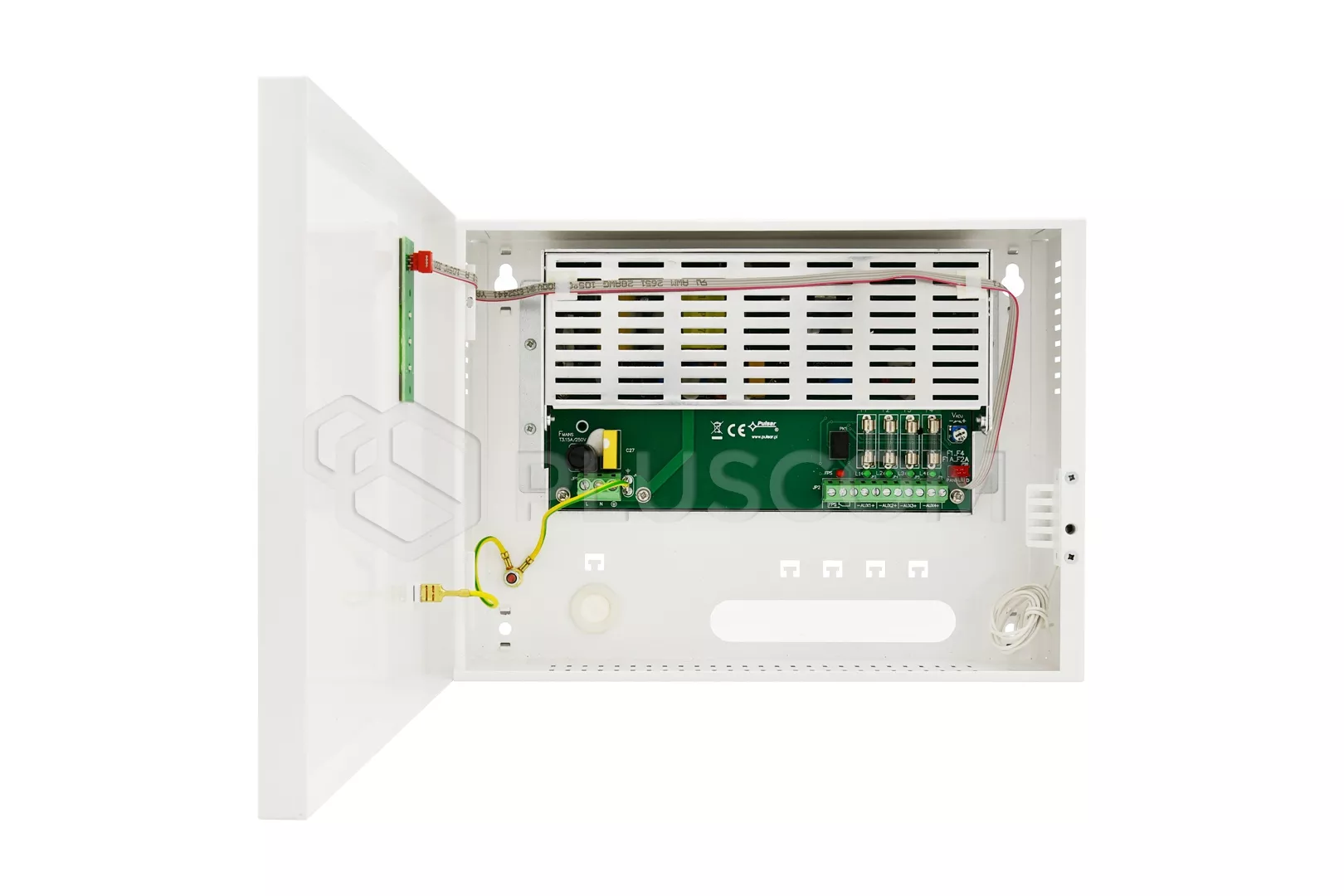

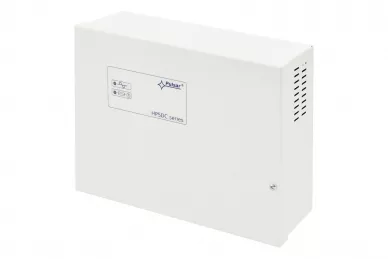

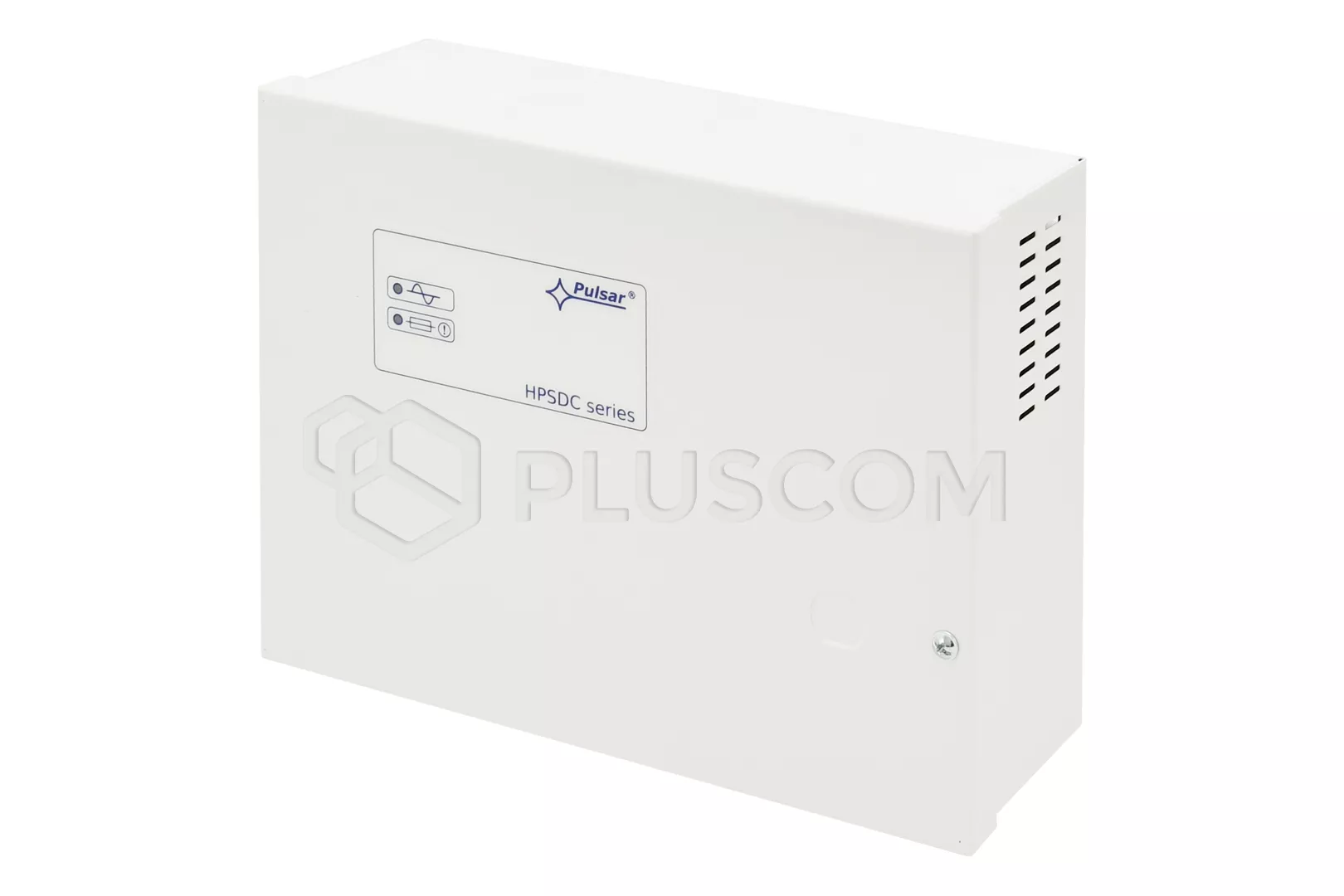

Pulsar HPSDC-12V4X1A HPSDC 12V/4A/4x1A multi-output power supply unit

79,40 EUR including 23.00% VAT
Product code: #30674
Manufacturer: Pulsar
  • Power supply: 200 - 240 V AC
  • Fuse: 4 x 1A (glass fuse)
  • Efficiency: 86%
  • Dimensions: 270 x 200 x 67 [+/-2 mm]distance from surface: 8 mm
  • Protections: SCP, OLP, OVP, tamper – opening of enclosure
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar HPSDC-12V8X1A HPSDC 12V/7A/8x1A multi-output power supply unit Pulsar HPSDC-12V16X1A HPSDC 12V/15A/16x1A multi-output power supply unit

Pulsar HPSDC-12V4X1A HPSDC 12V/4A/4x1A multi-output power supply unit


Technical parameters:

  • Power supply: 200 - 240 V AC
  • Power supply output: 4 x 1 A / 12 V DC (∑ 4 A max.)voltage adjustment range: 12 - 15 V DC
  • Fuse: 4 x 1A (glass fuse)
  • Efficiency: 86%
  • Dimensions: 270 x 200 x 67 [+/-2 mm]distance from surface: 8 mm
  • Protections: SCP, OLP, OVP, tamper – opening of enclosure
  • Technical outputs relay type: FPS – indication of output fuse activation
  • Closing: bolted (lock assembly possible)
  • Indication: LED optical indication
  • Material: steel DC01, 0.7mm, RAL9003 (white), metallic
  • Warranty: 2 years
Download
Data sheet 0.34 MB
Instruction 0.72 MB
