Pulsar HPSB-12V3A-C 13,8V 3A 17Ah buffer, switch mode power supply unit

60,71 EUR including 23.00% VAT
Product code: #22630
Manufacturer: Pulsar
  • Output voltage: 13,8V DC
  • Output current: 3A
  • Place on battery: 7Ah/17Ah
  • LED indication
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar HPSB-12V7A-D HPSB 13,8V/7A/40Ah buffer, switch mode power supply unit Pulsar HPSB-12V15A-D HPSB 13,8V/15A/40Ah buffer, switch mode power supply unit Pulsar HPSB-12V10A-D HPSB 13,8V/10A/40Ah buffer, switch mode power supply unit Pulsar HPSB-12V10A-C HPSB 13,8V/10A/17Ah buffer, switch mode power supply unit Pulsar HPSB-12V7A-C HPSB 13,8V/7A/17Ah buffer, switch mode power supply unit Pulsar HPSB-12V5A-C HPSB 13,8V/5A/17Ah buffer, switch mode power supply unit Pulsar HPSB-12V3A-B HPSB 13,8V/3A/7Ah buffer, switch mode power supply unit Pulsar HPSB-12V2A-B HPSB 13,8V/2A/7Ah buffer, switch mode power supply unit

Pulsar HPSB-12V3A-C 13,8V 3A 17Ah buffer, switch mode power supply unit


Pulsar HPSB-12V3A-C is a switch mode buffer power supply designed for continuous operation powering devices that require a voltage of 12V.

During normal operation, the PSU supplies the output with stabilized DC voltage 13.8V and charges the connected battery in the event of a power failure input AC, there is an automatic (uninterrupted) switchover to work battery operated.

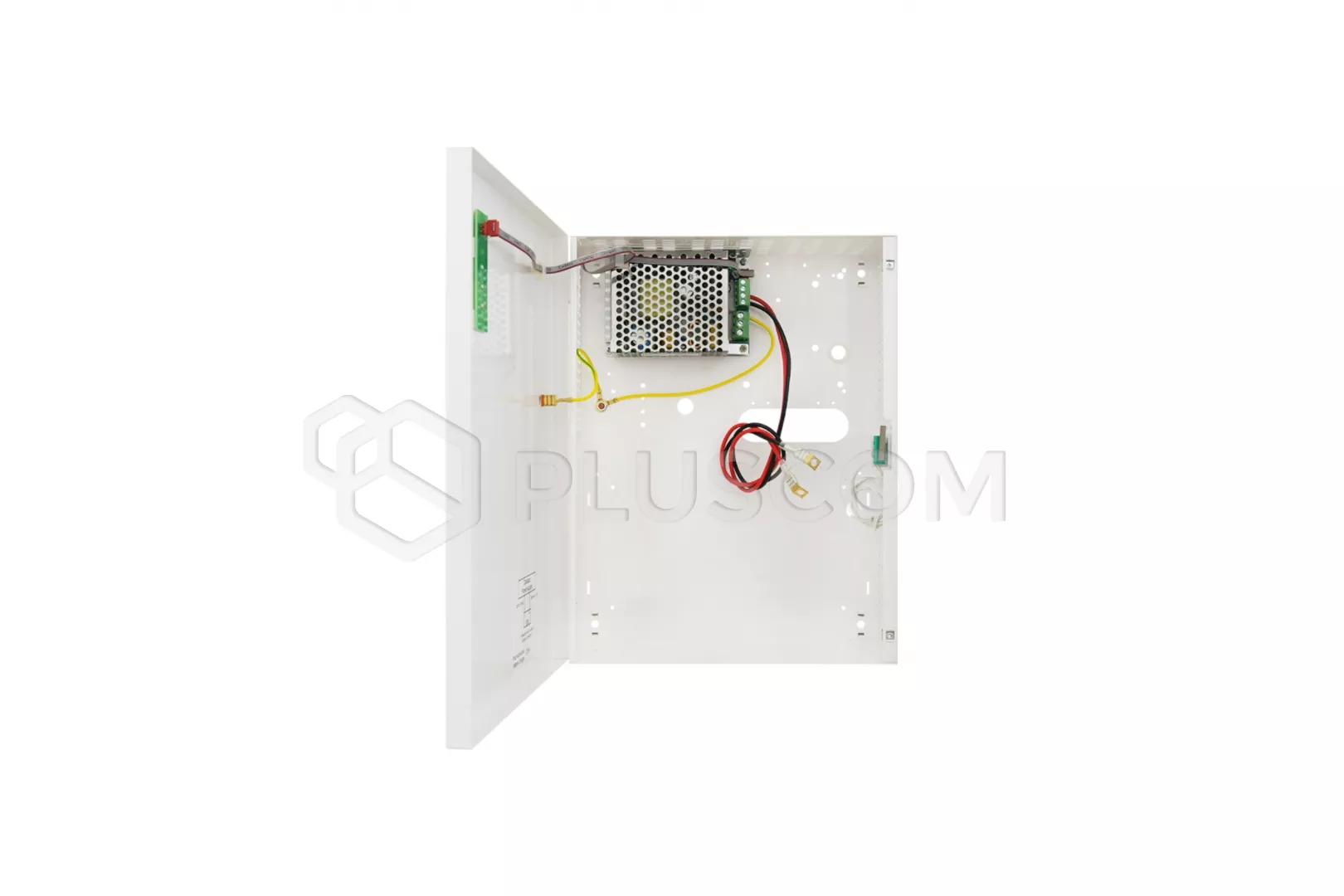

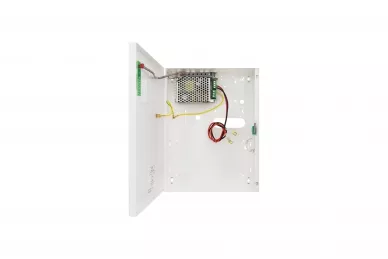

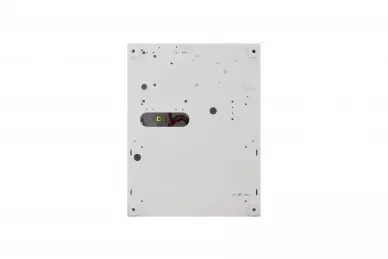

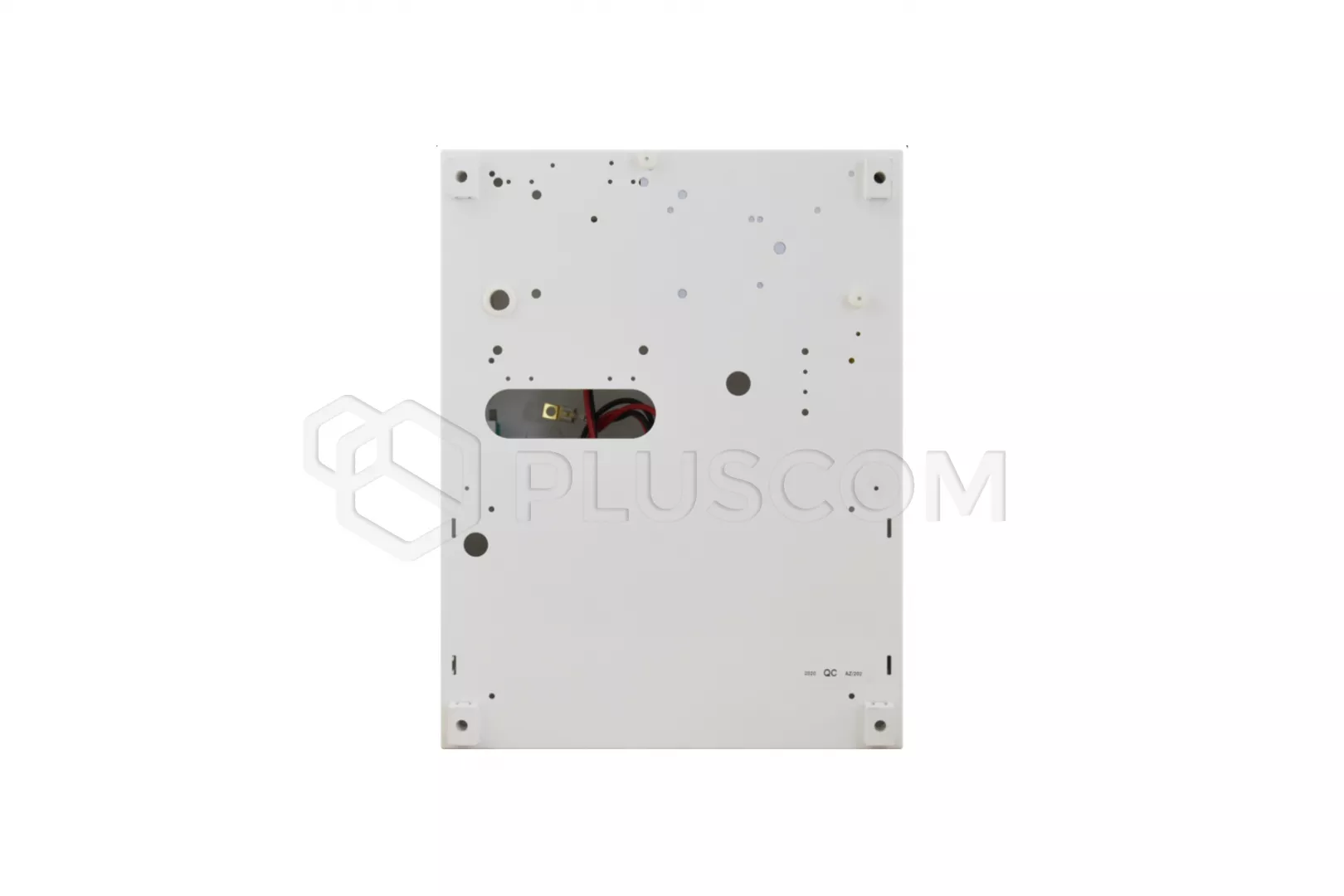

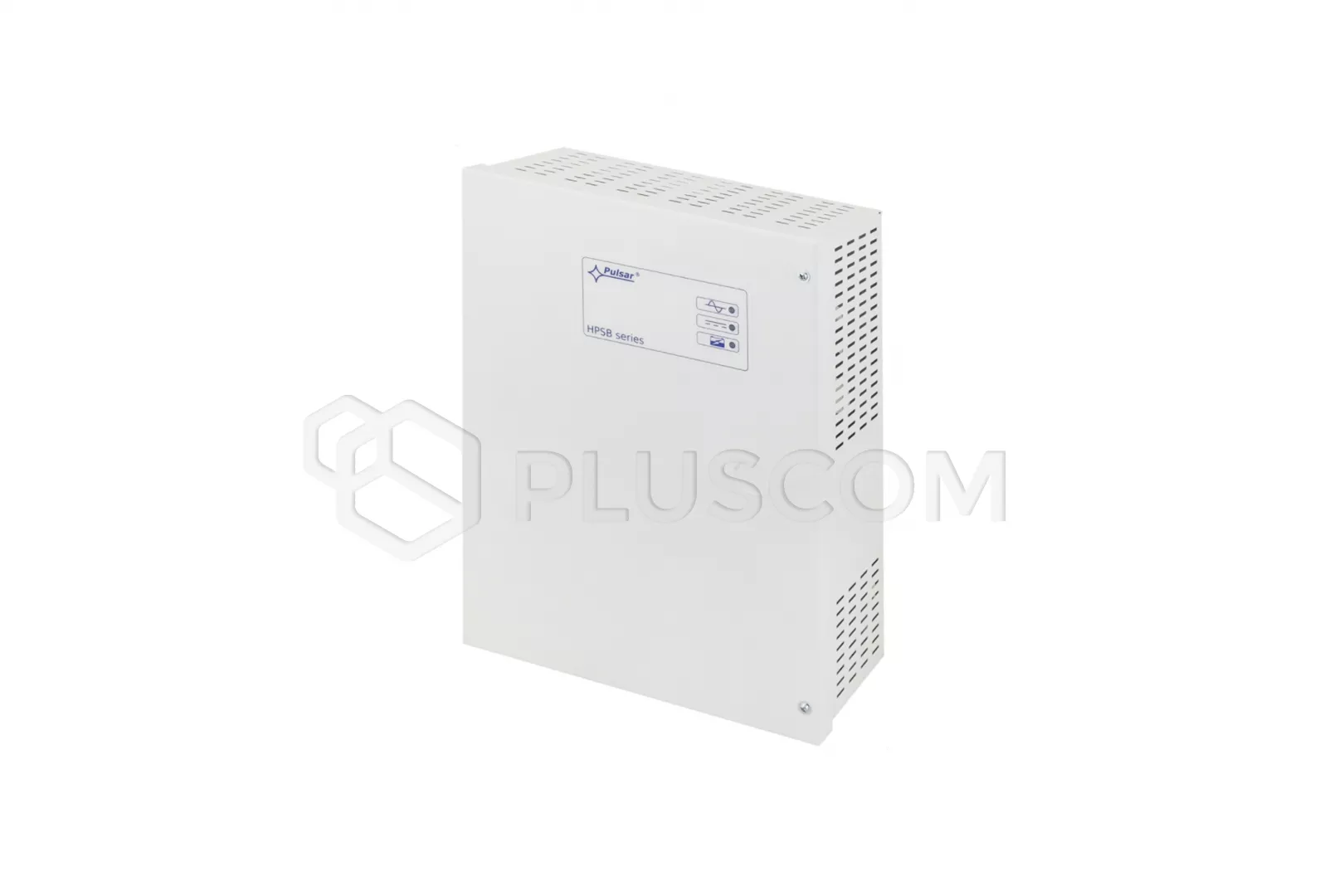

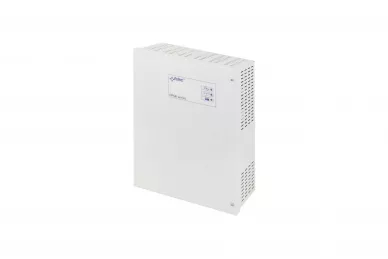

The power supply has been placed in a metal casing with space for a battery 7Ah / 17Ah 12V , on the front there are LED indicators informing about power supply operating state. There are numerous grommets in the rear part of the housing on the wires. Additional spacers facilitate routing cables . In the housing there is microswitch signaling opening the door.

Pulsar HPSB-12V3A-C 13,8V 3A 17Ah buffer, switch mode power supply unit

Pulsar HPSB-12V3A-C 13,8V 3A 17Ah buffer, switch mode power supply unit

Pulsar HPSB-12V3A-C 13,8V 3A 17Ah buffer, switch mode power supply unit

Pulsar HPSB-12V3A-C 13,8V 3A 17Ah buffer, switch mode power supply unit


TECHNICAL PARAMETERS:
  • wide range of supply voltage: AC 200-240V
  • current consumption: 0.5A
  • power supply efficiency: 87%
  • output voltage:
    • 11-13,8V - buffer operation
    • 10-13,8V - battery-assisted operation
  • regulation of the output voltage in the range: 13.5-14V DC
  • output current: 3A + 0.5A battery charge
  • IP20
  • dimensions: 237x305x82 + 8mm
  • weight: 1.8kg
  • working temperature: -10 ° C ... + 40 ° C
The power supply has a number of security measures use and protect the power supply against accidental damage:
  • SCP short circuit protection
  • overload OLP
  • overvoltage protection
  • OVP overvoltage protection
  • deep discharge battery protection UVP
  • short circuit and reverse protection of the battery output connection
  • anti-sabotage: opening the enclosure
Download
Datasheet 0.28 MB
CE Declaration 0.27 MB
Instruction 1.13 MB
