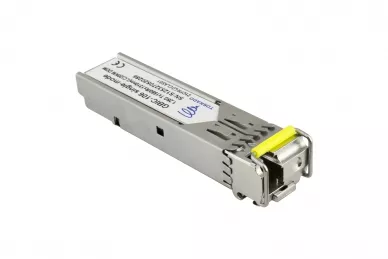

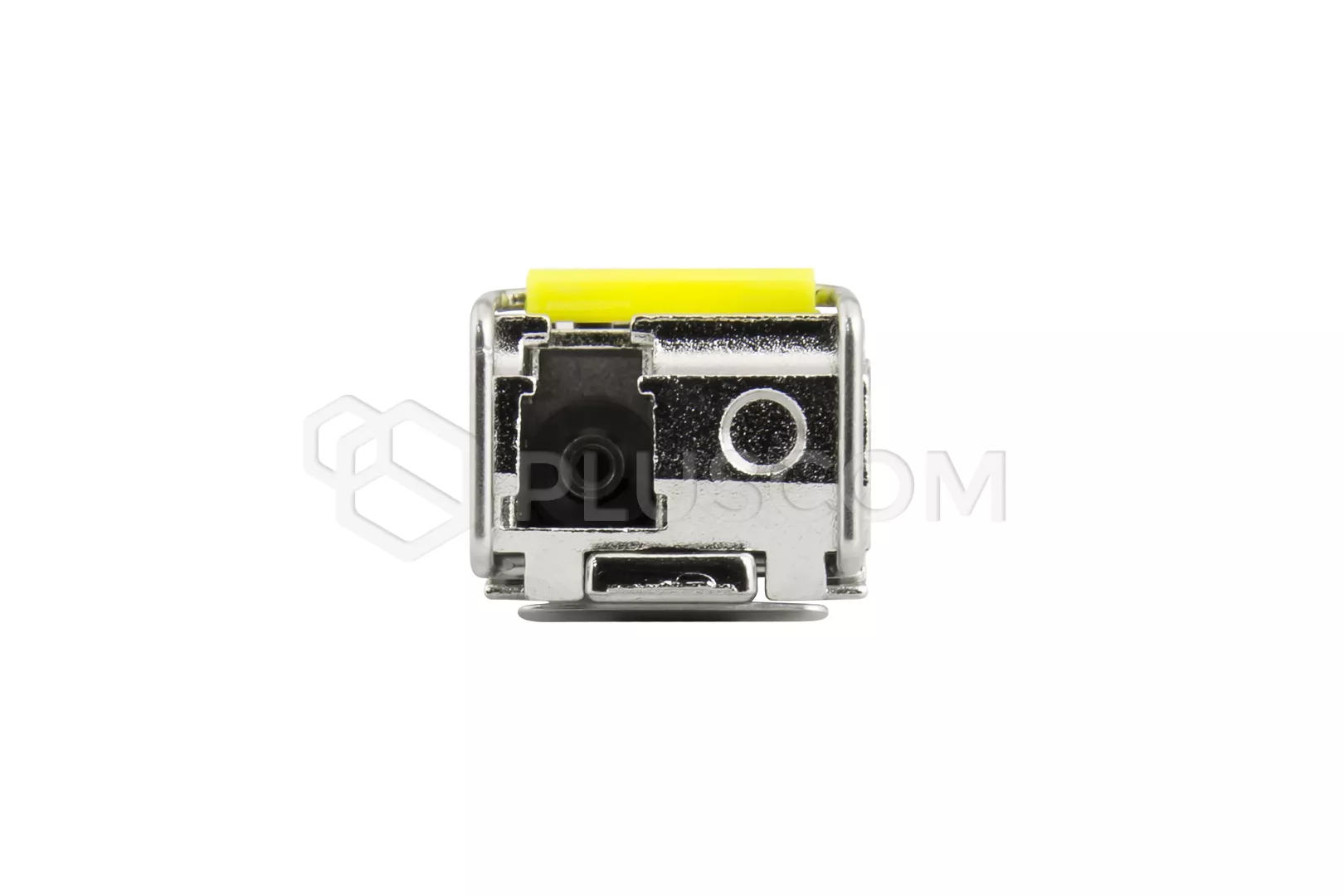

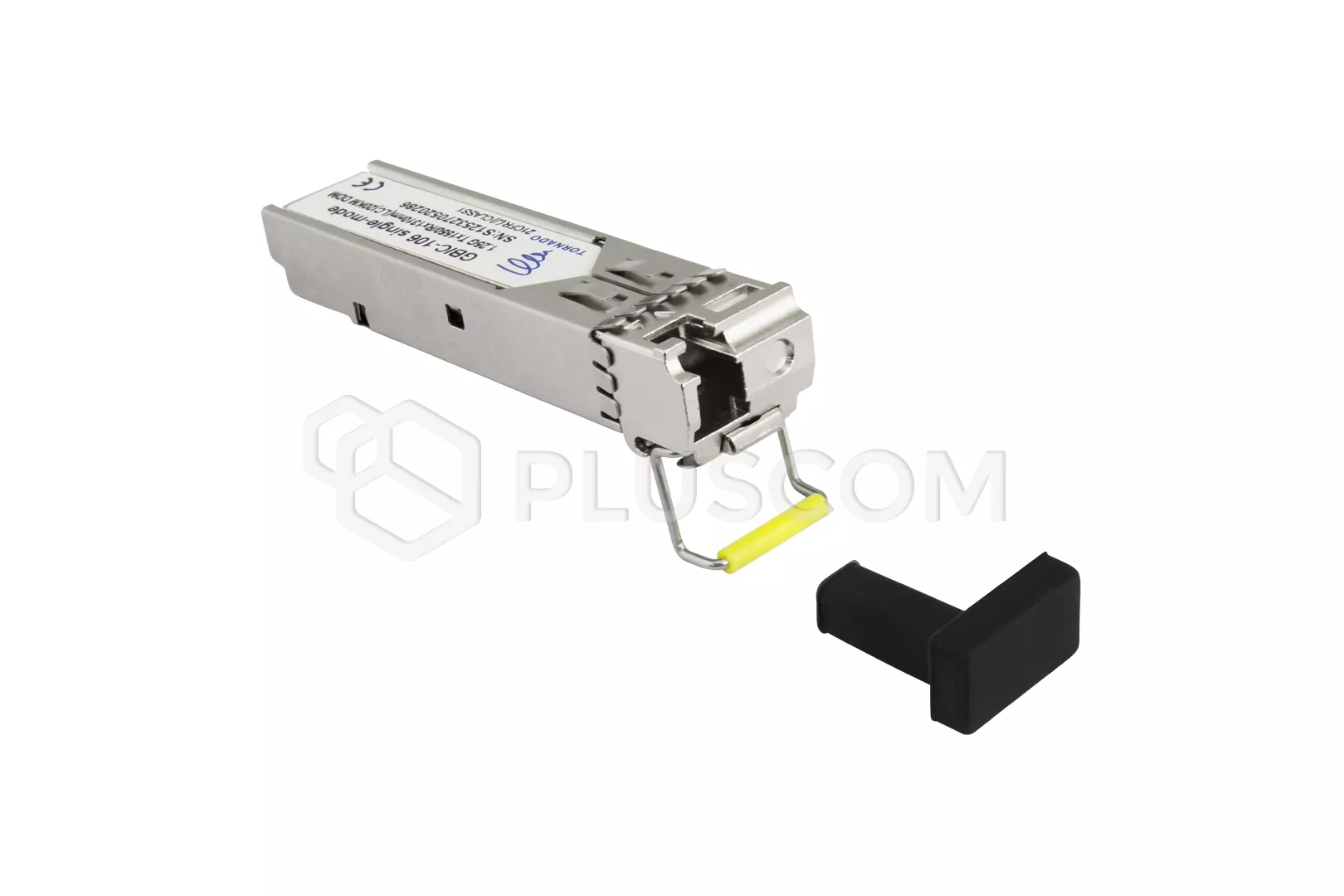

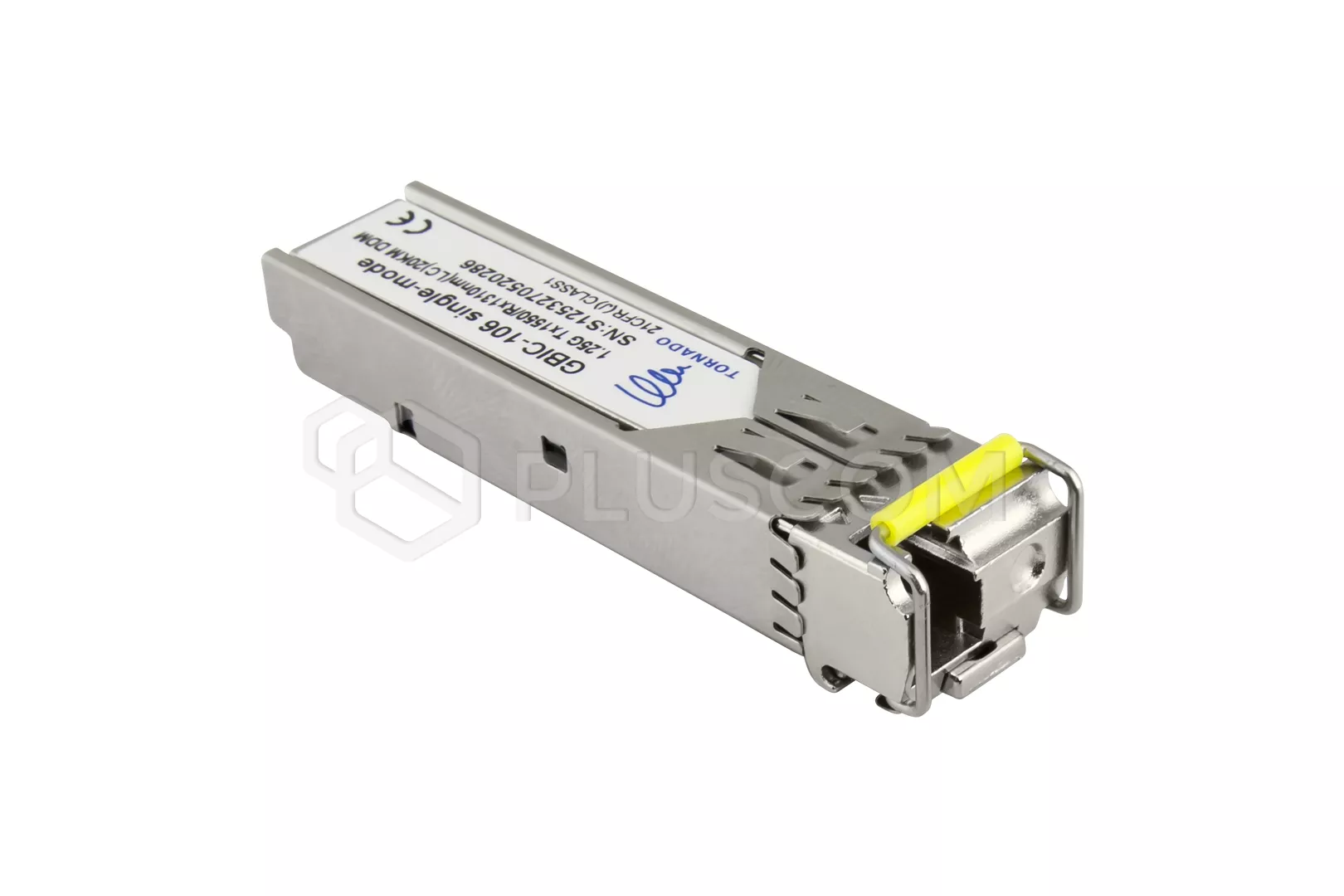

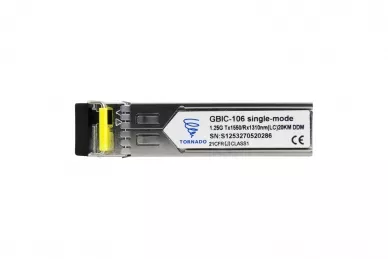

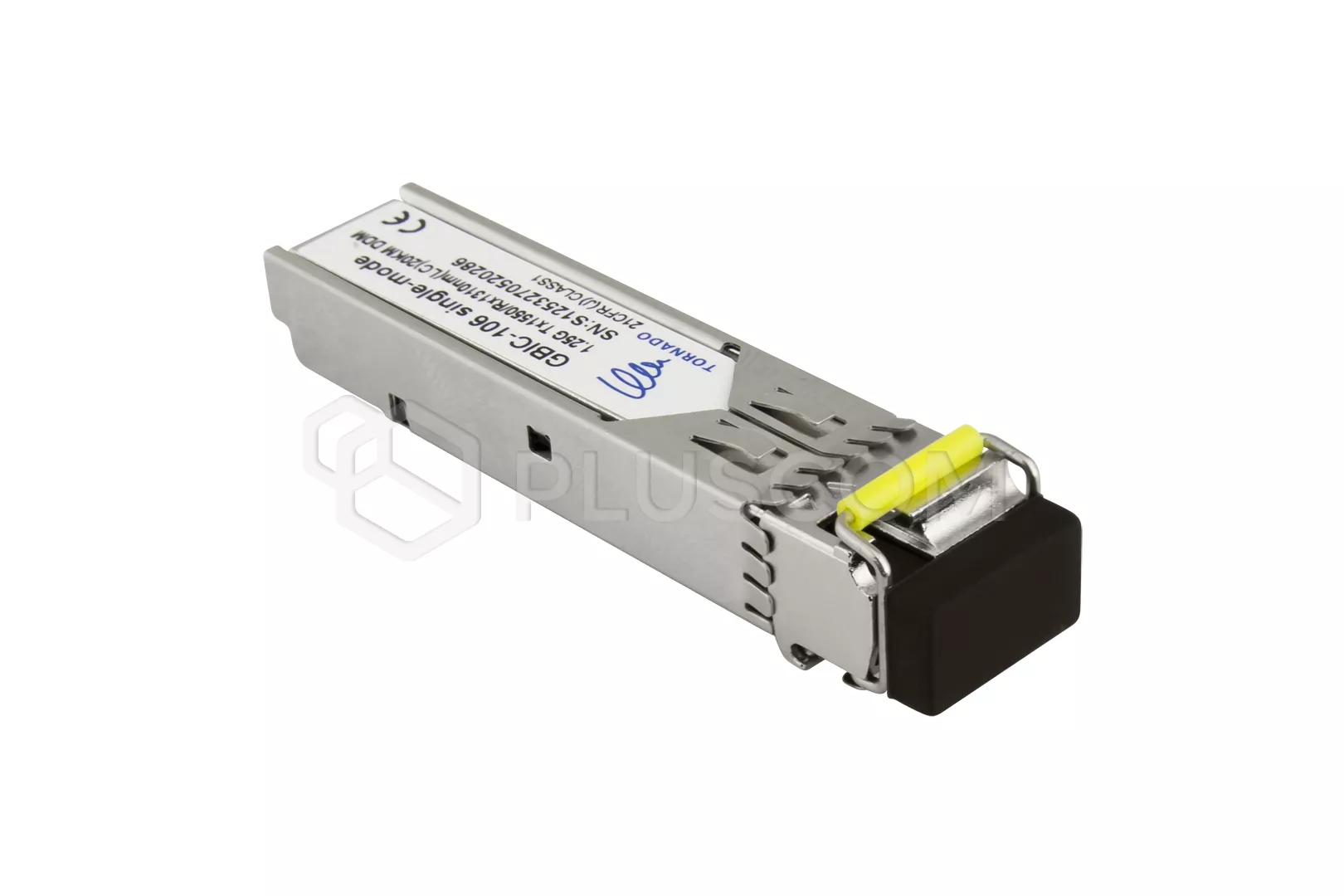

Pulsar GBIC-106 SFP GBIC-106 module, single-mode, 1,25G, Tx:1550 / Rx:1310, LC, 20KM, DDM (TORNADO)

Pulsar GBIC-106 SFP GBIC-106 module, single-mode, 1,25G, Tx:1550 / Rx:1310, LC, 20KM, DDM (TORNADO)

Pulsar GBIC-106 SFP GBIC-106 module, single-mode, 1,25G, Tx:1550 / Rx:1310, LC, 20KM, DDM (TORNADO)

Pulsar GBIC-106 SFP GBIC-106 module, single-mode, 1,25G, Tx:1550 / Rx:1310, LC, 20KM, DDM (TORNADO)

Pulsar GBIC-106 SFP GBIC-106 module, single-mode, 1,25G, Tx:1550 / Rx:1310, LC, 20KM, DDM (TORNADO)

Pulsar GBIC-106 SFP GBIC-106 module, single-mode, 1,25G, Tx:1550 / Rx:1310, LC, 20KM, DDM (TORNADO)

Pulsar GBIC-106 SFP GBIC-106 module, single-mode, 1,25G, Tx:1550 / Rx:1310, LC, 20KM, DDM (TORNADO)

Pulsar GBIC-106 SFP GBIC-106 module, single-mode, 1,25G, Tx:1550 / Rx:1310, LC, 20KM, DDM (TORNADO)

Pulsar GBIC-106 SFP GBIC-106 module, single-mode, 1,25G, Tx:1550 / Rx:1310, LC, 20KM, DDM (TORNADO)

Pulsar GBIC-106 SFP GBIC-106 module, single-mode, 1,25G, Tx:1550 / Rx:1310, LC, 20KM, DDM (TORNADO)

Pulsar GBIC-106 SFP GBIC-106 module, single-mode, 1,25G, Tx:1550 / Rx:1310, LC, 20KM, DDM (TORNADO)

23,80 EUR including 19.00% VAT

Add to cart

Product code: #13477

Manufacturer: Pulsar

Ask about this product

Power supply: 3.3 V DCpower from SFP port
Wavelength: Tx: 1550 nm, Rx: 1310nm
Optical fiber: single mode (SM) – 8.3/125 μm, 8.7/125 μm, 9/125 μm, 10/125 μm
Standards and protocols: IEEE 802.3z, 1000Base-FX
Transmission: 1.25 Gb/s, 20 km

Delivery and tax:

Germany VAT: 19.00% change

Shipping cost from:

10,84 EUR

Payment methods:

We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:

Pulsar GBIC-104 SFP GBIC-104 module, single-mode, 1,25G, Tx:1550 / Rx:1310, SC, 20KM, DDM (TORNADO)

Pulsar GBIC-103 SFP GBIC-103 module, single-mode, 1,25G, Tx:1310 / Rx:1550, SC, 20KM, DDM (TORNADO)

Pulsar GBIC-102 SFP GBIC-102 module, multimode, 1.25G, Tx/Rx:1310, LC, 2KM, DDM (TORNADO)

Pulsar GBIC-101 SFP GBIC-101 module, single-mode, 1.25G, Tx/Rx:1310, LC, 20KM, DDM (TORNADO)

Pulsar GBIC-105 SFP GBIC-105 module, single-mode, 1,25G, Tx:1310 / Rx:1550, LC, 20KM, DDM (TORNADO)

Pulsar GBIC-106 SFP GBIC-106 module, single-mode, 1,25G, Tx:1550 / Rx:1310, LC, 20KM, DDM (TORNADO)

Technical parameters:

Destination: SFP GBIC-106 module is designed to convert an electrical signal into an optical signal. It is designed for single mode fiber transmission (SM) using two optical fibers terminated with LC optical connectors.
Power supply: 3.3 V DCpower from SFP port
Wavelength: Tx: 1550 nm, Rx: 1310nm
Optical fiber: single mode (SM) – 8.3/125 μm, 8.7/125 μm, 9/125 μm, 10/125 μm
Standards and protocols: IEEE 802.3z, 1000Base-FX
Transmission: 1.25 Gb/s, 20 km
Connector Type: 1 x LC
Warranty: 2 years
Notes: - built-in DDM (Digital Diagnostics Monitoring) - module has snap-lock system for optical connectors - proper communication with other devices requires use of GBIC-105 module

Download

Data sheet 0.23 MB
