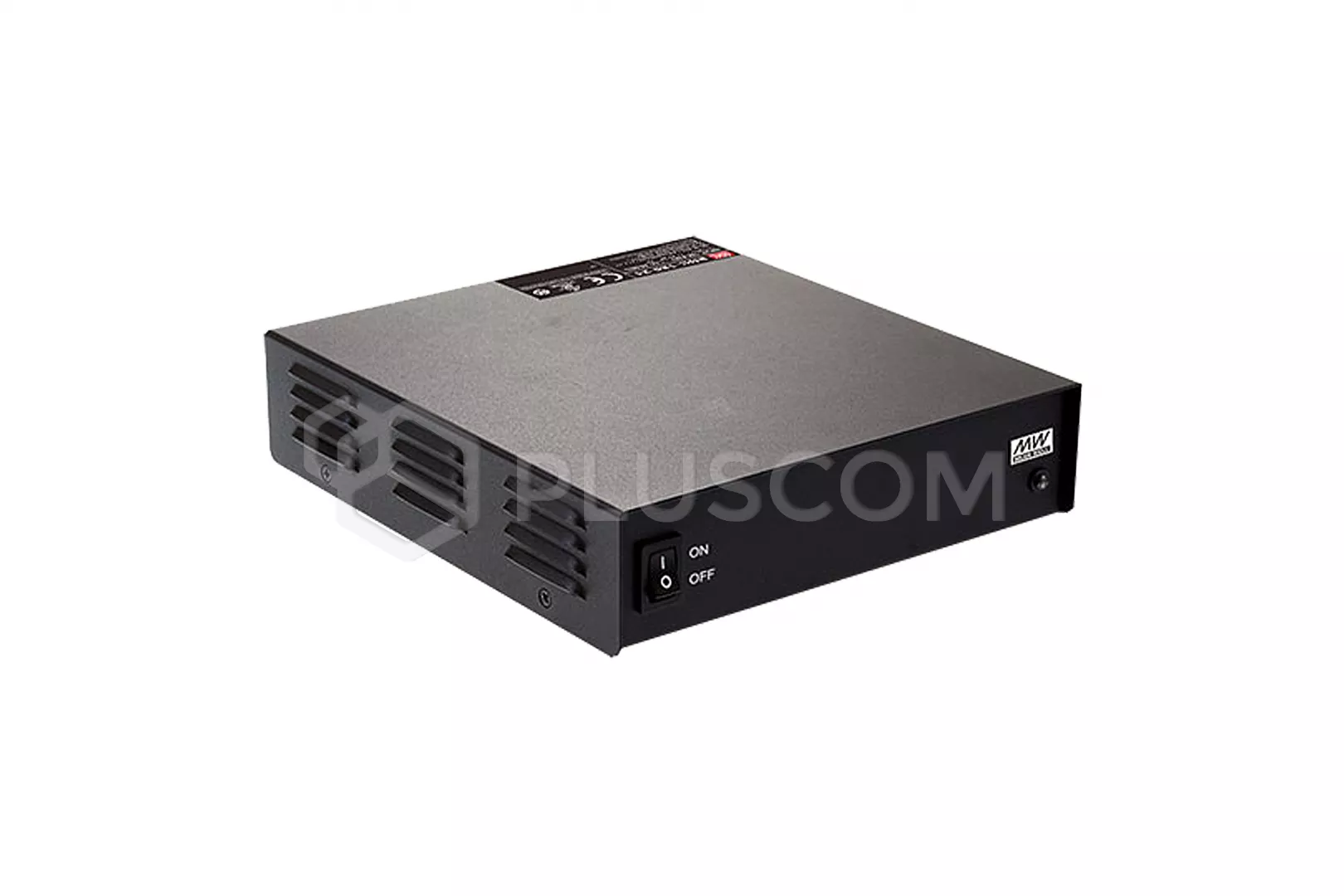

Pulsar ENP-240-12 desktop power supply 13.8V/240W/17.4A

126,37 EUR including 20.00% VAT
On stock. Ships in one business day
Delivery time: 3 - 5 days
Product code: #27347
Manufacturer: Pulsar
  • Output voltage: 13.8V
  • Rated current: 17.4A
  • Built-in active PFC function
  • Dimensions: 192 x 45.5 x 178mm
  • Passive cooling
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar ENP-120-12 ENP 13,8V/120W/8,7A power supply (desktop type)

Pulsar ENP-240-12 desktop power supply 13.8V/240W/17.4A


Single-output desktop power supply ENP-240-12 with a wide voltage range power supply 90-264VAC and 127-370VDC. Free-flow cooling air.
It has a built-in active PFC function and energy efficiency - level VI. Use wires with a cross section of 0.5 - 4.0 mm (12~20AWG) for connection.
The power supply is equipped with the following protections:
  • short-circuit proof SCP
  • overload OLP
  • surge
  • over temperature
The most important features of the power supply
  • wide range of supply voltage 90-264VAC and 127-370VDC
  • built-in active PFC
  • no fan - cooling with free air circulation
  • temperature compensation function

TECHNICAL PARAMETERS:
  • Power: 90 ~ 264VAC
  • Output voltage: 13.8V
  • Rated current: 17.4A
  • PSU power: 240.1W
  • Efficiency: 91%
  • Ripple voltage: 150 mV p-p max.
  • Operating temperature: -30°C...70°C

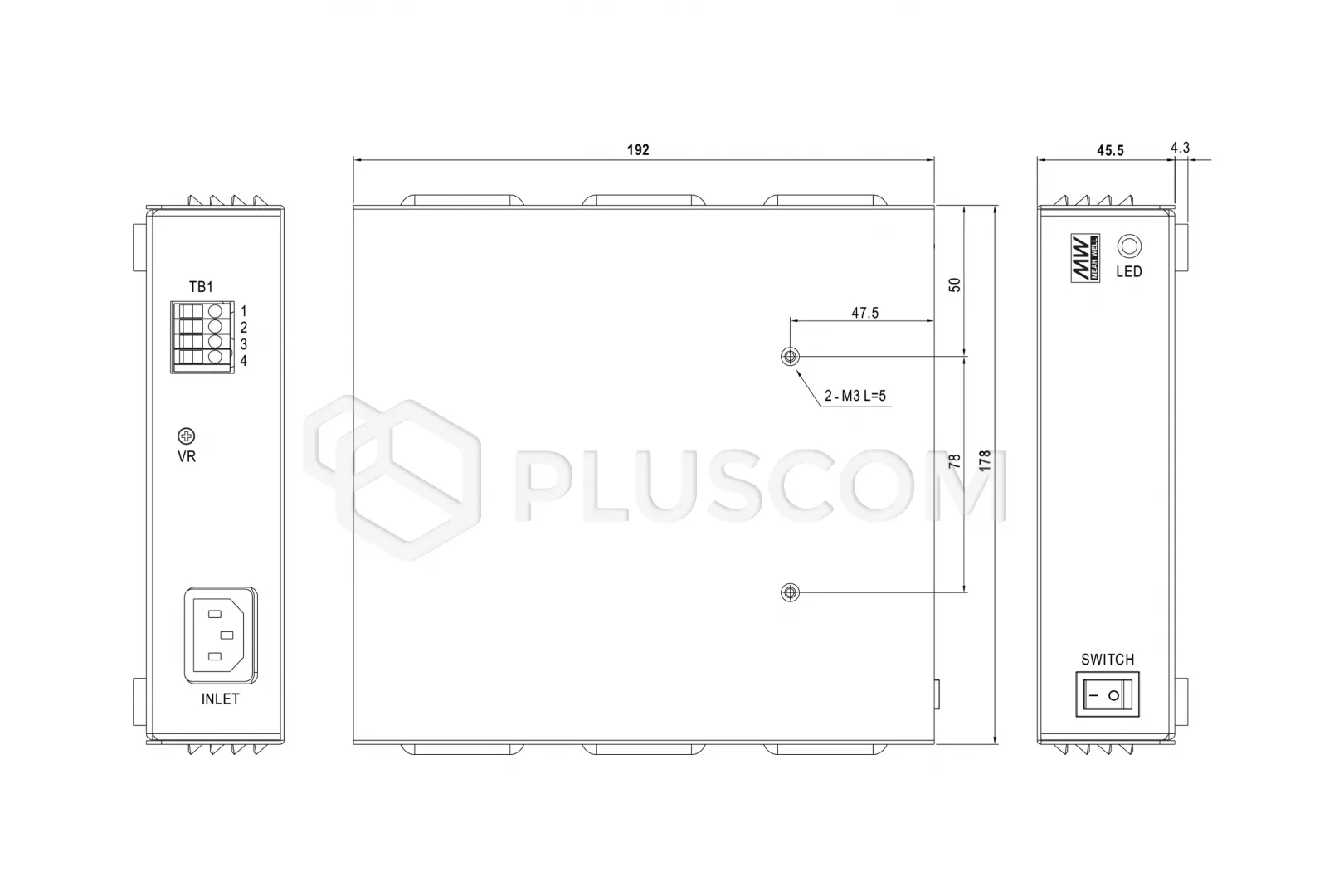

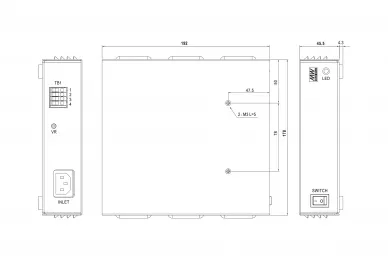

  • Dimensions: 192x178x45.5mm
  • Weight: 1.23kg
Download
Datasheet 0.11 MB
