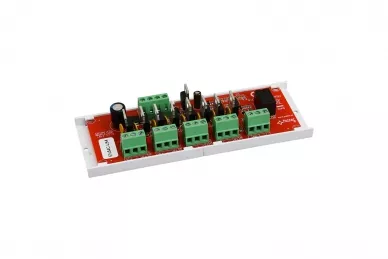

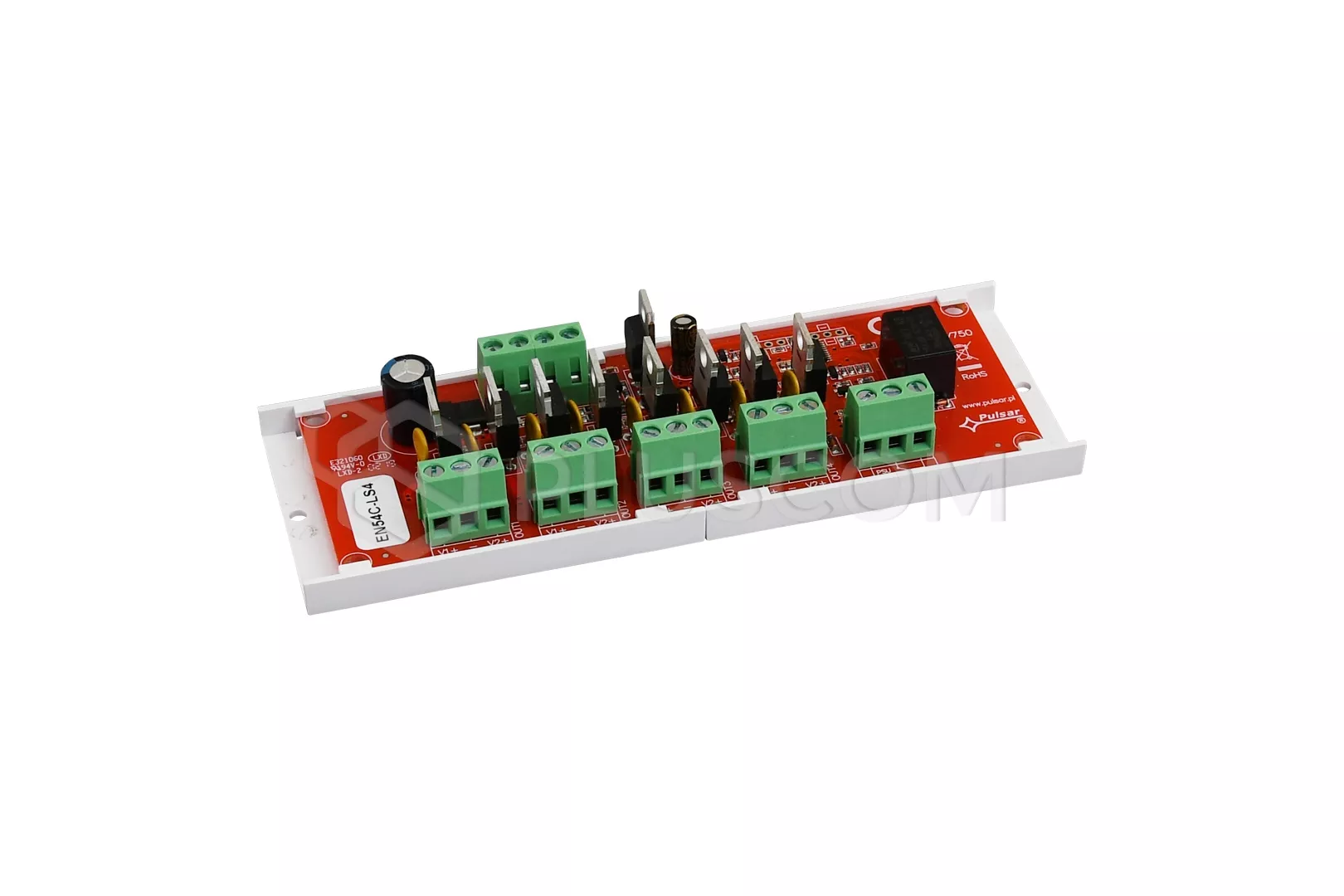

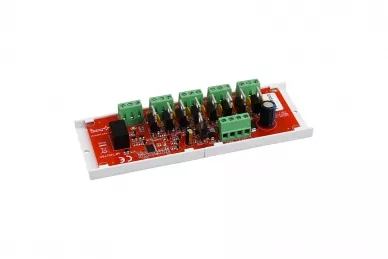

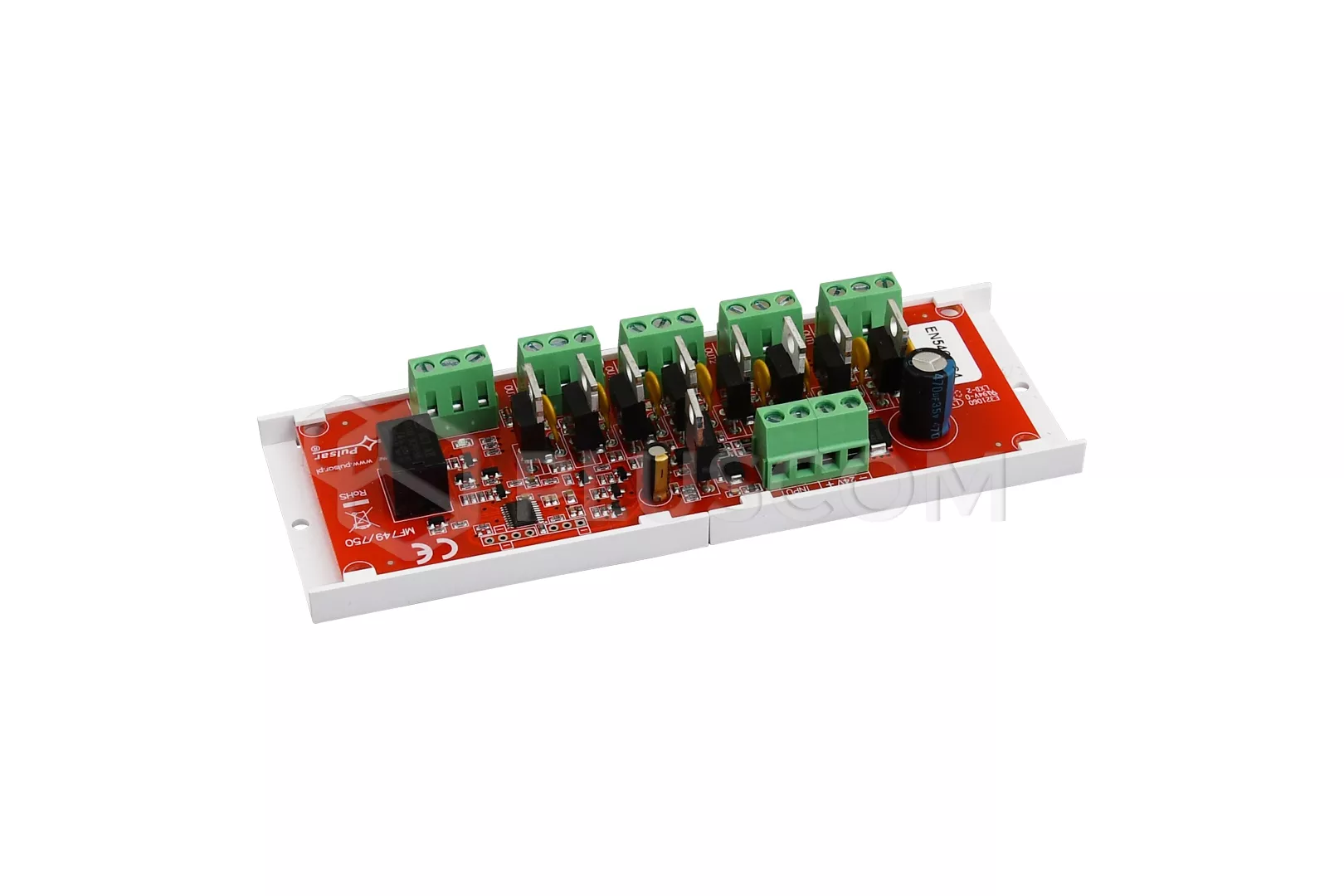

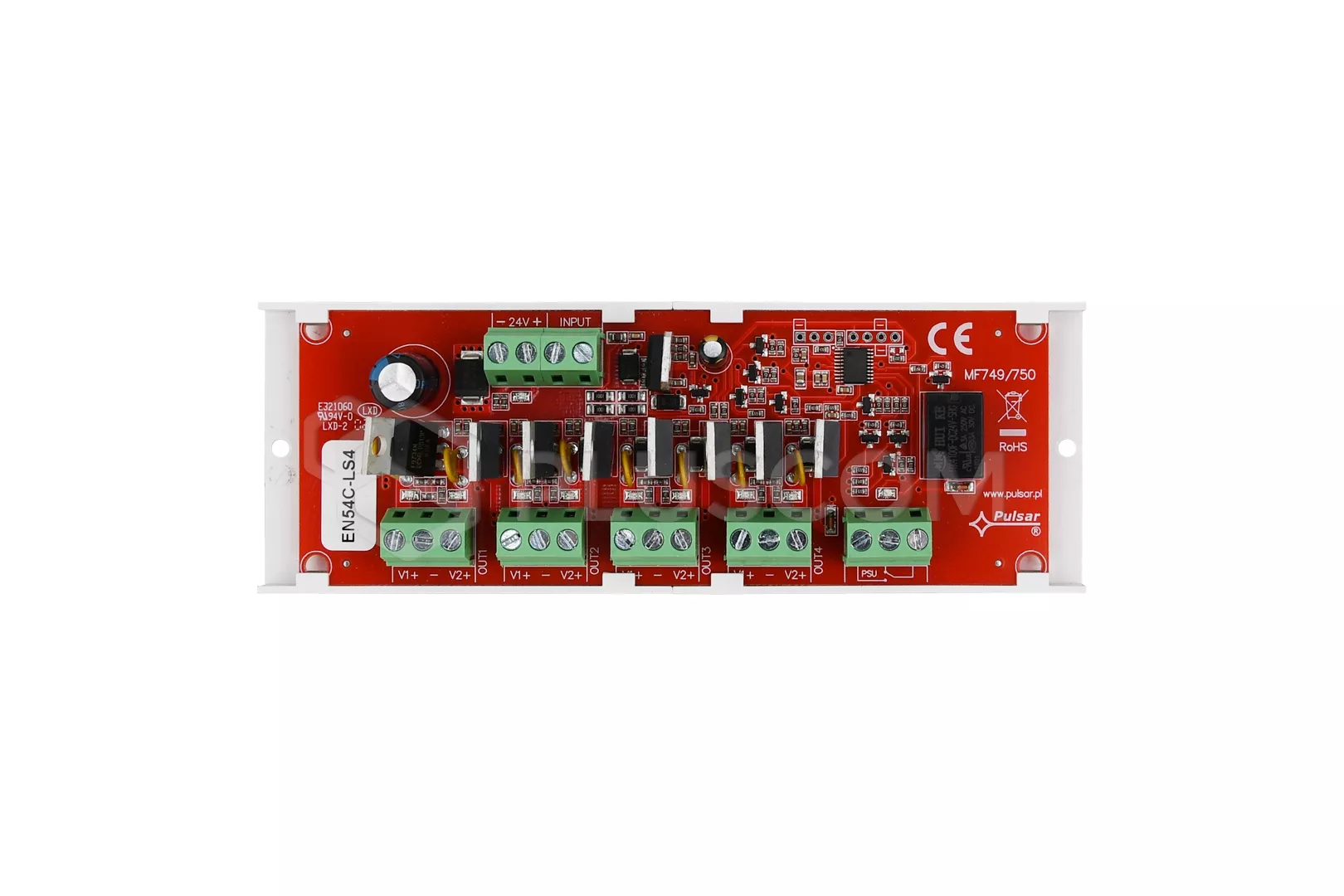

Pulsar EN54C-LS4 EN54C-LS4 sequential module for actuators without return spring

64,14 EUR including 23.00% VAT
Product code: #19942
Manufacturer: Pulsar
  • Power supply: 20 - 30 V DC
  • Power supply output: 4 x 0.5 A / Uaux = Uin
  • Input / output: 1 / 4
  • Dimensions: 150 x 27 x 52.5 [+/-2 mm]
  • Protections: OLP

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar EN54C-LS8 EN54C-LS8 sequential module for actuators with return spring

Pulsar EN54C-LS4 EN54C-LS4 sequential module for actuators without return spring


Technical parameters:

  • Power supply: 20 - 30 V DC
  • Power supply output: 4 x 0.5 A / Uaux = Uin
  • Input / output: 1 / 4
  • Dimensions: 150 x 27 x 52.5 [+/-2 mm]
  • Protections: OLP
  • Technical outputs relay type: PSU – parametric input failure INPUT
  • Control inputs: INPUT – parametric (2x4,7kΩ)
  • Indication: LED optical indication
  • Warranty: 5 years
  • Notes: - dedicated for power supplies of the EN54C / EN54M - sequentially switching of receivers, with a delay of 100 ms

  • Download
    Data sheet 0.25 MB
    Instruction 0.7 MB
