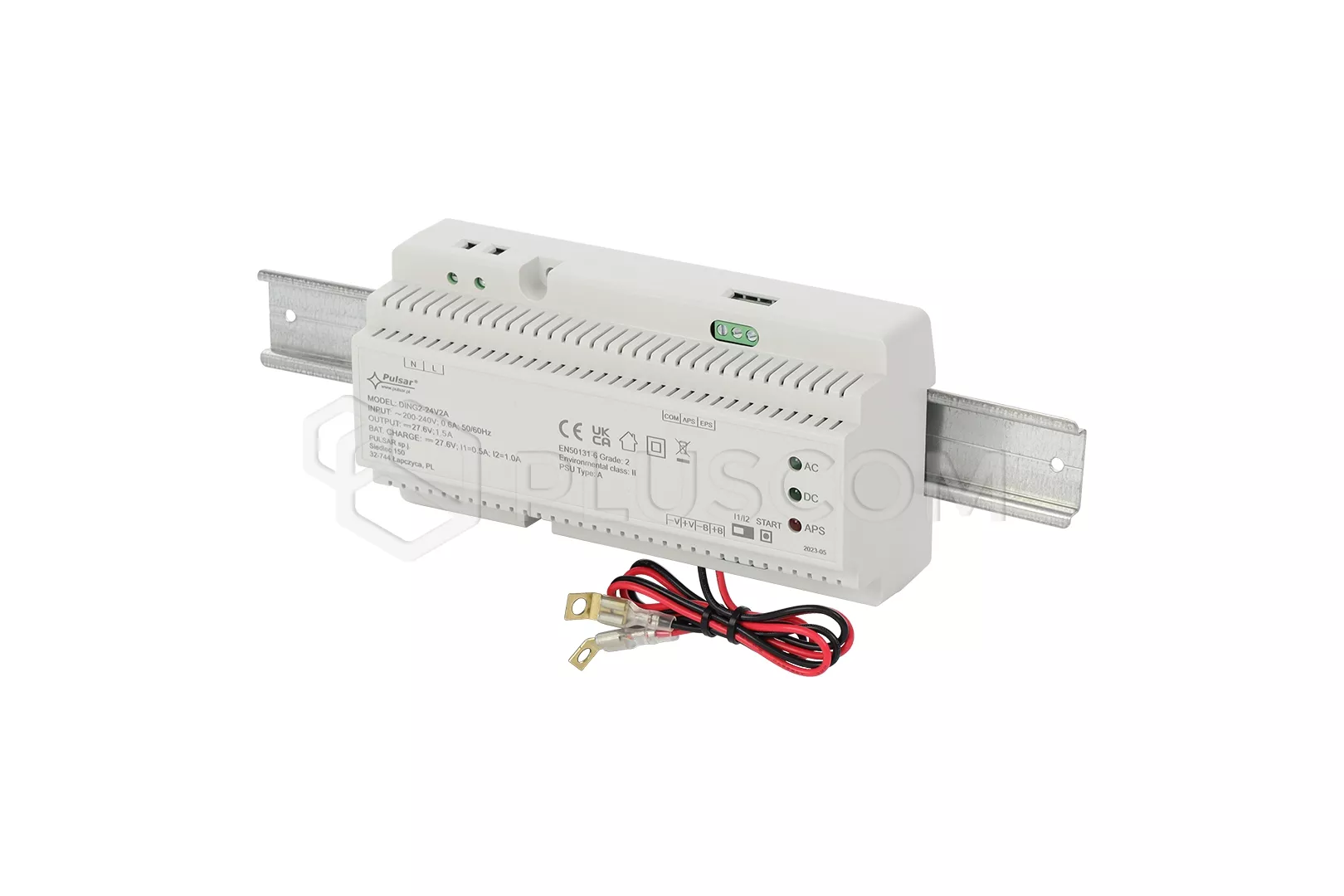

Pulsar DING2-24V2A DING2 27,6V/2A buffer switch mode power supply unit for DIN rail Grade 2

58,23 EUR including 23.00% VAT
Product code: #36299
Manufacturer: Pulsar
  • Power supply: 200 - 240 V AC
  • Battery charging current: 0.5A/1A- Battery wires 6,3F – 45cm, angle muffs ML062
  • Mounting dimensions: 10SU (175mm)
  • Dimensions: 176 x 60 x 91 [+/-2 mm]
  • Protections: SCP, OLP, OVP, UVP

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar DING2-24V3A DING2 27,6V/3A buffer switch mode power supply unit for DIN rail Grade 2

Pulsar DING2-24V2A DING2 27,6V/2A buffer switch mode power supply unit for DIN rail Grade 2


Technical parameters:

  • Power supply: 200 - 240 V AC
  • Power supply output: 2 A / 27.6 V DC (total output current with charging)function START allows running PSU from battery power
  • Compliant with standards: Construction compliant with EN50131, GRADE 1÷2Access control norm EN60839-11
  • Battery charging current: 0.5A/1A- Battery wires 6,3F – 45cm, angle muffs ML062
  • Mounting dimensions: 10SU (175mm)
  • Dimensions: 176 x 60 x 91 [+/-2 mm]
  • Protections: SCP, OLP, OVP, UVP
  • Technical outputs OC type: EPS – AC power failureAPS – battery failure
  • Warranty: 2 years

Download
Data sheet 0.41 MB
Instruction 1.45 MB
