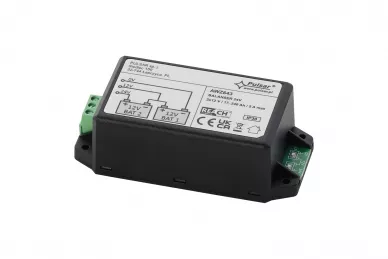

Pulsar AWZ643 Battery balancer 24V

60,71 EUR including 23.00% VAT
Product code: #36288
Manufacturer: Pulsar
  • Power supply: 15 - 30 V DC
  • Battery: 2 x 17 - 240Ahno space for battery
  • Dimensions: 110 x 35 x 53 [+/-2 mm]
  • Protections: SCP, UVP
  • Indication: LED optical indication
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar AWZ643 Battery balancer 24V


Technical parameters:

  • Destination: AWZ643 24V balancer is designed for voltage equalisation in 12V batteries (AGM, SLA) connected in series or series-parallel. The basic working principle of the module is to transfer energy from battery with higher voltage to battery with lower voltage. Equalising the charge in the batteries is beneficial and protects against overcharging or undercharging, which leads to a reduced service life. Module has LEDs optical operation indication.
  • Power supply: 15 - 30 V DC
  • Battery: 2 x 17 - 240Ahno space for battery
  • Dimensions: 110 x 35 x 53 [+/-2 mm]
  • Protections: SCP, UVP
  • Indication: LED optical indication
  • Material: ABS plastic, RAL9005 (black)
  • IP protection class: IP 30
  • Warranty: 2 years
  • Notes: - Possibility of balancing batteries combined in 24V/36V/48V sets
Download
Data sheet 0.25 MB
Instruction 0.65 MB
