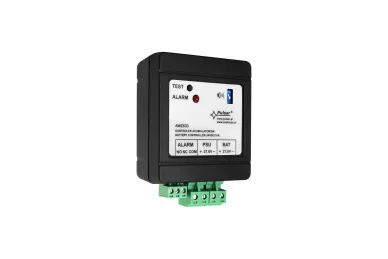

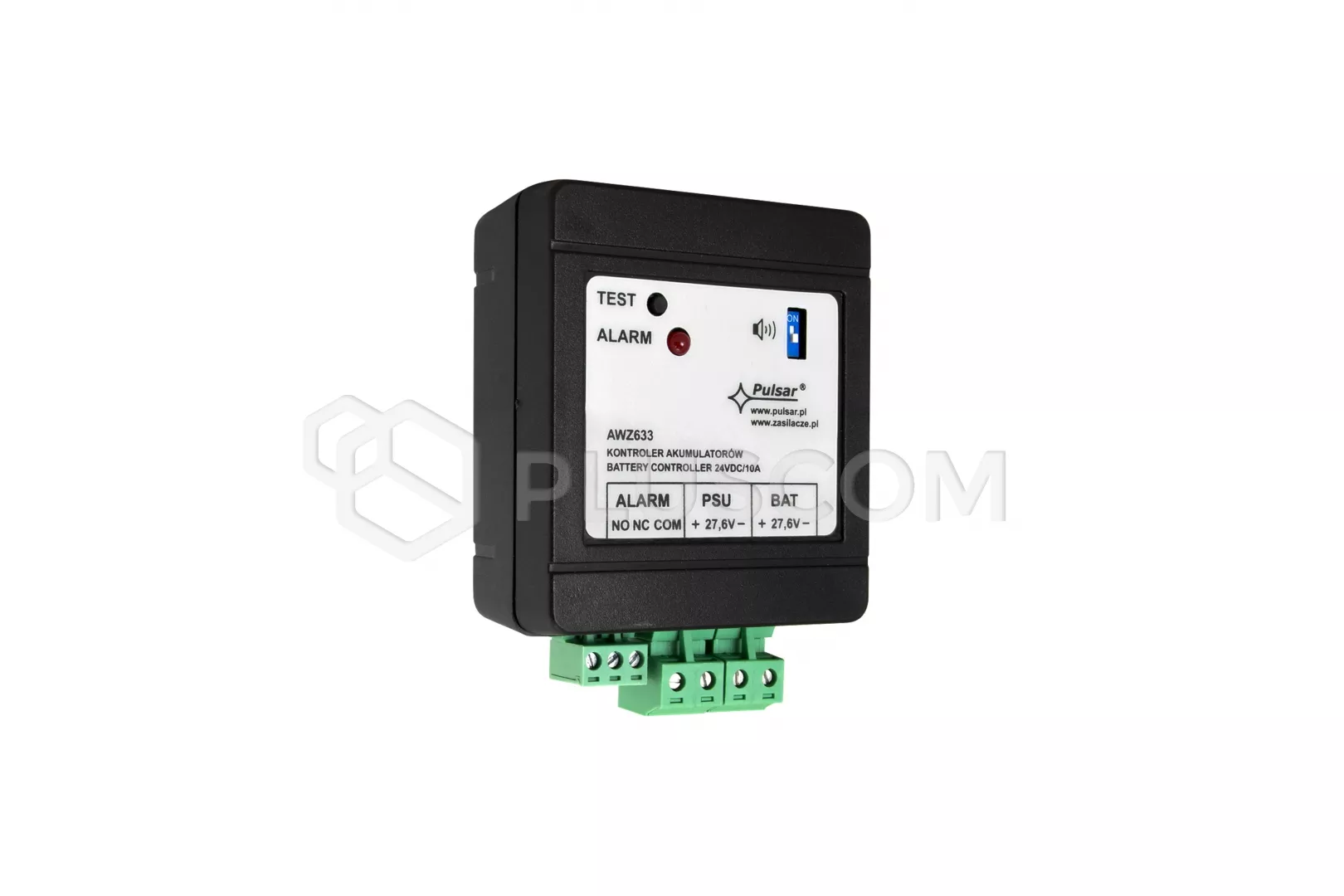

Pulsar AWZ633 Battery controllers 24VDC/10A

Pulsar AWZ633 Battery controllers 24VDC/10A

The AWZ633 controller task is to monitor the battery condition (2x7-40Ah/12V (SLA)), which is made on the basis of resistance and continuity measurements batteries, voltage and charge level.
The AWZ633 pulsar monitors the continuity of the battery circuit and conducts every 5 min its an automatic test. Battery charging is disconnected for a while and voltage measurement. The test button is located on the front panel and can be used run manually also, but remember not to run the test more often than every 1 minute.

Battery output protection against short circuit and reverse connection. The controller also has a collective failure relay output ALARM. Failure is signaled by LED as well as acoustically, and trigger it may:

• high resistance of the BAT circuit
• undercharged battery
• no battery
• low battery voltage (DC operation)
• low battery voltage - disconnection (DC operation)

TECHNICAL DATA:

• Fitting battery: 2x7-40Ah/12V (SLA)
• The BAT output current: 10A max.
• The BAT output voltage: 27.6V DC max.
• (19 mm) - 15A time delay fuse
• Optical indication of operation ALARM LED
• Acoustic indication of operation: Piezoelectric indicator ~75dB /0,3m
• ALARM – technical output of collective failure indication Relay type: 1A@ 30VDC/50VAC
• Dimensions: 108x38x80mm
• Weight: 0.18kg
