Pulsar AWZ09123 linear power supply 12V DC

33,14 EUR including 19.00% VAT
Product code: #8187
Manufacturer: Pulsar
  • 9x 0,33A,/ 12V AC power output
  • current efficiency 3A
  • LED indication

Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar AWZ09123 Linear power supply to CCTV 12V DC 3A

The AWZ09123 power supply is intended for supplying CCTV equipment that requires stabilized voltage of 12V DC with a current capacity of 3A.
It has 9 power outputs that have been independently protected by fuses or polymeric PTC fuses (9x0,5A).The fuse type is selected using jumpers.The output voltage range is adjustable in three independent sections A, B and C.
Pulsar AWZ09123 linear power supply 12V DC

Pulsar AWZ09123 linear power supply 12V DC

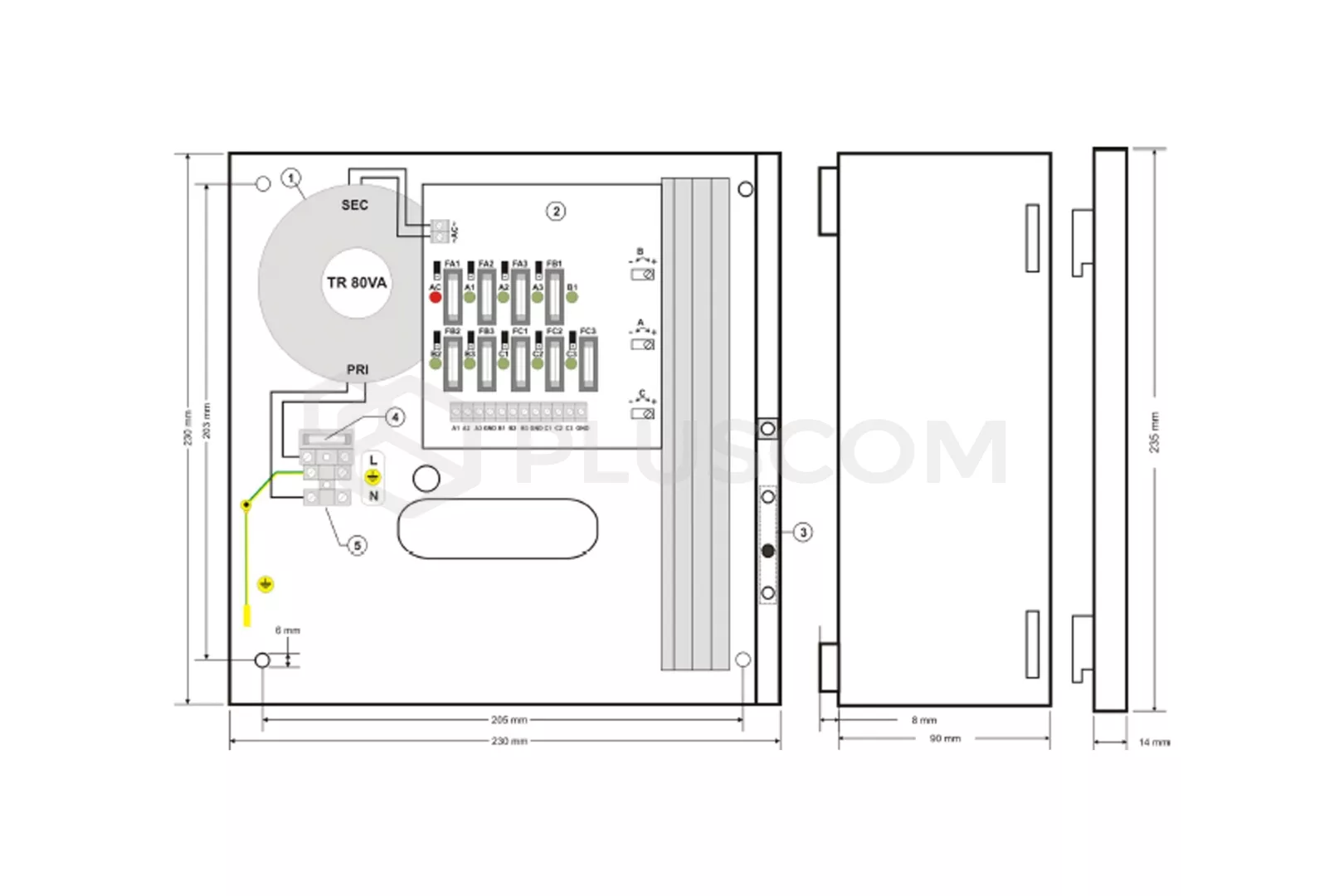

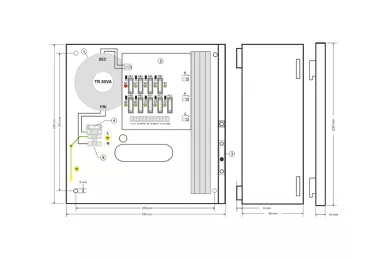

AWZ09123 Dimensions:

AWZ09123 Dimensions:


Features of the power supply unit:
  • power output 3A/12VDC
  • LED optical signalisation
  • protections:
    • SCP short - circuit protection
    • overvoltage protection
    • overload (OLP)
    • OHP overheat protection
    • surge protection


Download
Data Sheet 0.11 MB
Instruction 0.81 MB
Declaration CE 0.15 MB
