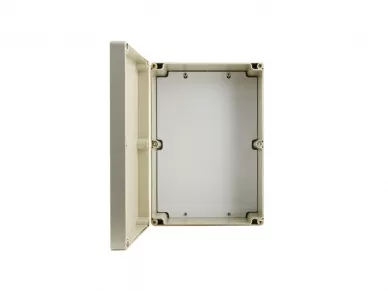

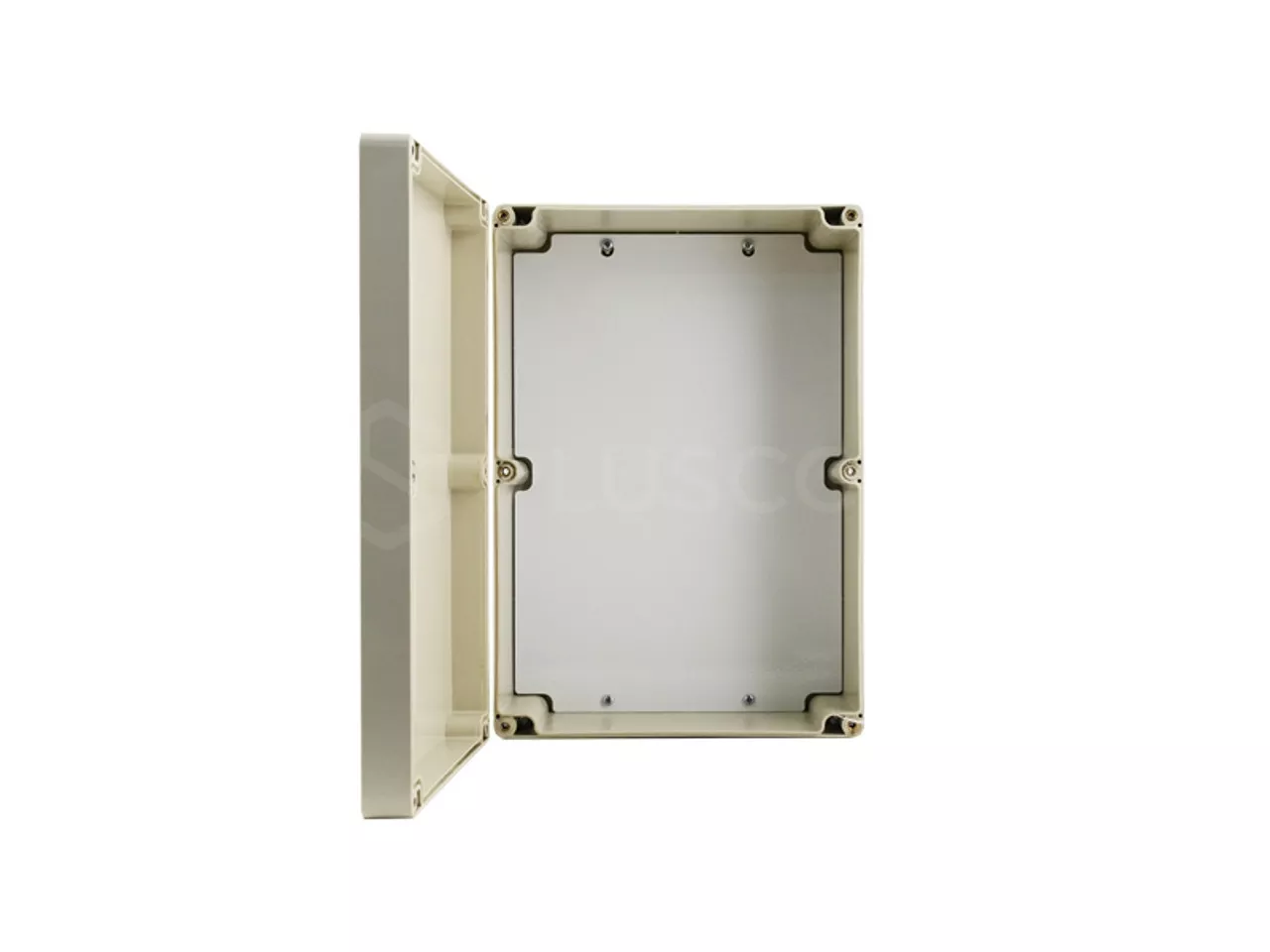

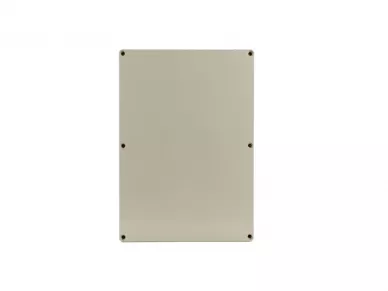

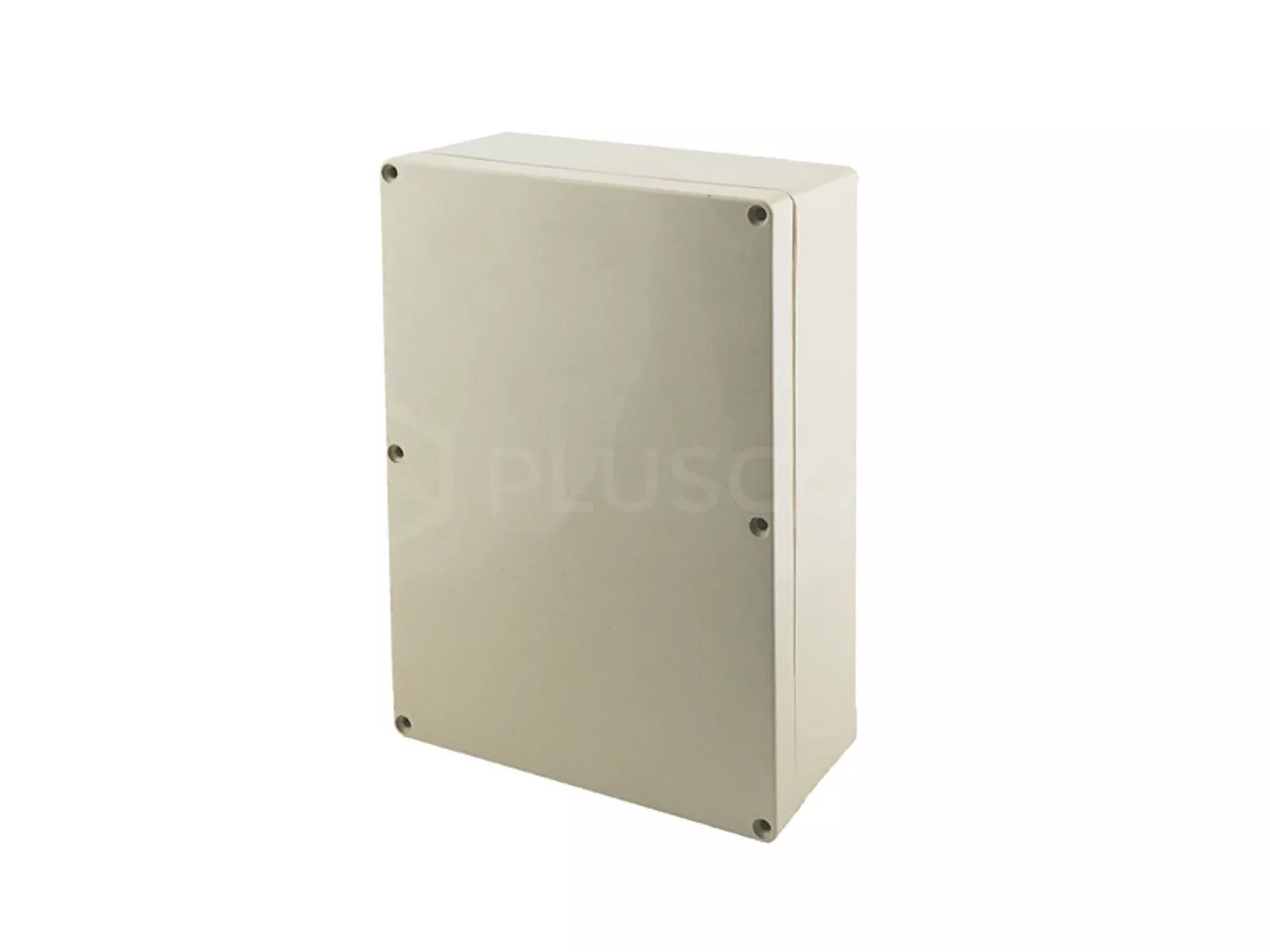

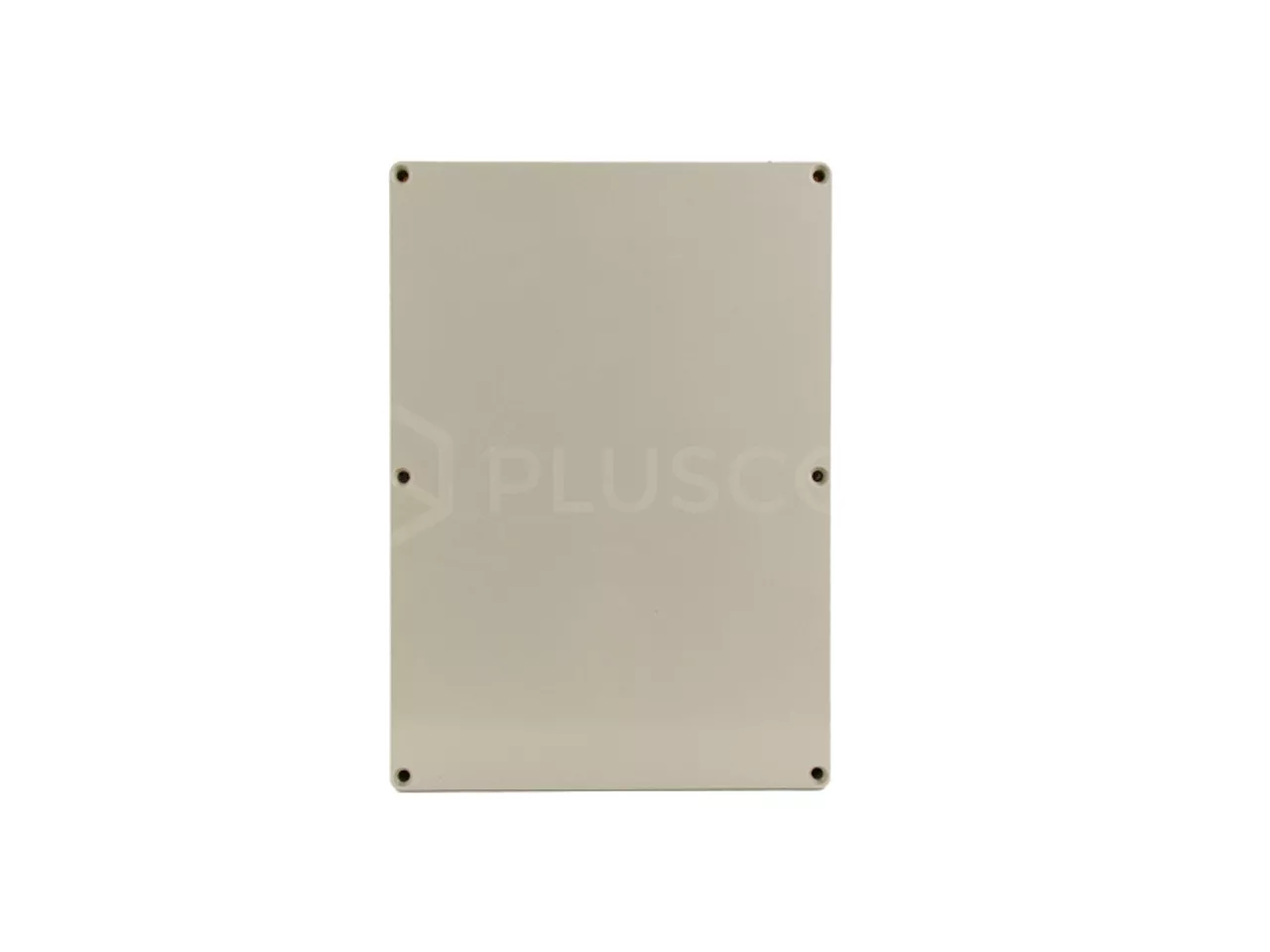

Pulsar AWO604 Plastic casing- hermetic

33,98 EUR including 22.00% VAT
Product code: #6526
Manufacturer: Pulsar
  • External dimensions: 184x263x96mm
  • Dimensions of a mounting plate: 157x235mm
  • Surface mounted
  • Hermetic casing, IP65
  • Equipment: sheet steel, cables glands

Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar AWO603 Plastic casing hermetic

Casing AWO604 is intended for instalation of security access control and CCTV systems, which require IP65 protection level .

Protection level IP65
6 – anti-dust protection,
5 – anti-water stream protection.

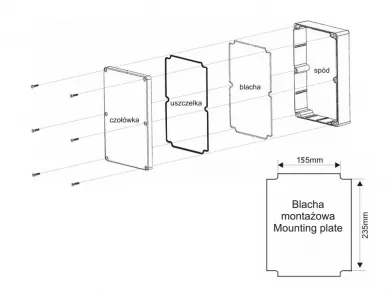

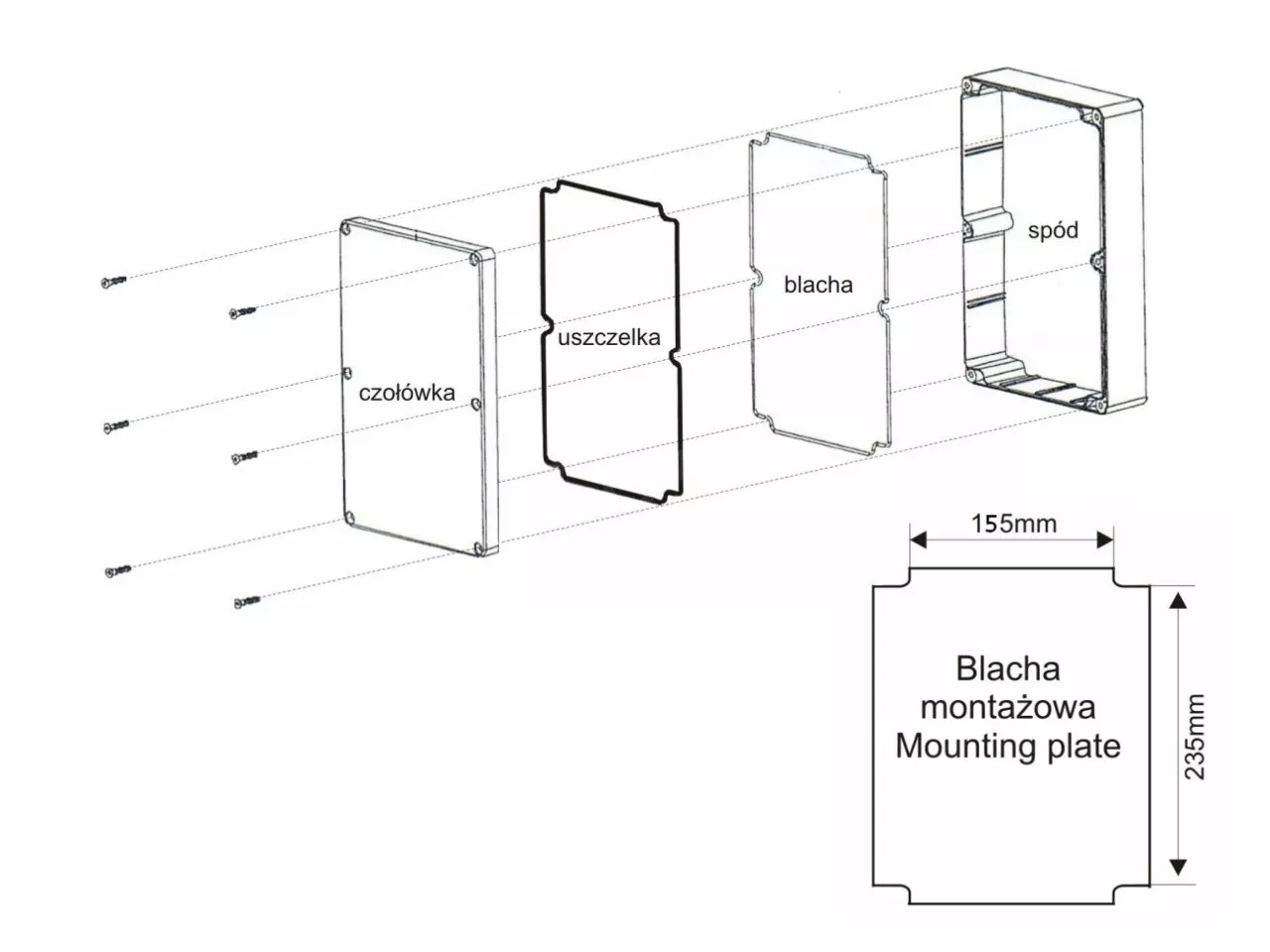

Casing is equiped with metal mounting plate, of thickness 1 mm, of dimensions 157x235mm painted In white colour RAL9003 and cable glands M12x1,25 - 2pcs and M16x1,5 - 1pcs

Sheet
does not have mounting holes, you need to do them yourself.


Technical Data:
  • material: ABS
  • net weight: 1,1kg
  • protection level: IP65
  • working conditions: class II environment, -20°C...+70°C
  • application: outside / inside
  • Closing: screwed, 6x
{IMG_8673}

Download
Datasheet 1.27 MB
CE Declaration 0.32 MB
Manual 0.25 MB
