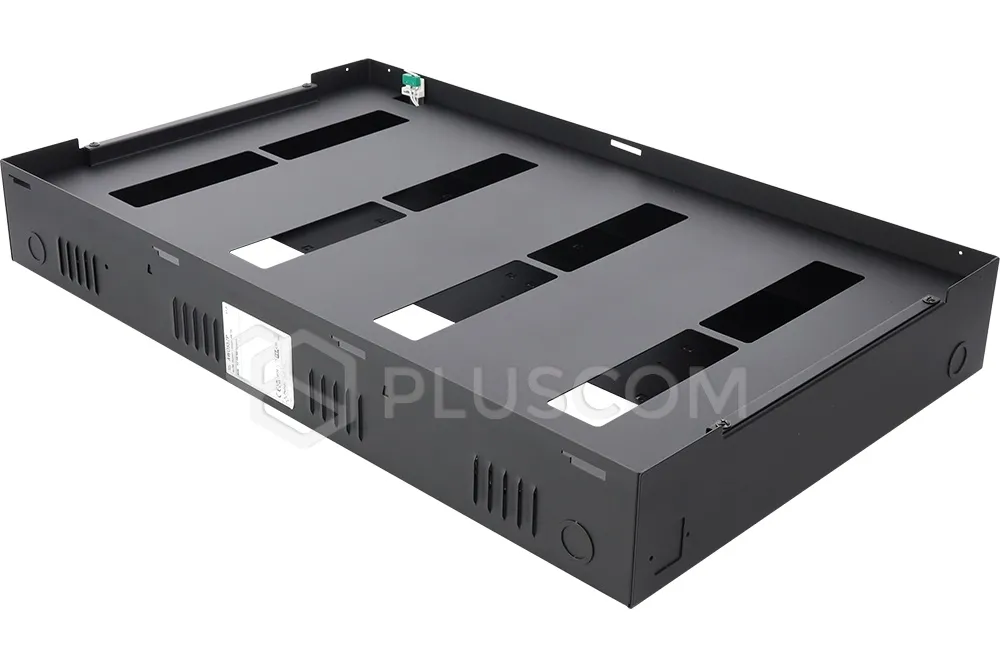

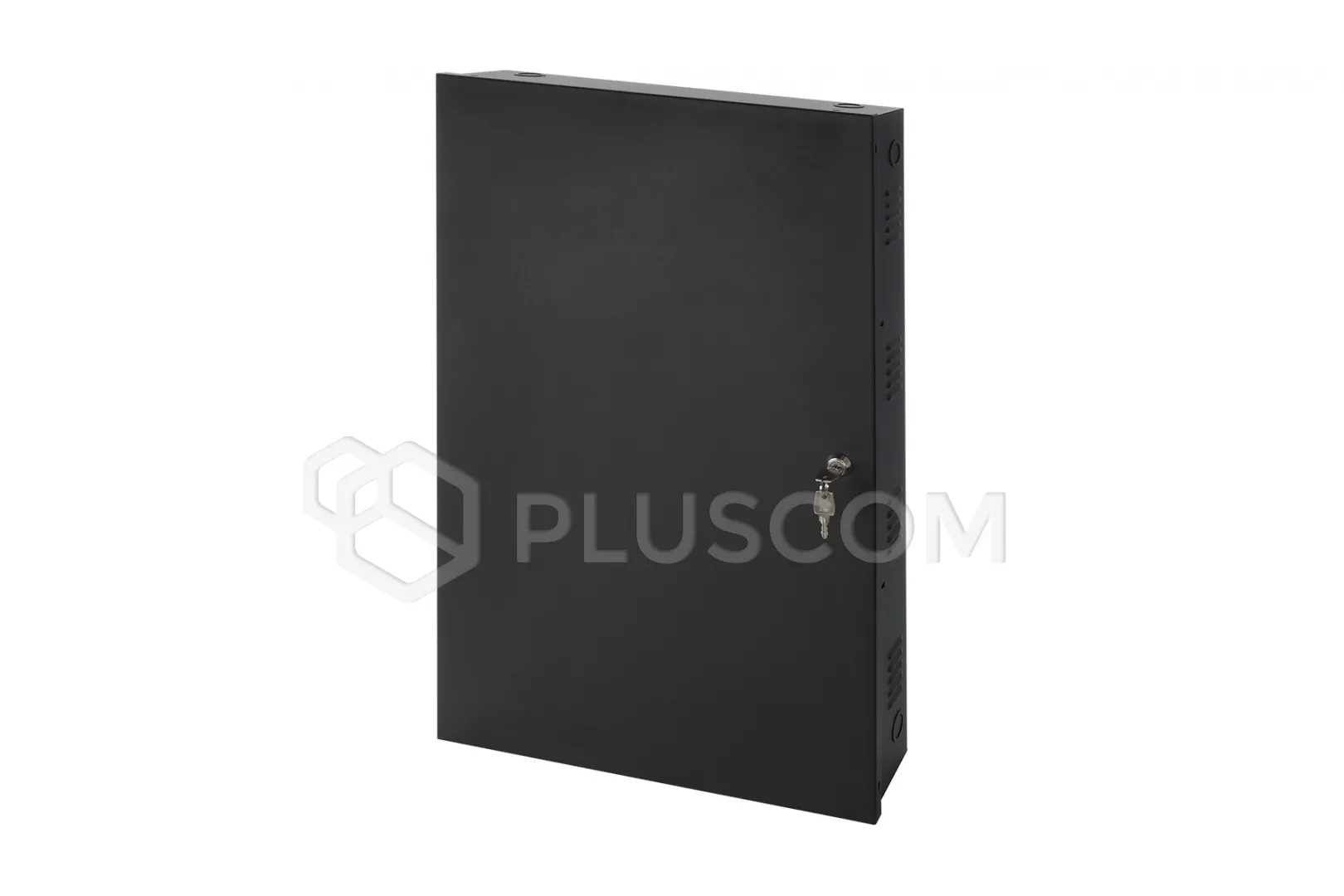

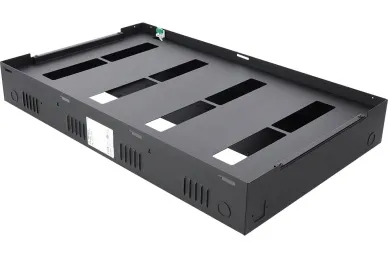

Pulsar AWO557P 2x4 DIN Rail enclosure

154,23 EUR including 23.00% VAT
Product code: #45028
Manufacturer: Pulsar
  • Destination: These enclosures are designed for the DIN rail mounting of access control system…
  • Dimensions of battery space: 1 x 7Ah
  • Dimensions: 434 x 712 x 99 [+/-2 mm]; distance from surface: 3 mm
  • External dimensions of front panel: 440 x 717 [mm]
  • Operating conditions: -10°C ÷ 40°C
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,46 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar AWO557P 2x4 DIN Rail enclosure


These enclosures are designed for the DIN rail mounting of access control system devices, including:; Controller Modules: PRT-CTRL-DIN-.... / PRT-WX-DIN-…; Expander Modules: PRT-RDM2-DIN-… / PRT-HRDM-DIN-… / PRT-ZX16-DIN-… / .........; Power Supply Modules: PRT-PSU-DIN-…; The design allows for the mounting of modules in both full-size and half-size formats.

TECHNICAL DATA:

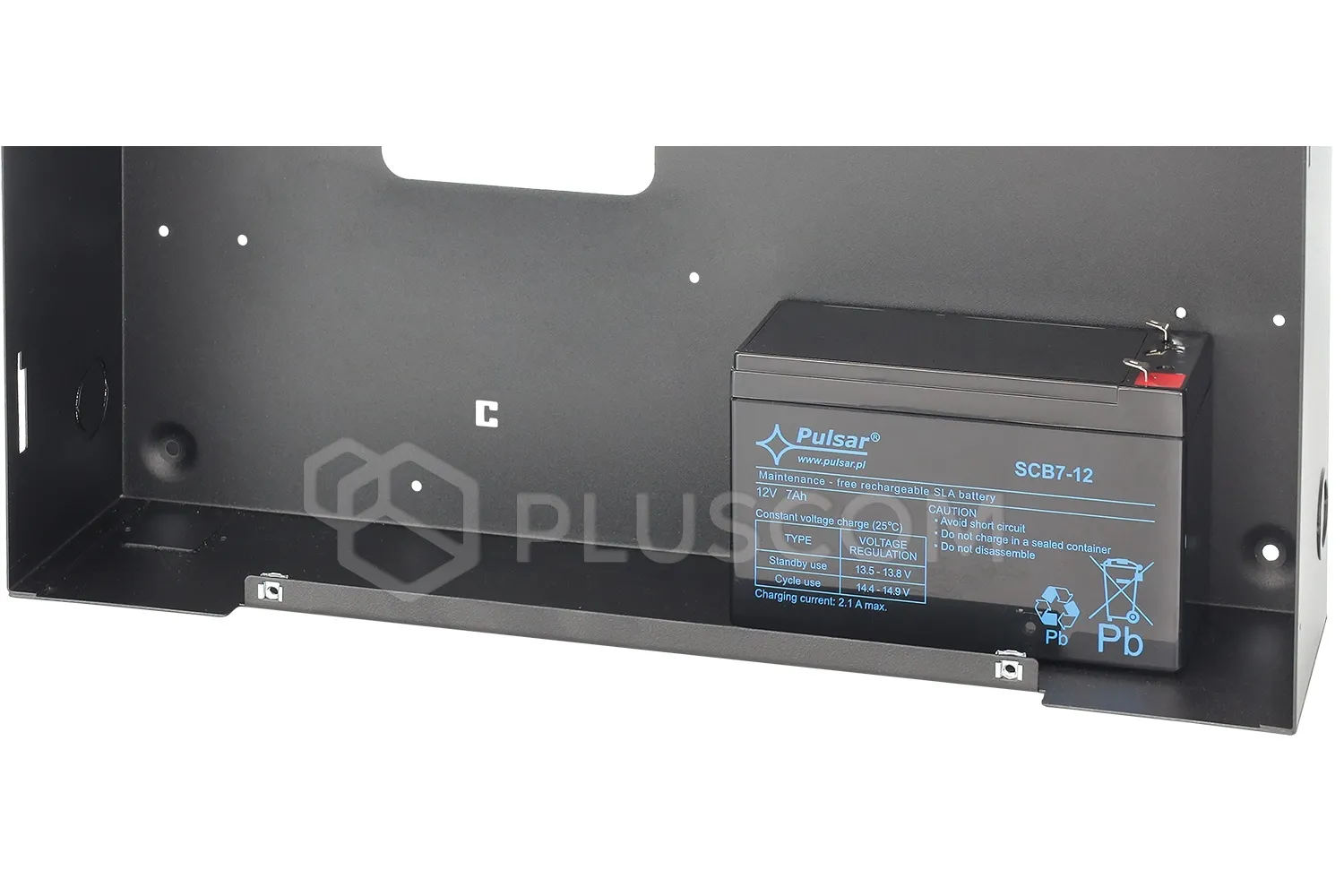

  • Dimensions of battery space: 1 x 7Ah

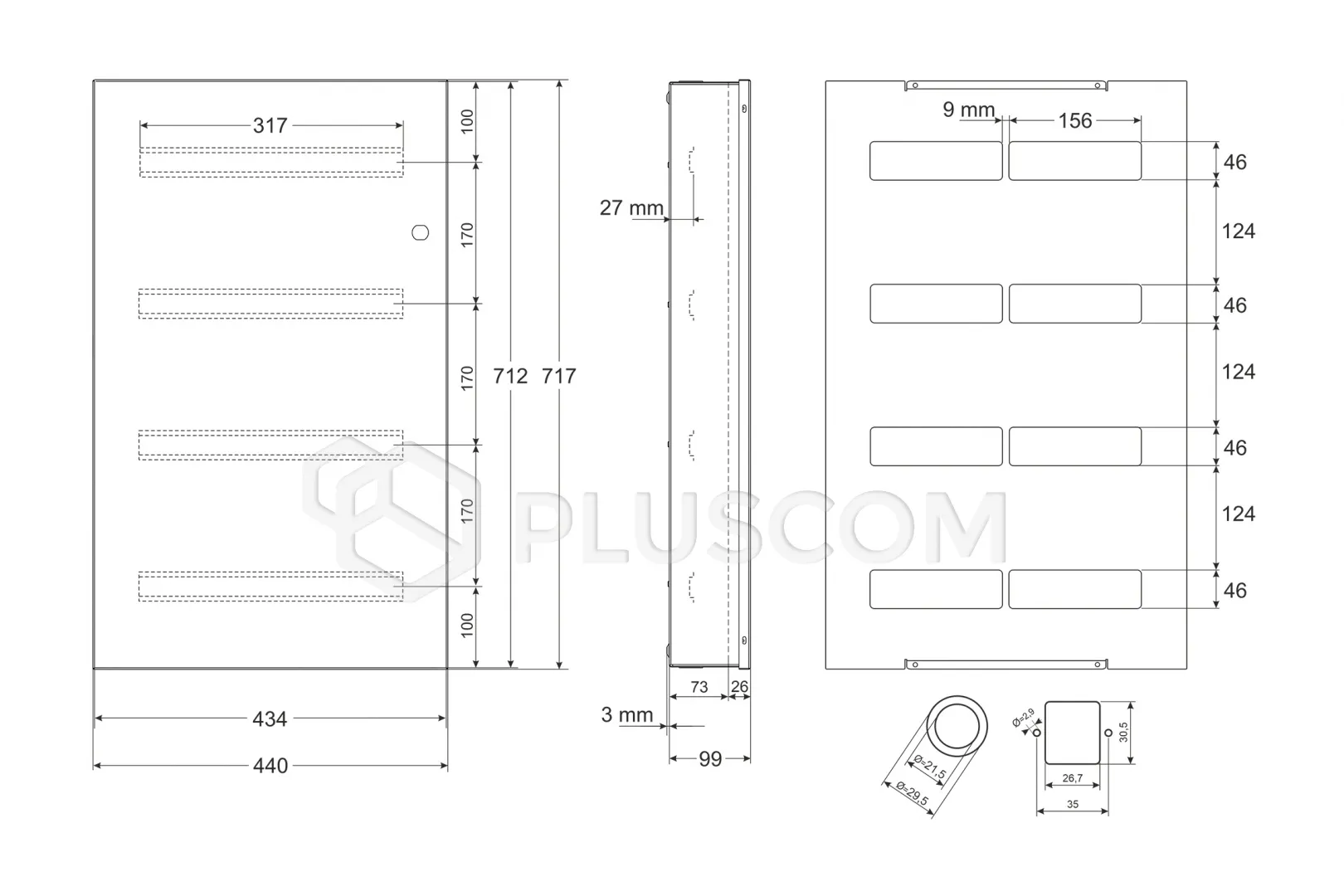

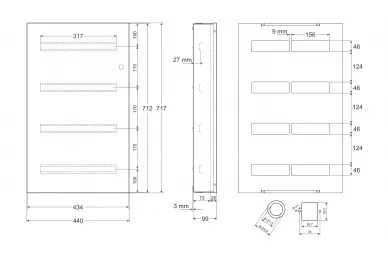

  • Dimensions: 434 x 712 x 99 [+/-2 mm]; distance from surface: 3 mm
  • External dimensions of front panel: 440 x 717 [mm]
  • Operating conditions: -10°C ÷ 40°C

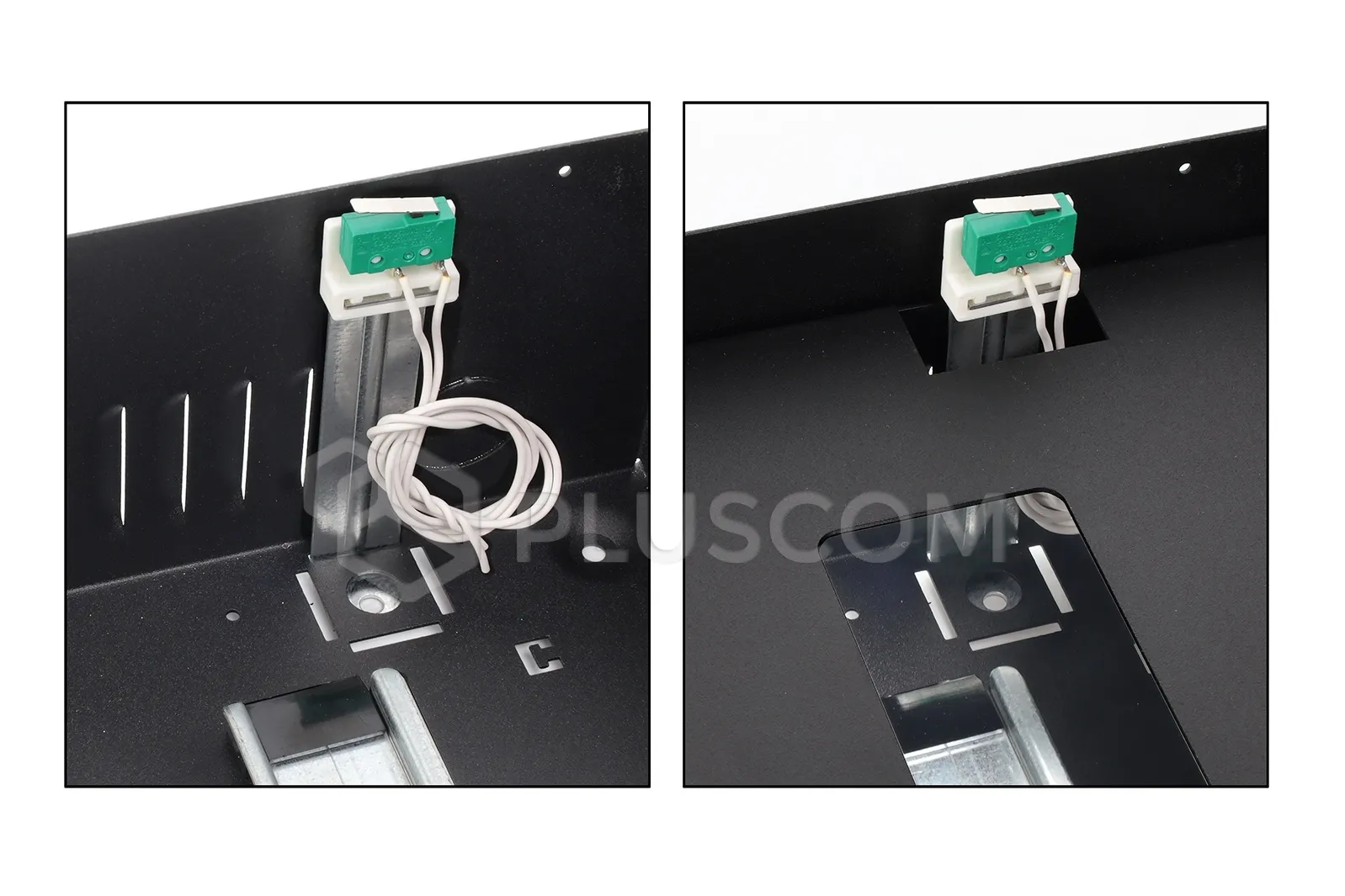

  • Protections: Tamper protection - opening enclosure, removal from the wall; 0.5A / 50 V DC, NC - normally closed

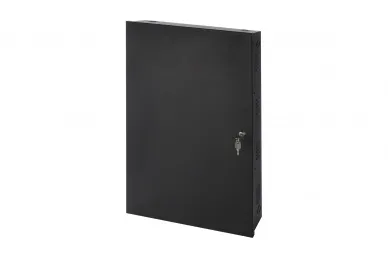

  • Closing: Key lock

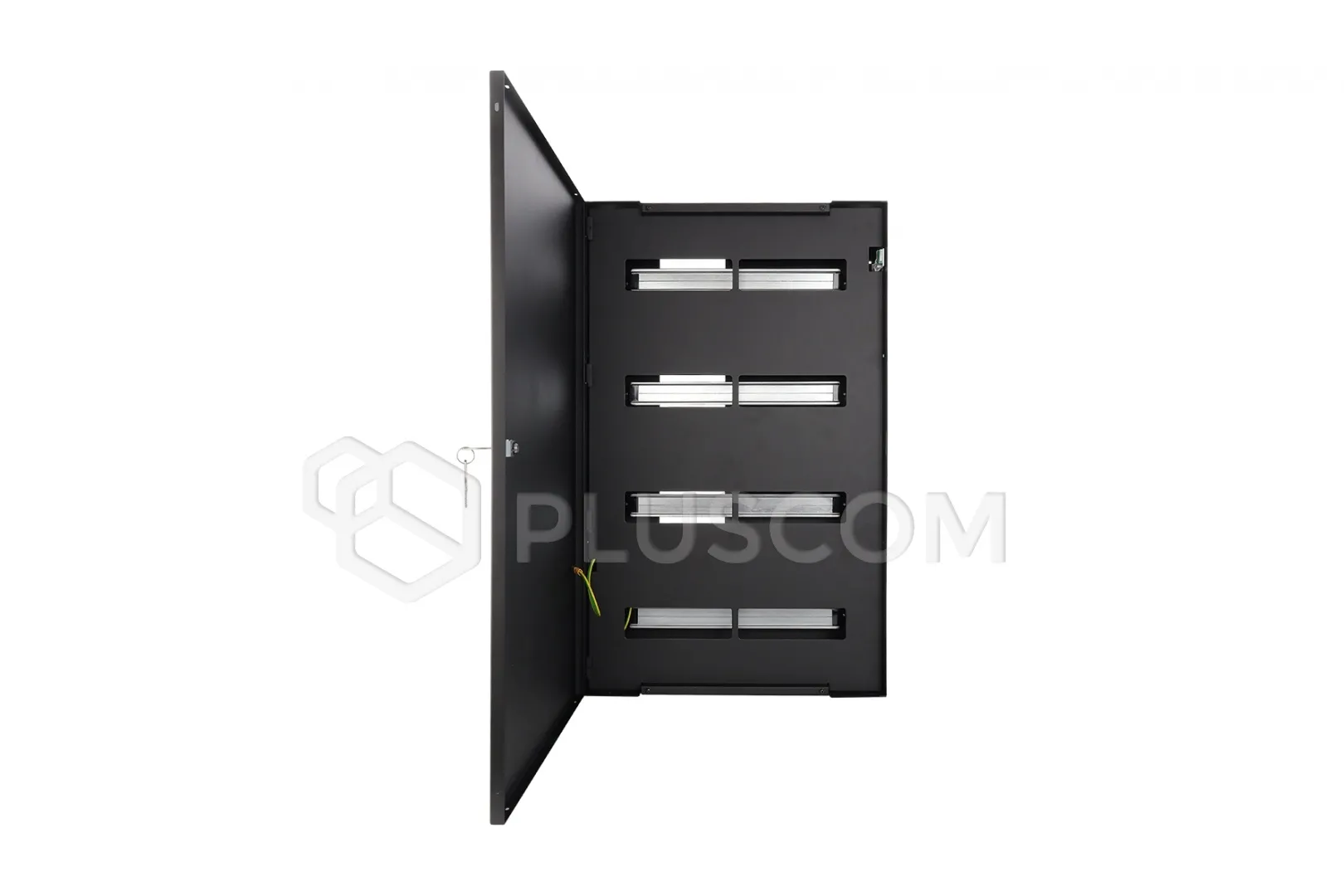

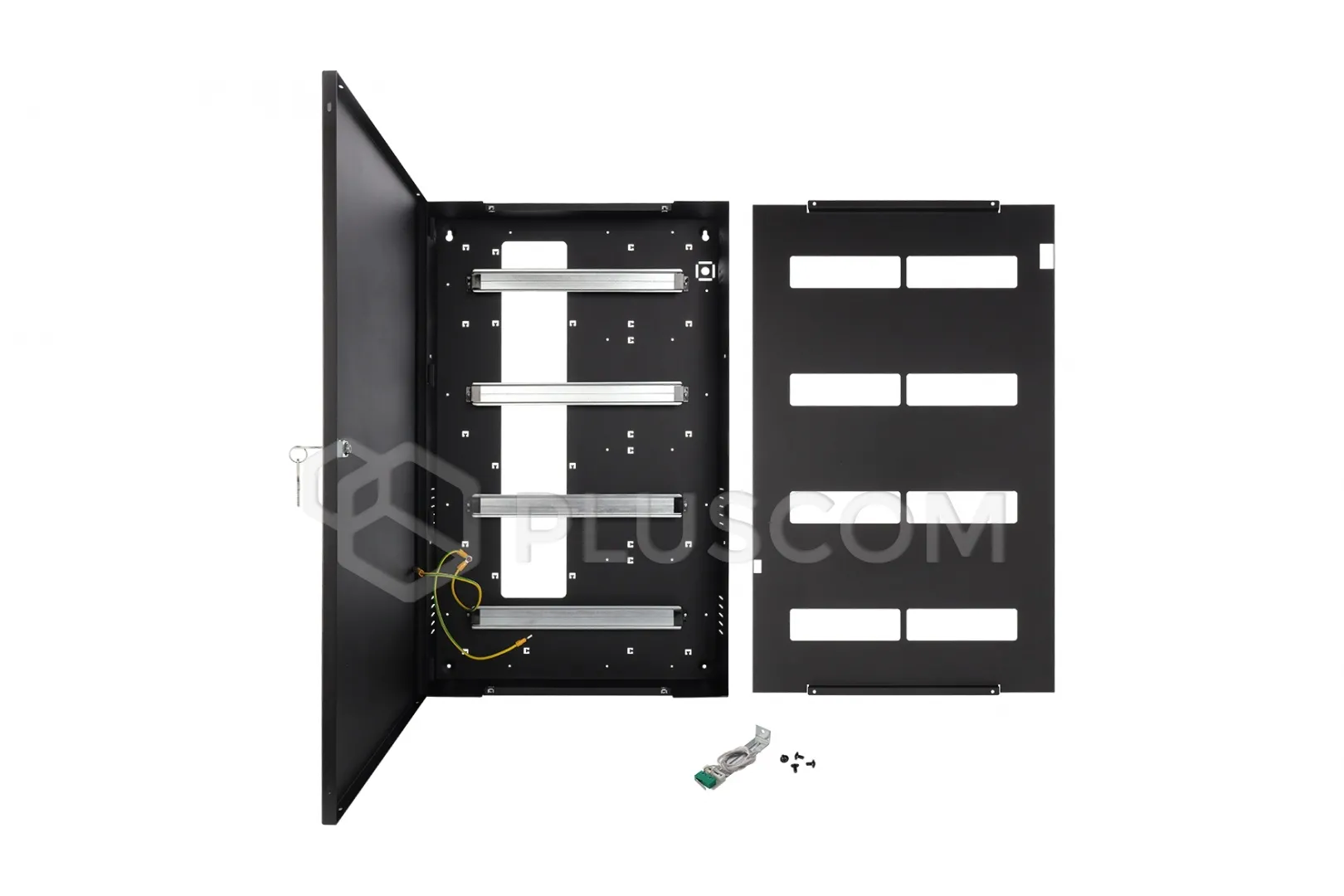

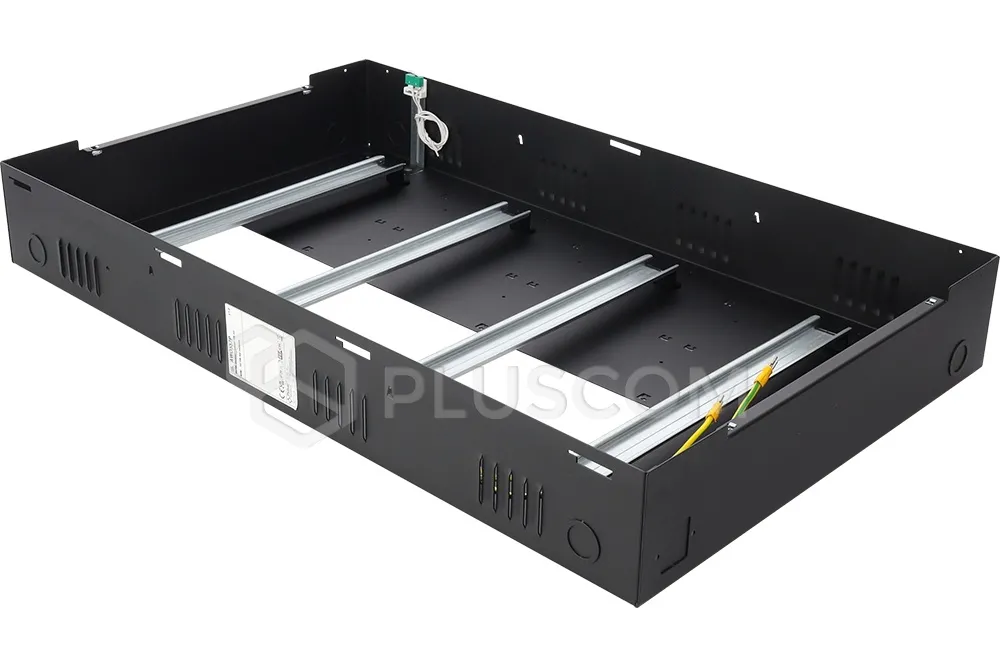

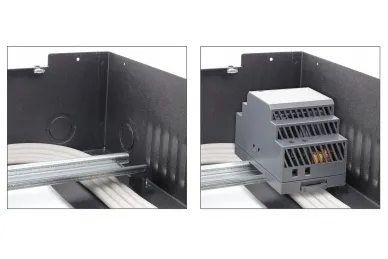

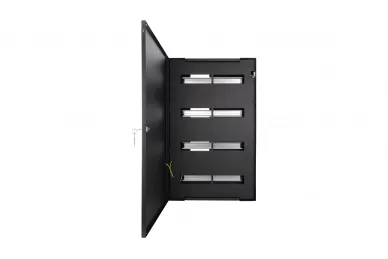

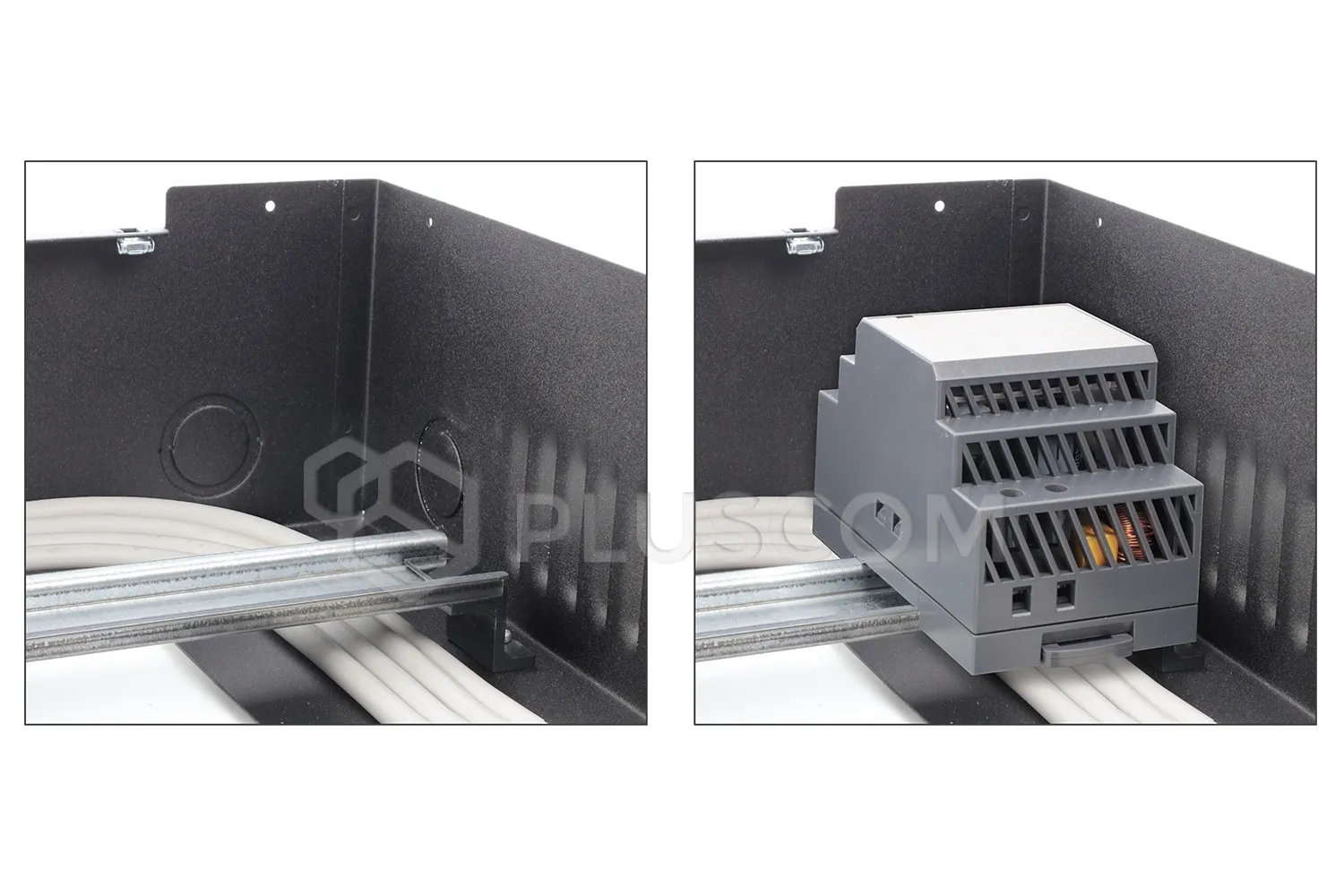

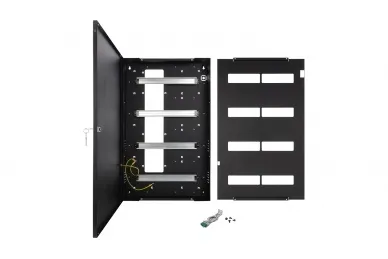

  • DIN rail: 4 x 317mm; 4 x 2 (8 full-size modules 156x46mm)
  • Installation: surface-mounted
  • Material: steel DC01, RAL9005 (black), metallic
  • Protection grade EN60529: IP 20
  • Warranty: 2 years
  • Notes:
    • knockouts: Φ21,5 / Φ29,5 mm (for cable glands)
    • knockout: 26,7 x 30,5 mm (for IEC C14 socket with fuse)
