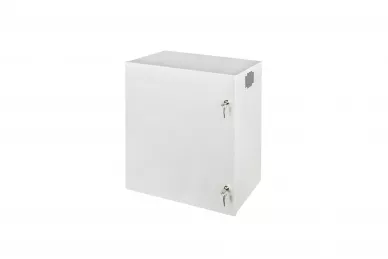

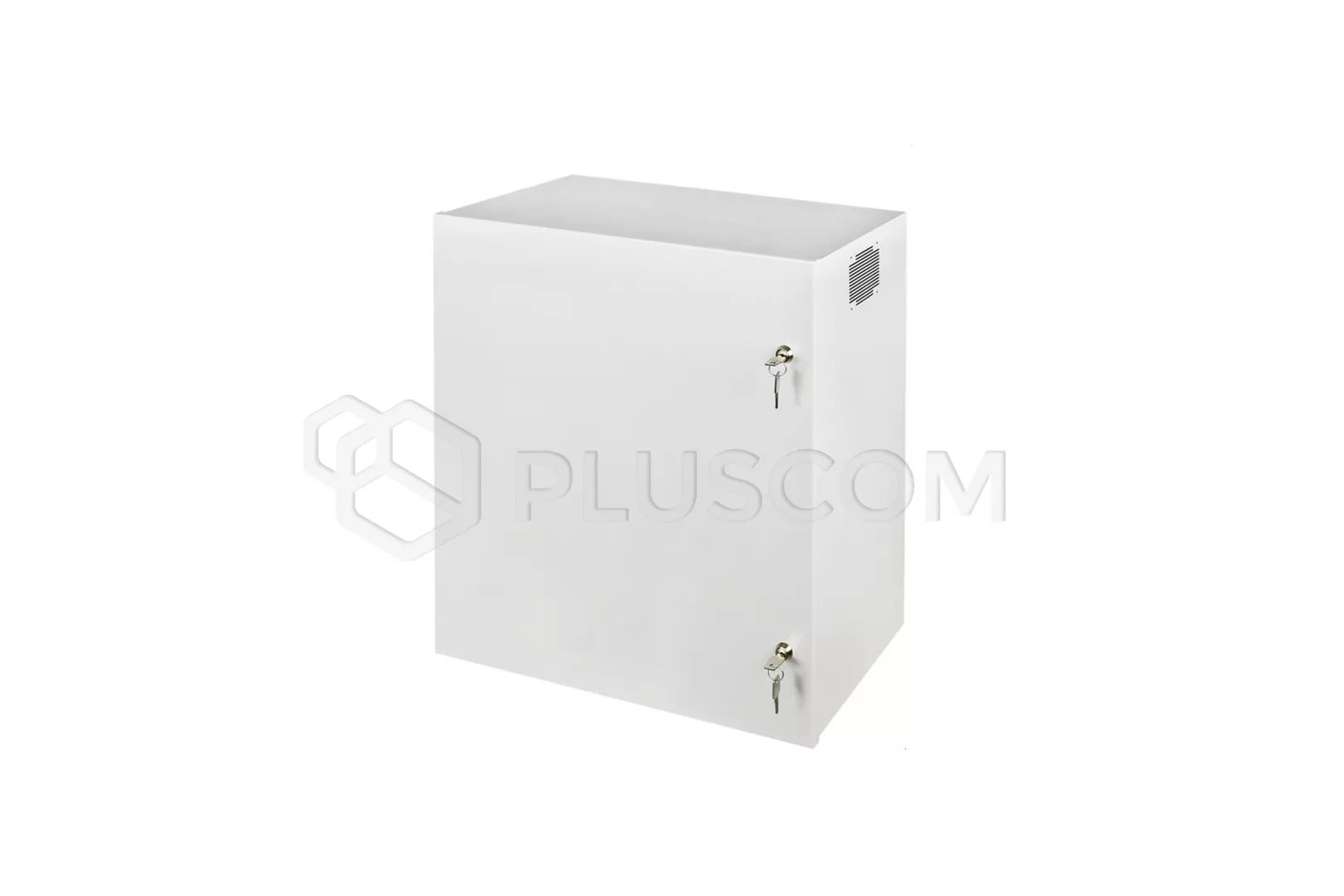

Pulsar AWO531W Enclosure DVR/Monitor/RACK/vertical white

324,45 EUR including 23.00% VAT
Product code: #19919
Manufacturer: Pulsar
  • Dimensions: 585x650x261+14mm
  • Dimensions of recorder space: 480x400x180mm
  • Mounting plate dimensions (monitor – max. 22"): 533x184mm
  • Space for battery: 4x7Ah/12V
  • Vertical installation of recorder

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fan with temperature sensor 45C Pulsar ARAW45

Pulsar AWO531W Enclosure DVR/Monitor/RACK/vertical white

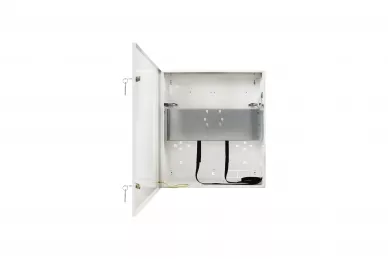

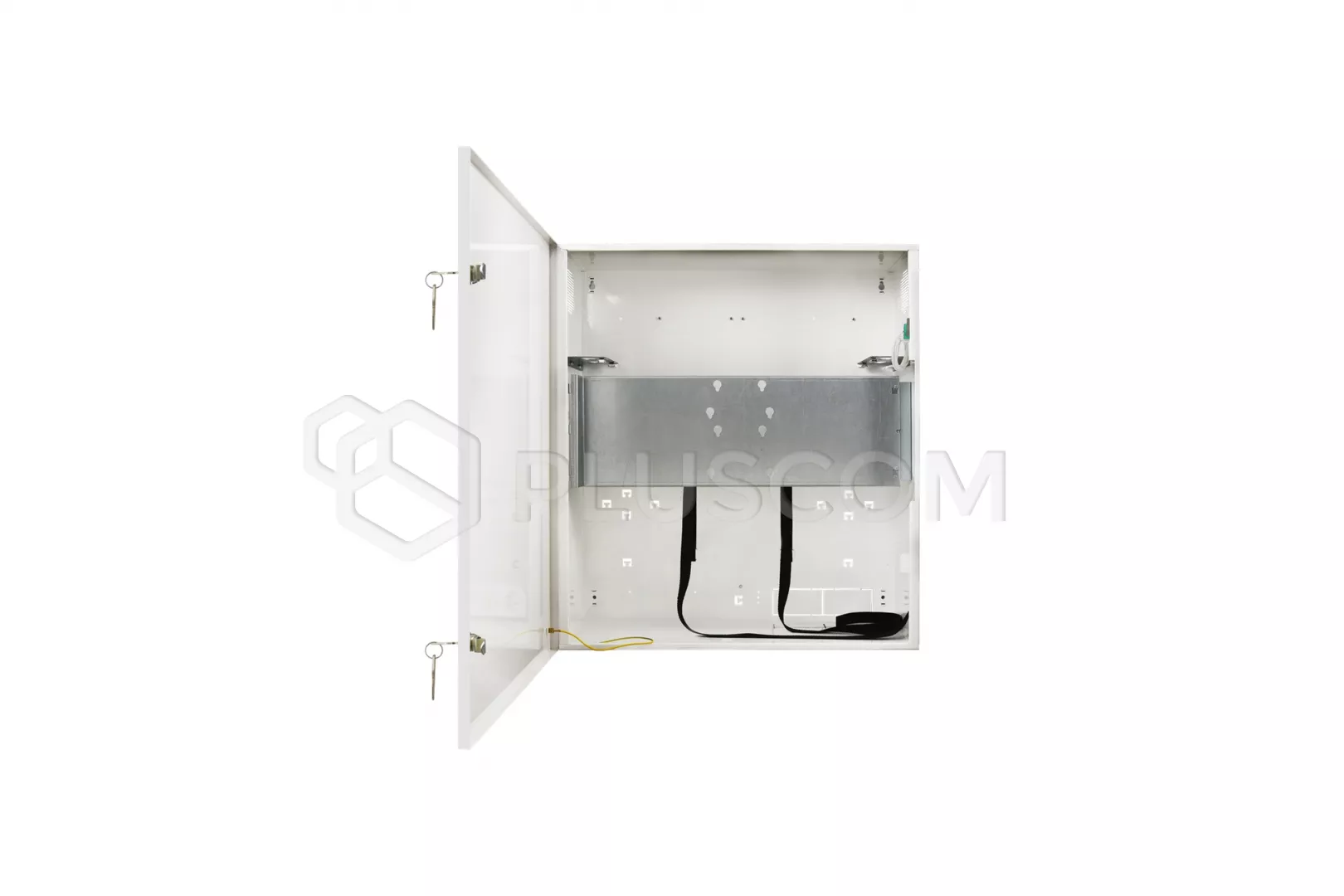

Housing interior:

Housing interior:

Enclosure construction is compliant with requirements of General Data Protection Regulation (GDPR), as personal data must be protected and stored securely. Surface mounted enclosure DVR/Monitor/RACK/vertical white protects recorder/monitor/switch against unauthorized access or theft. Made of 1,2 mm steel plate. In enclosure there is installed bracket with stripes for mounting recorder and another bracket for mounting monitor max. 22”. Set includes: two locks (different code), two keys/each lock, mounting plate for monitor, RACK brackets - 4U, stripes for mounting recorder, tamper switch indicating enclosure opening, screws (RAS4 – 2pcs, M4x10 - 4 pcs), three pole connector with fuse, screws for mounting power distribution unit. Additional equipment that can be mounted inside: ARAW45 fan with thermostat and ML572 power distribution unit.

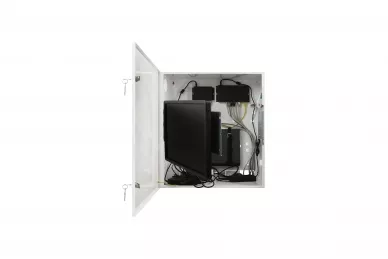

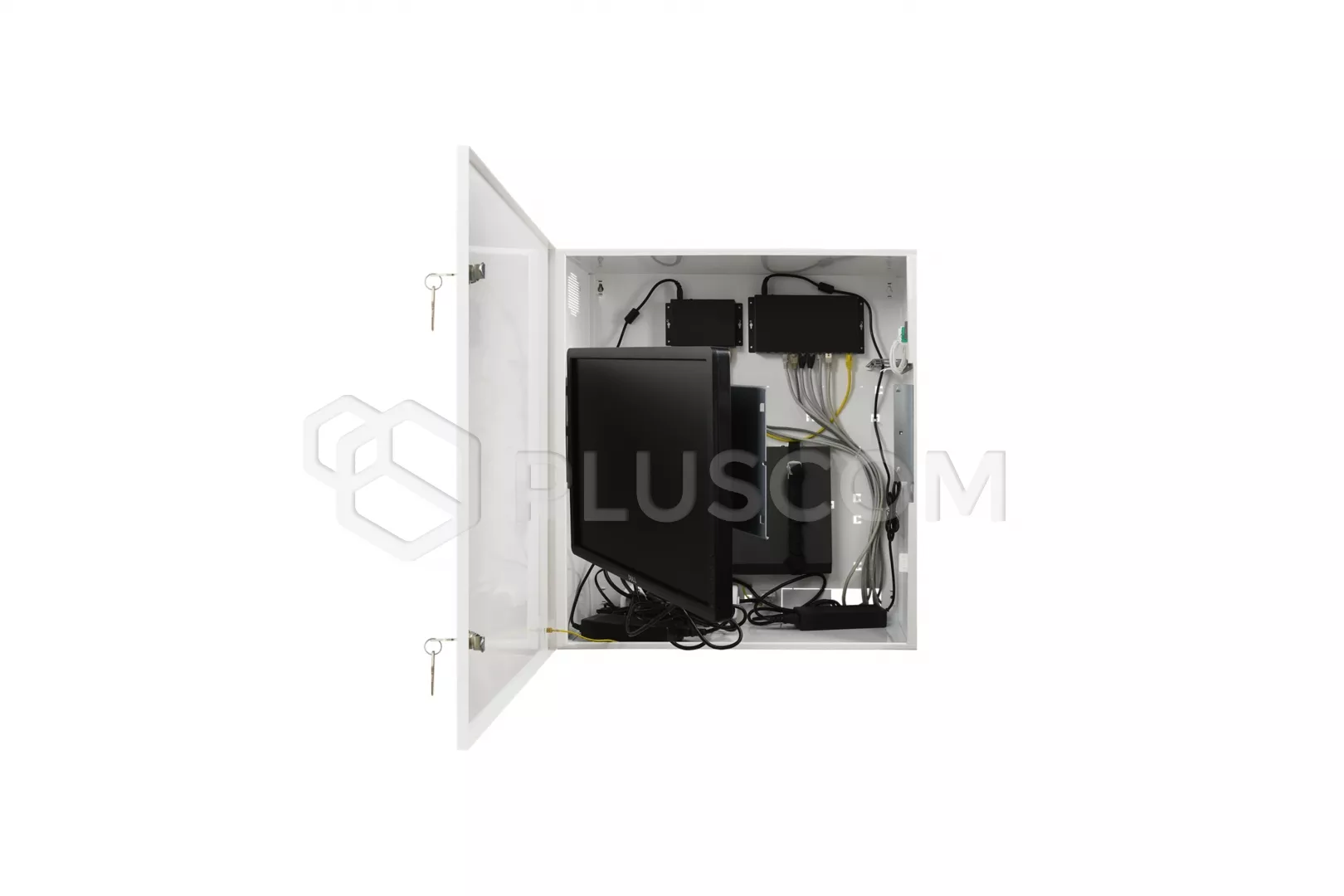

Mounting monitor and recorder:

Mounting monitor and recorder:

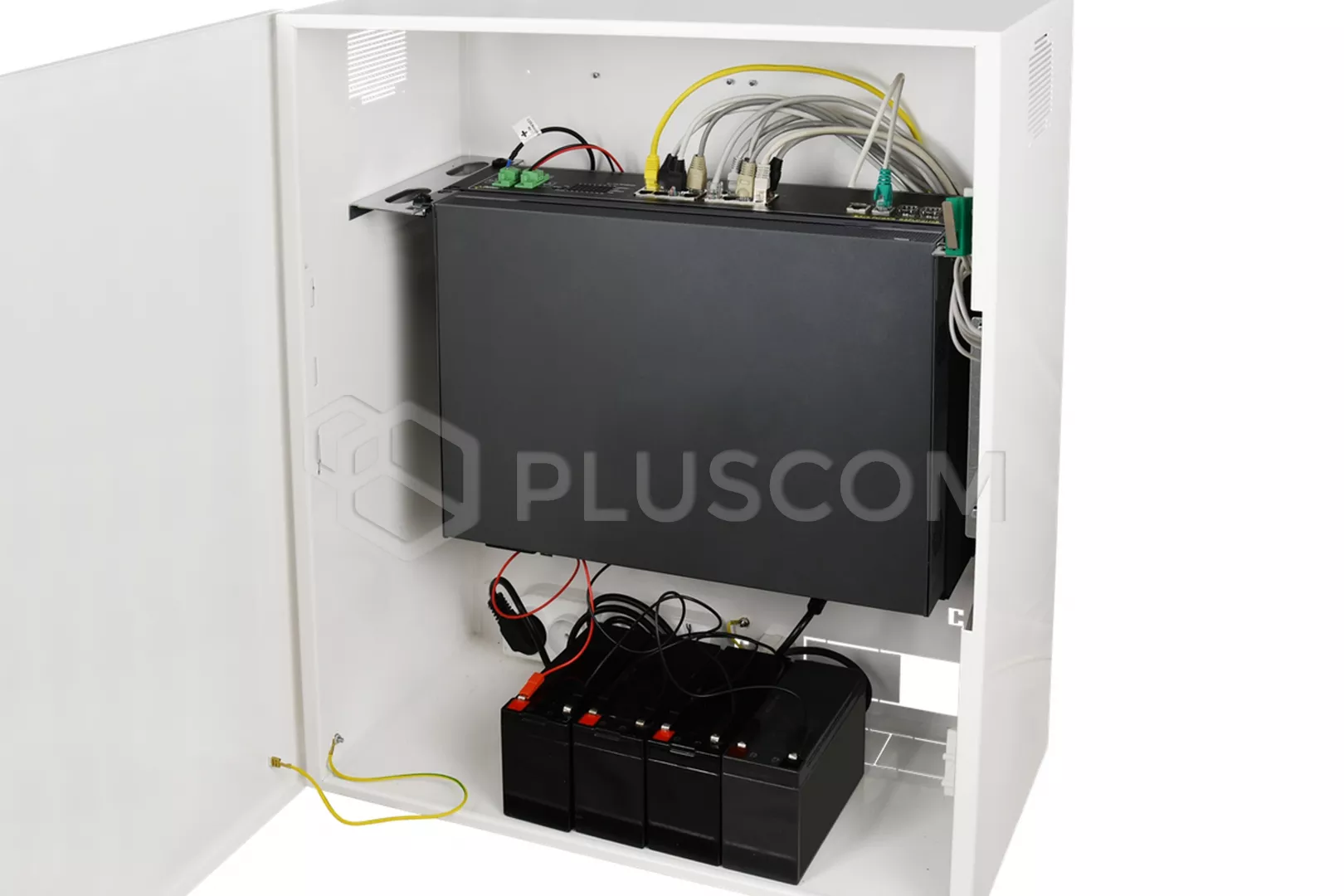

Mounting the recorder and batteries:

Mounting the recorder and batteries:



TECHNICAL PARAMETERS:
  • Dimensions: 585x650x261+14mm
  • Dimensions of the recorder space: 480x400x180mm
  • Hinged mounting plate: 533x184mm
  • Position of RACK 19" profiles: H4=475mm
  • Fitting battery: 4x7 Ah
  • Weight: 18,00 kg
  • Operation conditions 2nd environmental class: -10 °C ÷ 40 °C
  • Locking Lock MR008 (different code) x 2 pcs
