Pulsar AWO506 Enclosure of loudspeaker line supervision of the VAS system Presideo, Paviro, and Plena by BOSCH

26,15 EUR including 23.00% VAT
Product code: #13078
Manufacturer: Pulsar
  • Housing End of Line (EOL) Supervision Board, surface-mounted
  • Cable cross section: max. 2,5mm2
  • Dimensions: 154x113x38mm
  • Weight: 0.5kg

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar AWO506 Enclosure of loudspeaker line supervision of the VAS system Presideo, Paviro, and Plena by BOSCH

The enclosure is designed for mounting loudspeaker line supervision systems by Bosch used in Voice Alarm Systems. The design of the enclosure allows mounting Praesideo, Plena, and Paviro systems by BOSCH.
The enclosure is fitted with four cable glands allowing connecting loudspeaker wires with a maximum diameter of 10mm.

Pulsar AWO506 Enclosure of loudspeaker line supervision of the VAS system Presideo, Paviro, and Plena by BOSCH

Pulsar AWO506 Enclosure of loudspeaker line supervision of the VAS system Presideo, Paviro, and Plena by BOSCH

Pulsar AWO506

Pulsar AWO506



SPECIFICATIONS:
  • internal dimensions: 142x105x20mm
  • external dimensions: 154x113x38mm
  • weight: 0.5kg
  • Installation cable diameter: max 10mm
  • Cable cross section: max. 2,5mm2
  • Material: sheet steel DC01, thickness:0.1mm, color: RAL 9003
  • degree od protection : IP30
  • operating conditions: -10°C÷ 40°C
  • closing:screwed: screwed
Pulsar AWO506

Pulsar AWO506



PANELS WHICH CAN BE MOUNTED:
  • LBB 4442/00 - Supervision-slave Board – Presideo
  • LBB 4441/00 - Loudspeaker Supervision Board – Presideo
  • LBB 4443/00 - End Of Line Supervision Board – Presideo
  • PVA-1WEOL - End of Line Board (slave) – PAVIRO
  • PLN 1EOL - End Of Line Supervision Board - Plena
  • LBC 1256/00 - EVAC terminal block

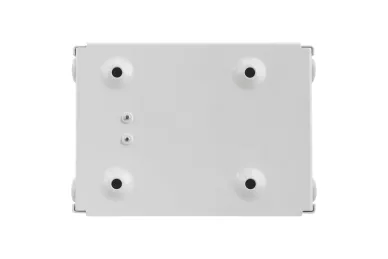

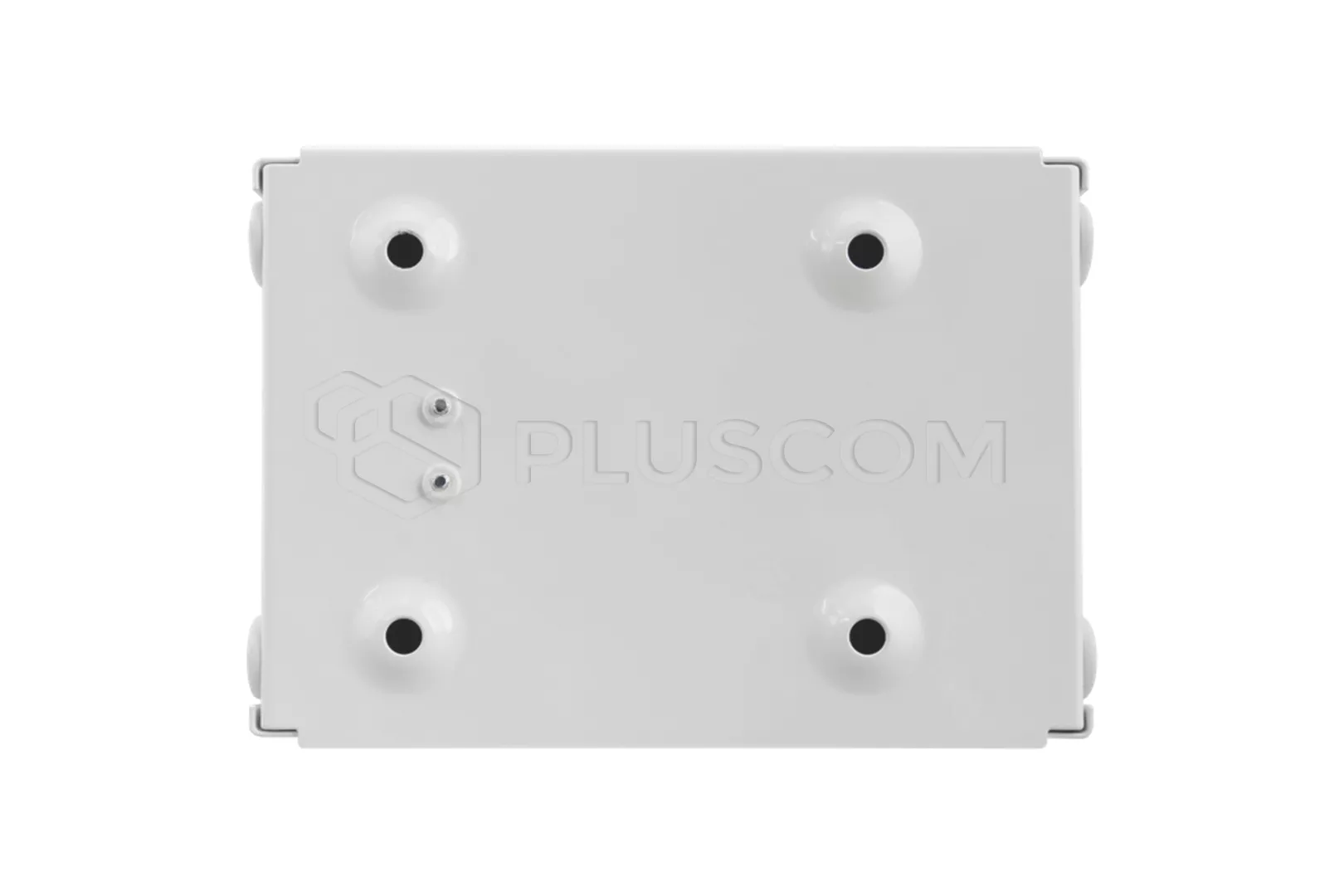

View from the back:

View from the back:



Download
Datasheet 0.07 MB
Declaration CE 0.32 MB
Instruction 0.36 MB
