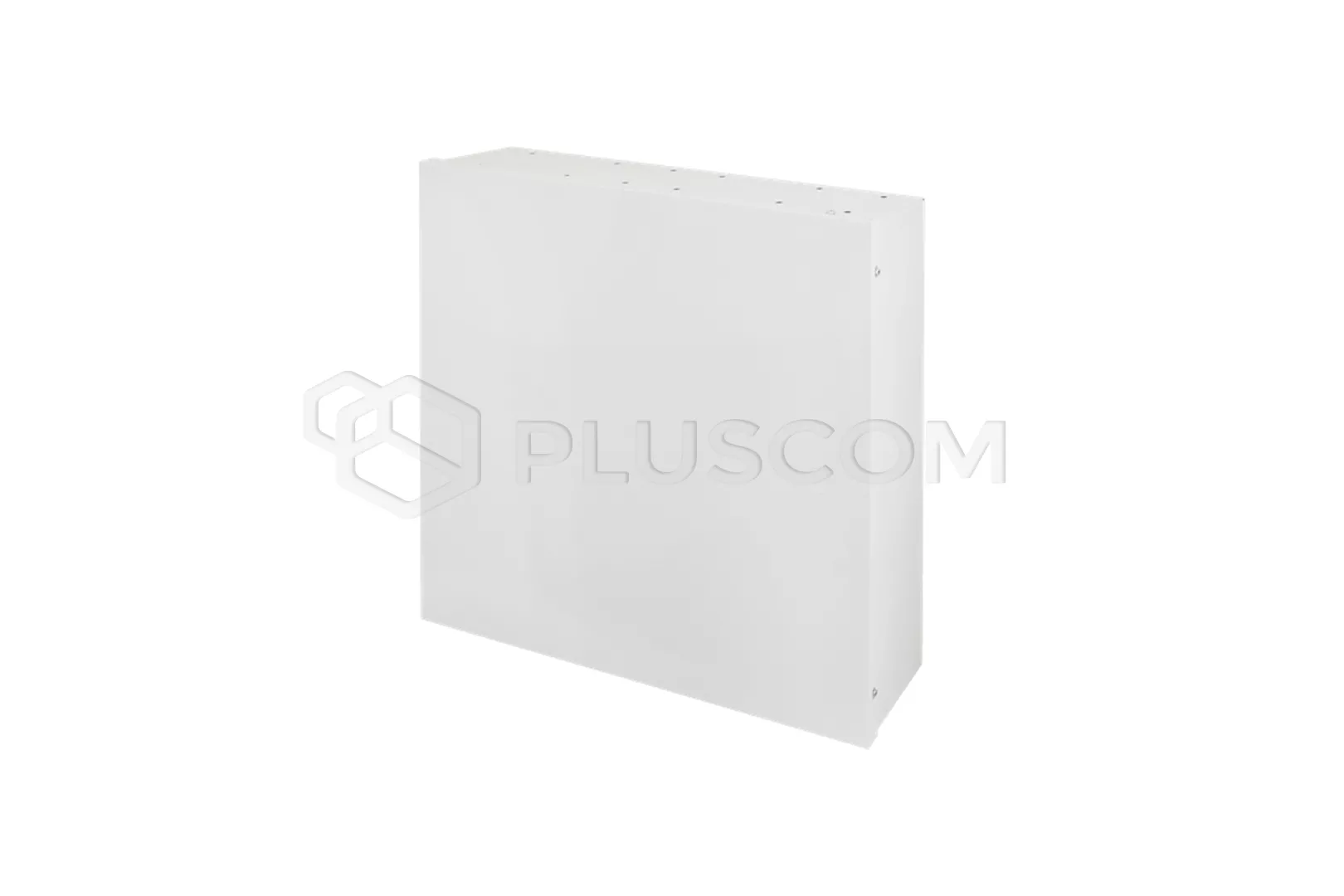

Pulsar AWO317 Casing for control panels RISCO

108,71 EUR including 22.00% VAT
Product code: #13464
Manufacturer: Pulsar
  • Housing for the control panel RISCO
  • Power supply unit: LRS-75-15 75W/14,4V
  • Place on the battery 12V/17Ah
  • Dimensions: 430x400x90mm
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar AWO003EI 7/EI20/PAR

The housing is designed for mounting RISCO alarm panels:

  • RP432M LightSYS 2
  • RP512MA ProSYS Plus
  • RP432EZ8 do 5 sztuk
  • RP512EZ16 do 5 sztuk

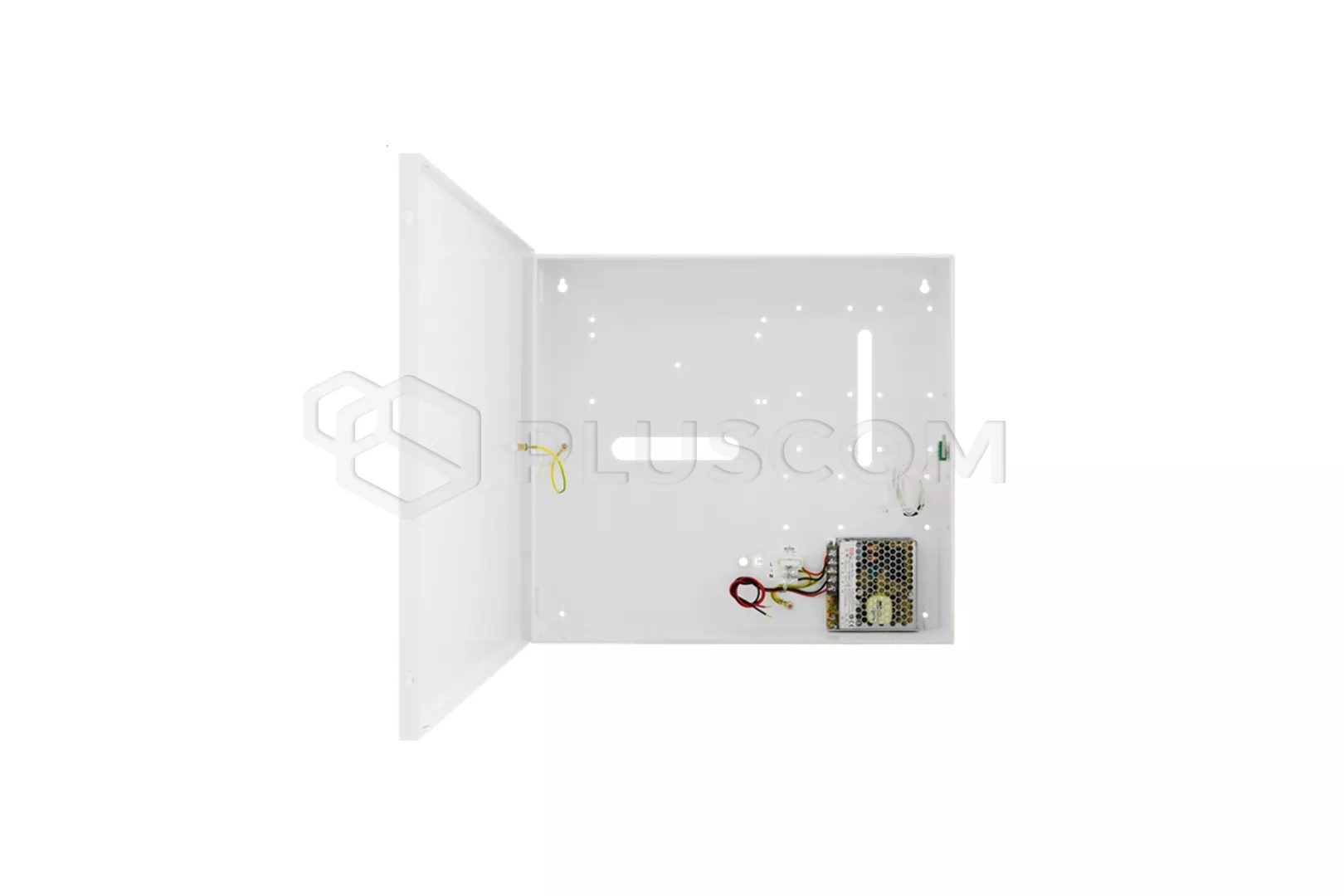

The housing includes a power supply LRS-75-15 75W/14,4V

Pulsar AWO317

Pulsar AWO317

The housing has a place for 12V/17Ah.
The standard is also a tamper protection in the form of the chassis intrusion detector

SPECIFICATIONS:
  • power supply unit: LRS-75-15 75W/14,4V
  • power supply: 230V/AC 50Hz
  • power supply output: 14,4VDC
  • place on battery: 12V/17Ah
  • tamper protection: Yes
  • Material: 0.7mm sheet RAL9003 color
  • degree od protection : IP20
  • Internal dimensions: 430x400x90+8mm
  • closing: 4x twisted sheet metal
  • distance from wall 8mm

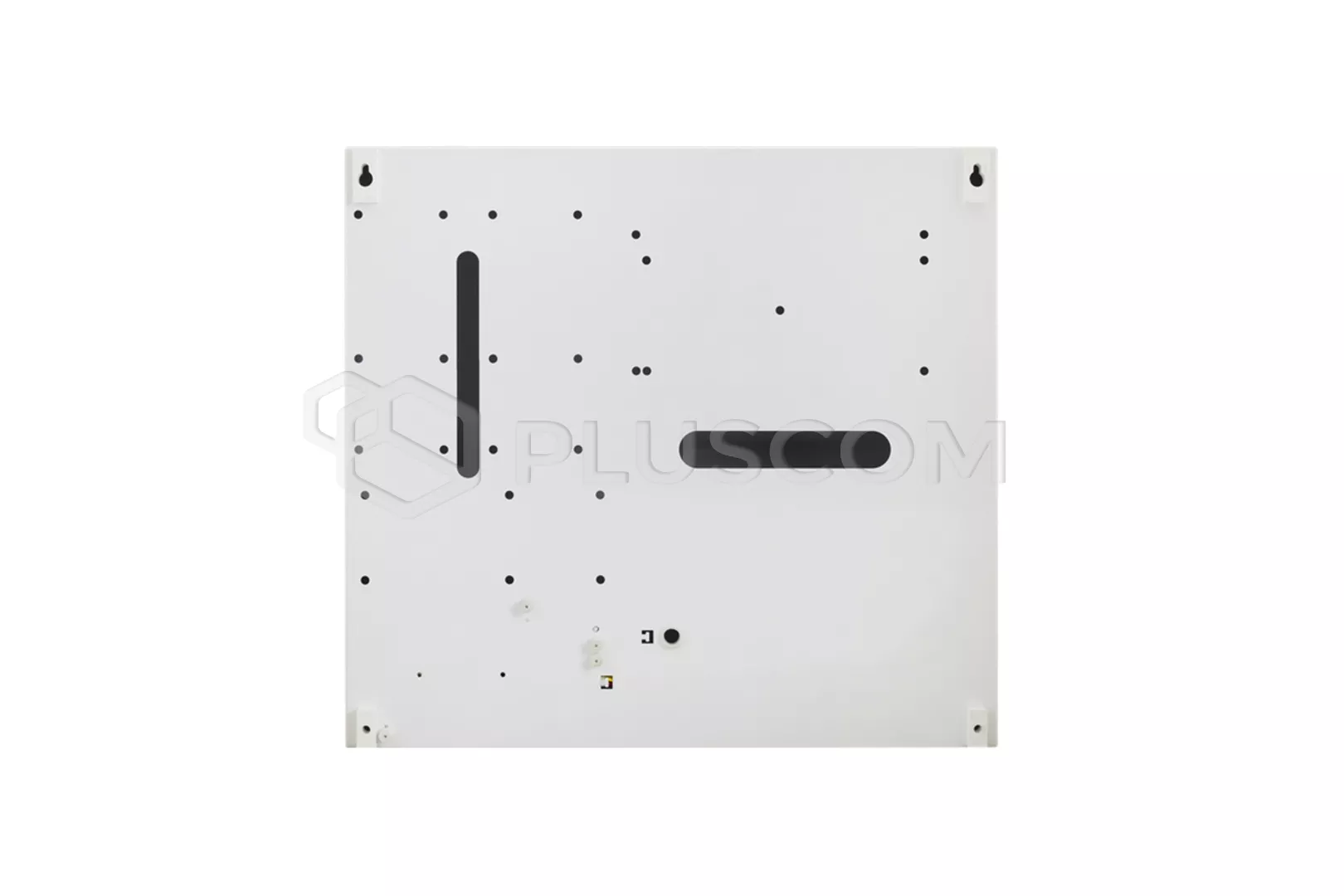

View from the back:

View from the back:

Download
0.12 MB
Declaration CE 0.32 MB
Instruction 0.19 MB
