Pulsar AWO269PU Casing for control panels and modules SATEL

101,51 EUR including 23.00% VAT
Product code: #13074
Manufacturer: Pulsar
  • Housing dedicated to the control panel and modules SATEL, surface-mounted
  • Without transformer
  • Place on the battery 12V/17Ah
  • Dimensions: 325x400x100mm

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar AWO269S Bracket with the TH35 DIN rail – 280mm for the AWO269

Casing Pulsar AWO269PU for panel and modules SATEL without transformer 17/80/SATEL/PUSTA/GRADE 3

The AWO269PU metal casings are designedto the panels and modules SATEL
The housing has a place for 12V/17Ah but there is not transformer.

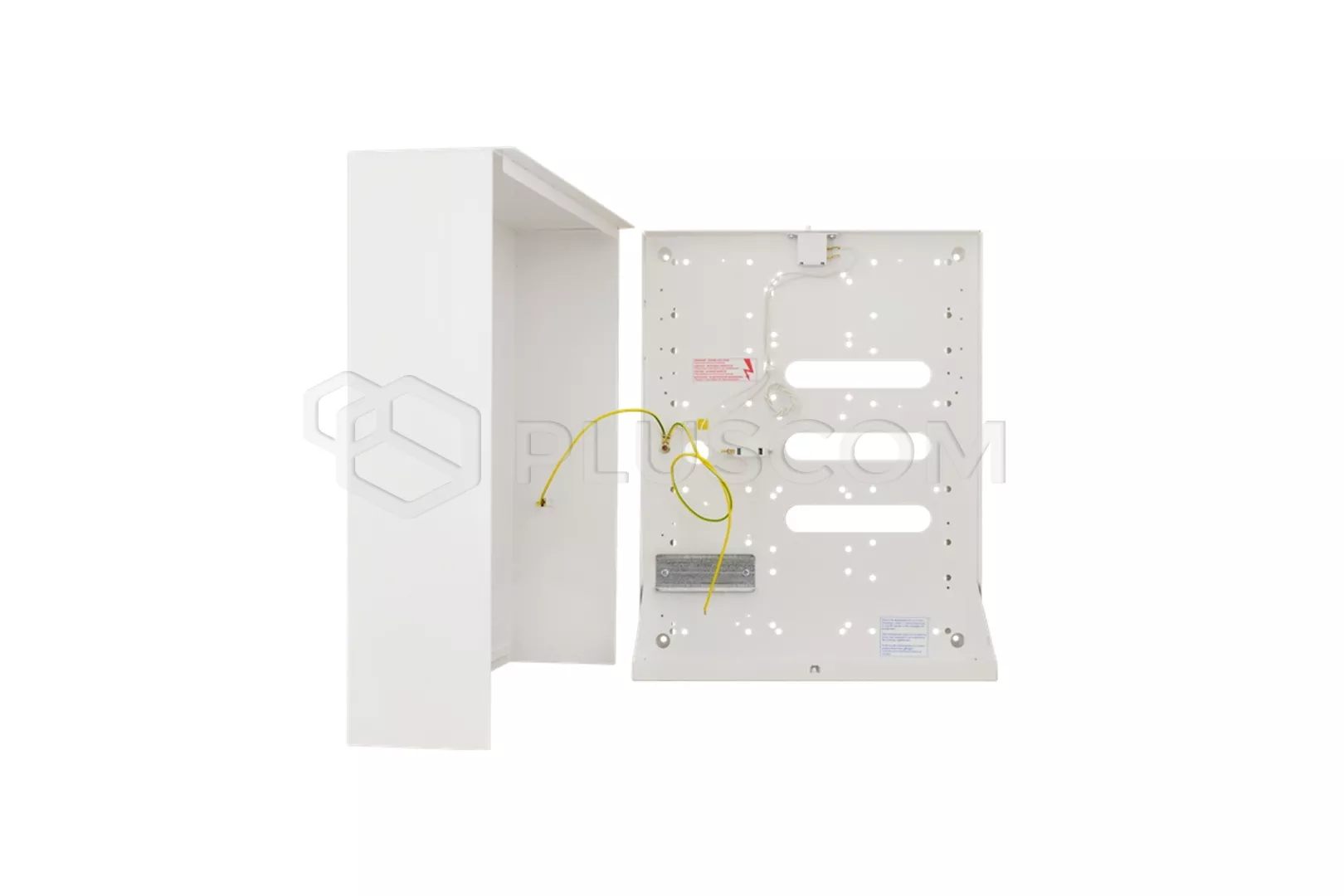

Pulsar AWO269PU Casing for control panels and modules SATEL

Pulsar AWO269PU Casing for control panels and modules SATEL

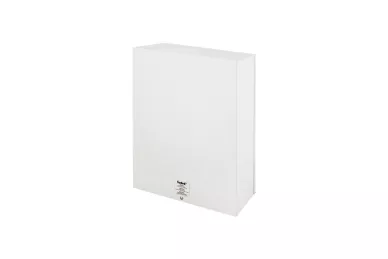

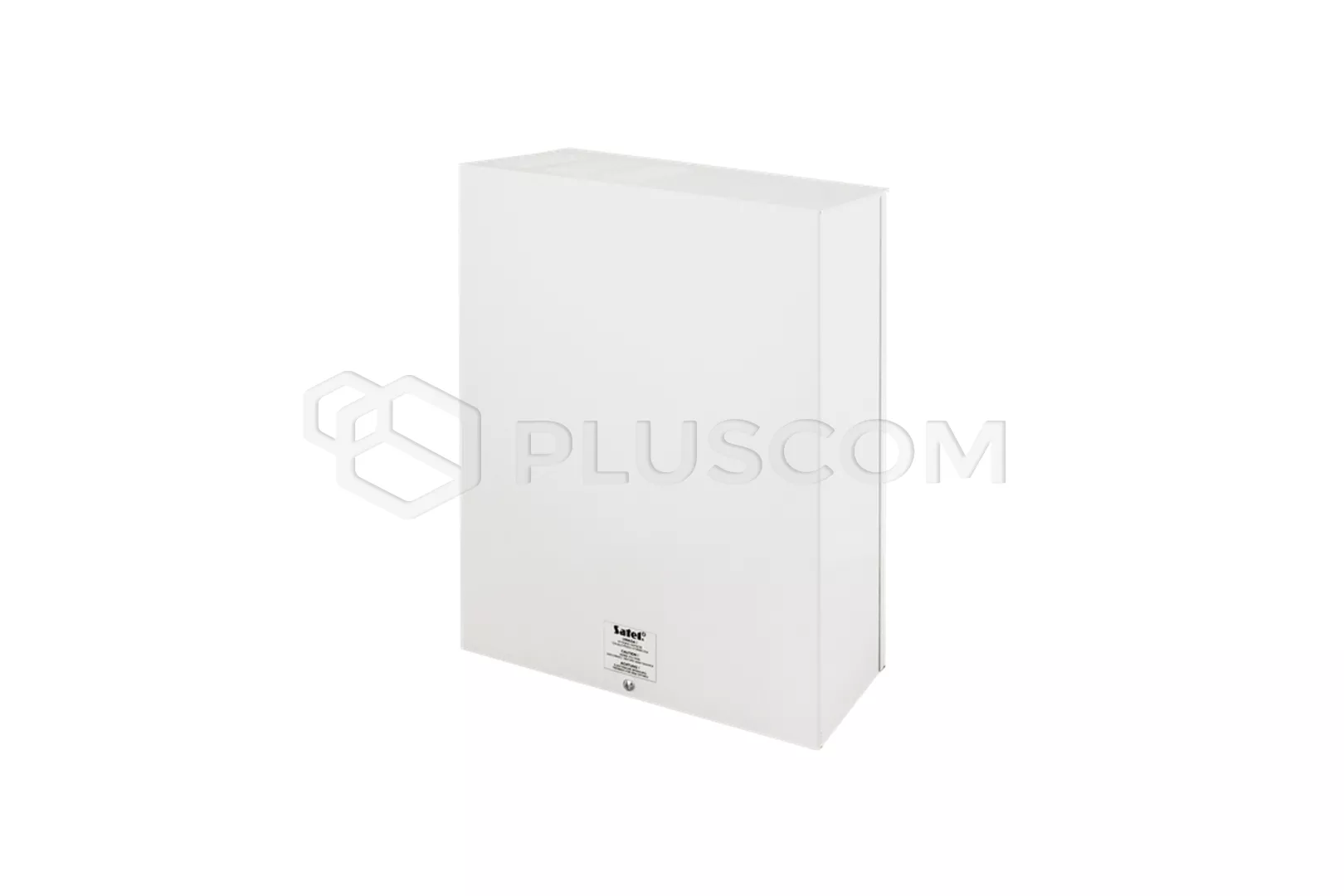

Pulsar AWO269PU

Pulsar AWO269PU


The standard is also a tamper protection in the form of the chassis intrusion detector.

SPECIFICATIONS:
  • dimensions: 325x400x100mm
  • weight: 4.2kg
  • place on battery: 12V/17Ah
  • without transformer
  • tamper protection: tamper – opening of the enclosure
  • Material: sheet steel DC01, thickness: 1,0mm, color: RAL 9003
  • degree od protection : IP20
  • operating conditions: -10°C÷ 40°C
  • closing:screwed: screw, at the front
  • distance from wall 15mm

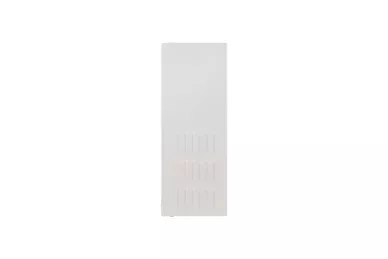

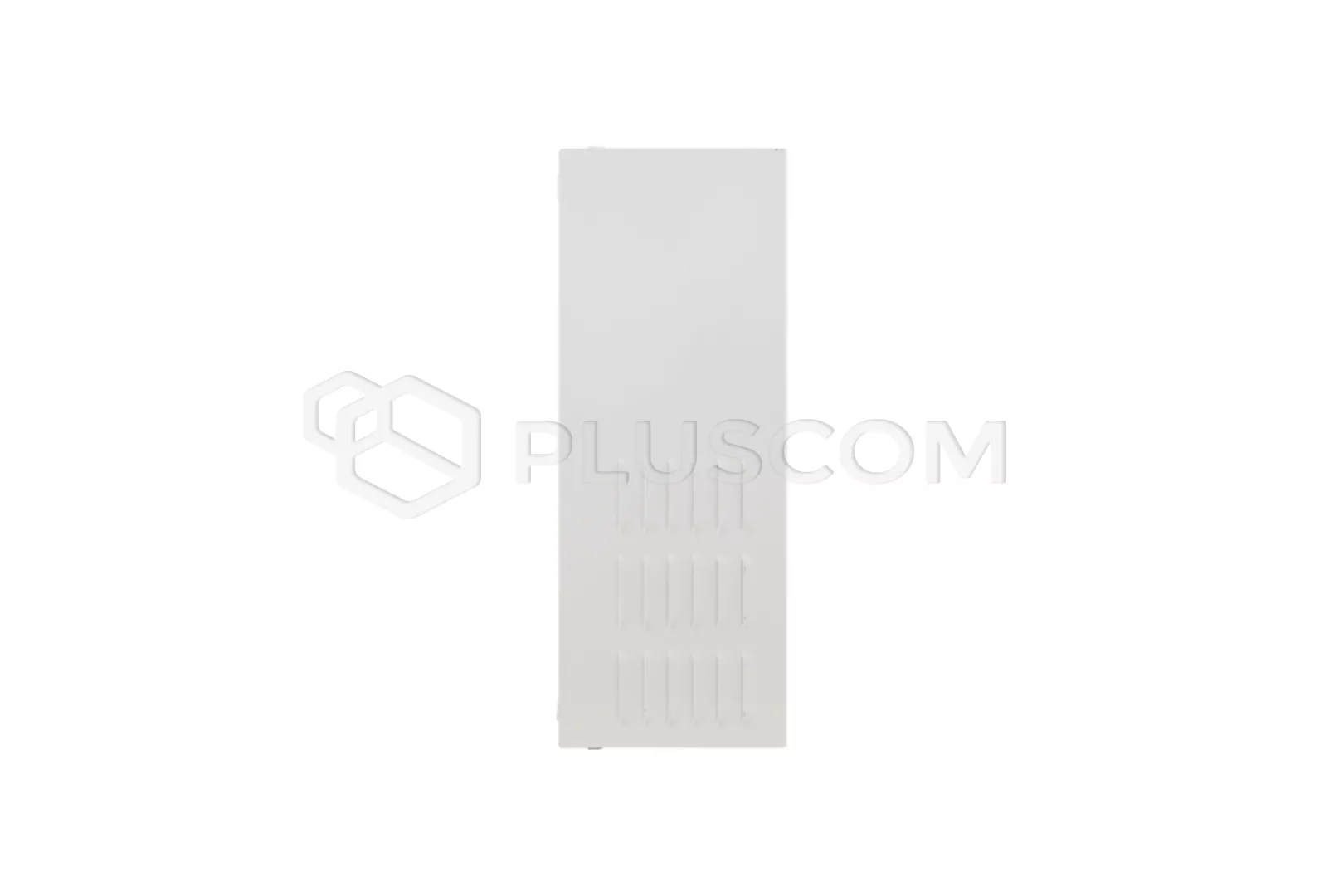

Pulsar AWO269PU

Pulsar AWO269PU



PANELS WHICH CAN BE MOUNTED:
  • The upper part of the housing
    • INT-E x 6szt. max
    • INT-PP x 3szt. max
    • INT-IORS / INT-ORS x 2szt. max (po zastosowaniu zestawu szyny DIN AWO269S)
    • Integra 64/256
  • The lower part of the housing
    • INT-E x 6szt. max
    • INT-PP x 3szt. max
    • INT-IORS / INT-ORS x 2szt. max (po zastosowaniu zestawu szyny DIN AWO269S)
    • Transformator i akumulator 7Ah / 17Ah
    • Zasilacz APS-612 lub APS-412 i akumulator 7Ah / 17Ah

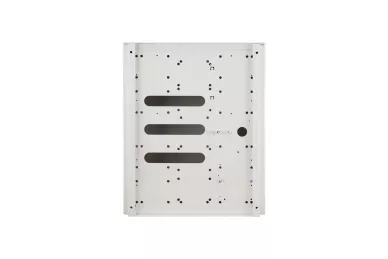

View from the back:

View from the back:
