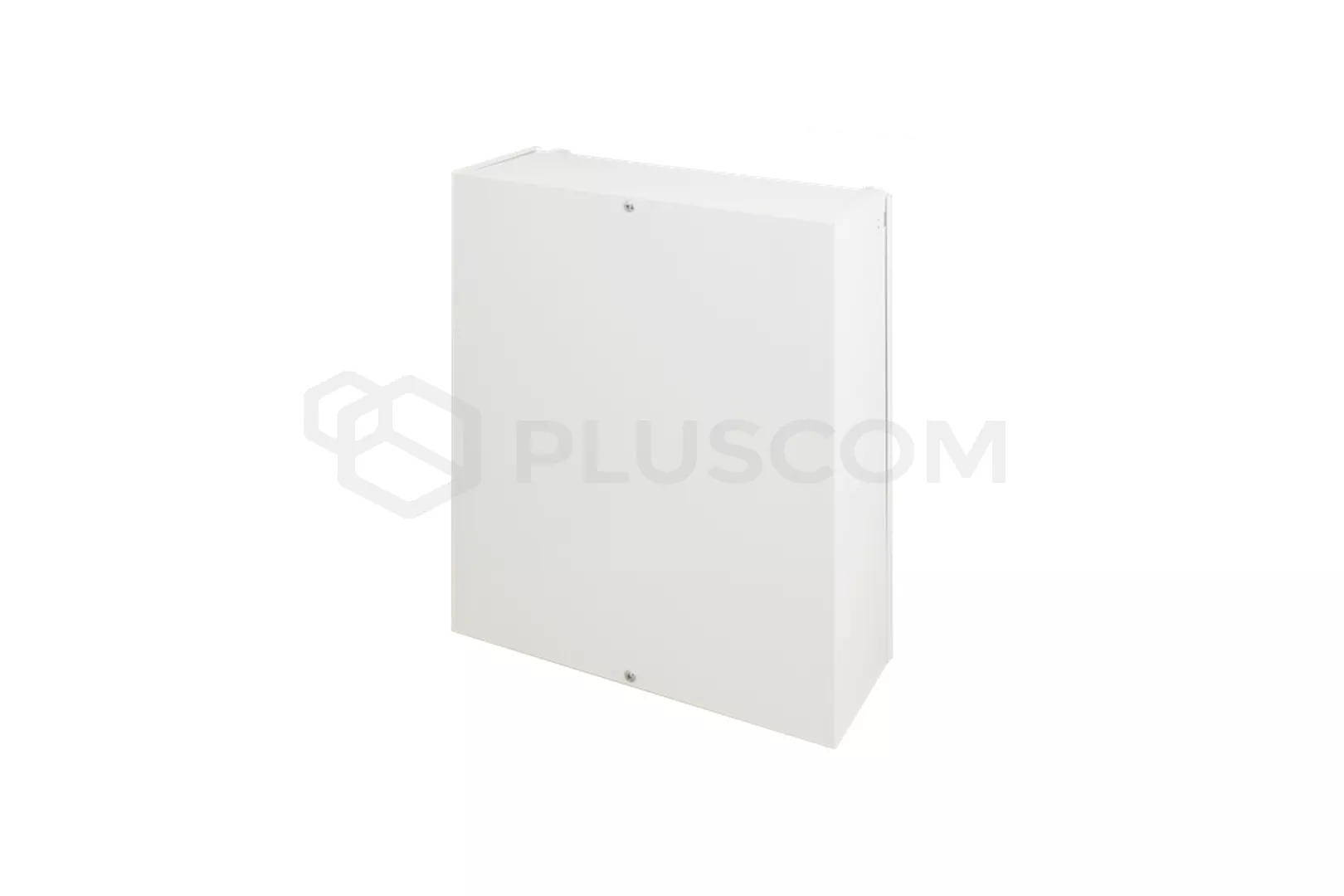

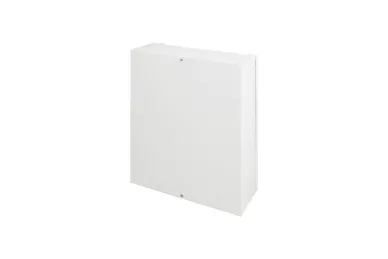

Pulsar AWO268 Casing for control panels PARADOX with transformer

86,25 EUR including 23.00% VAT
Product code: #10538
Manufacturer: Pulsar
  • Housing to the control panel PARADOX
  • Transformer: TRP 40VA/16V/18V
  • Place on the battery 12V/17Ah
  • Dimensions: 340x400x130mm

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar AWO278 Casing for control panels PARADOX with transformer

Pulsar AWO268 17/TRP40/PAR/SP/GRADE 3

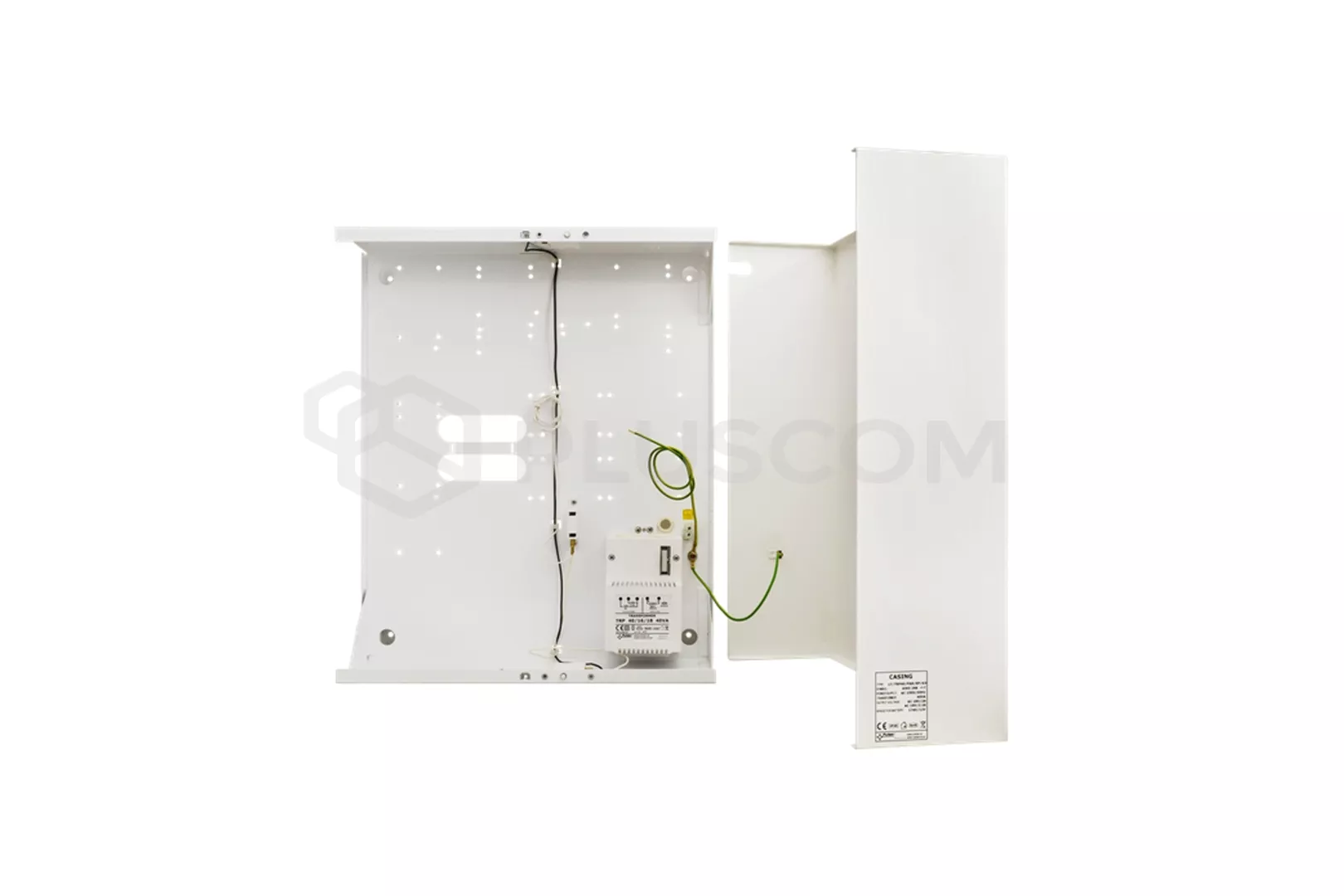

The AWO 268 metal casings are designedto the panel PARADOX
The housing includes a transformer TRP 40VA/16V/18V.

Pulsar AWO268 Casing for control panels PARADOX with transformer

Pulsar AWO268 Casing for control panels PARADOX with transformer

Pulsar AWO268

Pulsar AWO268



The housing has a place for 12V/17Ah.
The standard is also a tamper protection in the form of the chassis intrusion detector

SPECIFICATIONS:
  • transformer: TRP 40VA/16V/18V.
  • place on battery: 12V/17Ah
  • output voltage: 16V/2,2A, 18V/2A
  • tamper protection: Yes
  • Material: 1.0mm sheet RAL9003 color
  • degree od protection : IP20
  • Internal dimensions: 340x400x130mm
  • closing: 2x cylindrical screw
  • distance from wall 15mm

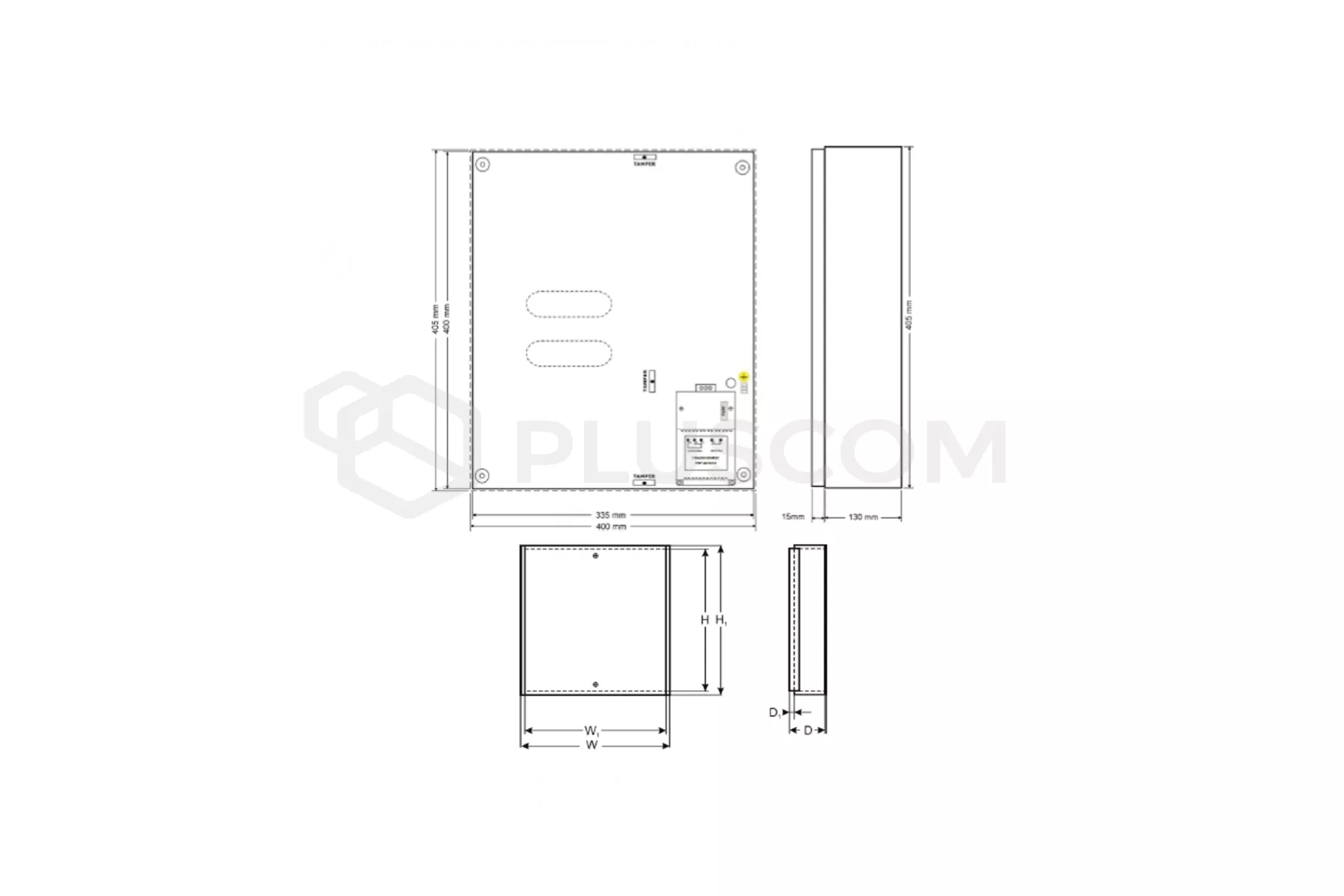

Dimenstions:

Dimenstions:



PANELS WHICH CAN BE MOUNTED:
  • z 7Ah:
    • (728 ULT, E55, E65, SP4000, 5500, 6000, 7000, EV048, 192, HD, MG5000, 5050, PS17, ACM12) + 4x ZX8 ( 6xZX4, APR3-ADM2,APR3- HUB2, PGM4)

  • z 17Ah:
    • (728 ULT, E55, E65, SP4000, 5500, 6000, 7000, EV048, 192, HD, MG5000, 5050, PS17, ACM12) + 2x ZX8 ( 5x ZX4, APR3-ADM2, HUB, PGM4)

Download
Data Sheet 0.2 MB
Declaration CE 0.32 MB
Instruction 0.34 MB
