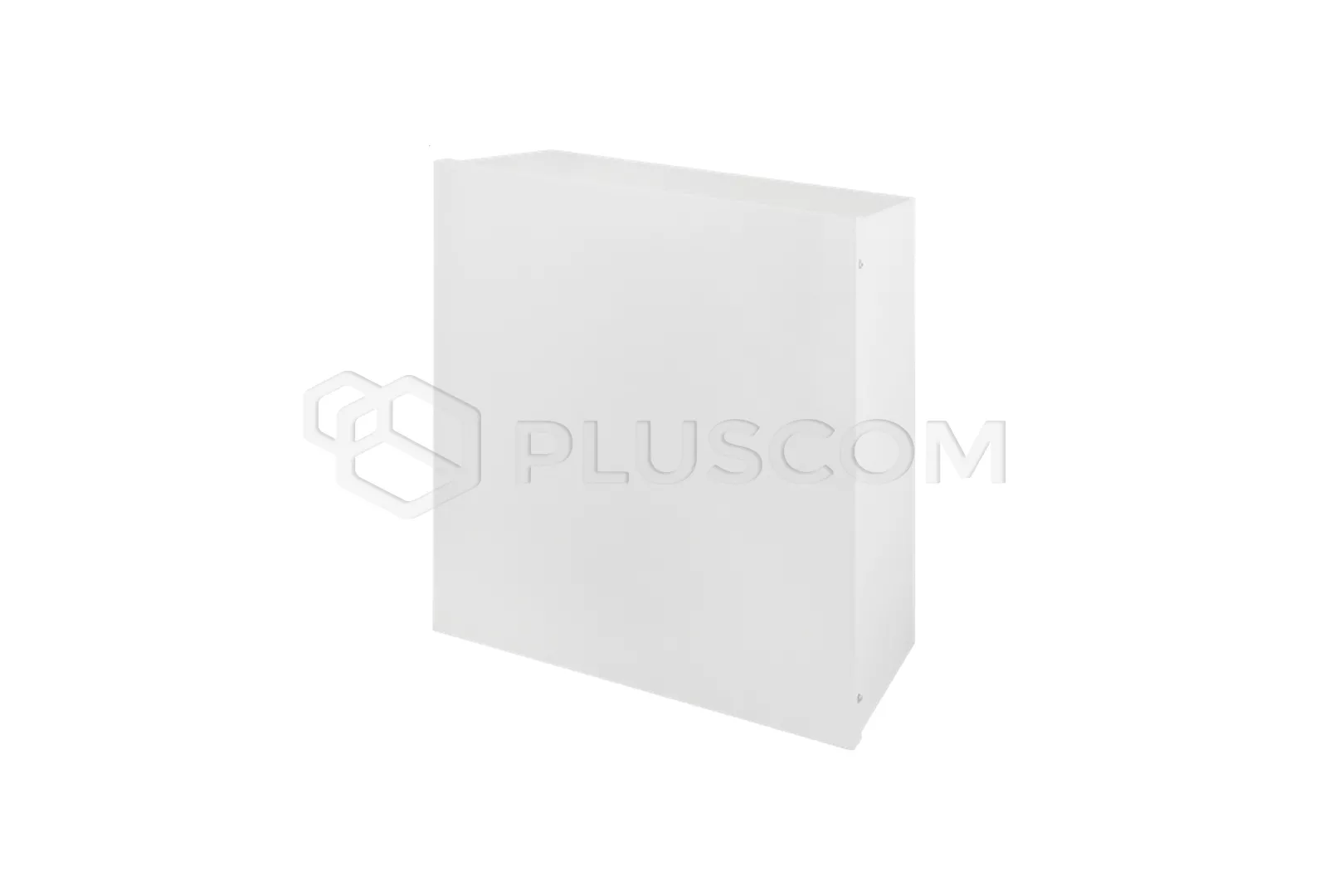

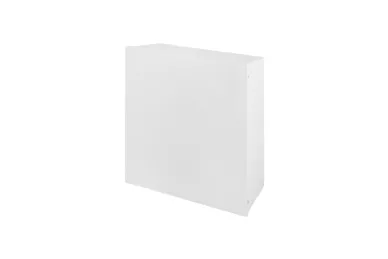

Pulsar AWO261 Casing for control panels and modules SATEL with transformer

125,48 EUR including 23.00% VAT

Add to cart

Product code: #15300

Manufacturer: Pulsar

Ask about this product

Housing dedicated to the control panel and modules SATEL, surface-mounted
Transformer: TRP 80VA/16V/18V/20V
Place on the battery 12V/28Ah
Dimensions: 425x450x145mm

Delivery and tax:

Poland VAT: 23.00% change

Shipping cost from:

2,53 EUR

Payment methods:

We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Casing Pulsar AWO261 for panel and modules SATEL with transformer 28/TRP80/SATEL

The AWO261 metal casings are designedto the panels and modules SATEL

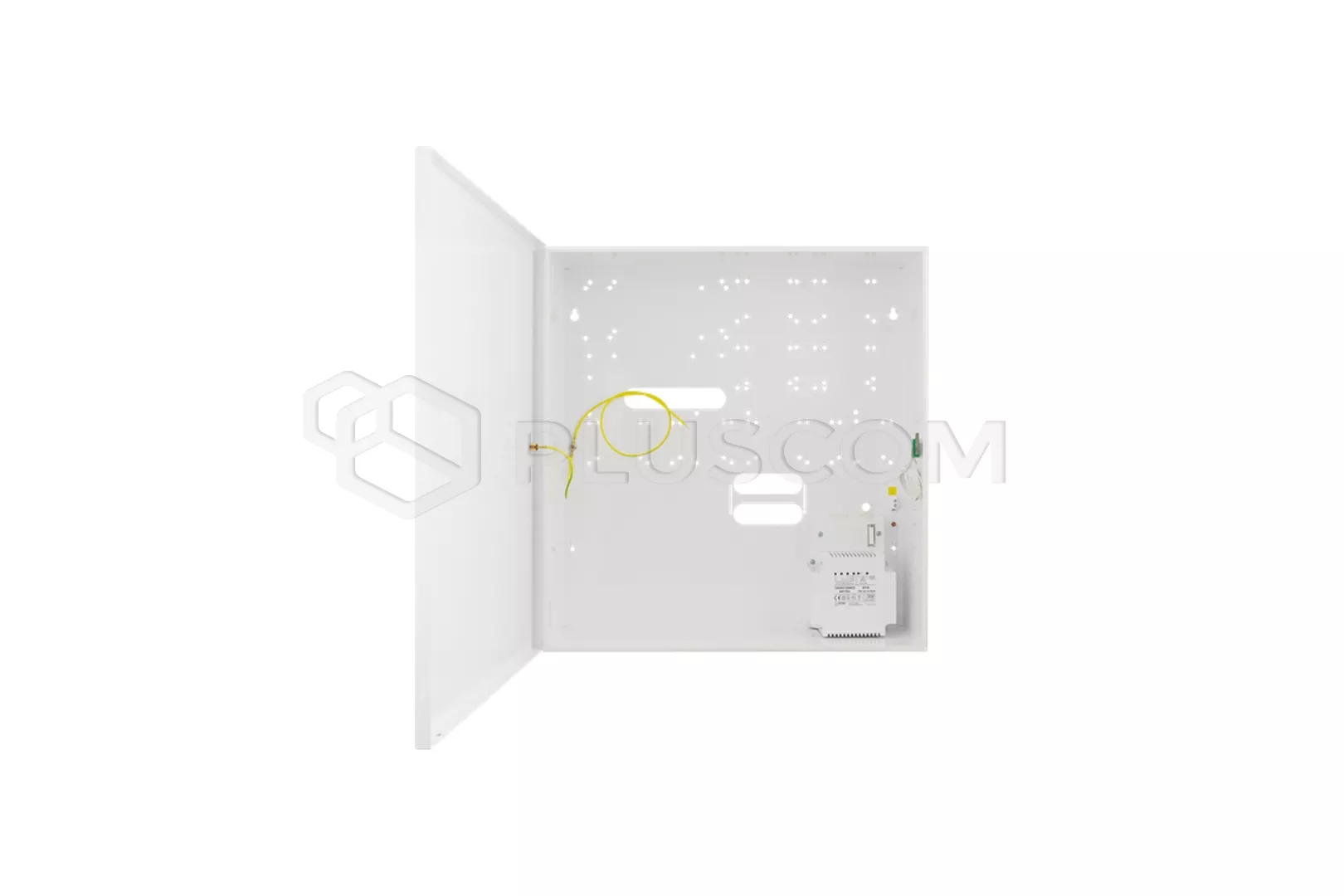

The housing includes a transformer TRP 80VA/.

Pulsar AWO261 Casing for control panels and modules SATEL with transformer

Pulsar AWO261

The housing has a place for 12V/28Ah.
The standard is also a tamper protection in the form of the chassis intrusion detector

SPECIFICATIONS:

transformer: TRP 80VA/16V/18V/20V
place on battery: 12V/28Ah
tamper protection: tamper – opening of the enclosure
Material: 1.0mm sheet RAL9003 color
degree od protection : IP20
Internal dimensions: 425x450x145+8mm
closing: 4x cylindrical screw
distance from wall 8mm

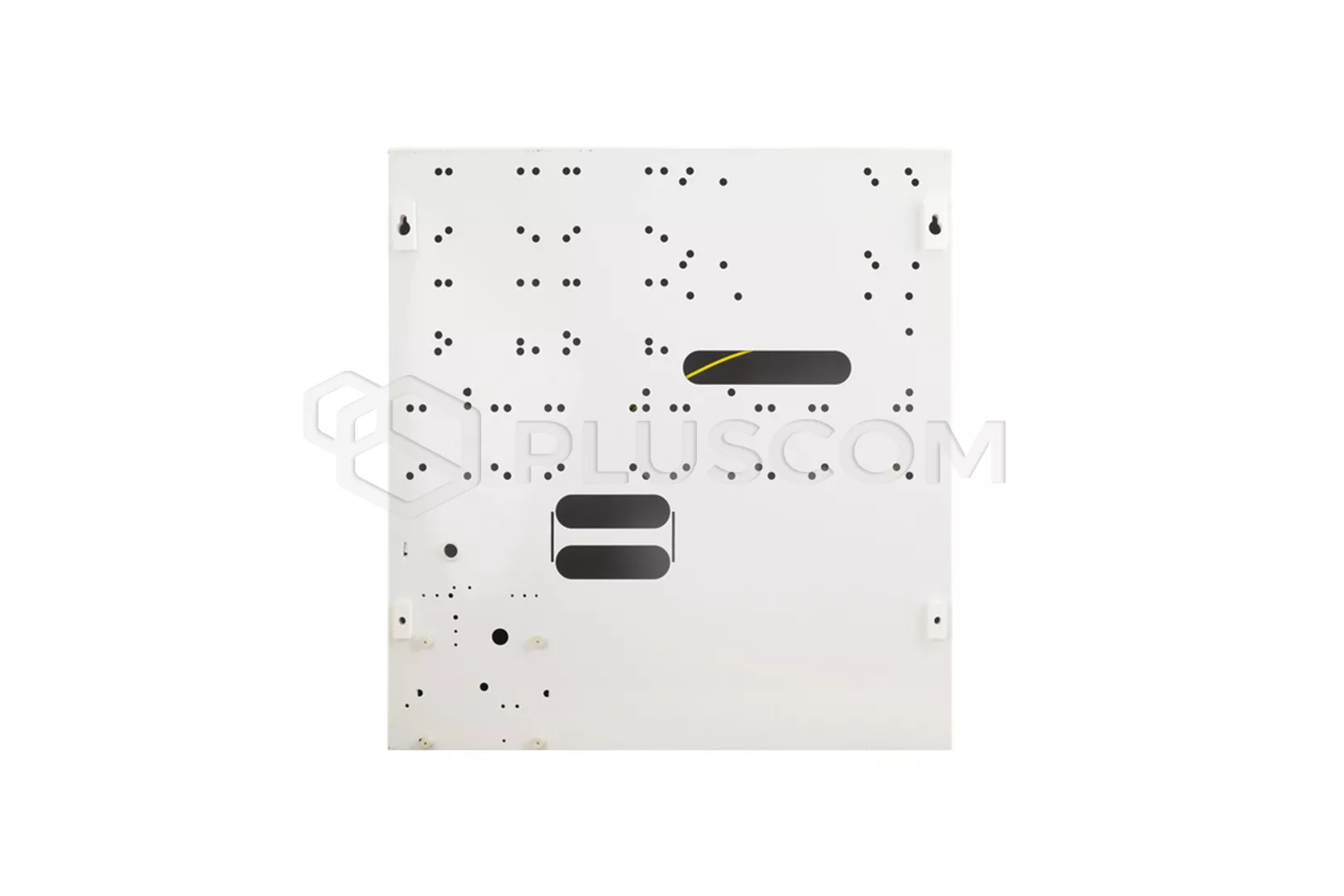

View from the back:

PANELS WHICH CAN BE MOUNTED:

Control panel:
- Ca-6 P,Ca-10 P, VERSA5,10, 15, INTEGRA 24, 32
- INTEGRA 64, 128, 256
Modules:
- 8x Ca10E / CA-64 PTSA
- 8x INT-E / INT-ADR / GPRS-T1, T2, T4 / INT-VG / INT-AV /ISDN-SEP / INT-KNX-2 / INT-FI / INT-RS Plus
- 4x INT-PP / INT-O / ETHM-1 Plus / INT-VMG / INT-R / ACC-KPPS

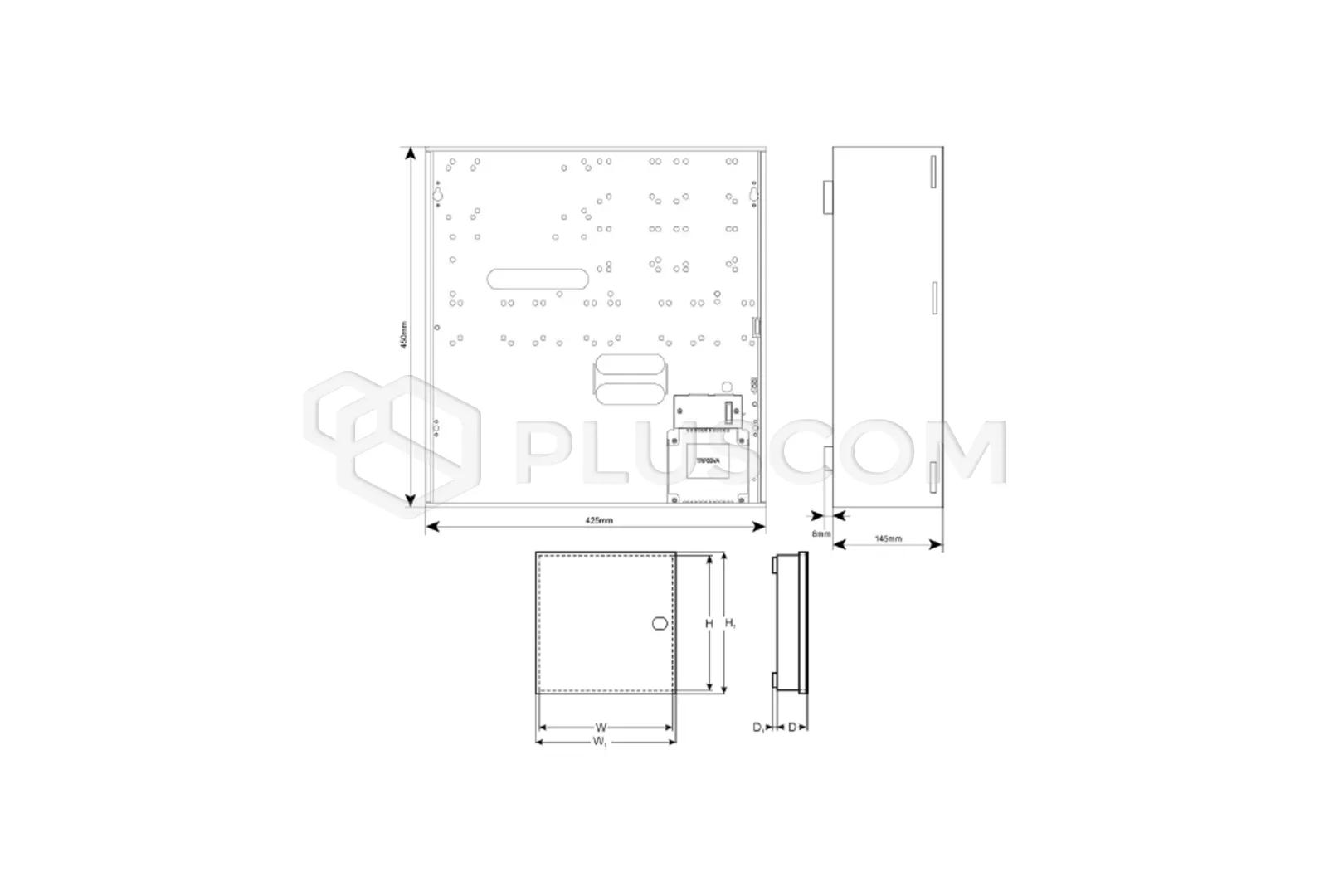

Dimensions:

Download

Datasheet 0.3 MB

Instruction 0.41 MB
