Pulsar AWO224 casing for control panels

41,11 EUR including 23.00% VAT
Product code: #10531
Manufacturer: Pulsar
  • For modules: SATEL INT-E, INT-PP
  • Battery space: 17Ah/12V
  • Place for buffer power supply
  • Dimensions: 320x300x90mm

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel INT-E 8-zone expansion module Satel INT-PP Subpanel module

Universal metal casing Pulsar AWO 224

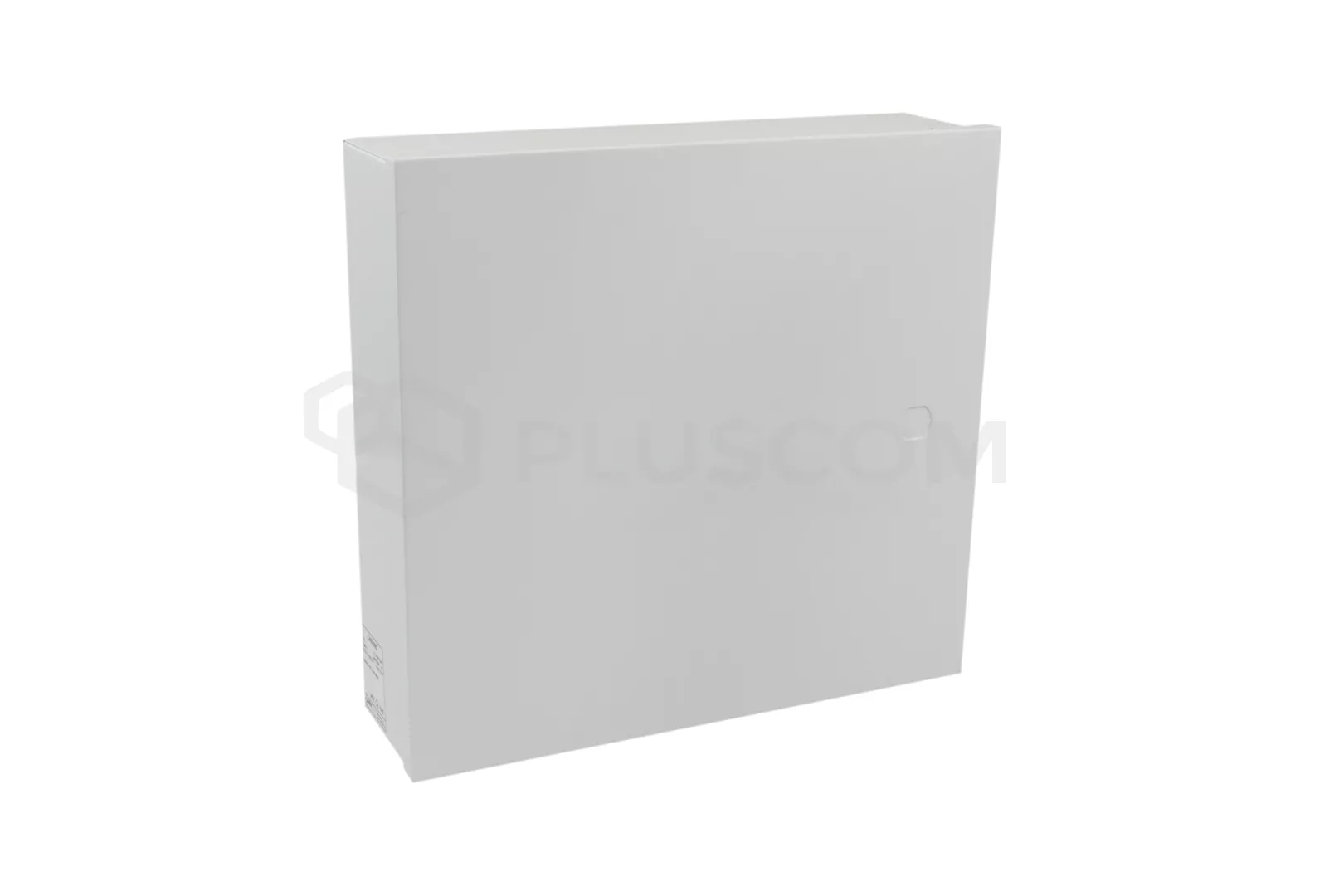

Front view:

Front view:

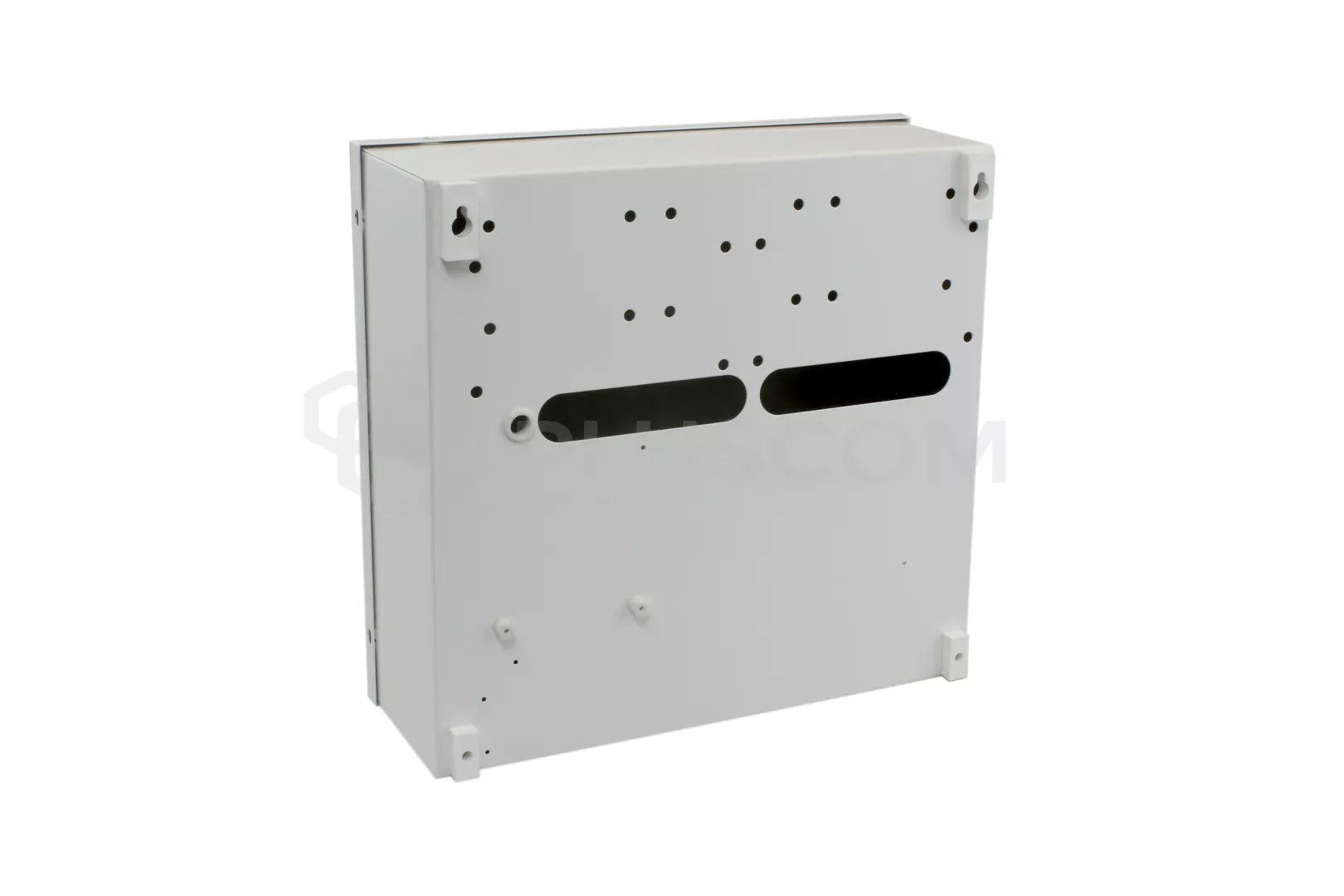

Rear view:

Rear view:

Metal casing for surface mounting for additional expanders of alarm systems.

Suitable for assembly:
  • INT-E, INT-PP modules from Satel
  • Satel APS-412 buffer power supply
  • Pulsar buffer power supplies: PSB251215, PSB351225, PSB501235, PSB751250
  • battery space for 17Ah/12V
Made of 0,7mm thick sheet, anti-corrosive. Painting white color RAL9003. Equipped with anti-tamper protection and spacers (8mm) on the back plate.

Closing screwed x4, there is a possibility of installing an optional lock.

TECHNICAL PARAMETERS:

  • dimensions:
    • internal: 320x300x90mm
    • external: 325x305x105mm
  • weight: 2kg
  • working temperature: -10°C...+40°C
  • tamper protection: 1x NC / NO microswitch
  • material: DC01 sheet thickness 0.7mm

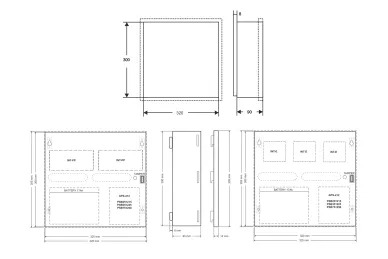

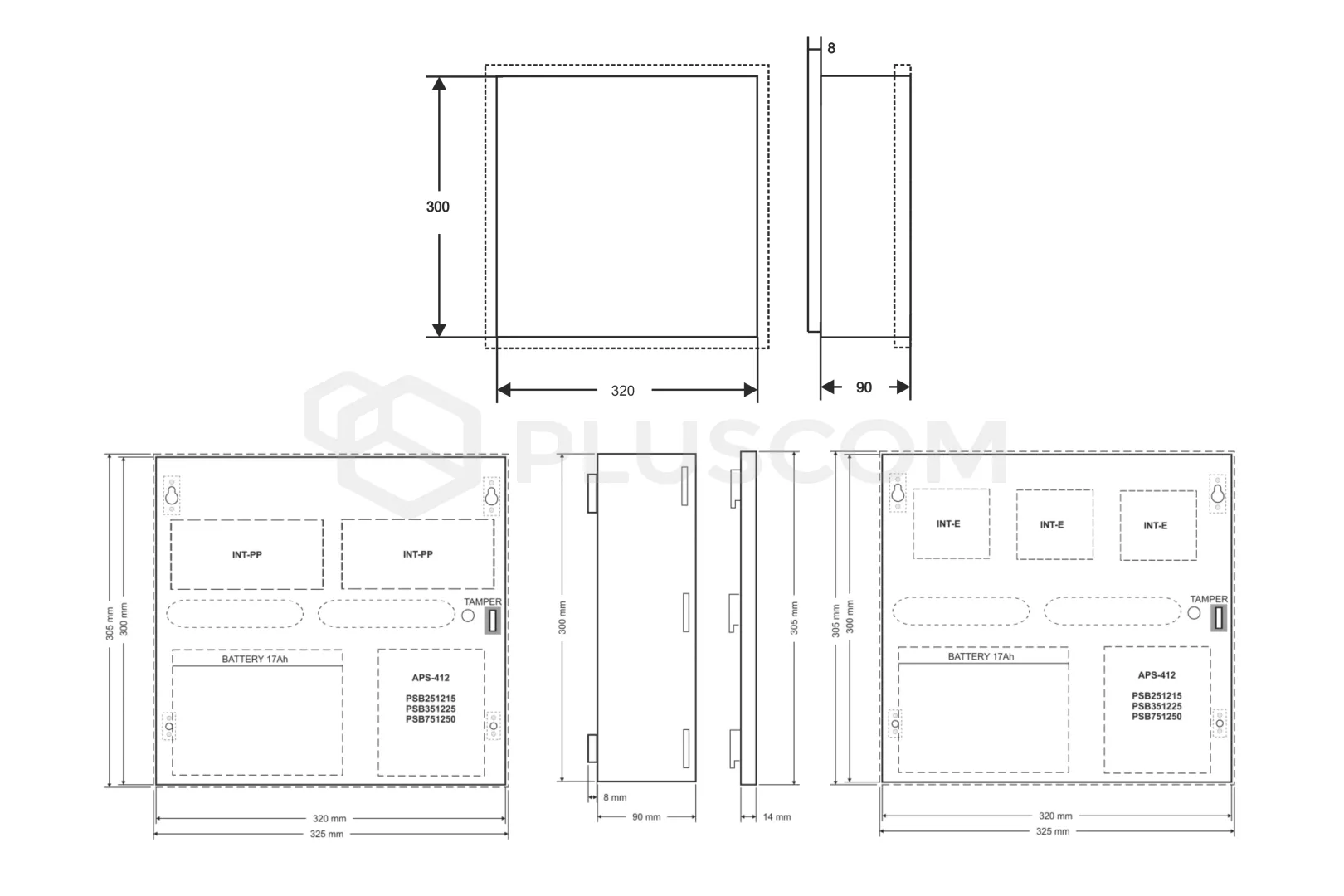

Dimensions of the housing, arrangement of elements:

Dimensions of the housing, arrangement of elements:



    Download
    Datasheet 0.15 MB
    CE Declaration 0.33 MB
    Insstruction 0.35 MB
