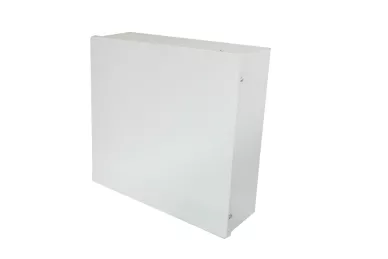

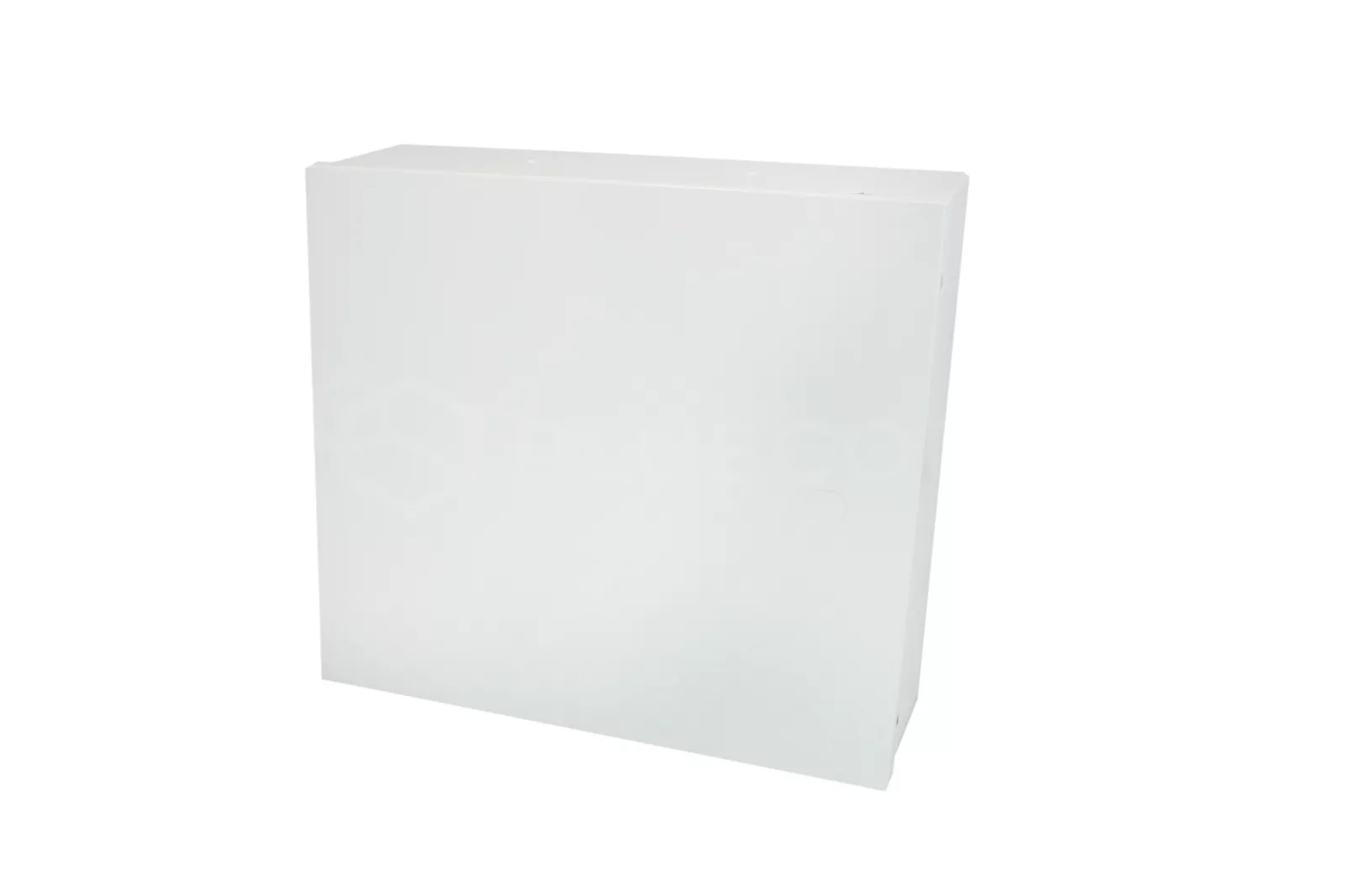

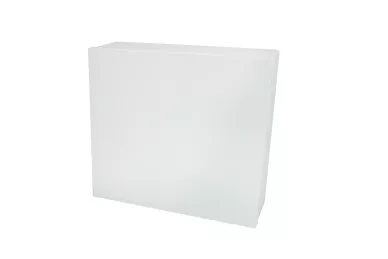

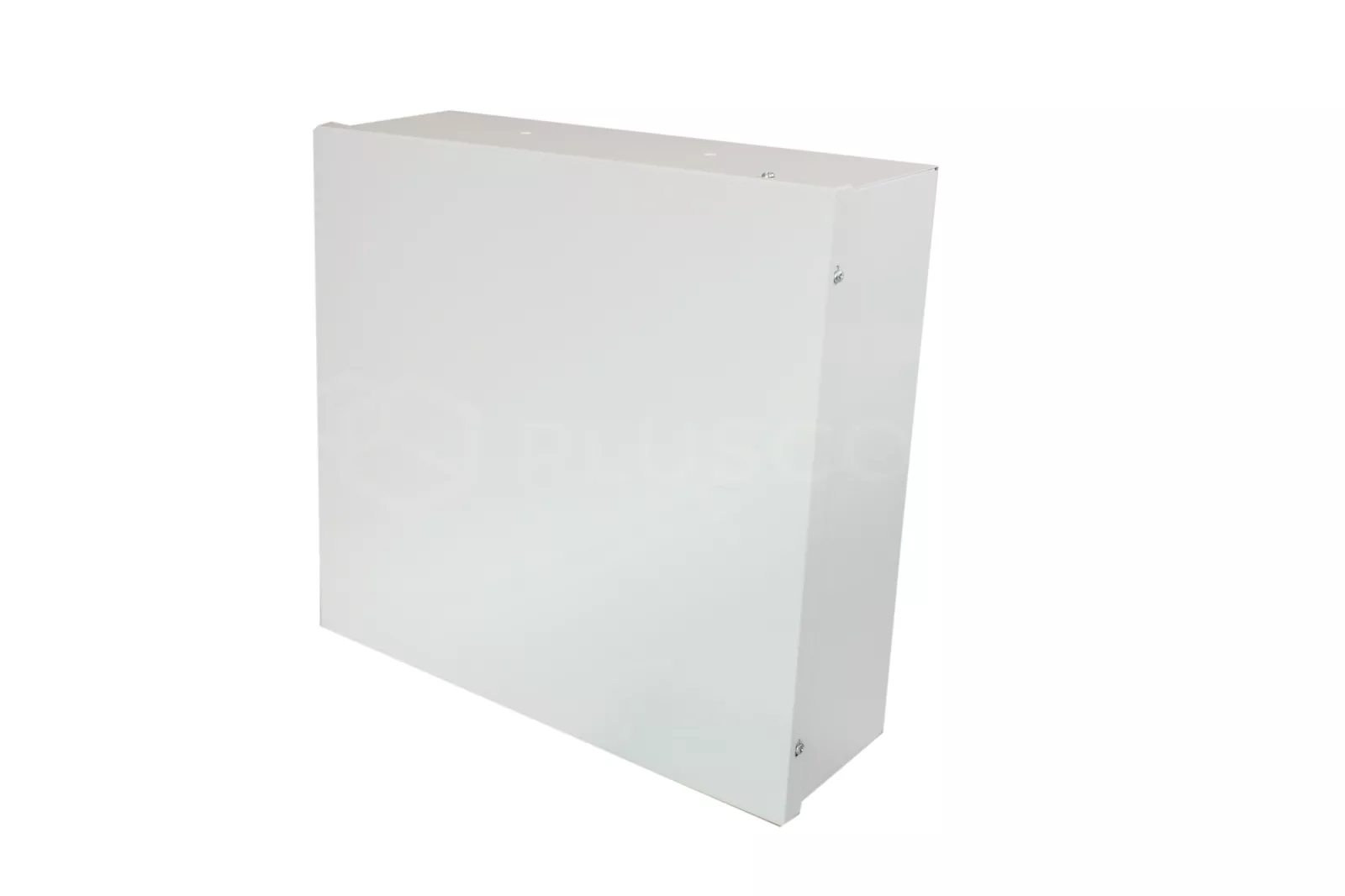

Pulsar AWO205EI Casing for SATEL control panels with transformer

• panel boards and optional additional modules control

• controllers and additional modules

• radio transmitter, GSM

• module PS

• other dedicated devices

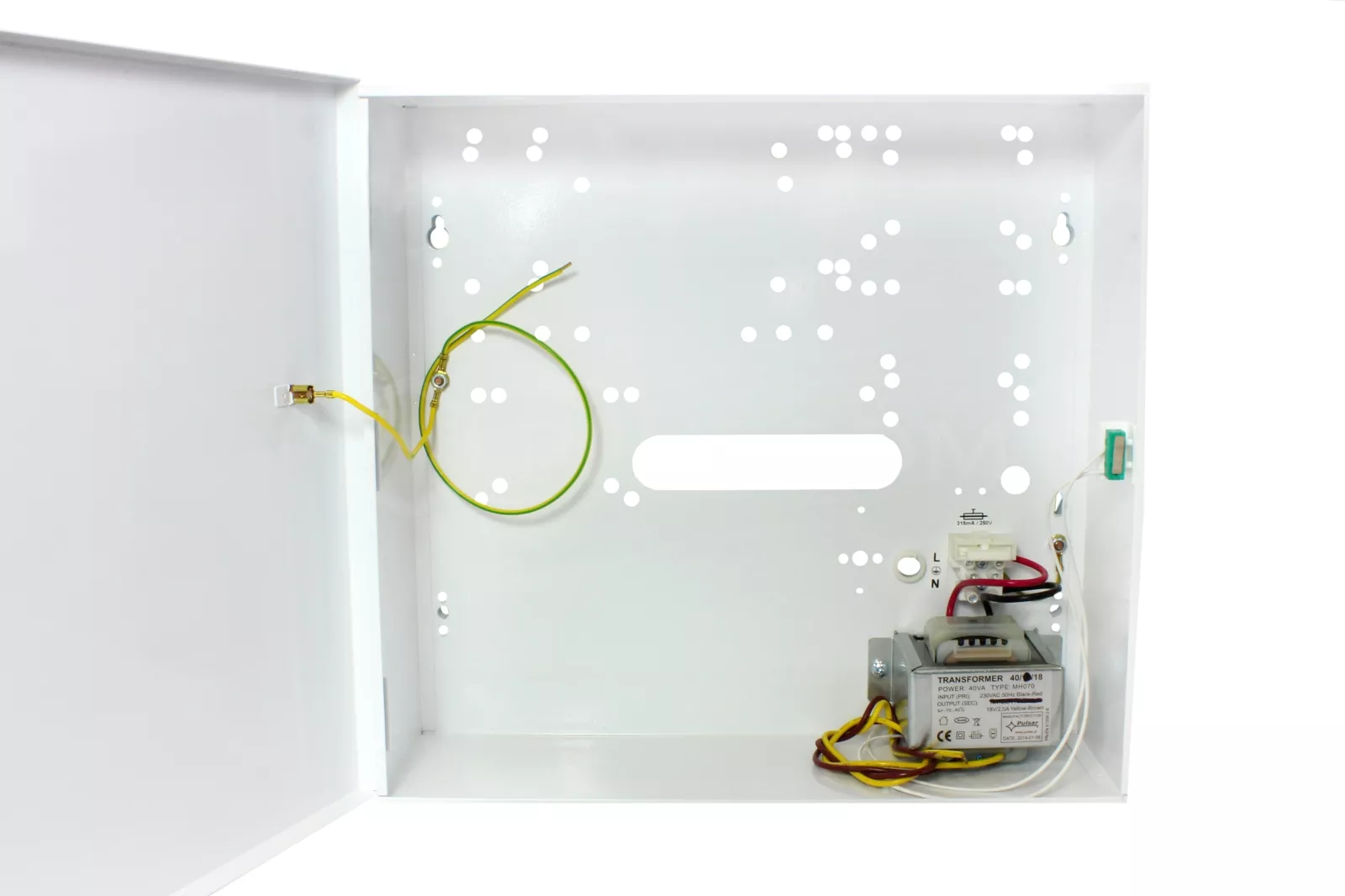

The housing includes a transformer EI 40VA/18V.

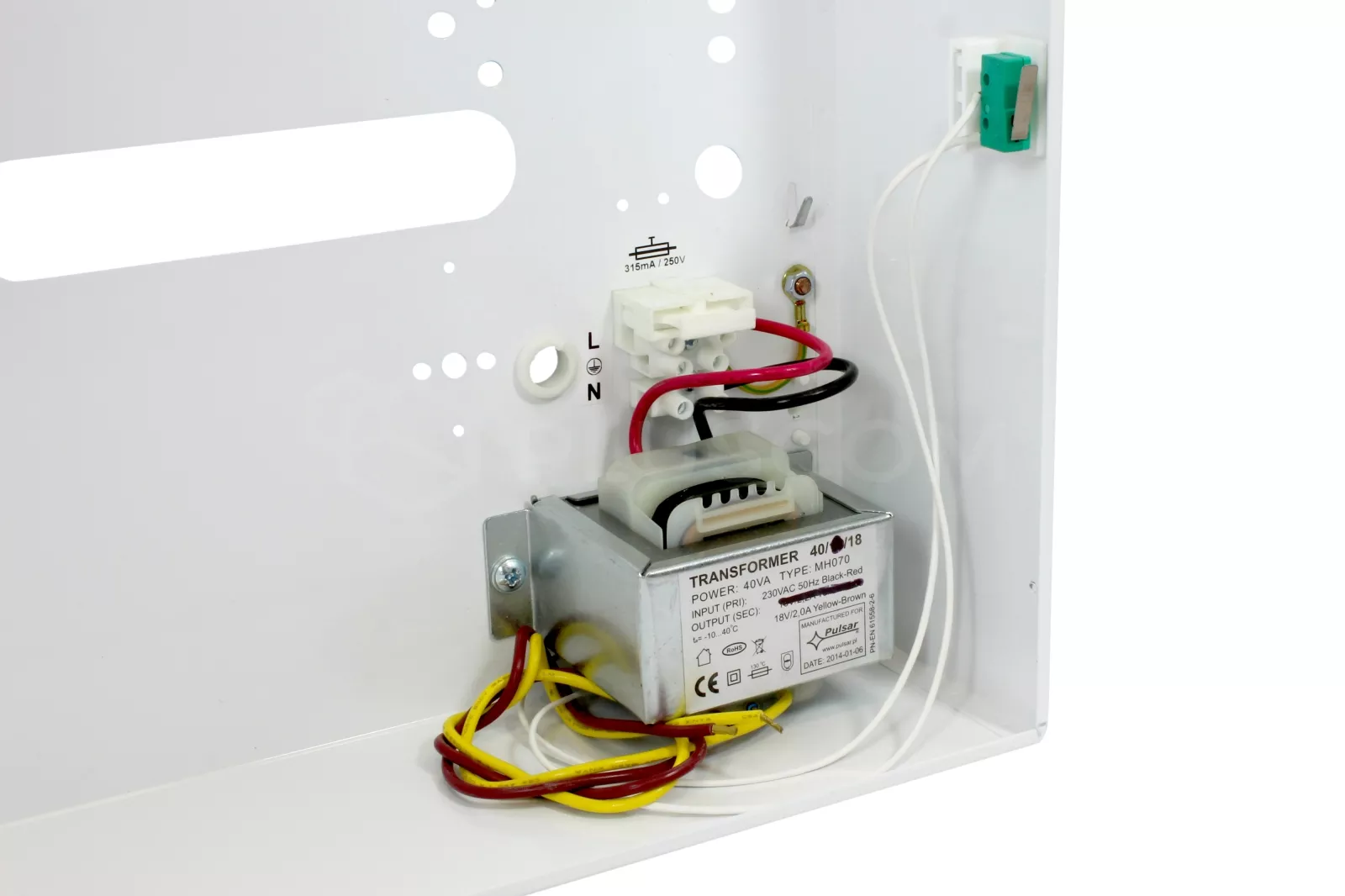

Built-in transformer:

• transformer EI 40VA/18V

  • power supply 230V/AC 50Hz
  • output voltage: 18V/2A
• place on battery: 12V/17Ah

• tamper protection: Yes

• material: 0.7mm sheet RAL9003 color

• degree od protection : IP20

• internal dimensions: 320x300x90mm
• closing: 4x twisted sheet metal, an optional locking

• distance from wall 8mm

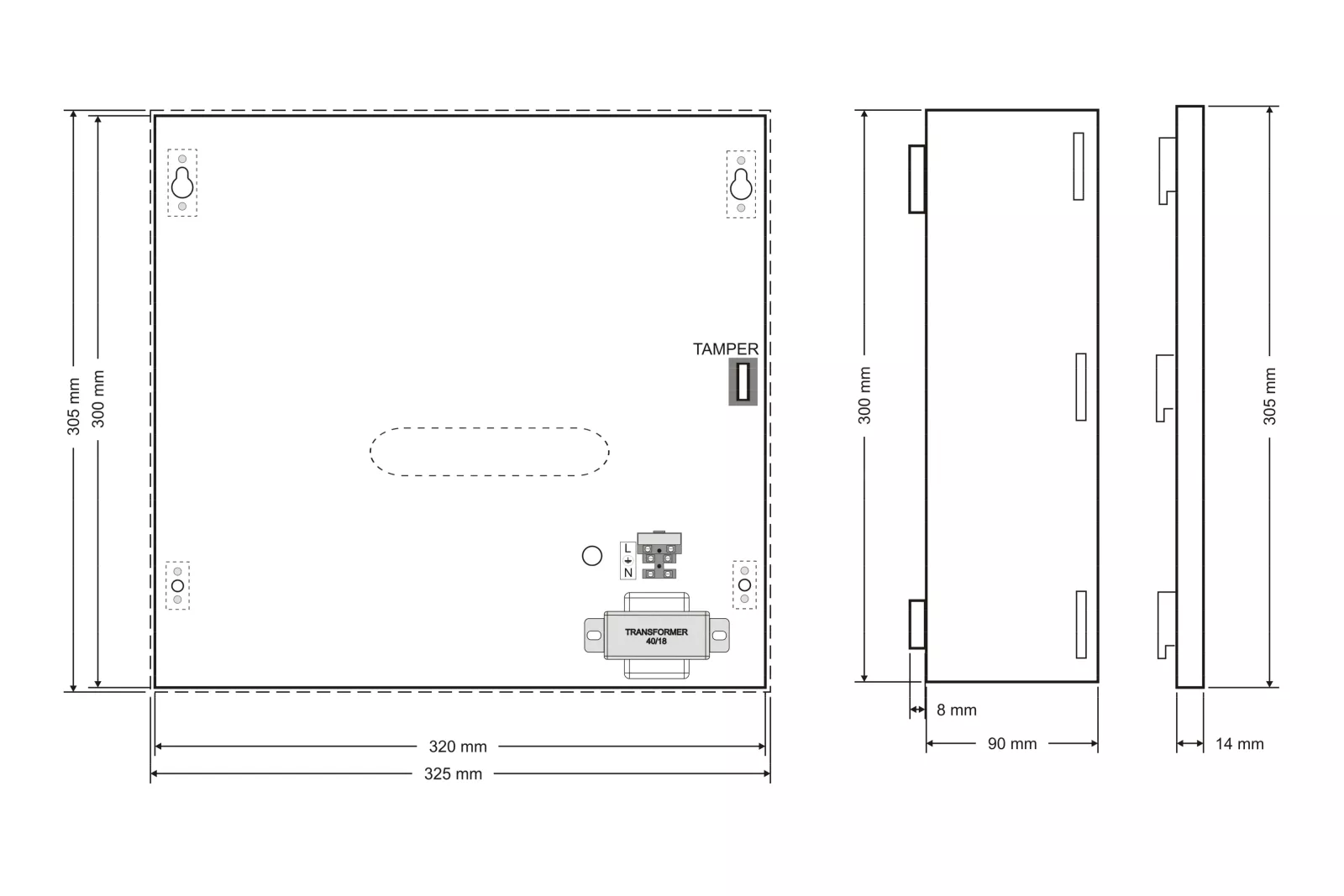

Dimensions:

• CA4V1, 5, 6,10, VERSA 5,10,15, INTEGRA 24, 32 + 3 x CA10E
  (CA64E, SM, MST1)
• CA4V1, 5,6,10, VERSA 5,10,15, INTEGRA 24, 32 + CA10E
  (CA64E, SM, MST1) + GSMLT1
• CA4V1,5,6,10, VERSA 5,10,15, INTEGRA 24, 32 + CA10E
  (CA64E, SM, MST1) + CA64 (EPS, ADR, O-R, O-ROC, O-OC, VGM- 16, SR, ACC- KP-PS)

• CA64 (PP, EPS, ADR, O- R, O-ROC, O-OC, OPS- OC, OPS- R, OPS- ROC,
  VGM- 16, SR, PTSA, ACC-KPPS) + 3 x CA10E (CA64E, SM, MST1)

• CA4V1, 5,6,10, VERSA 5,10,15, INTEGRA 24, 32 + 2 x CA10E
  (CA64E, SM, MST1)
• CA4V1, 5,6,10, VERSA 5,10,15, INTEGRA 24, 32 + GSMLT1
• CA4V1, 5,6,10, VERSA 5,10,15, INTEGRA 24, 32 + CA64
  (EPS, ADR, O- R, O-ROC, O-OC, VGM-16, SR, ACC- KP- PS)

• CA64 (PP, EPS, ADR, O-R, O-ROC, O-OC, OPS- OC, OPS- R, OPS- ROC,
  VGM-16, SR, PTSA, ACC- KPPS) + 2x CA10E (CA64E, SM, MST1)

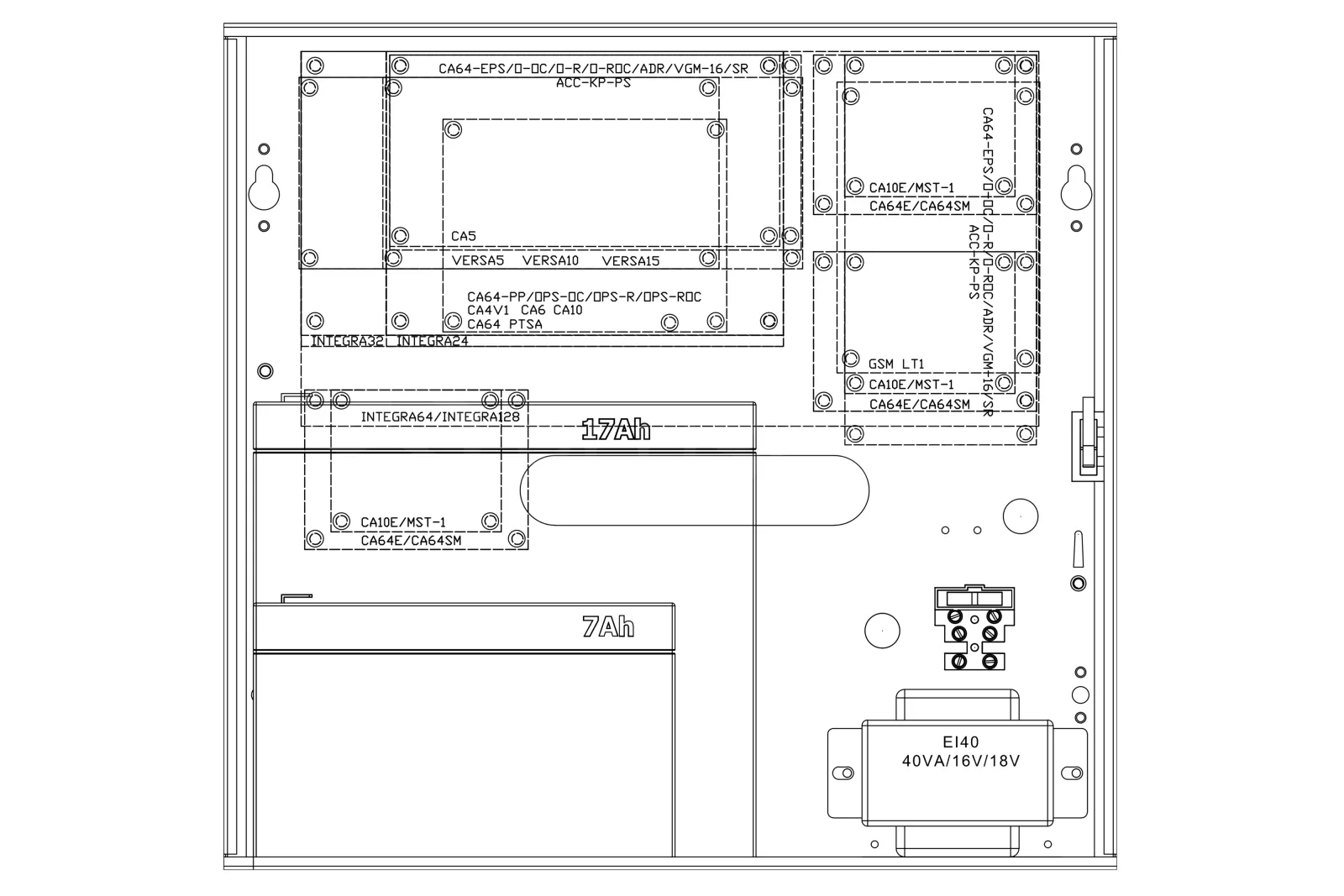

Possible arrangement of modules SATEL
