Pulsar AWO200K Two-level casing for control panels with transformer

96,84 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #10522
Manufacturer: Pulsar
  • Two-level casing
  • Transformer: TRP 50VA/16V/18V/20V
  • Place on the battery 12V/17Ah
  • Dimensions: 350x435x140mm/li>
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Two-level casing Pulsar AWO200K 17/TRP50/DSPR/L

The AWO200K metal two-level casings are designedto the panel DSC, SATEL, PARADOX, RISCO, PYRONIX, TEXECOM, TELMOR, ROGER, EBS and communication modules GORKE – ATG, ROPAM – BASIC i MULTI GSM, SATEL – ETHM, GSM LT1, LT2, GPRS-T1/T2/T4.

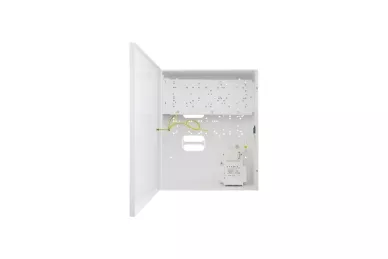

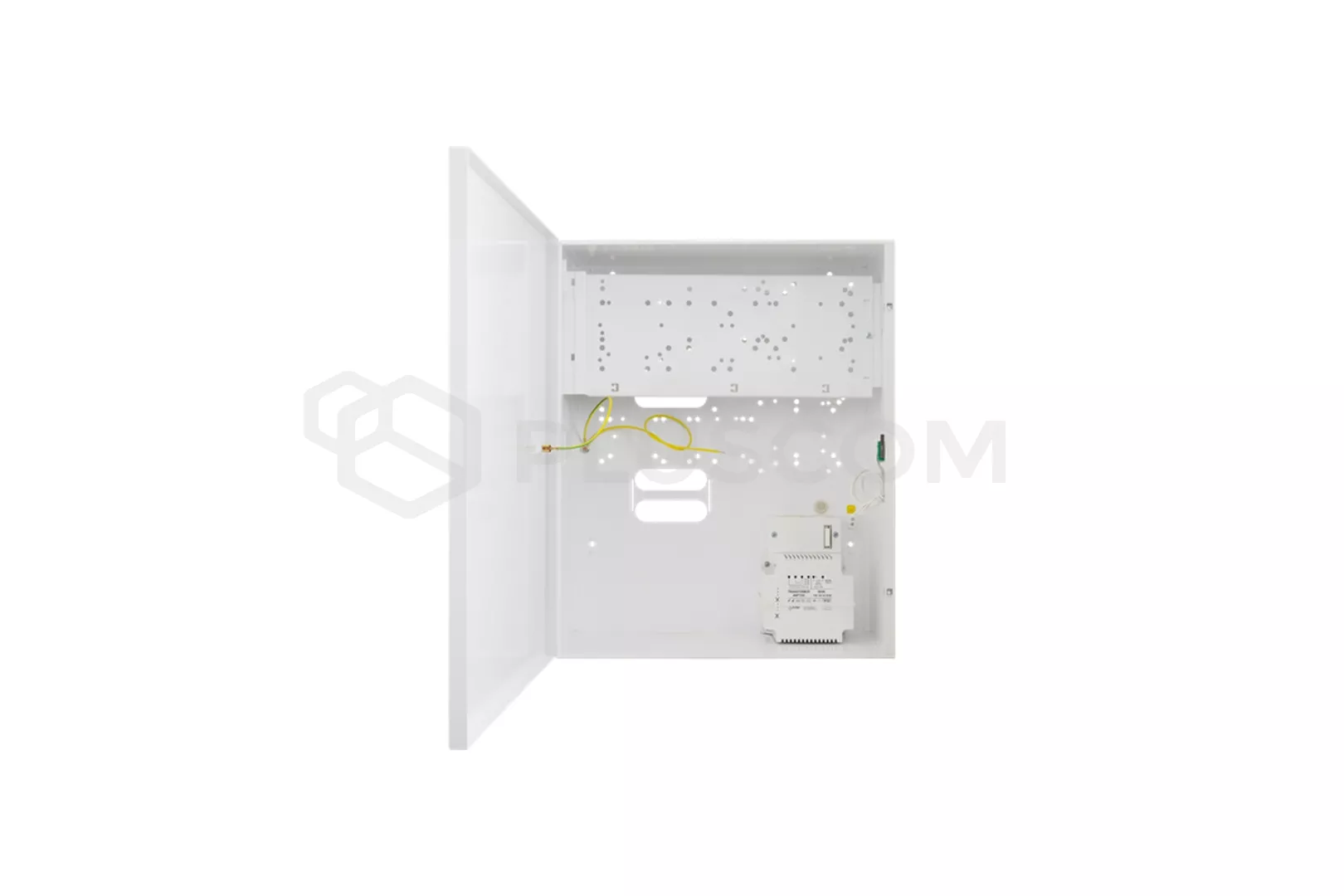

The AWO200K is a two-level enclosure. This solution provides additional capacity for more devices than in the standard enclosure.
The lower level includes openings for control panels and expanders. Meanwhile, the upper level, in addition to openings for expansion modules, has openings for communication modules including.
The upper part of the enclosure includes pre-embossed openings for GSM antennas.

The housing includes a transformer TRP 50VA/16V/18V/20V

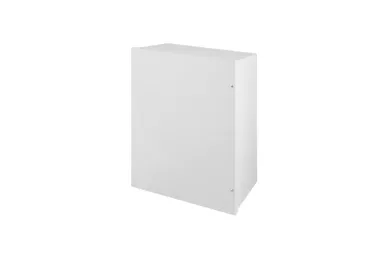

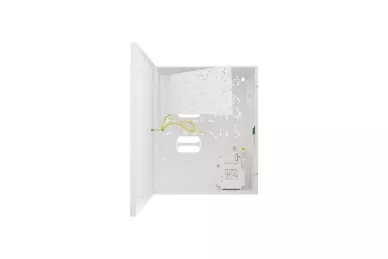

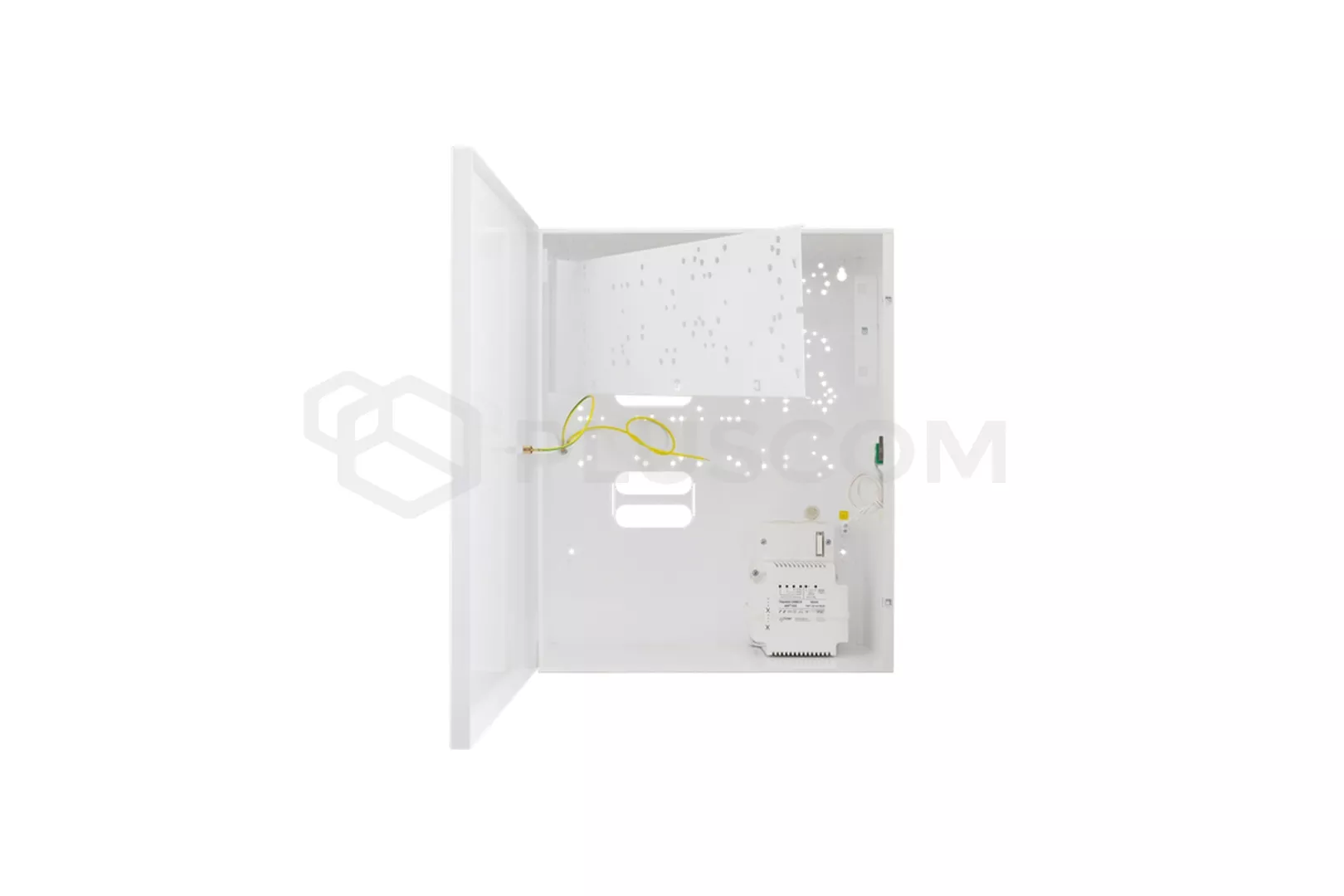

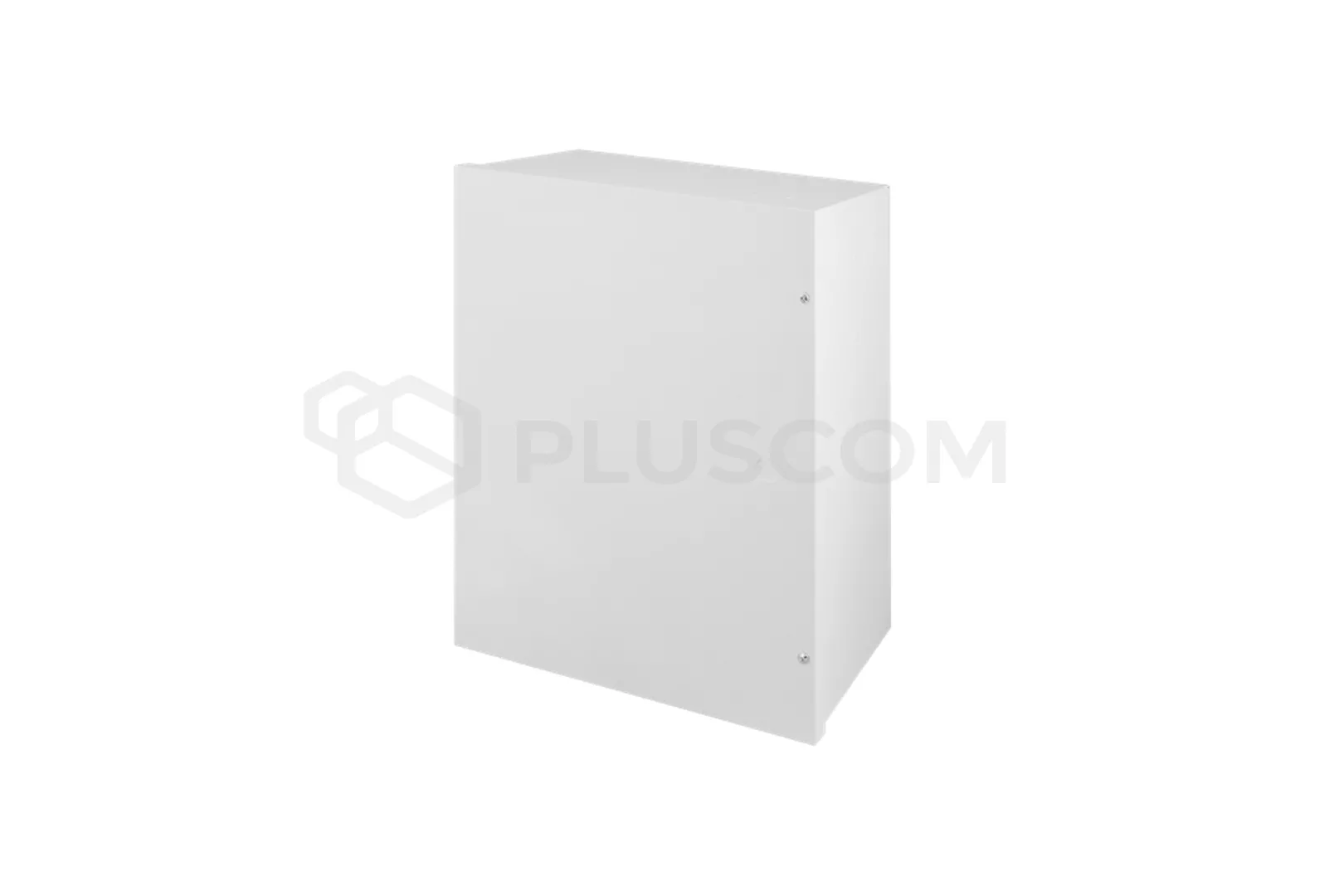

Pulsar AWO191 Two-level casing for control panels with transformer

Pulsar AWO191 Two-level casing for control panels with transformer

Pulsar AWO191

Pulsar AWO191


The housing has a place for 12V/17Ah.
The standard is also a tamper protection in the form of the chassis intrusion detector

SPECIFICATIONS:
  • transformerTRP 50VA/16V/18V/20V
  • power supply 230V/AC 50Hz
  • output voltage: 16V/3A, 18V/2,8A or 20V 2,5A
  • place on battery: 12V/17Ah
  • tamper protection: Yes
  • Material: 0.7mm sheet RAL9003 color
  • degree od protection : IP20
  • Internal dimensions: 350x435x140mm
  • closing: 2x cylindrical screw meta
  • distance from wall 8mm
Pulsar AWO191

Pulsar AWO191



PANELS WHICH CAN BE MOUNTED:
  • DSC: (PC 1616, 1832, 1864, 4020) + 3x 5108 ( 4108, 5208, 5100, 4116)
    • Moduły: 1) (PC 5204, 5400,5200, 5580, 4216, 4204) + 3x (5108, 4108, 5100, 4116, 5208)
  • PARADOX: (E55, E65, 728ULT,EVO48, EV0192, SP4000, SP5500, SP6000, SP7000) + 2 x Z X 8 (Z X 4, APR3- ADM2, APR3-HUB2, PGM4)
  • RISCO: PRO24, 116, 128, 140+ RP296EPS+ EZ16 (E04, EZ8)
  • SATEL: CA4V1, CA5, CA6 (VERSA 5, 10, 15, CA10) + 5 x CA10E (CA 64E, SM, MST1), (INTEGRA 24, 32, 64, 128) + 5 x CA64E (SM)
    • Moduły: CA64 (PP, EPS, ADR, O-R, O-ROC,O-OC, OPS- OC, OPS- R, OPS- ROC, VGM- 16, SR, PTSA) + 2 x CA64E (SM)
  • GORKE – ATG
  • ROPAM – BASIC i MULTI GSM
  • SATEL – ETHM, GSM LT1, LT2, GPRS-T1/T2/T4
  • PYRONIX: MATRIX 424, 6, 816, 832, 832+
  • TEXECOM: PREMIER 412, 816, 832, 48, 88, 168, 640
  • TELMOR: TCA- 824 + TEX800+ TMT1
  • ROGER: PR402, CPR 32-SE
  • EBS: PX 202A
  • PULSAR: MS1012, MSR1012, MSRK1012, MS2012, MSR2012, MSRK2012

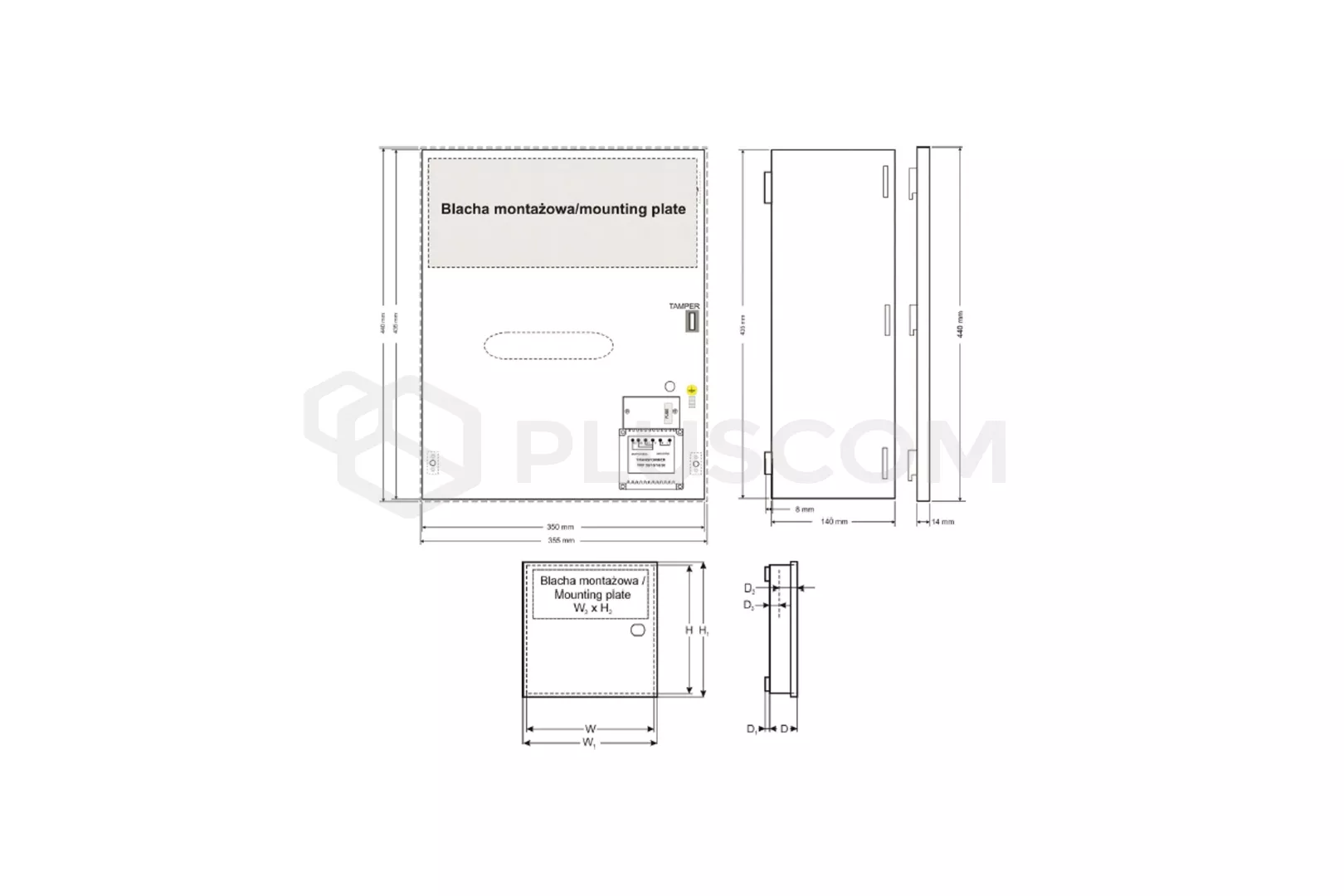

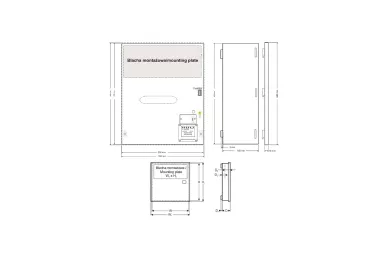

Dimensions:

Dimensions:


Download
Data Sheet 0.21 MB
Declaration CE 0.32 MB
Instruction 0.37 MB
