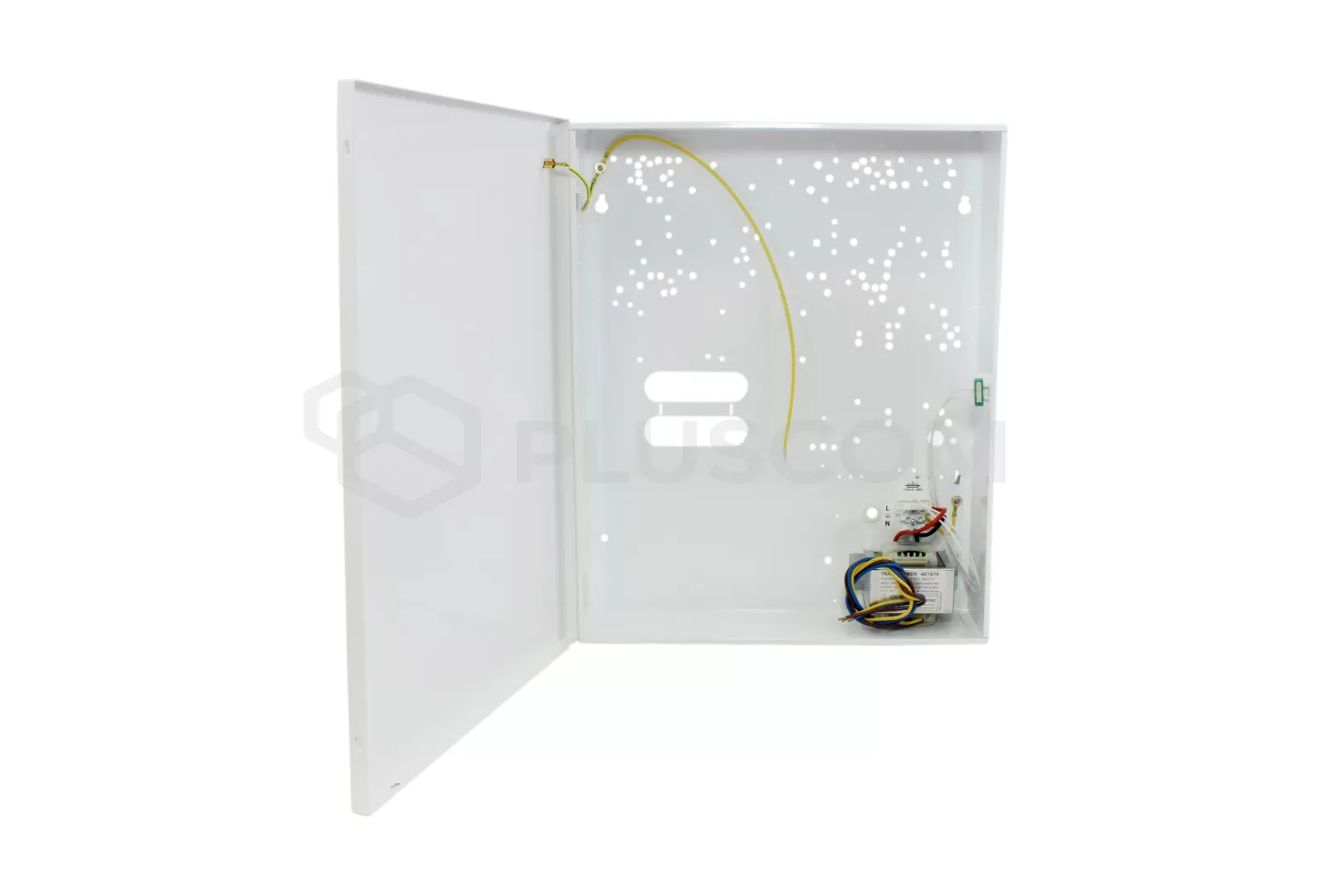

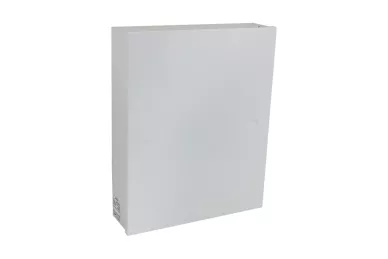

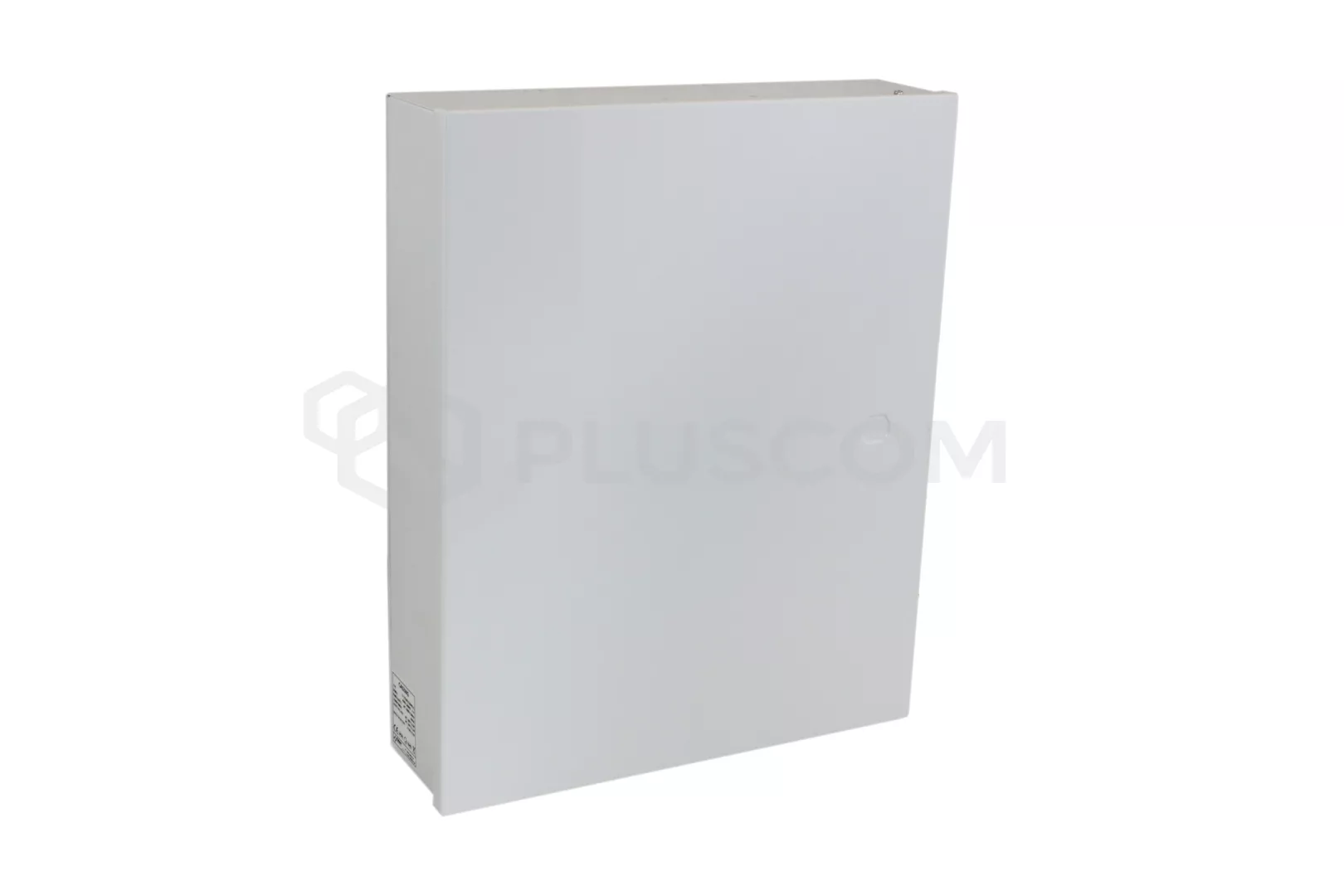

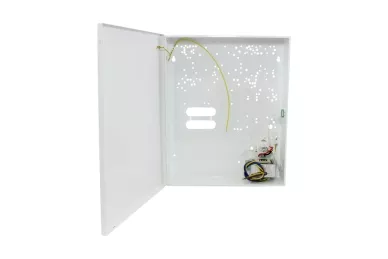

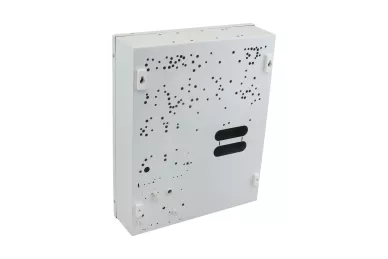

Pulsar AWO200EI Casing for control panels with transformer

39,24 EUR including 23.00% VAT
Product code: #10521
Manufacturer: Pulsar
  • Universal housing
  • Transformer: EI 40VA/16V/18V
  • Place on the battery 12V/17Ah
  • Dimensions: 320x395x90mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.
Pulsar AWO 200EI 17/EI40/DSPR/L surface mounted housing is designed for mounting:
  • panel boards and optional additional modules control
  • controllers and additional modules
  • radio transmitter, GSM
  • module PS
  • other dedicated devices

The housing includes a transformer EI 40VA/16V/18V
The housing has a place for 12V/17Ah. The standard is also a tamper protection in the form of the chassis intrusion detector


SPECIFICATIONS:
  • transformer EI 40VA/16V/18V
    • power supply 230V/AC 50Hz
    • output voltage: 18V/2A, 16V/2,2A
  • place on battery: 12V/17Ah
  • tamper protection: Yes
  • material: 0.7mm sheet RAL9003 color
  • degree od protection : IP20

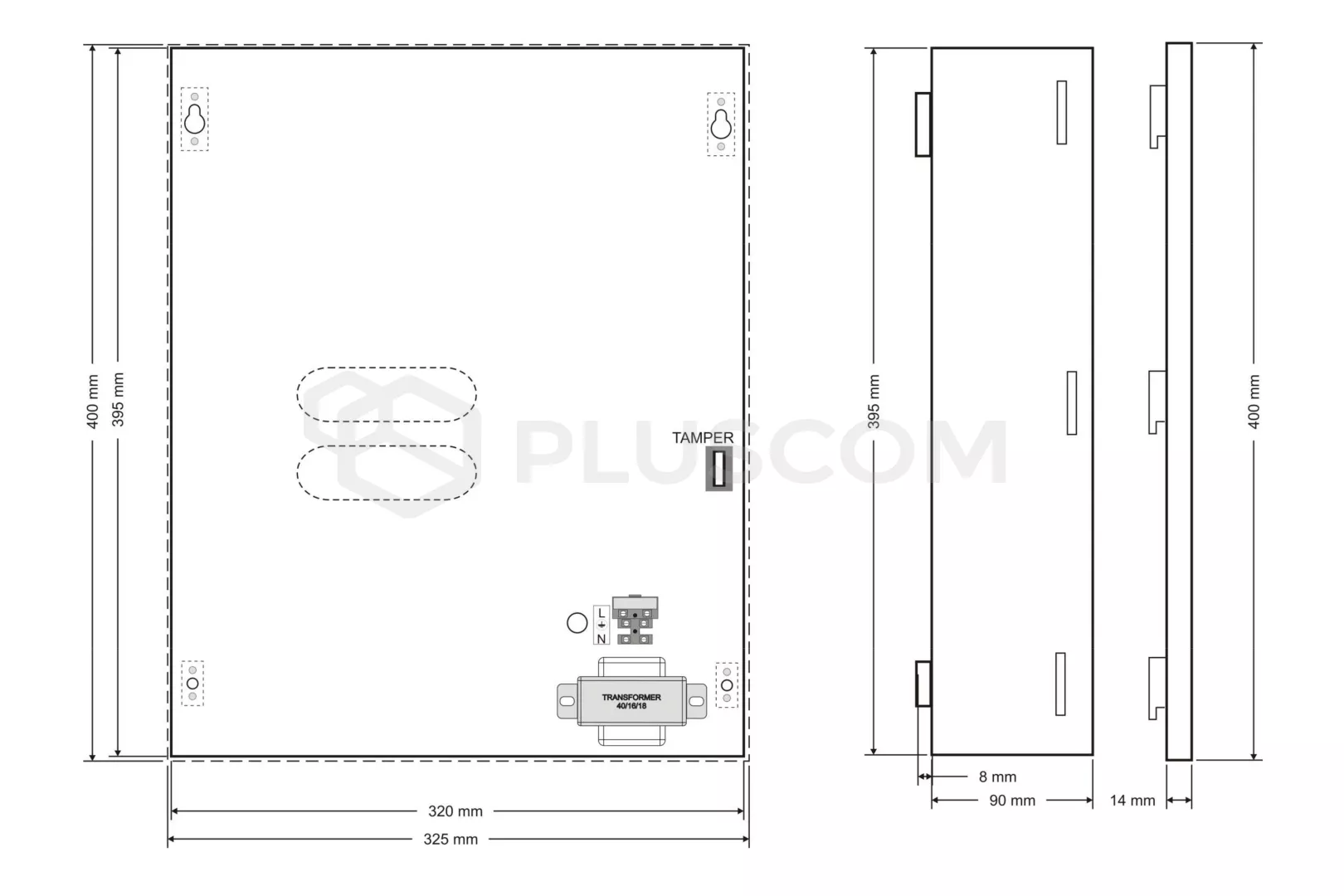

  • internal dimensions: 320x395x90mm
  • closing: 4x twisted sheet metal, an optional locking
  • distance from wall 8mm

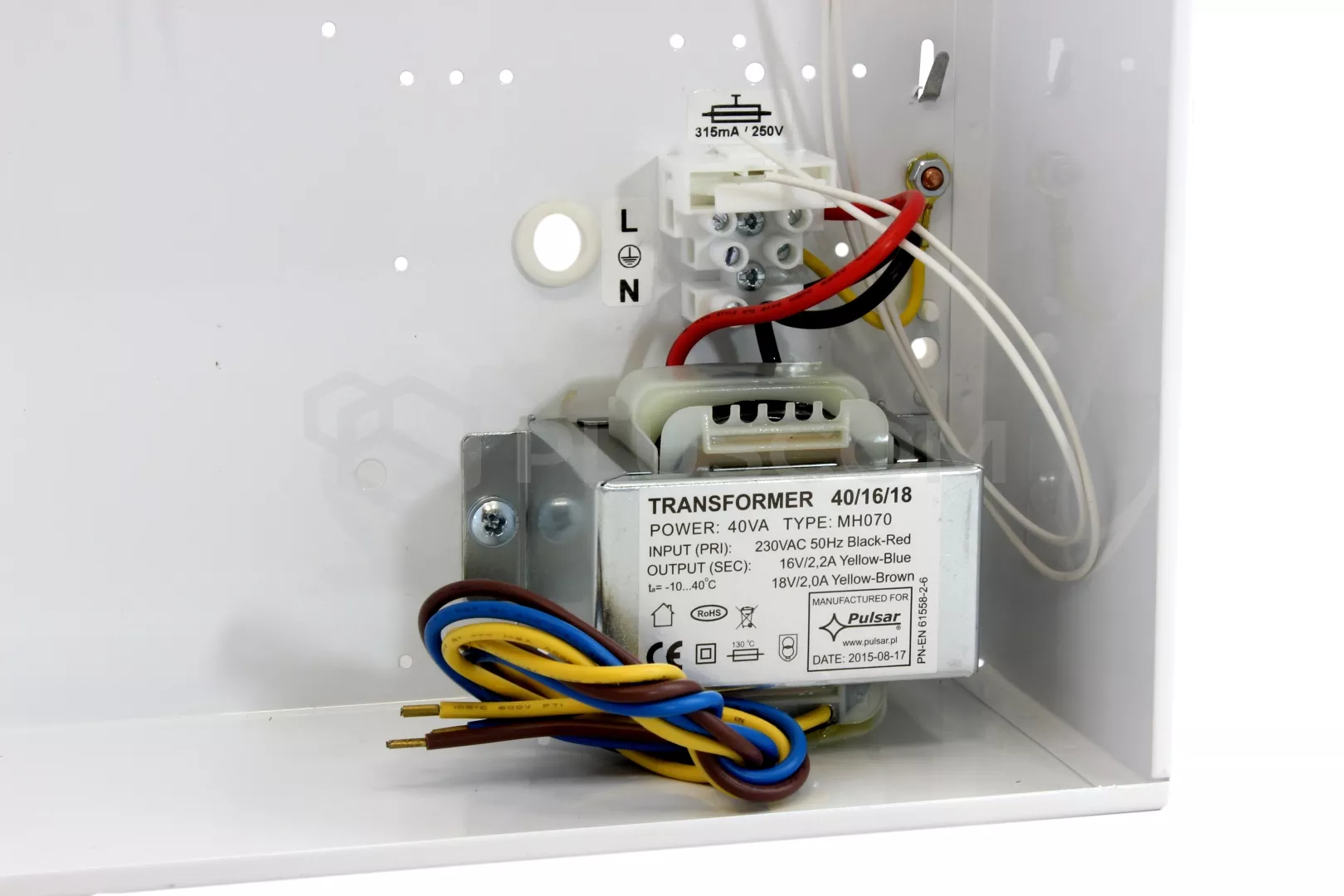

Built-in transformer EI 40VA/16V/18V

Built-in transformer EI 40VA/16V/18V



Housing is ideal for panel and modules installation SATEL

Panels:

  • CA4V1, CA5, CA6
  • VERSA 5, 10, 15, CA10) + CA10E ( CA 64E, SM, MST1)
  • (INTEGRA 24, 32) + CA64E ( SM)

Modules:

  • CA64 ( PP, EPS, ADR, O-R, O-ROC, O- OC,OPS- OC, OPS- R, OPS- ROC,
    VGM- 16, SR, PTSA) + CA64E (SM)
Sample distribution panel in the housing SATEL

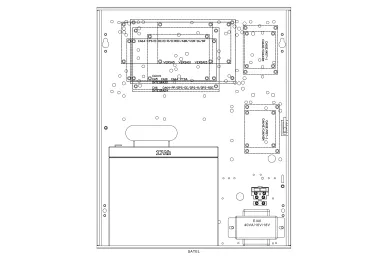

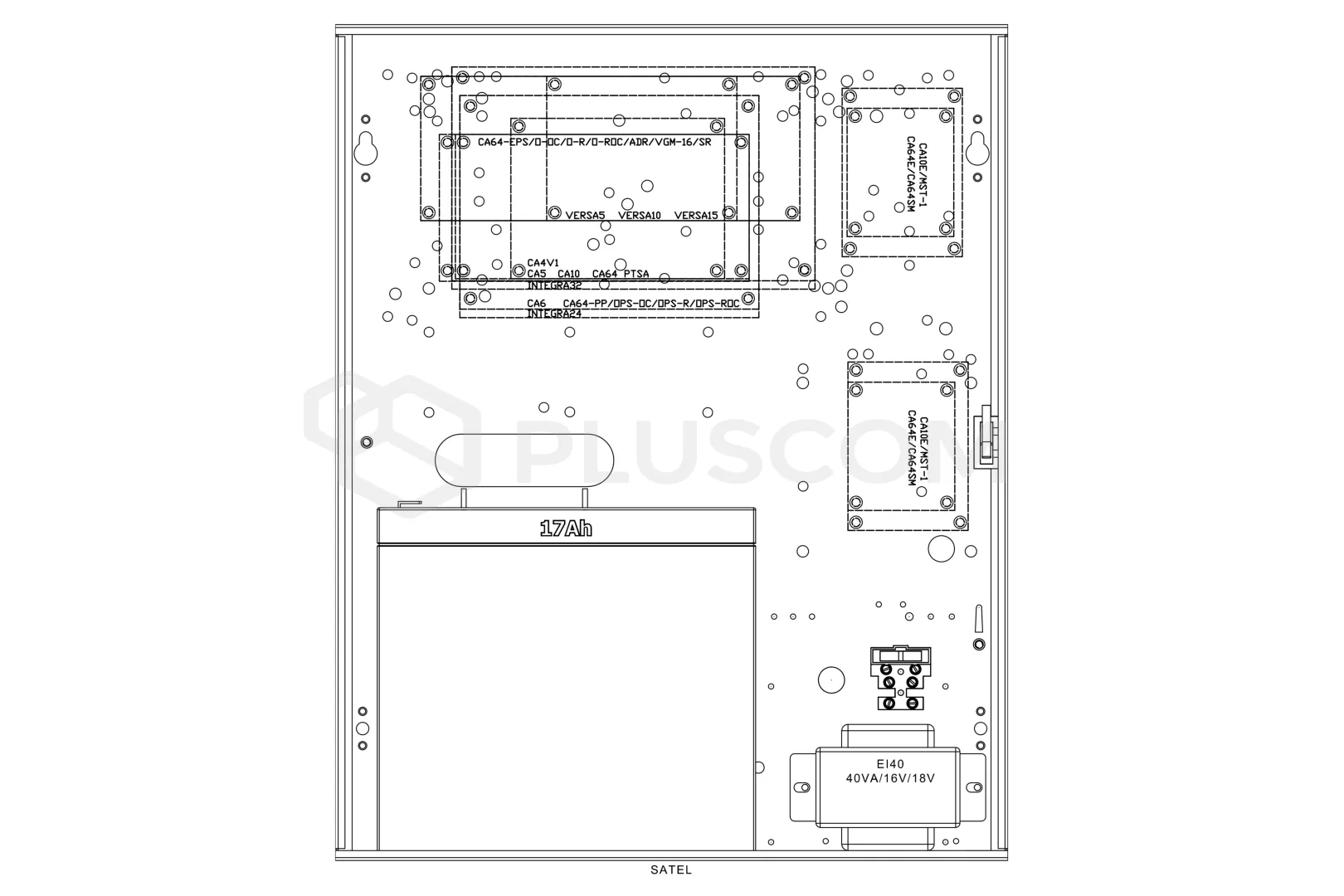

Possible arrangement of modules SATEL

Possible arrangement of modules SATEL



Other panels that can be mounted in the enclosure:

DSC, PARADOX, RISCO,  PYRONIX, CROW, TEXECOM, TELMOR, ROGER, EBS, PULSAR,
Download
Datasheet 0.09 MB
Manual 0.29 MB
CE Declaration 0.17 MB
SATEL Instalation 0.04 MB
