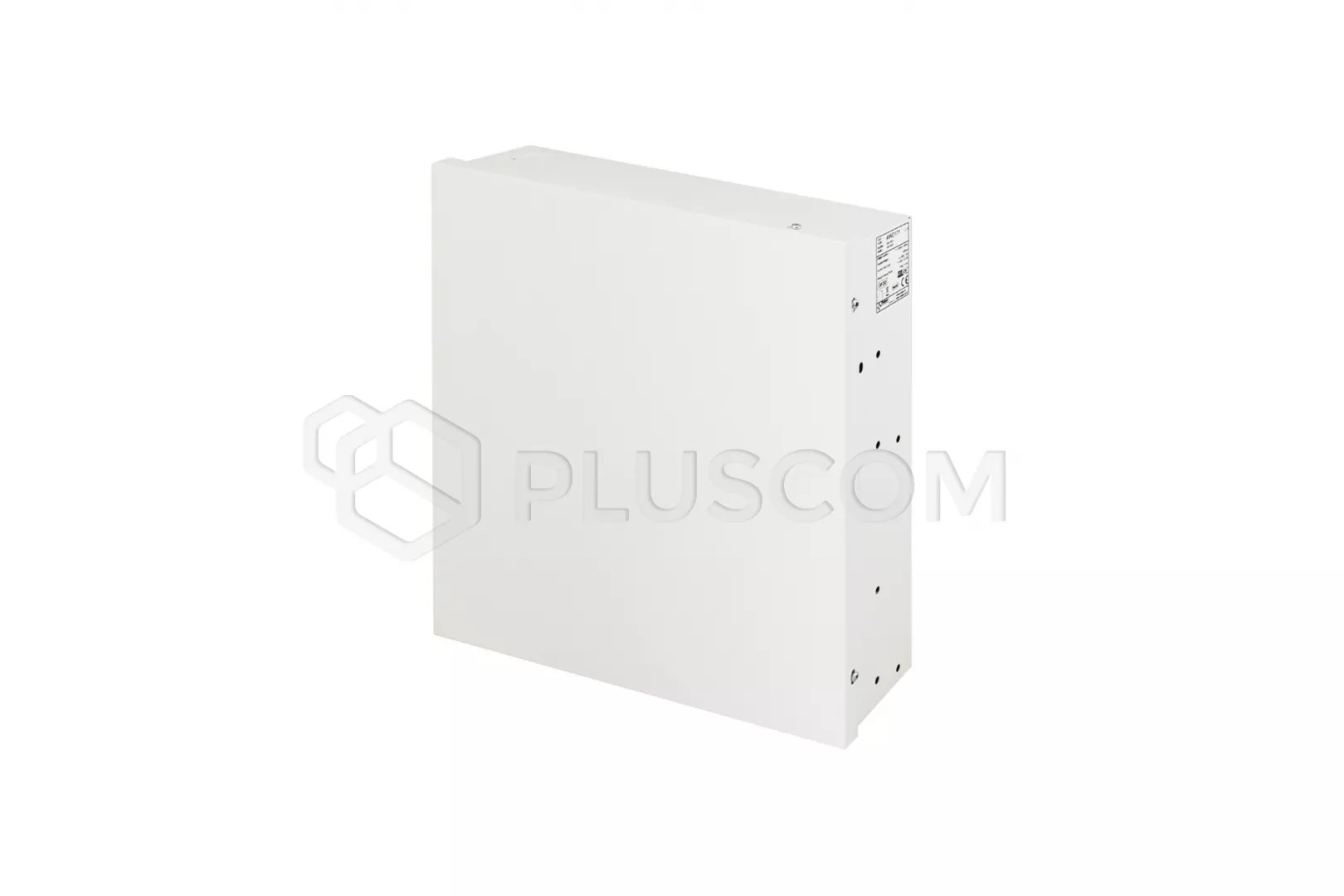

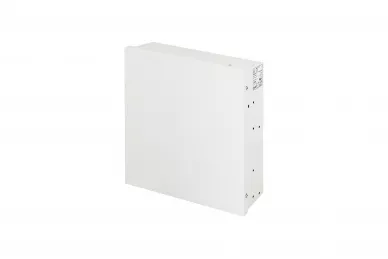

Pulsar AWO171 Casing for control panels with transformer

51,68 EUR including 23.00% VAT
Product code: #22262
Manufacturer: Pulsar
  • Universal housing
  • Transformer: TRP 40VA/16V/18V
  • Place on the battery 12V/17Ah
  • Dimensions: 280x295x78mm
Delivery and tax:
Poland VAT: 23.00% change
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar AWO171 (v. 1.0) Casing for control panels with transformer


The AWO 171 metal casings are designed as components (supplying) in intruders alarms, access control systems, security systems etc. There are intended for installation:
  • control panel optional with supplementary modules
  • access control controllers with optional modules
  • radio or GSM transmitter with optional module PSU
  • other dedicated devices, components etc.

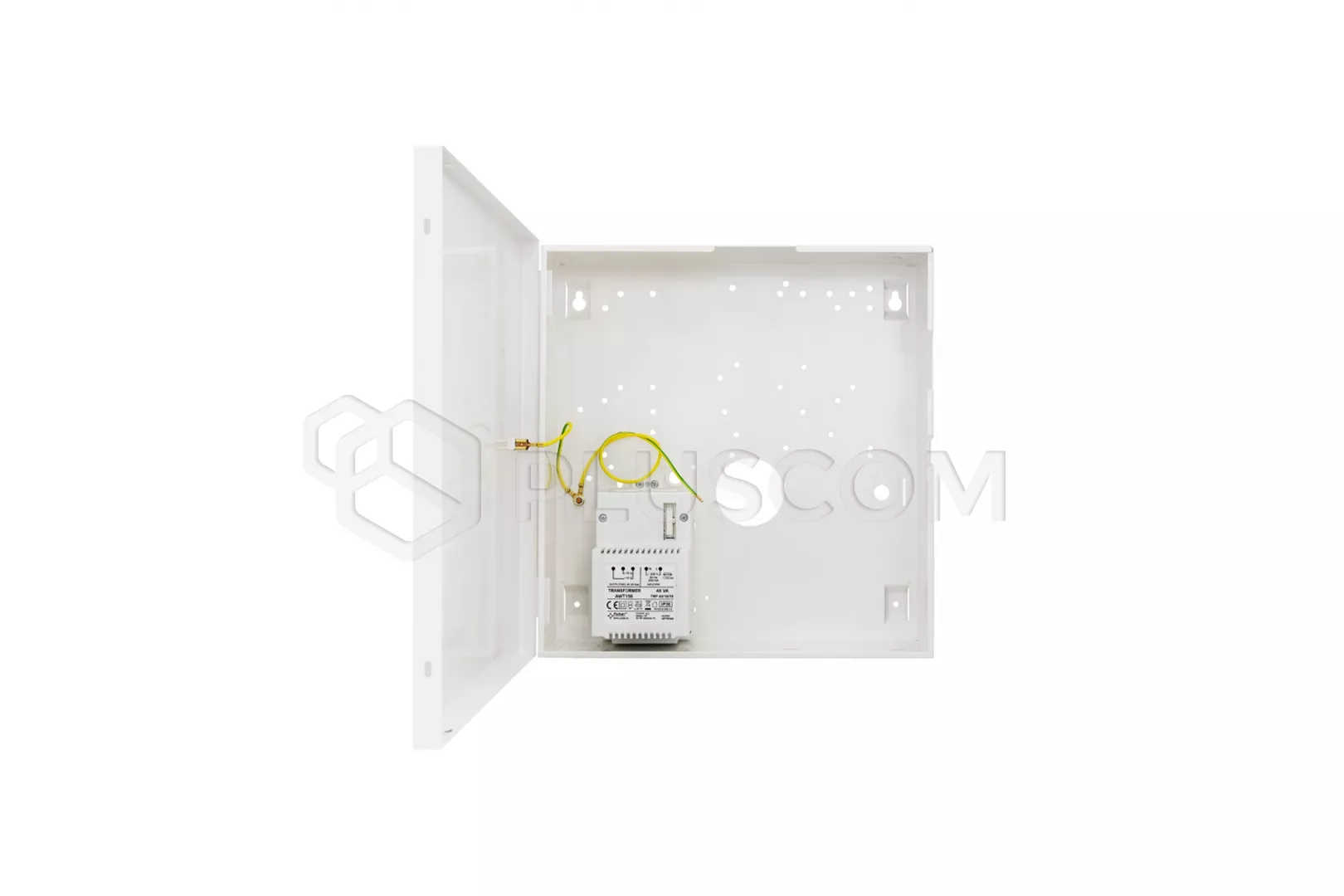

The casing is equipped with a transformer: TRP 40VA / 16V / 18V , w PC / ABS housing, IP30


Pulsar AWO171 Casing for control panels with transformer

Pulsar AWO171 Casing for control panels with transformer



The housing has space for a 12V / 7Ah battery. It is also standard tamper protection in the form of an enclosure intrusion detector i detachment from the position.

TECHNICAL PARAMETERS:
  • TRP 40VA / 16V / 18V transformer
  • space for battery: 12V / 7Ah
  • tamper protection: YES
  • material: sheet DC01 0.7mm color RAL9003
  • tightness: IP20
  • dimensions: 280x295x78mm
  • closing: 4x twisted sheet metal screw, optional lock
  • distance from the wall 6mm

Pulsar AWO171 Casing for control panels with transformer

Pulsar AWO171 Casing for control panels with transformer


The housing is suitable for mounting:

  • Power Series Neo - HS2016, HS2016-4, HS2032, HS2064, HS2128
  • Power Series - PC1616, PC1832, PC1864
  • PPower Series Pro - HS3032, HS3128, HS3248

Modules:

  • Power Series Neo - HSM2300, HSM2204, HSM2208, HSM2955, HSM2108, PCL-422
  • Power Series - PC5320, PC5100, PC5108, PC5200, PC5204, PC5400, PC5950, IT-100
  • Power Series Pro - HSM3408, HSM2108, HSM3204CX, HSM3350, AMX-400, 3G/LE9080

Modules with mounting plate:

  • Power Series Neo - LE2080(R), 3G2080(R), TL280LE(R), TL2803G, TL280(R)E, 3G2080
  • Power Series - 3G2060(R), TL2603G(R), TL260(R)
