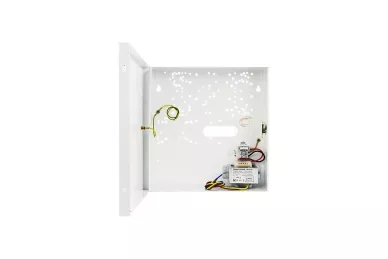

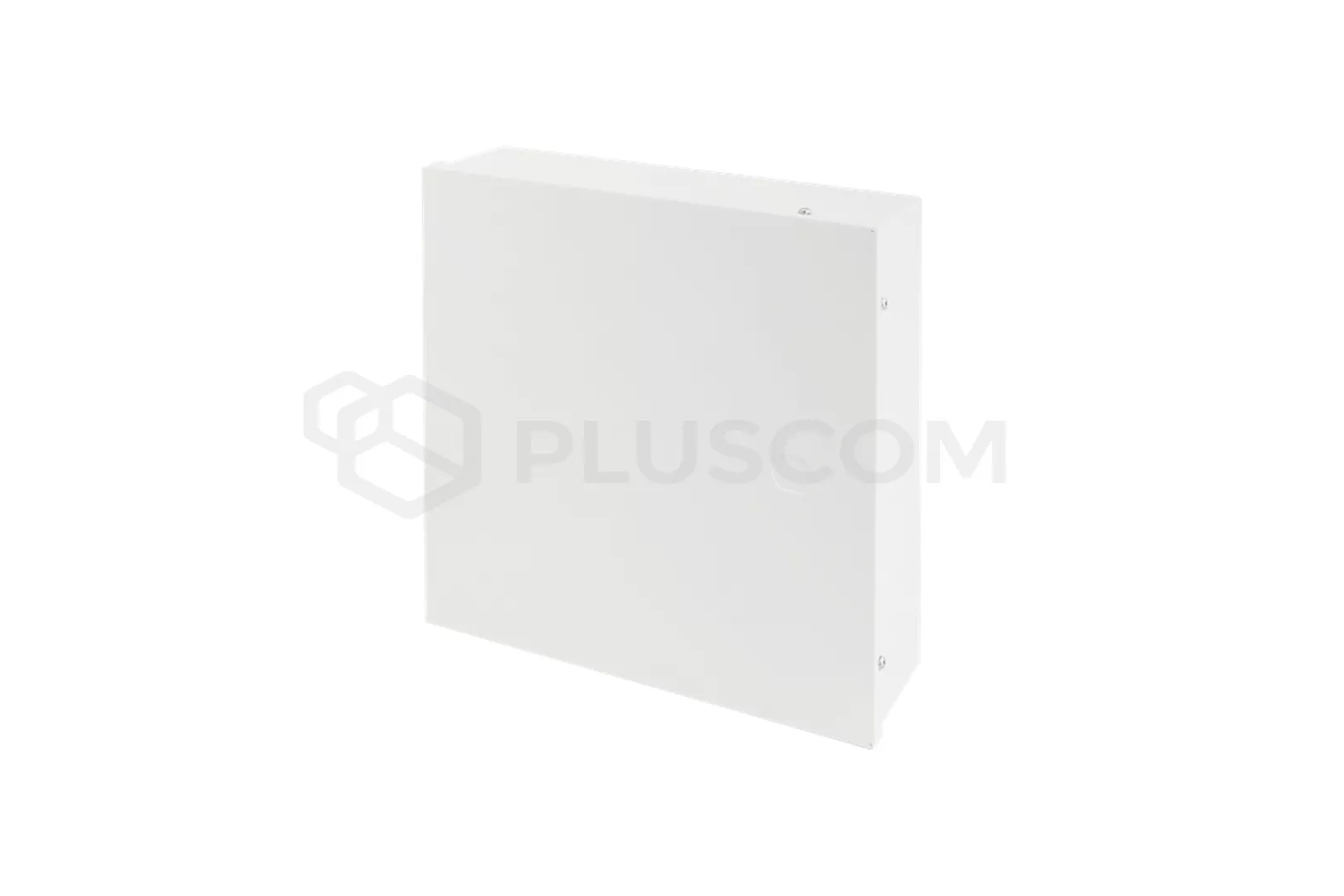

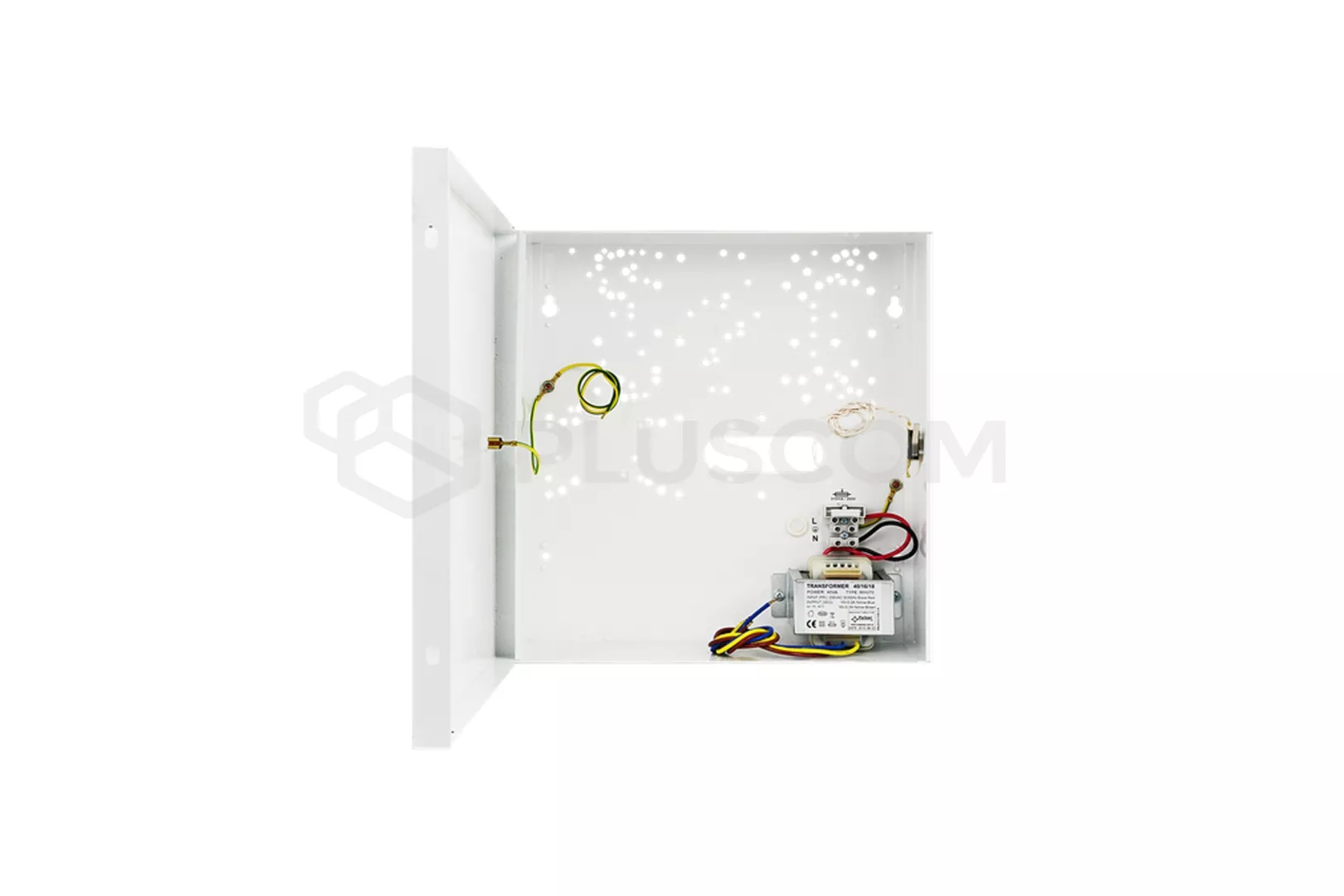

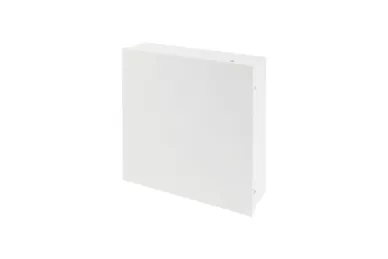

Pulsar AWO150EI Casing for control panels with transformer

Pulsar AWO 150EI 7/EI40/DSPR

Pulsar AWO 150EI 7/EI40/DSPR surface mounted housing is designed for mounting:

• panel boards and optional additional modules control

• controllers and additional modules

• radio transmitter, GSM

• module PS

• other dedicated devices

The housing includes a transformer EI 40VA/16V/18V
The housing has a place for 12V/17Ah. The standard is also a tamper protection in the form of the chassis intrusion detector

Pulsar AWO150EI Casing for control panels with transformer

• transformer EI 40VA/16V/18V

  • power supply 230V/AC 50Hz
  • output voltage: 16V/2,2A, 18V/2A
• place on battery: 12V/17Ah

• tamper protection: Yes

• material: 0.7mm sheet RAL9003 color

• degree od protection : IP20

• internal dimensions: 285x295x80xmm
• closing: 4x twisted sheet metal, an optional locking

• distance from wall 8mm

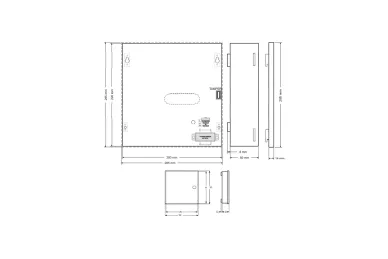

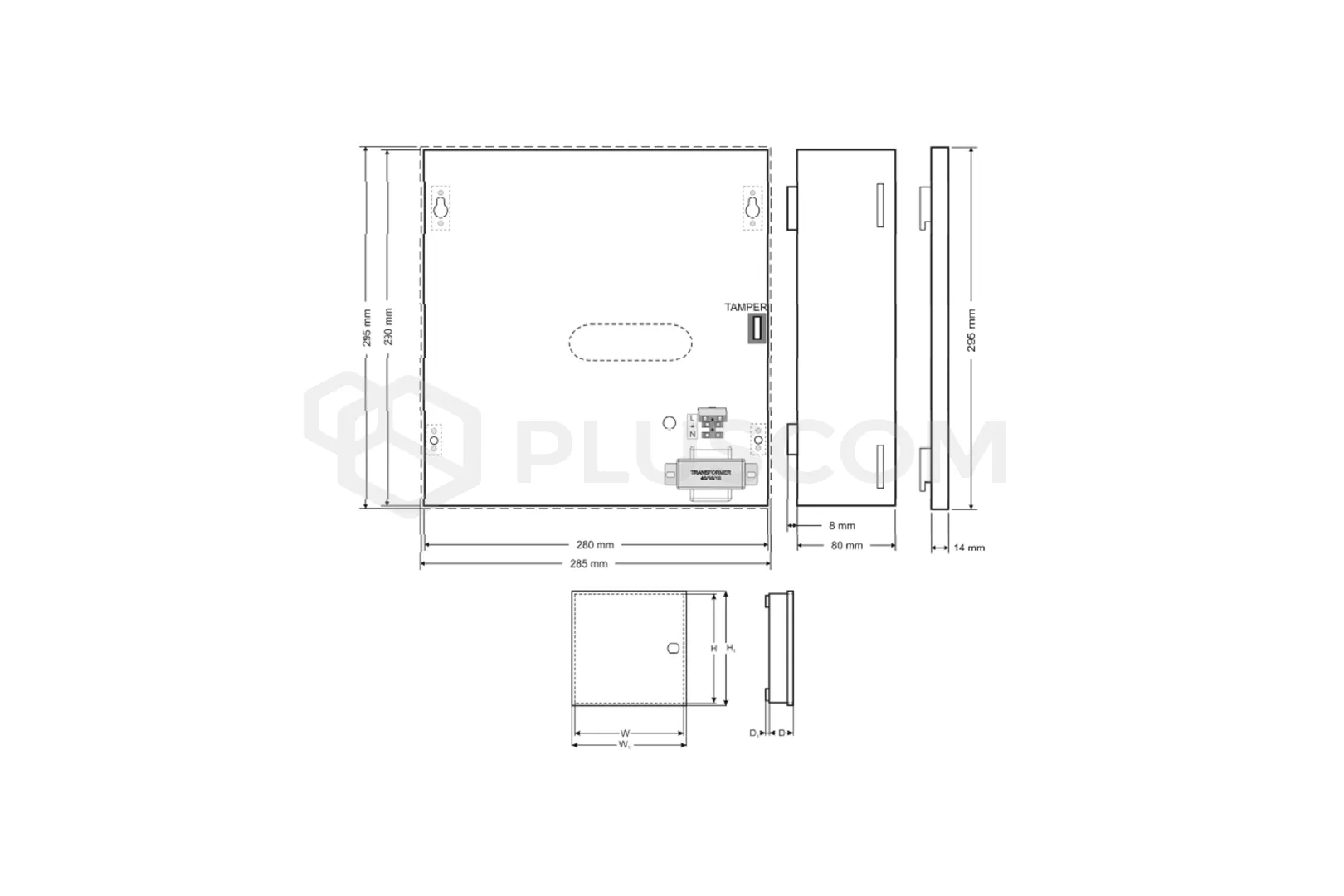

Dimensions:

PANELS WHICH CAN BE MOUNTED:

• DSC: (PC 1404, 1616, 1832, 1864,4020)+ 5108 ( 4108, 5208, 5100, 4116)
• • MODUŁY: 3x ( 4108, 5108, 5208, 5100, 4116), 1 x ( 4204, 4216, 4580, 5400, 5204, 5580, 5200)
• PARADOX: (728ULT, E55, E65, SP4000, SP5500, SP6000, SP7000, EVO48, EVO192) + ZX8 ( ZX4,PGM4)
• • MODUŁY: 2x ( ZX8, ZX4, APR3- HUB2,PGM4), 1x ( APR3- ADM2)
• RISCO: PRO24 + EZ16 ( E04, EZ8), PRO116, 128, 140
• • MODUŁY: 2x EZ16 ( E04, EZ8)
• SATEL: CA4V1, CA5, CA6 (VERSA5,10, 15, CA10)+ CA10E ( CA64E, SM, MST1) (INTEGRA 24, 32) + CA64E, (SM)
• • MODUŁY:CA64 ( PP, EPS, ADR, O-R, O-ROC, O-OC,OPS- OC, OPS- R, OPS- ROC, VGM- 16, SR, PTSA) + CA64E (SM)
• PYRONIX: MATRIX 424, 6, 816, 832, 832+
• CROW: RUNNER 4,8
• TELMOR: TCA- 824
• ROEL: SIGMA 6,12, CERBER
• ROGER: PR402, CPR 32- SE
• EBS: PX 202A
• PULSAR: MS1012, MSR1012, MSRK1012, MS2012, MSR2012, MSRK2012
