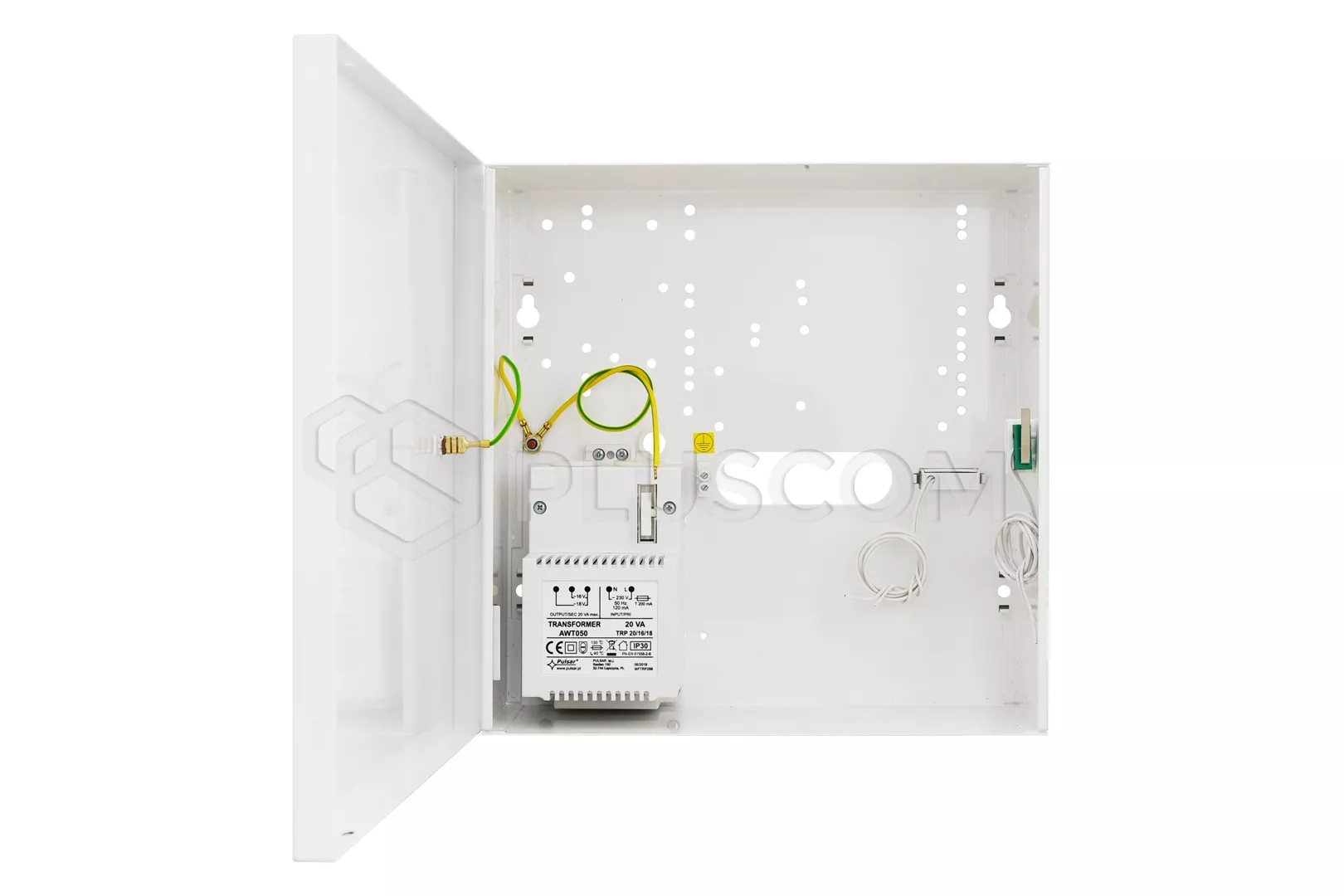

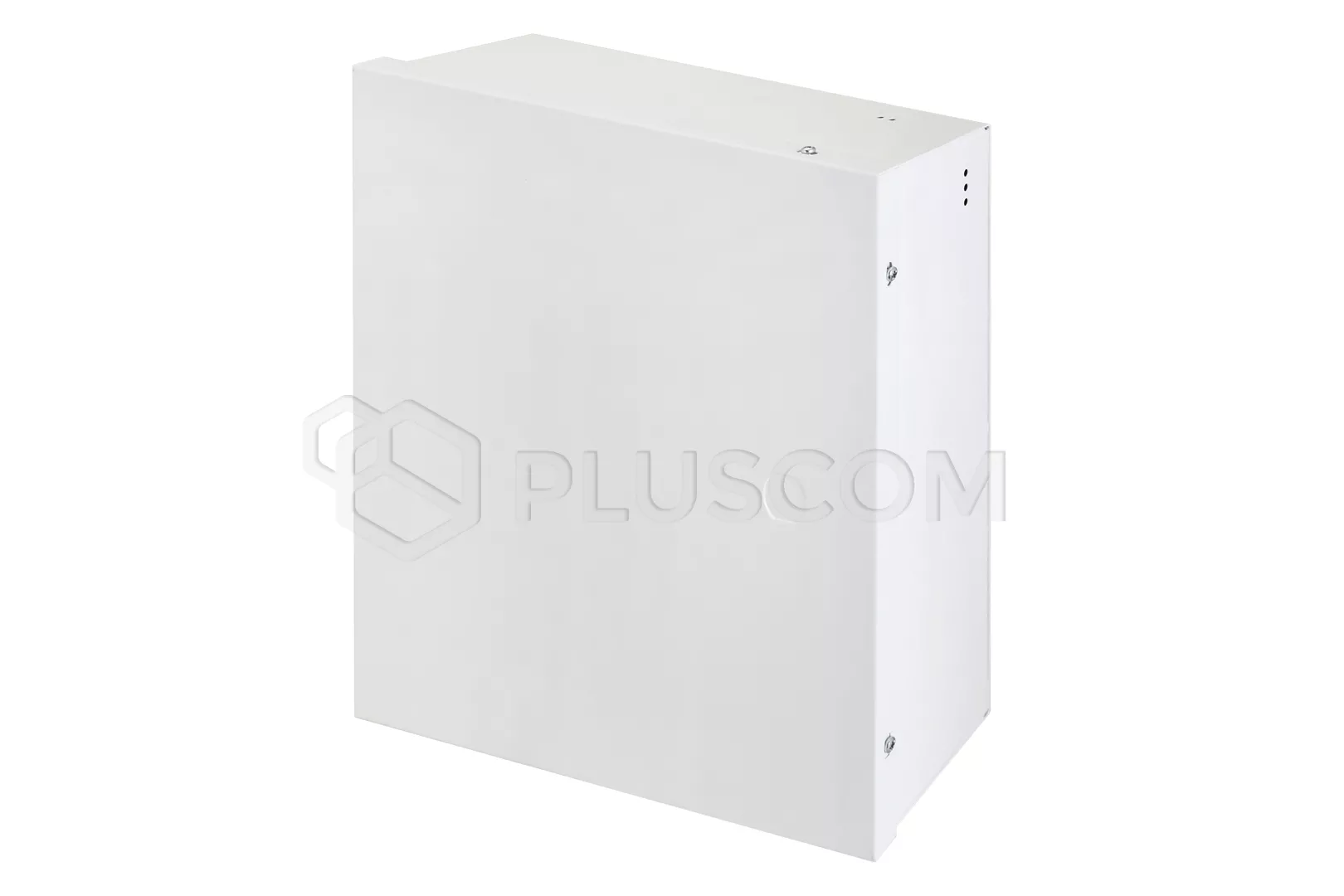

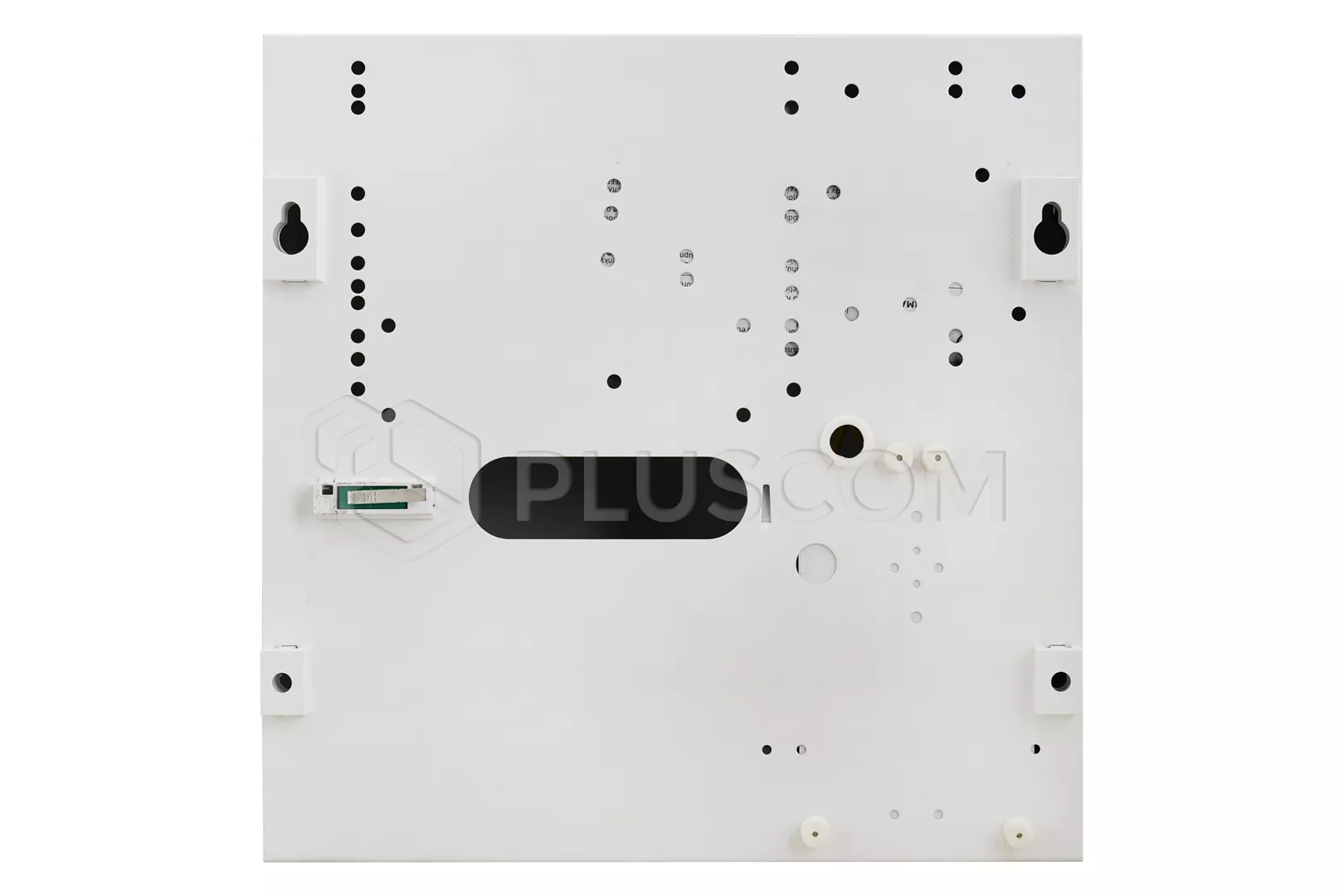

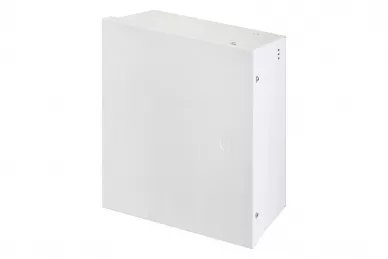

Pulsar AWO003 Casing 7/TRP20/PAR

43,24 EUR including 22.00% VAT
Product code: #10502
Manufacturer: Pulsar
  • Installation of control panels: Paradox
  • Transformer: TRP 20VA - IP 30, PC/ABS
  • Power supply output: 1.2 A / 16 V AC1 A / 18 V AC
  • Dimensions of battery space: 1 x 7Ah
  • Dimensions: 250 x 250 x 80 [+/-2 mm]distance from surface: 8 mm

Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar AWO232 Casing 7/TRP40/PAR/L Pulsar AWO214 Casing 17/TRP40/PAR Pulsar AWO152 Casing 7/TRP40/PAR Pulsar AWO008 Casing 7/TRP40/PAR/S

Pulsar AWO003 Casing 7/TRP20/PAR


Technical parameters:

  • Installation of control panels: Paradox
  • Transformer: TRP 20VA - IP 30, PC/ABS
  • Power supply output: 1.2 A / 16 V AC1 A / 18 V AC
  • Dimensions of battery space: 1 x 7Ah
  • Dimensions: 250 x 250 x 80 [+/-2 mm]distance from surface: 8 mm
  • Protections: tamper – opening of enclosure, tamper – detachment from the wall
  • Closing: bolted (lock assembly possible)
  • Installation: surface-mounted
  • Material: steel DC01, 0.7mm, RAL9003 (white), metallic
  • IP protection class: IP 20
  • Warranty: 2 years

  • Download
    Data sheet 0.2 MB
    Instruction 0.41 MB
