PSG N75.3Z12.4US Glass canopy system M12, 3-piece, for 12 mm dia. tie rod, glass 8-17.52mm (AISI304, universal, satin)

48,66 EUR including 23.00% VAT
Product code: #49383
Manufacturer: Postal Steep Group
  • L (mm): 130
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,45 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG N75.3Z12.4US Glass canopy system M12, 3-piece, for 12 mm dia. tie rod, glass 8-17.52mm (AISI304, universal, satin)

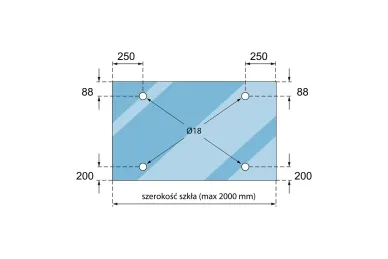

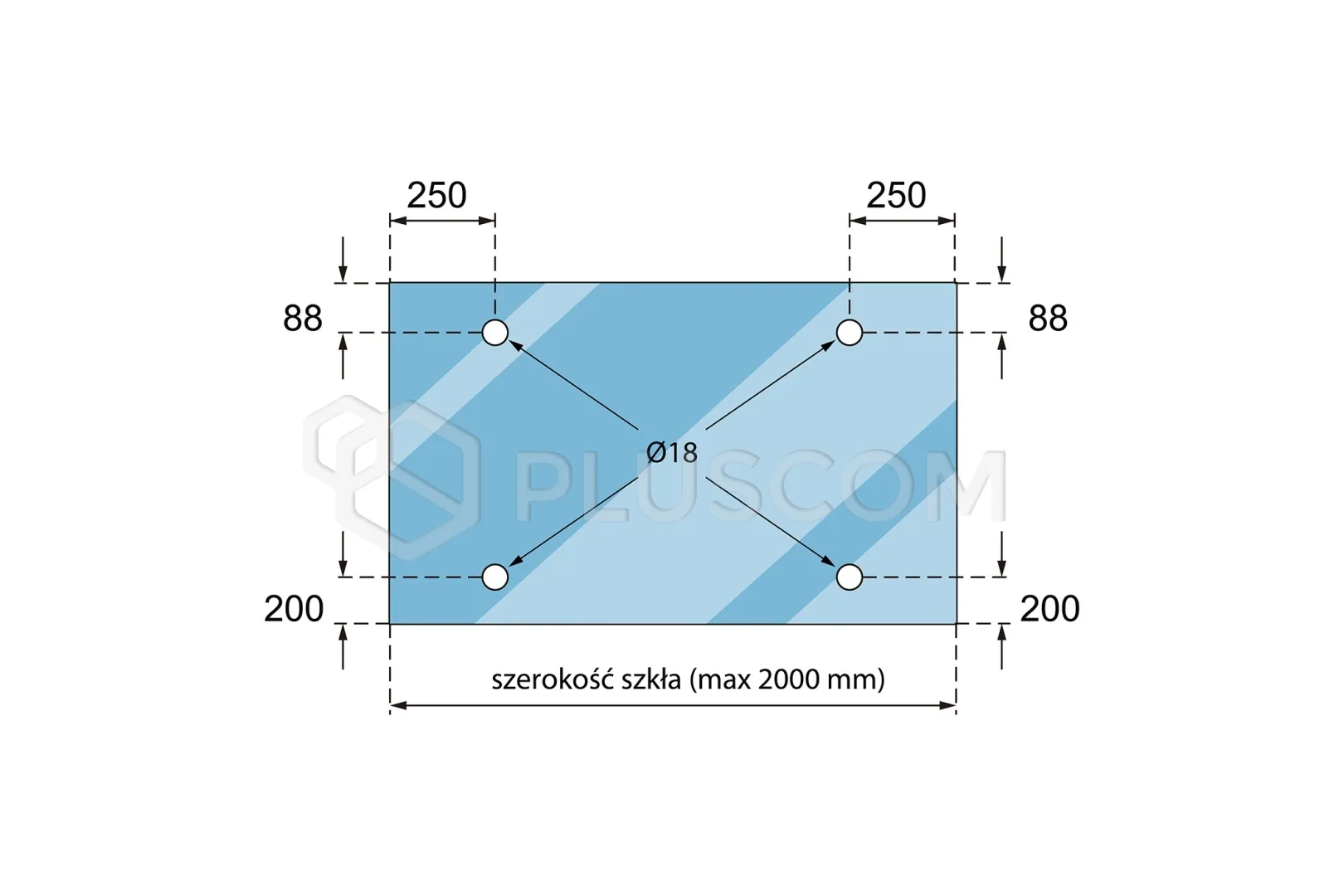

Glass canopy system for mounting glass with a thickness of 8 to 17.52 mm

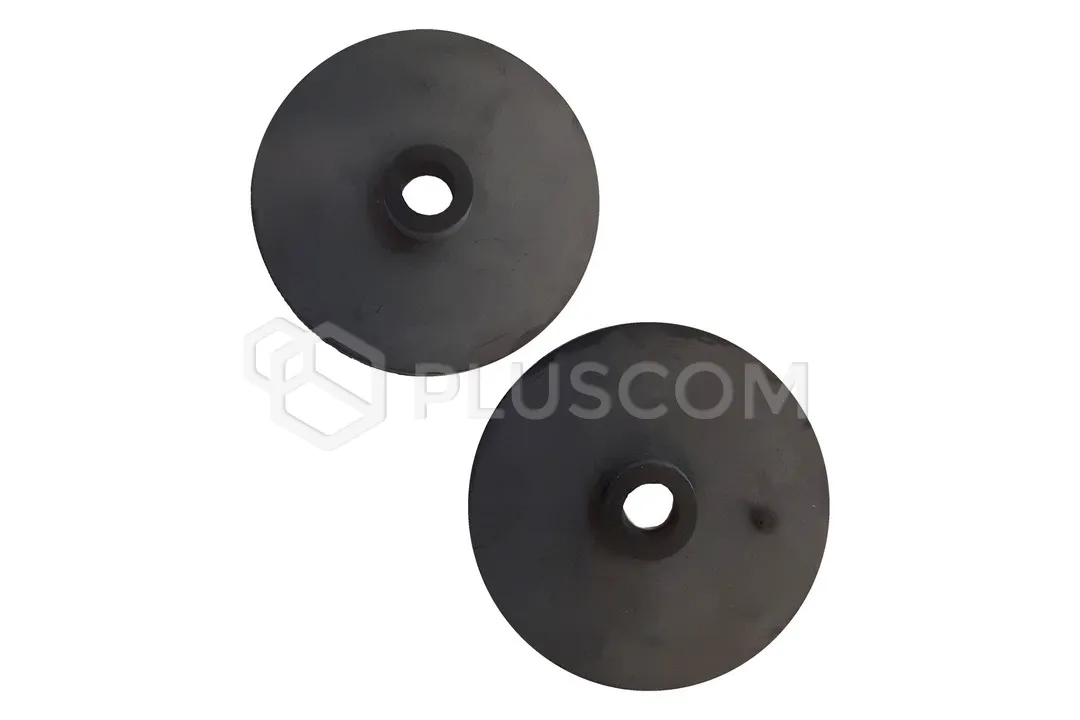

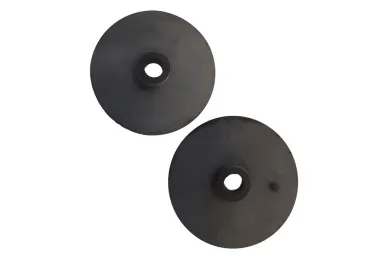

The glass does not touch the clamp directly but is protected by pressure rubbers included in the set, which additionally press the pane so that it stays in the right place. A suitable tie rod with an M12 thread must be chosen for the set; in our range it comes in three sizes: 1 m, 1.2 m and 1.5 m, and is a rod made of stainless steel.

The tie rod is anchored in the facade and then tightened until the glass canopy reaches the right position, to hold it as firmly as possible. The set of three elements made of AISI 304 stainless steel has a satin surface.

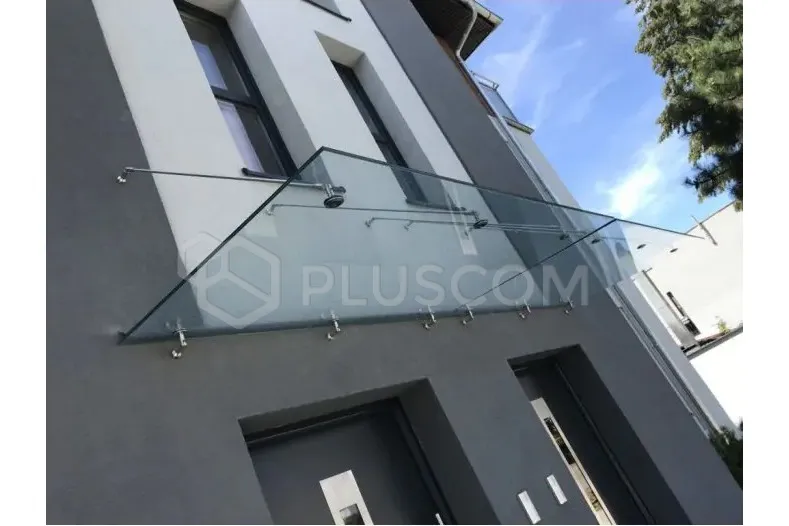

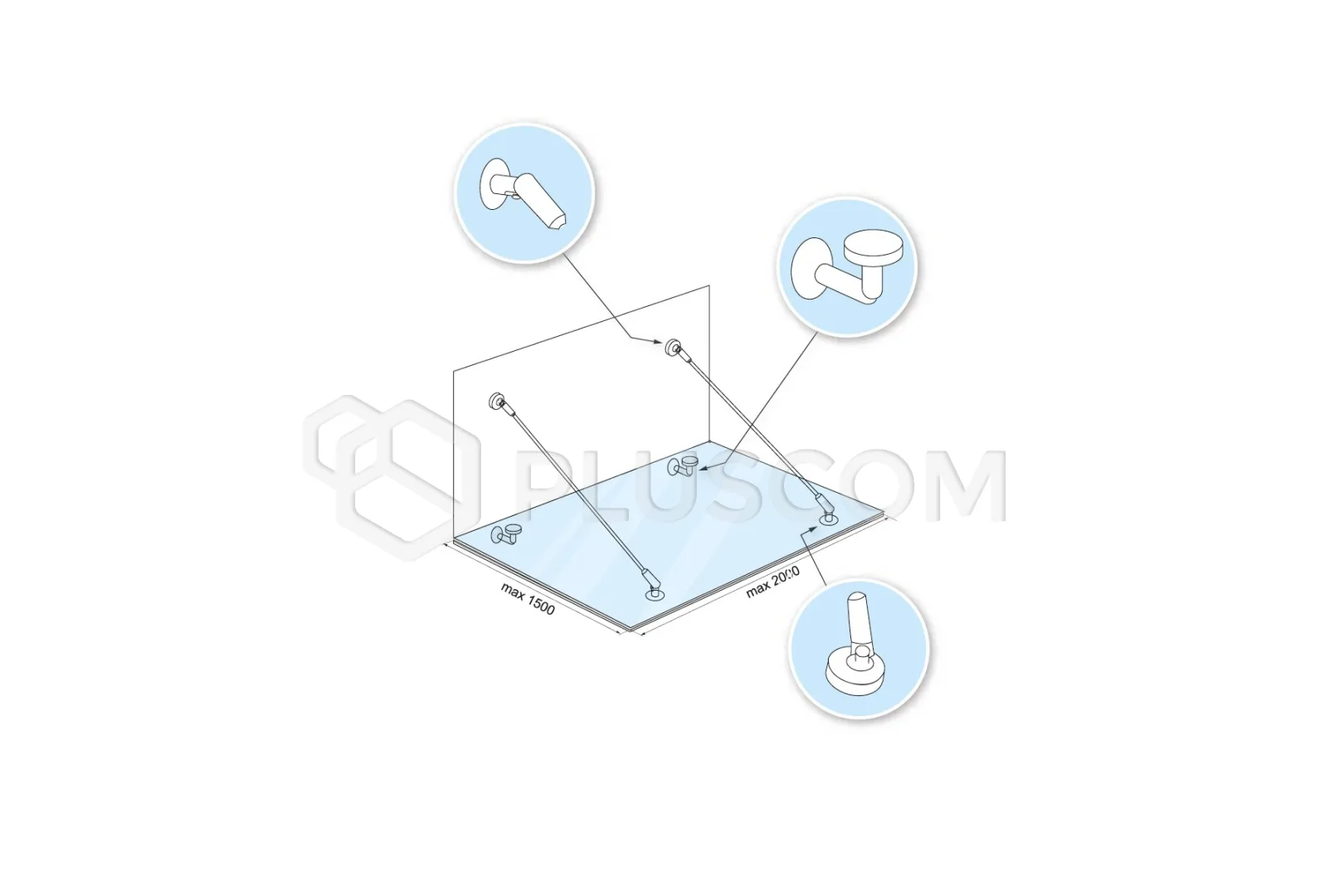

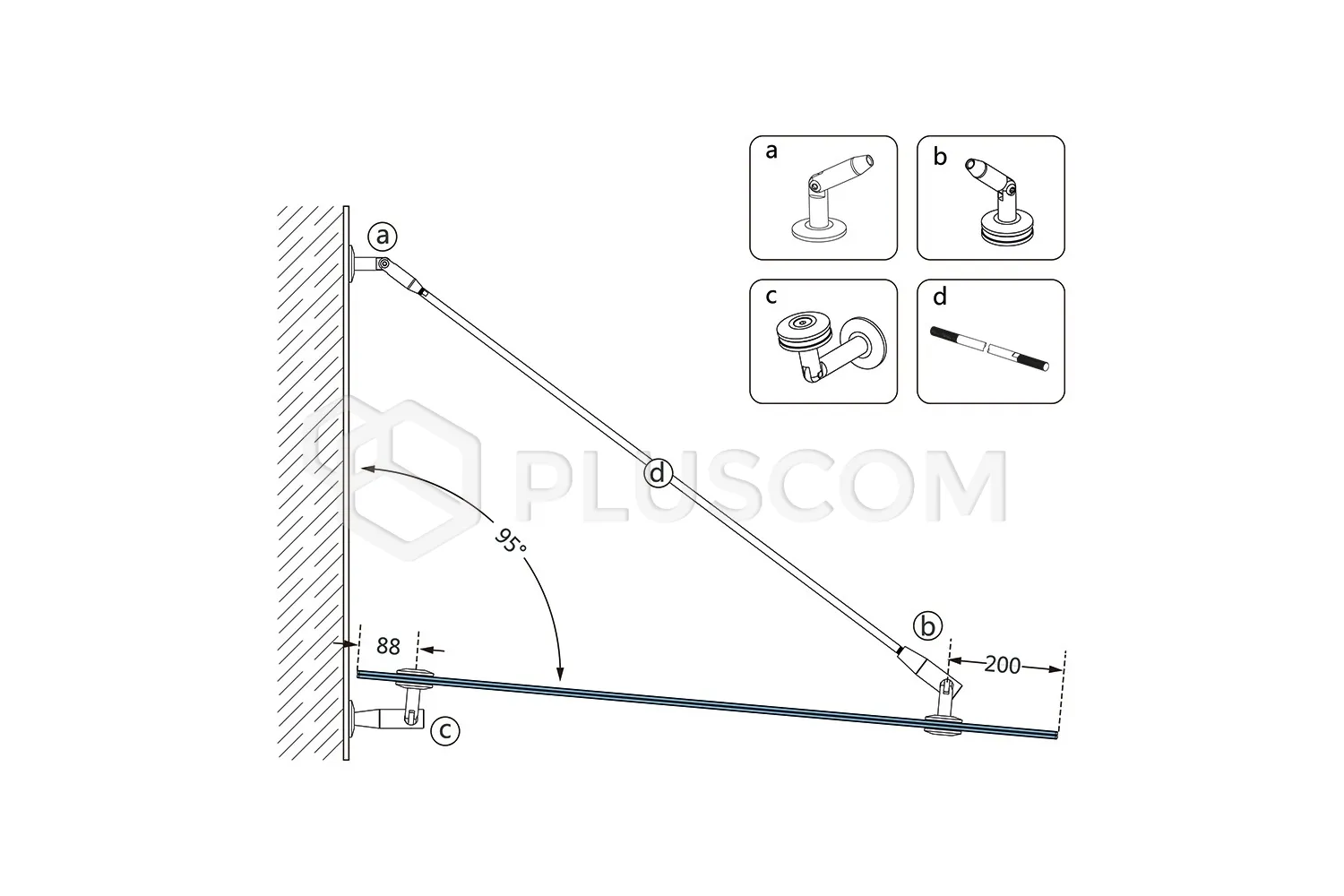

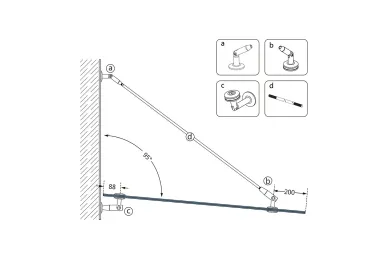

Proper securing of the canopy is the basis of safety, which is why we recommend a 3-piece system for mounting glass canopies to stabilize the pane, consisting of connectors: wall-glass, glass-tie rod, tie rod-wall. The system is intended for mounting glass canopies on residential and public buildings.

An additional mounting plate can also be used if larger holes need to be drilled (e.g. because of the thickness of the polystyrene insulation in the building wall). This makes the set extremely versatile and allows canopies to be mounted on different types of buildings. Glass canopies serve both an aesthetic and a practical function – they protect against precipitation. The glass pane the canopy is made of makes the structure look lighter.

The products we offer guarantee safety and the highest quality and will meet visual expectations; however, due to the high difficulty of installation, we encourage you to hire a professional to carry out the mounting work.

  • screws for fixing to the wall and to the glass: M10

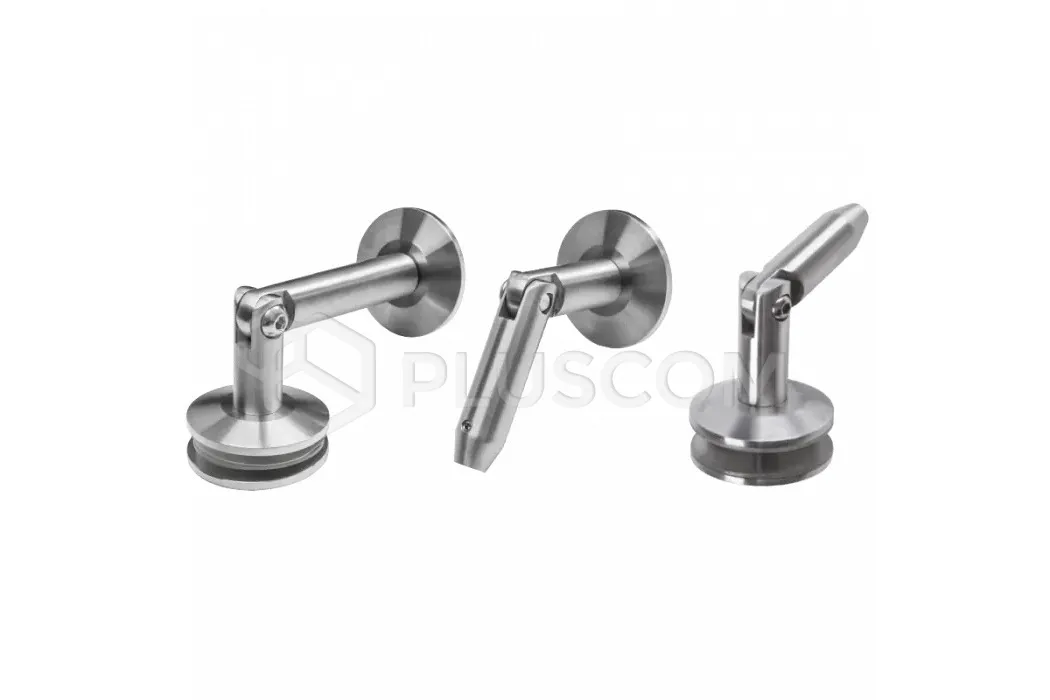

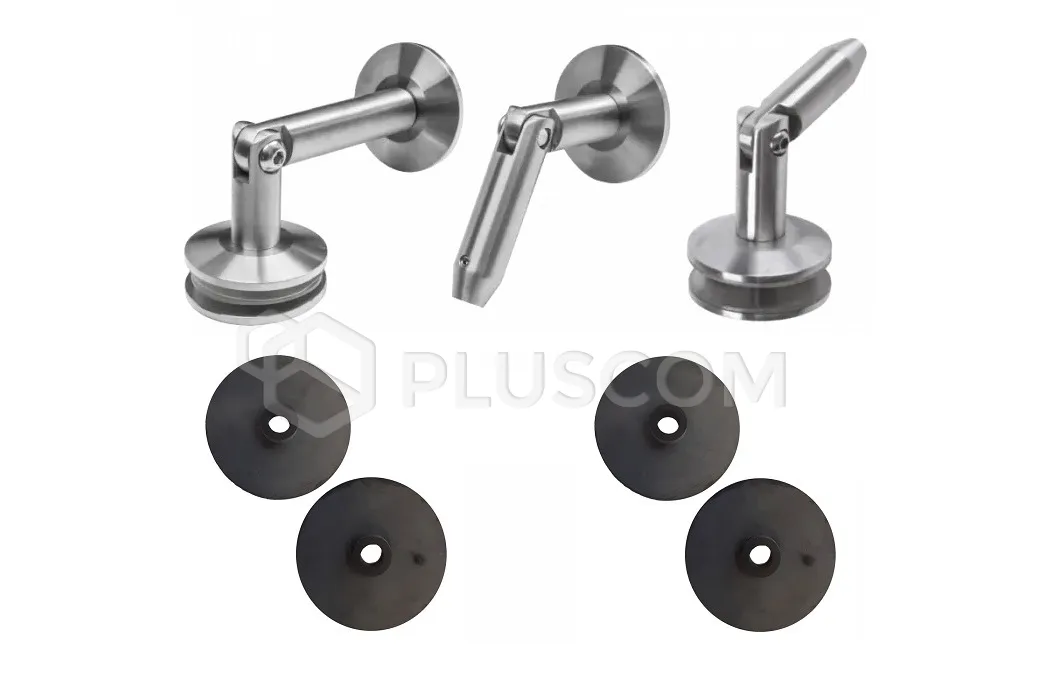

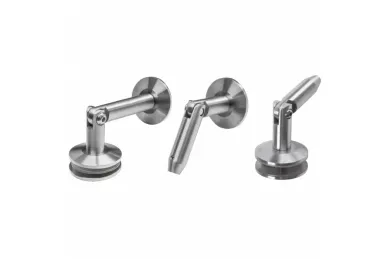

The set includes:

  • wall-glass connector with a set of pressure rubbers,
  • glass-tie rod M12 connector with a set of pressure rubbers,
  • tie rod M12-wall connector.

The set does not include: glass panes, tie rods, or any other elements not listed in the contents of the set but visible in the photos.

Glass canopy system
Tie rod thread M12
Glass thickness 8 - 17.52 mm
Thread of wall fixing screws M10
Material of the elements AISI304 stainless steel
Finish satin

TECHNICAL DATA:

  • L (mm): 130
