PSG N61.0116.4UR Adjustable hinge for swing gates M16 with plate 80x80x4 mm

22,30 EUR including 23.00% VAT
Product code: #41438
  • Sign dimensions: 80 x 80 x 4 mm
  • Ear width: 36 mm
  • Raw surface
  • AISI 304
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

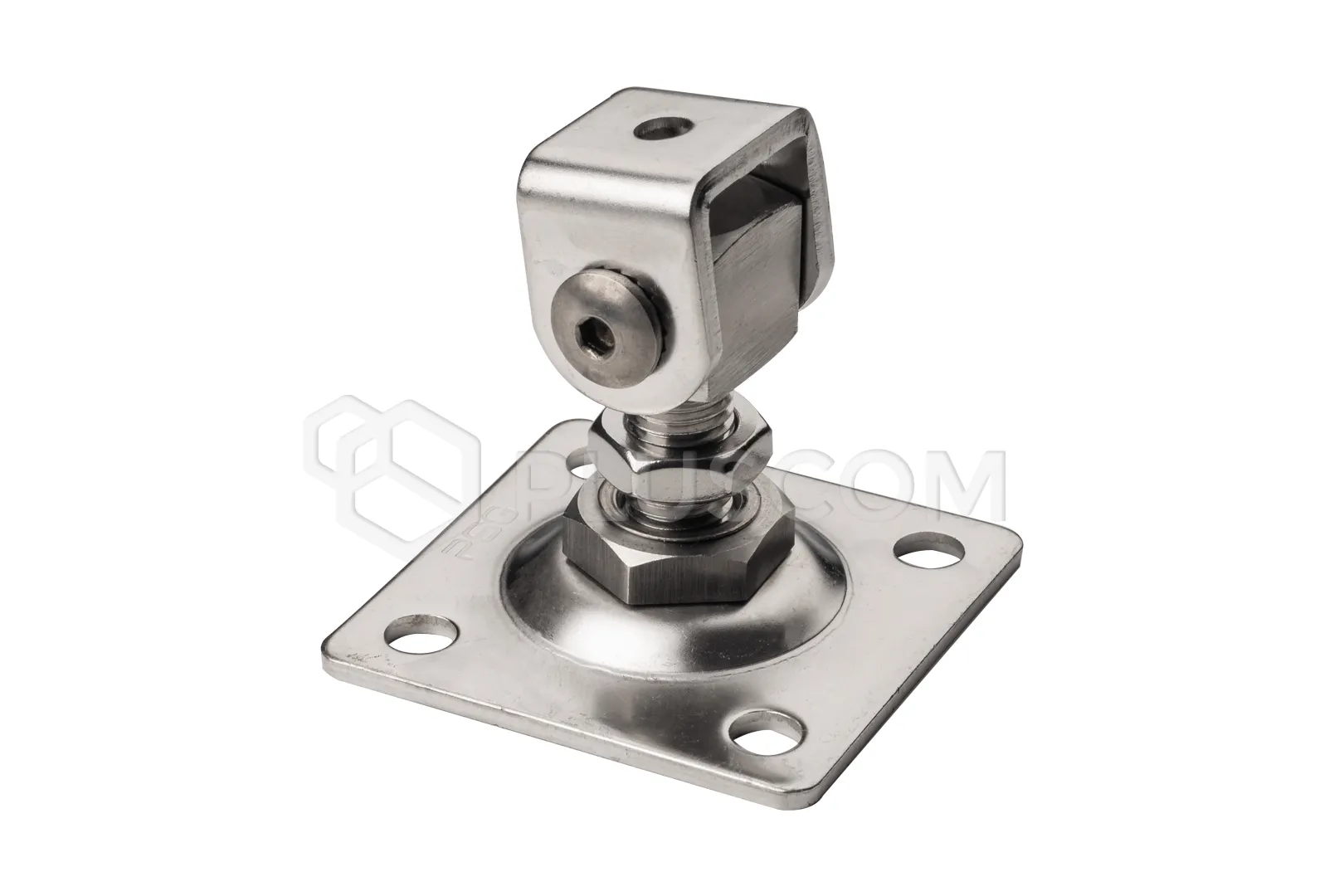

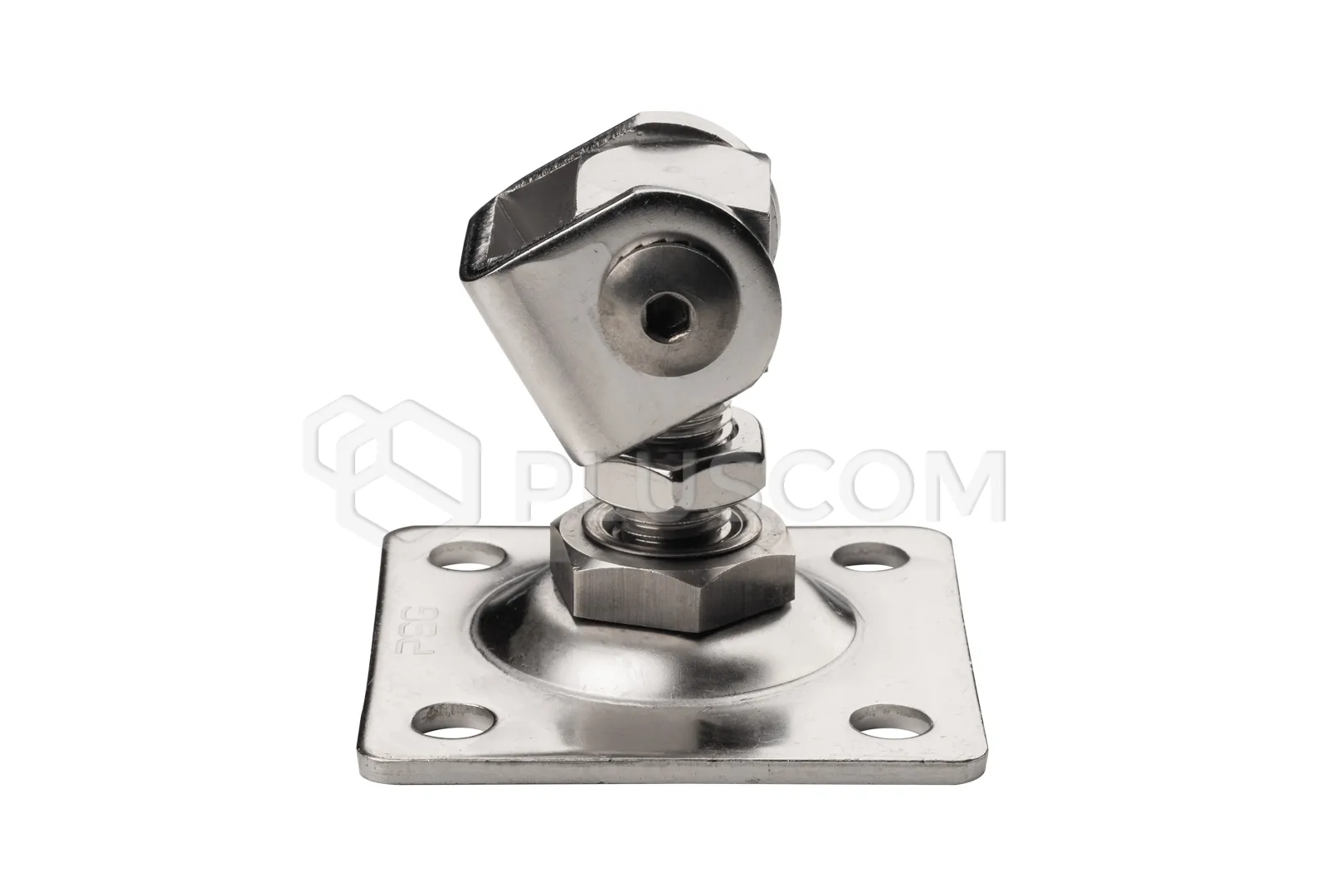

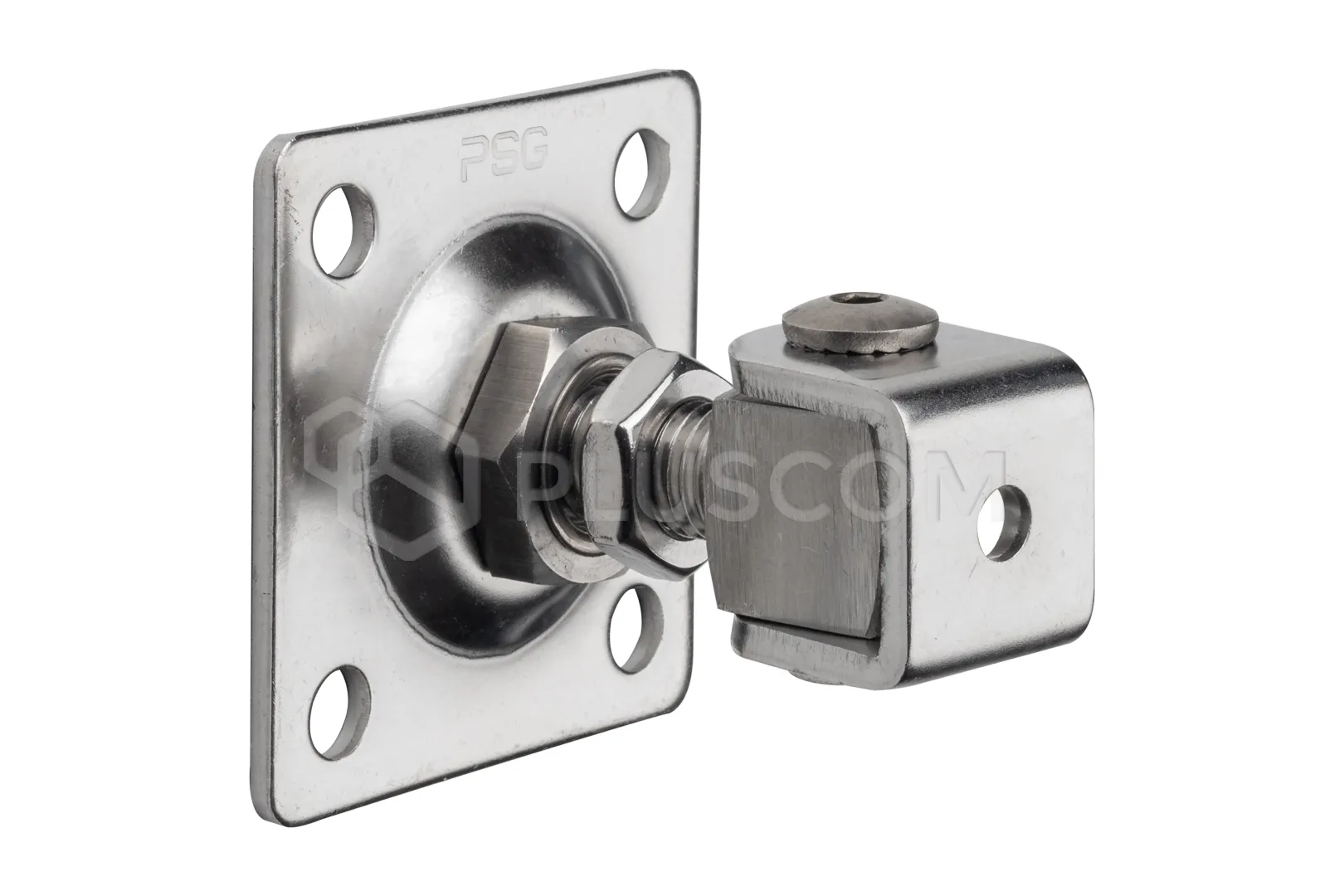

PSG N61.0116.4UR Adjustable hinge for swing gates M16 with 80x80x4 mm plate


The M16 adjustable hinge, made of AISI304 stainless steel, is an ideal solution for mounting swing gates.

MAIN FEATURES:

  • Sign dimensions: 80 x 80 x 4 mm, equipped with four mounting holes, facilitating installation
  • M16 thread: Commonly used in heavier structures where high strength is required
  • Application: For swing gates that require solid and reliable suspension
  • Material: AISI304 stainless steel known for its excellent corrosion resistance, making it an ideal material for outdoor applications
  • Hinge adjustment: Allows to adjust the tension even in extreme conditions, such as extreme temperatures in winter
  • Surface: Raw, allows further processing or painting

HINGE ADJUSTMENT

Hinge adjustable M12 has been designed for easy adjustment, which is possible thanks to the use of an adjustment nut.
This function is particularly important in situations when the gate or wicket construction sags, which can happen over time under the influence of weight or intensive use.

Adjustment allows for precise adjustment of the position of the wings, which ensures their smooth opening and closing and prevents damage.

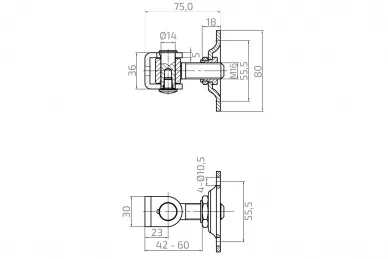

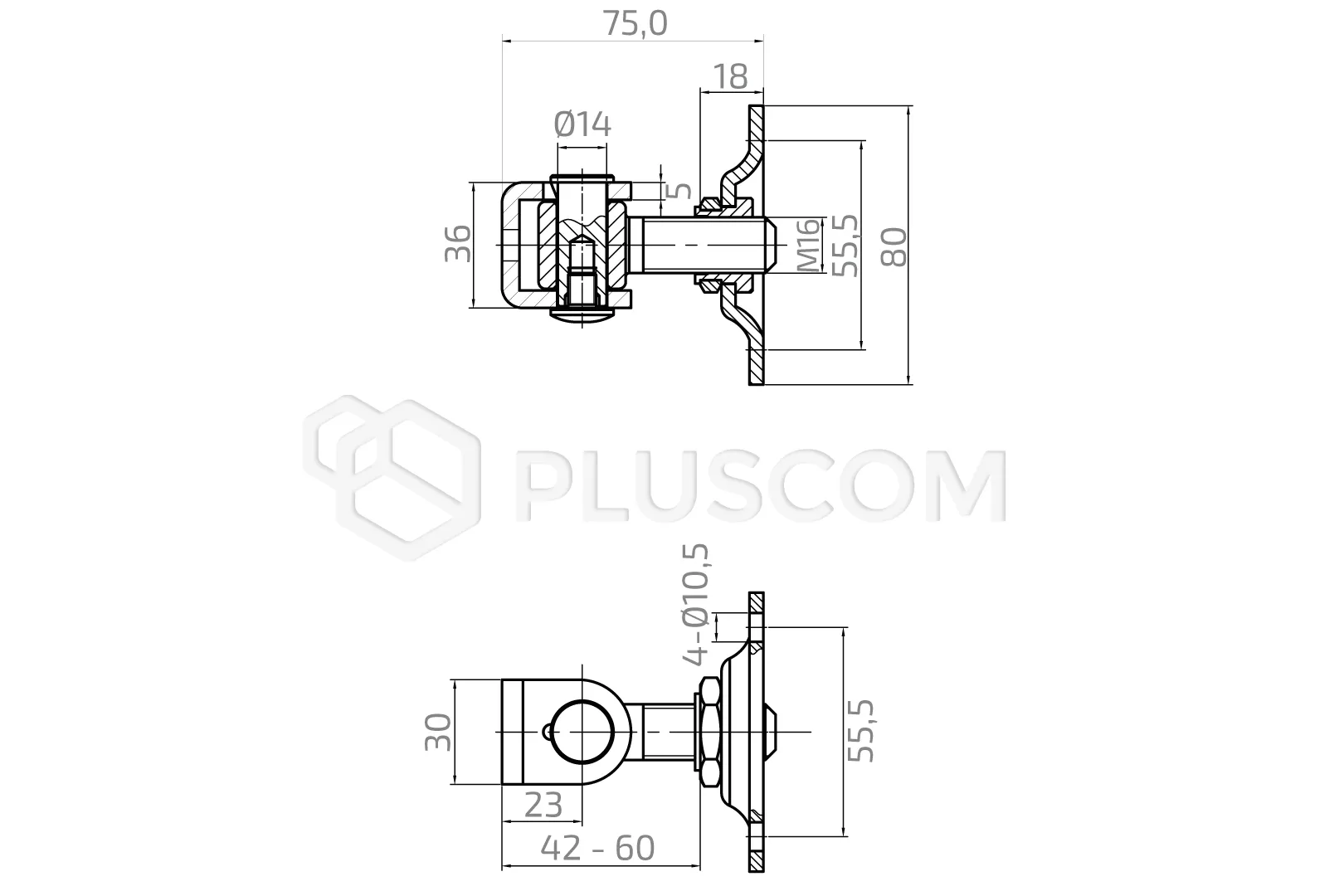

Technical data:

  • Thread: M16
  • Signature dimensions: 80 x 80 x 4 mm
  • Ear width: 36 mm
  • Material: AISI 304
  • Surface: Raw
