PSG N61.0112.4UR Adjustable hinge for swing gates M12 with plate 75x55x3 mm

12,39 EUR including 23.00% VAT
Product code: #41437
  • Sign dimensions: 75 x 55 x 3 mm
  • Ear width: 27 mm
  • Raw surface
  • AISI 304
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG N61.0112.4UR Adjustable hinge for swing gates M12 with a 75x55x3 mm plate


The adjustable hinge M12, made of AISI304 stainless steel, is an ideal solution for mounting swing gates.

FEATURES:

  • Material: AISI304 stainless steel known for its excellent corrosion resistance, making it an ideal material for outdoor applications
  • Signature dimensions: 75 x 55 x 3 mm, equipped with four mounting holes for easy installation
  • Surface: Raw, allows for further processing or painting
  • M12 thread: Commonly used in heavier structures where high strength is required
  • Hinge adjustment option: Allows to adjust tension even in extreme conditions, such as extreme temperatures in winter
  • Application: For swing gates that require a solid and reliable suspension

HINGE ADJUSTMENT

The M12 adjustable hinge has been designed with the aim of easy adjustment, which is possible thanks to the use of an adjustment nut.

This function is particularly important in situations where the gate or wicket construction is sagging, which can happen over time under the influence of weight or intensive use.

Adjustment allows for precise adjustment of the position of the wings, which ensures their smooth opening and closing and prevents damage.

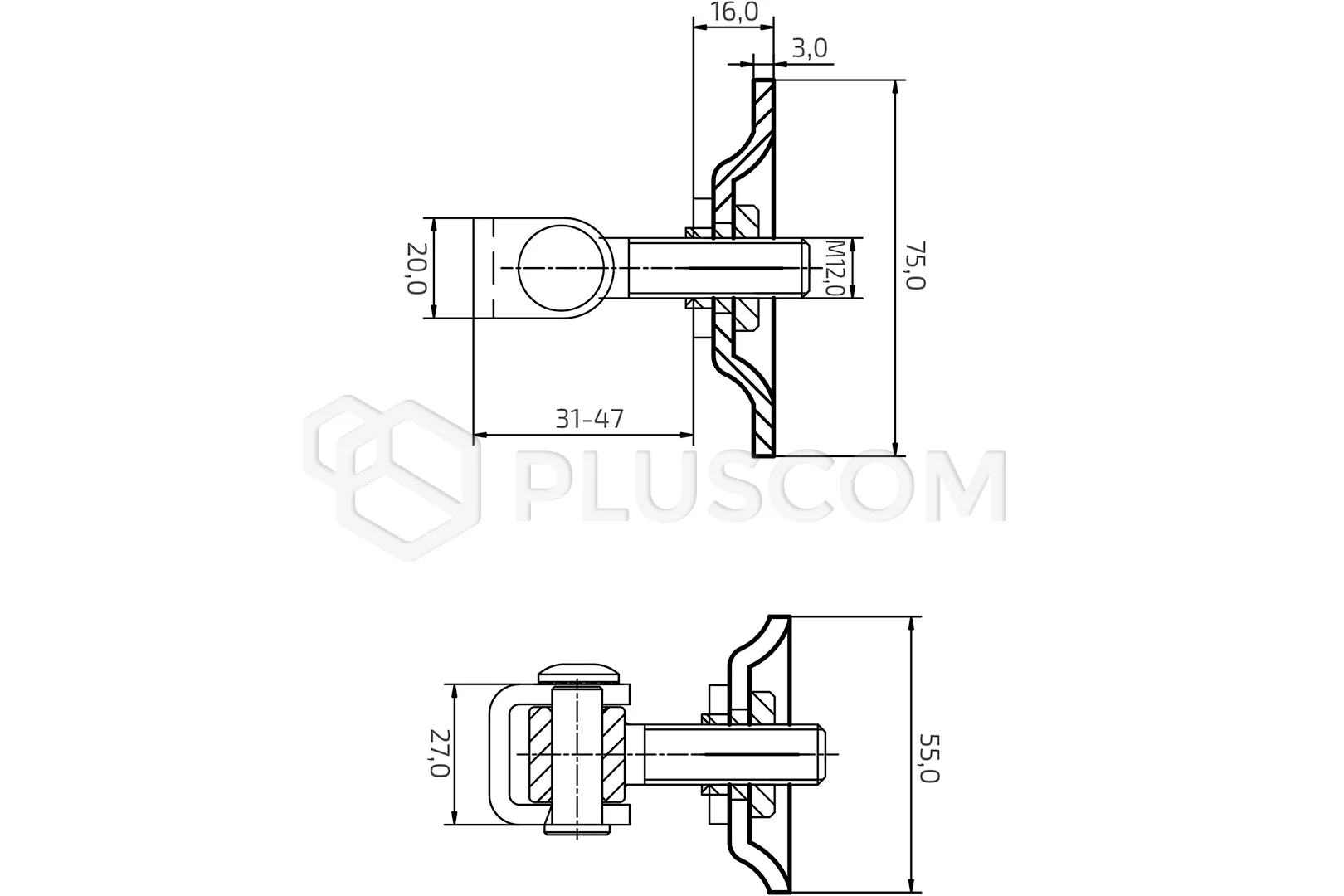

Technical data:

  • Thread: M12
  • Sign dimensions: 75 x 55 x 3 mm
  • Ear width: 27 mm
  • Material: AISI 304
  • Surface: Raw
