PSG N31.1620.4BS Corner post fi 42.4x1060mm, 8 end holders for fi 12mm tubes, floor mounting (AISI 304, 42.4 system, satin)

PSG N31.1620.4BS Corner post fi 42.4x1060mm, 8 end holders for fi 12mm tubes, floor mounting (AISI 304, 42.4 system, satin)

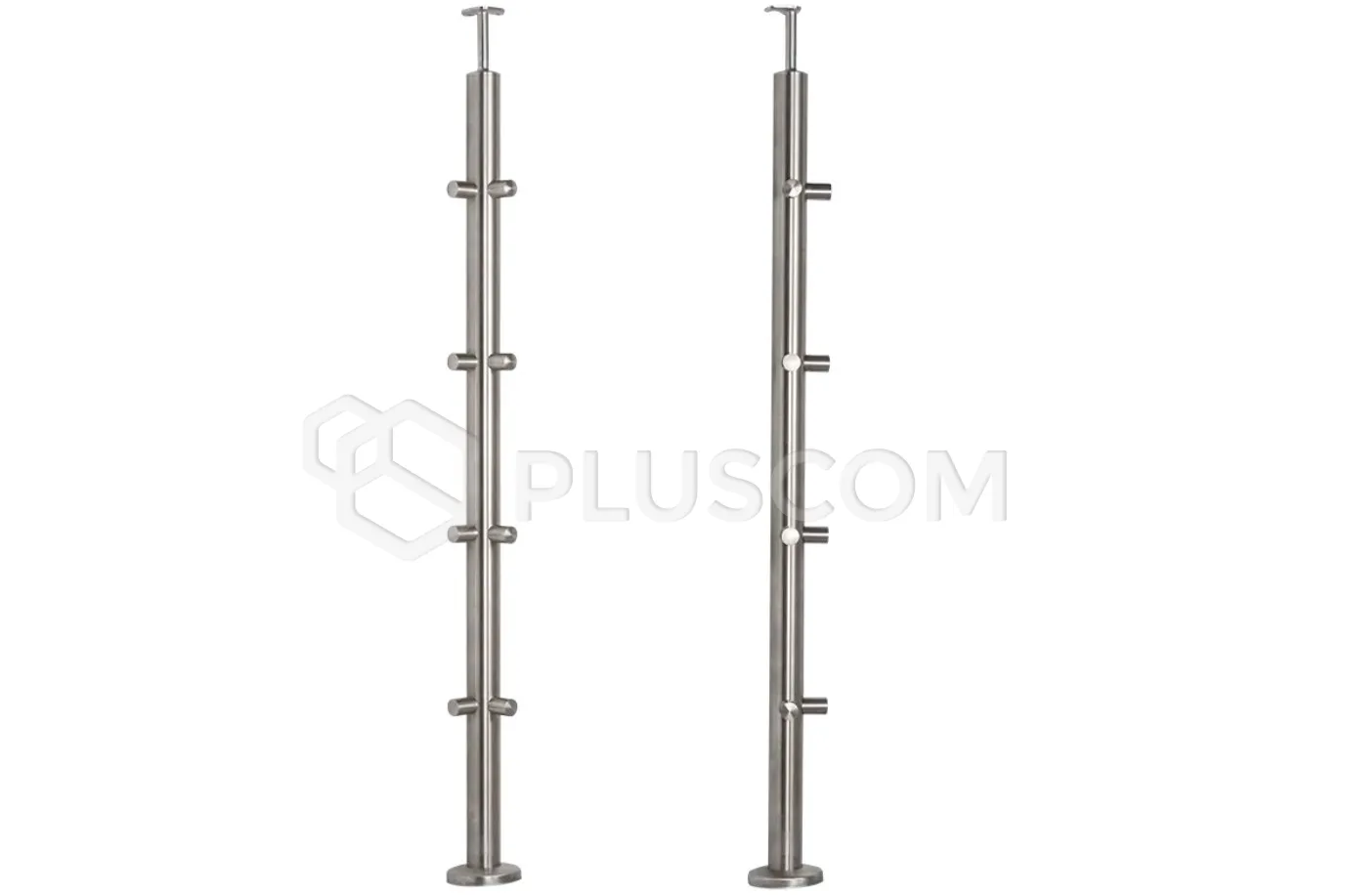

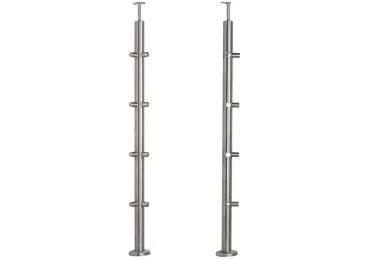

Corner balustrade post — stainless steel, brushed

This corner post for balustrades (balcony and/or stair) with a total height including handrail of 1102.4 mm is made of top-quality AISI 304 stainless steel (brushed). It is an ideal combination of structural strength and elegant appearance.

The post is strong and highly resistant to mechanical damage.

• diameter: Ø 42.4 mm
• post height: 1060 mm
• total height with handrail: 1102.4 mm
• material: high-quality AISI 304 stainless steel, which guarantees resistance to damage and corrosion
• holders: 4 rod start holders on each side of the post, designed for infill made of 4 tubes with a diameter of 12 mm
• application and installation: for indoor use, floor mounting
• universal design and easy installation: the product fits perfectly in a variety of architectural projects

Installing handrail fixings/connectors

The handrail connectors or fixings supplied with the product are not permanently attached. We recommend using a specialist anaerobic adhesive for stainless steel to ensure they are properly secured.

This solution brings certain benefits:

• installing the balustrade handrail is simpler and in some cases faster
• the post can be adjusted and fitted to the specific conditions at the building site
• if the floor is uneven, the post can be shortened

The set includes:

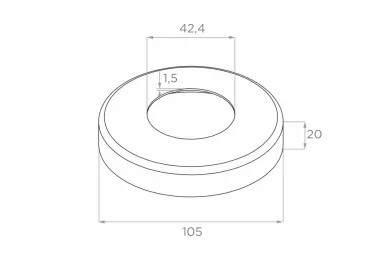

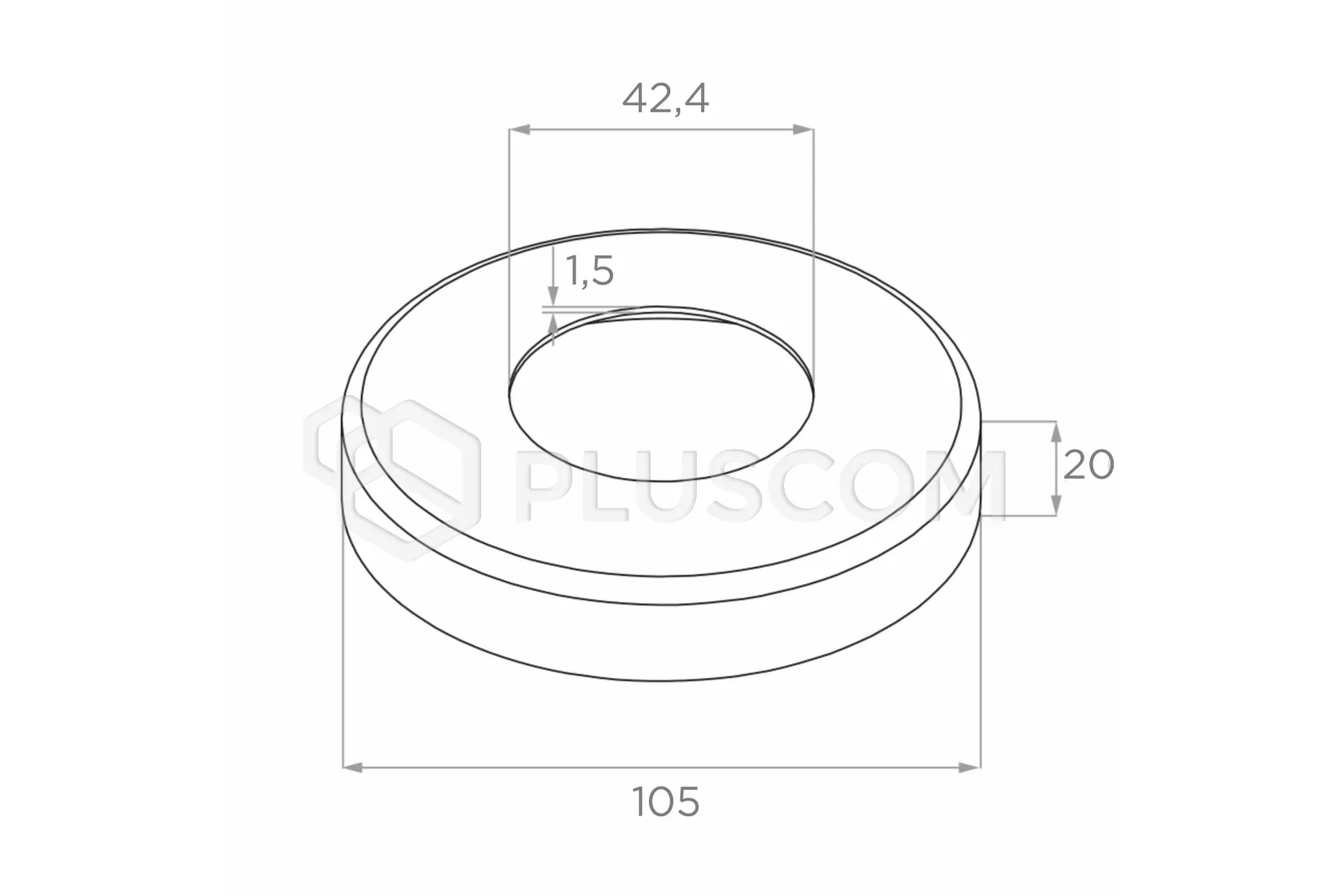

• base cover

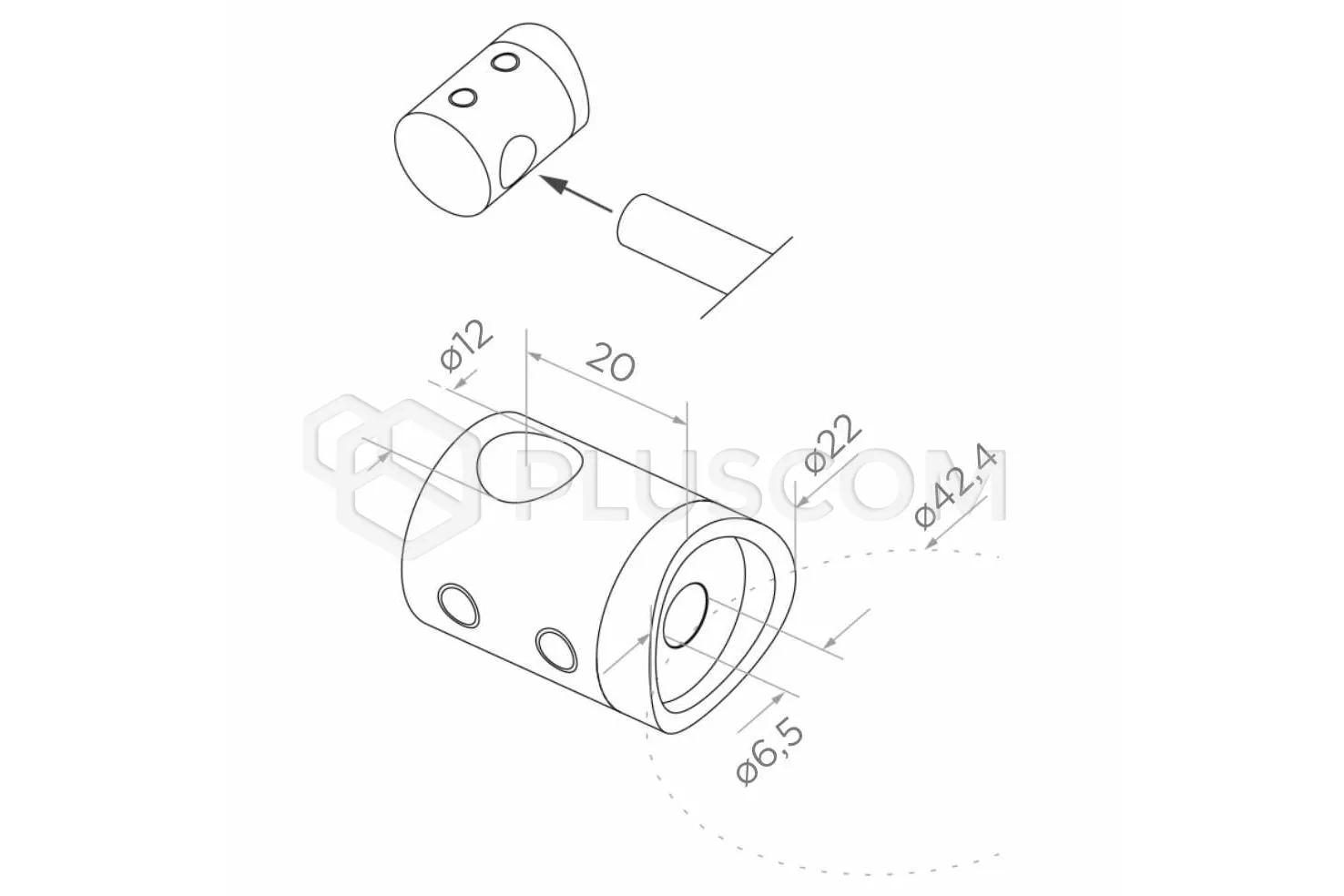

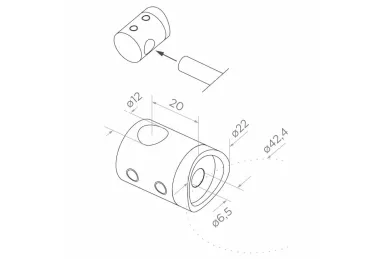

• rod start holders - 2 x 4 pcs.

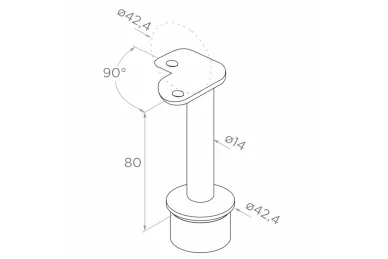

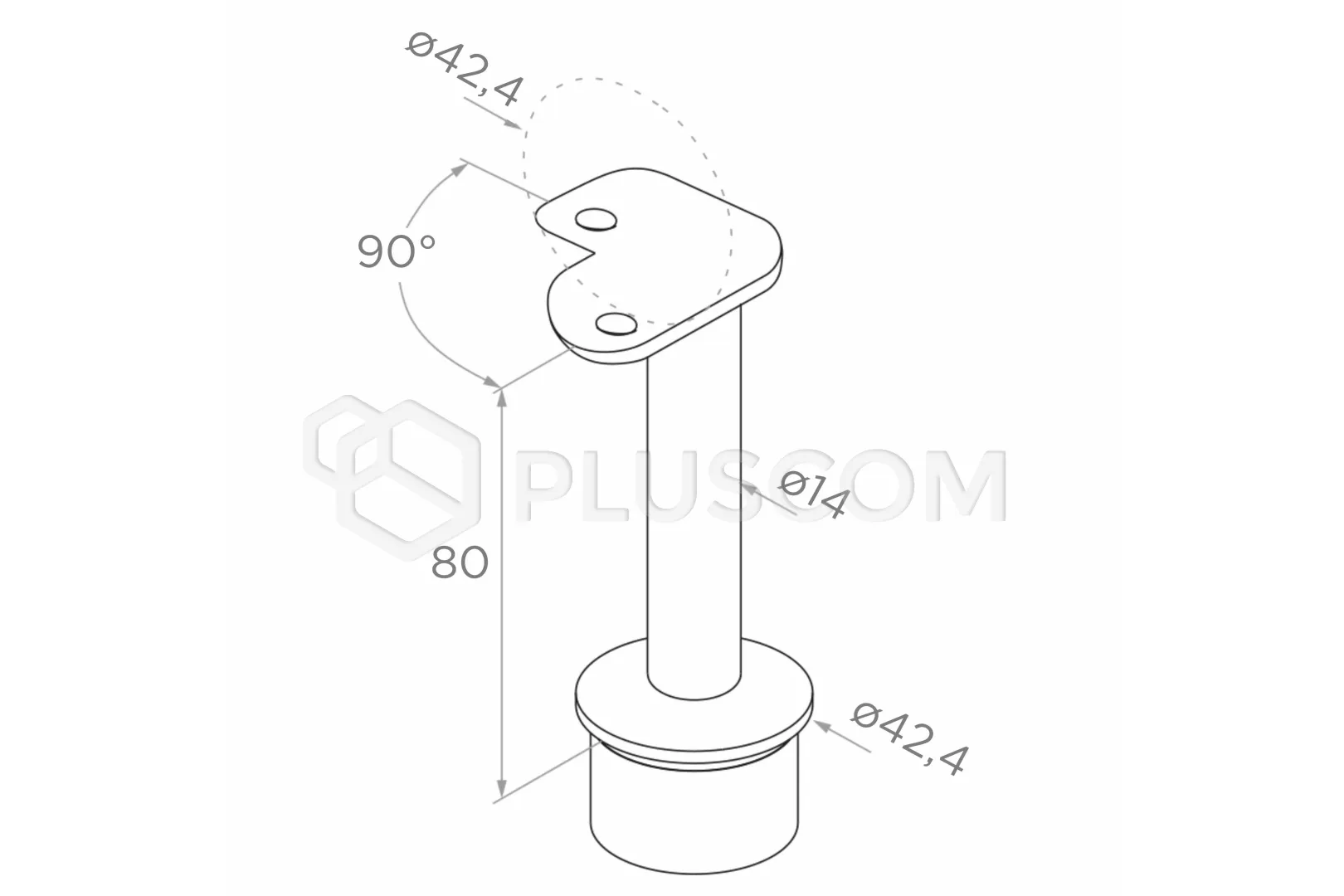

• corner post connector

TECHNICAL DATA:

• H (mm): 1060
