PSG N04.5801.4US Vertical glass clamp spigot, square 50x50/100x100 mm, with cover, H=182 mm, glass 12-17.52 mm (AISI 304, universal, satin)

46,10 EUR including 23.00% VAT
Product code: #49038
Manufacturer: Postal Steep Group
  • H (mm): 182
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,45 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG N04.5801.4US Vertical glass clamp spigot, square 50x50/100x100 mm, with cover, H=182 mm, glass 12-17.52 mm (AISI 304, universal, satin)

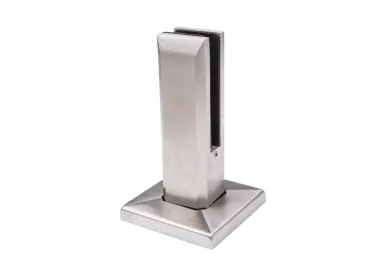

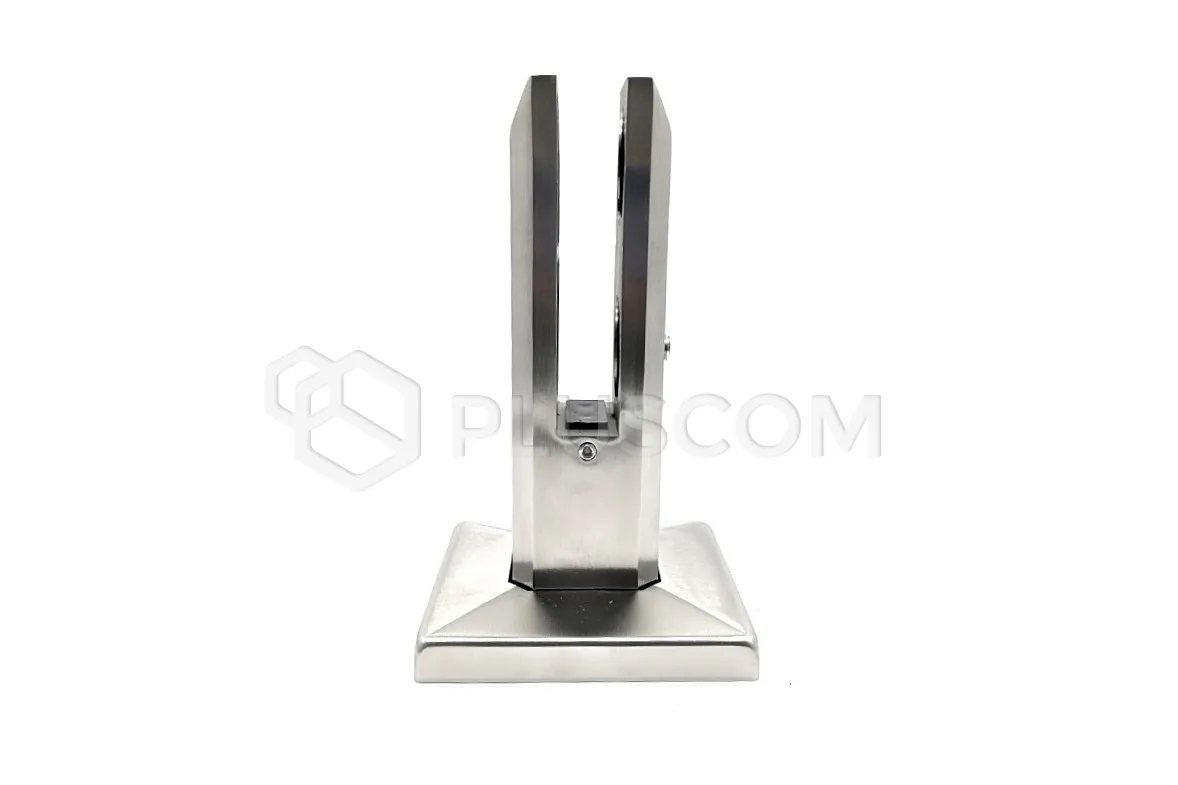

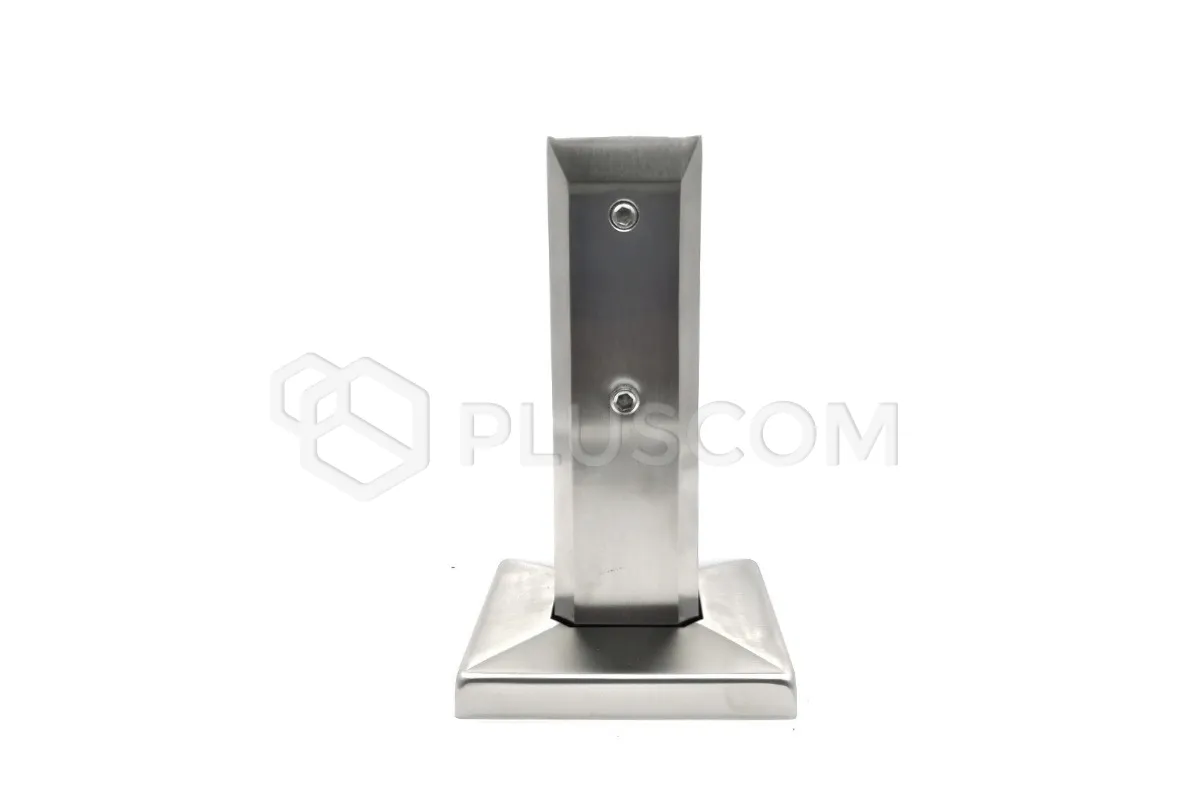

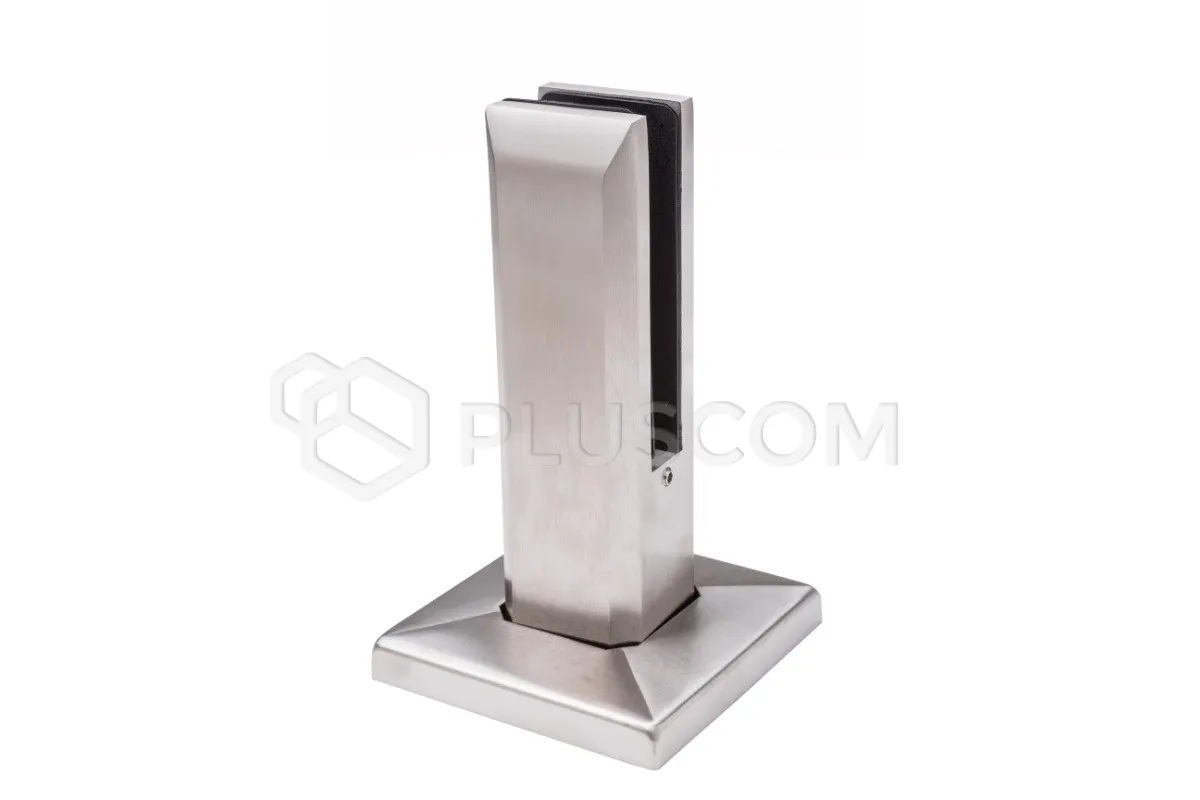

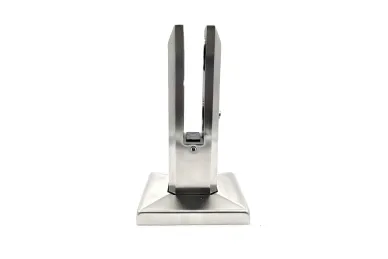

Vertical glass clamp – spigot

The vertical glass clamp is made of sturdy AISI 304 stainless steel. It has a satin finish.

The clamp is suitable for installing glass panes from 12 to 17.52 mm thick in frameless glass balustrades. The element is fixed to the floor with screws, which are hidden by the cover.

The role of the clamp is to stabilize the glass, which ensures the safety of the entire structure, while also giving it an attractive look.

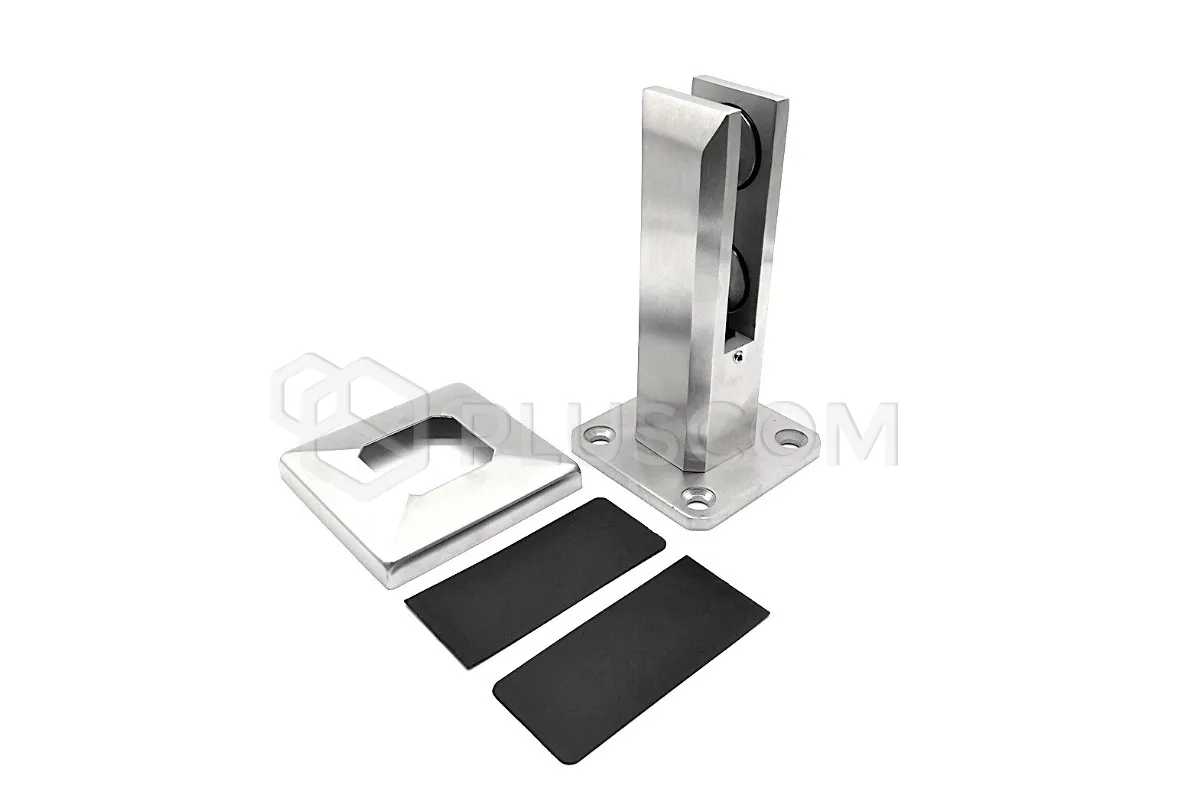

In addition, the clamp is fitted with two gaskets that hold the glass pane in place.

  • material: AISI 304 stainless steel
  • finish: satin
  • glass thickness: from 12 to 17.52 mm

Material:

stainless steel

Finish:

satin

Glass thickness:

12-17.52 mm

Height:

182 mm

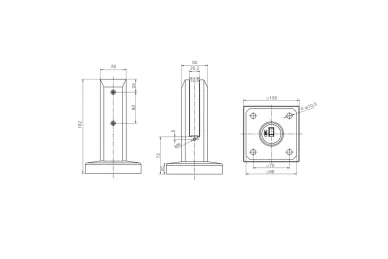

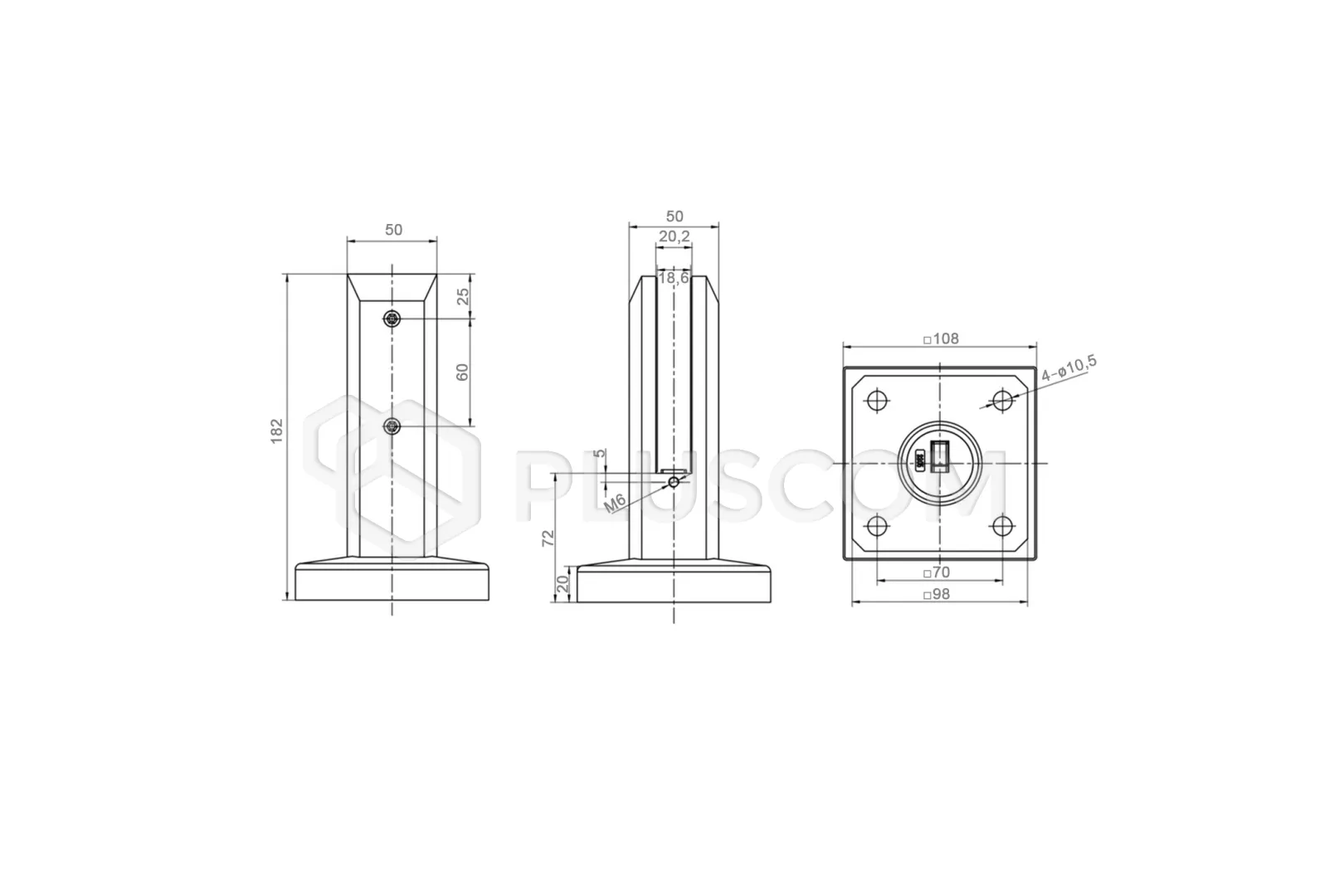

Base dimension:

100 x 100 mm

Base thickness:

10 mm

Mounting method:

screw-on

TECHNICAL DATA:

  • H (mm): 182
