PSG N04.4802.4US Vertical glass clamp spigot, round dia. 48mm, with cover, H=182mm, glass 12-17.52mm (AISI 304, universal, satin)

32,64 EUR including 23.00% VAT
Product code: #49036
Manufacturer: Postal Steep Group
  • H (mm): 182
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,45 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

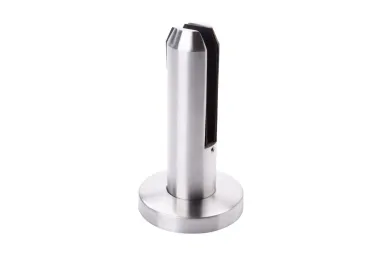

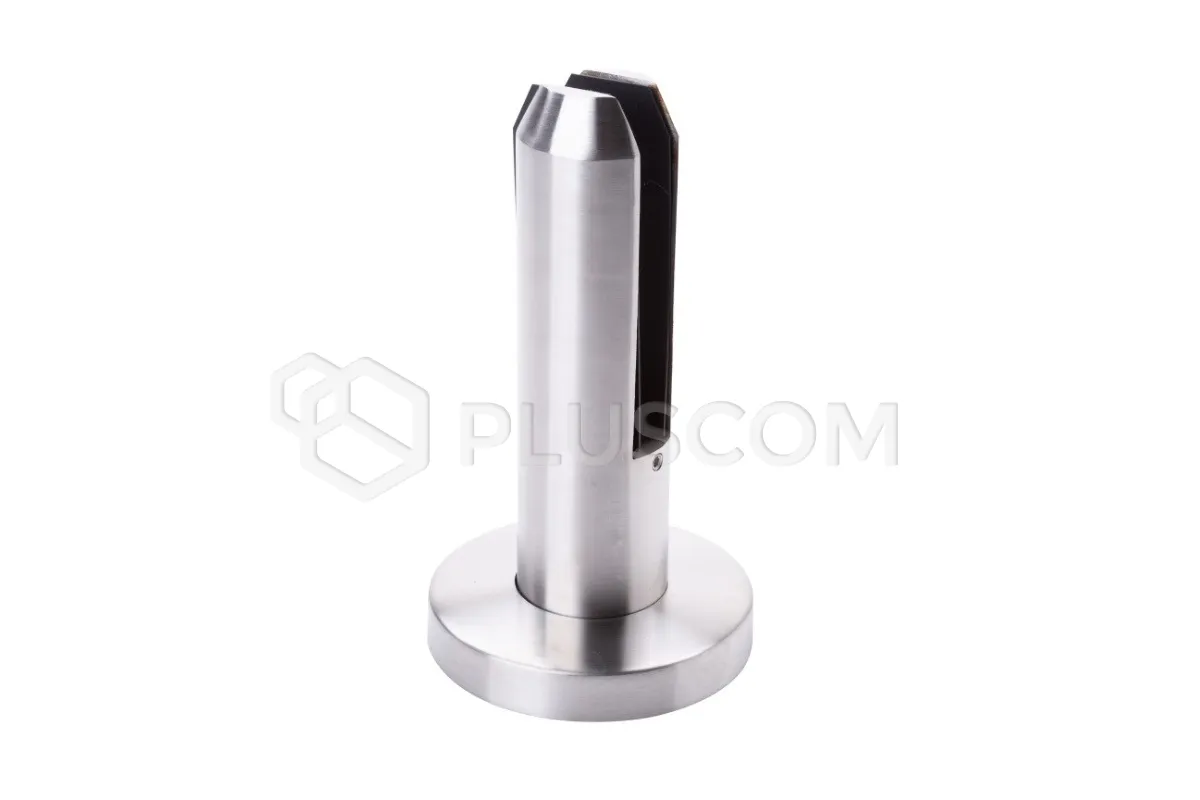

PSG N04.4802.4US Vertical glass clamp spigot, round dia. 48mm, with cover, H=182mm, glass 12-17.52mm (AISI 304, universal, satin)


Vertical glass clamp – spigot

The glass clamp is made of AISI 304 stainless steel, which makes it sturdy and corrosion resistant.

The clamp is fixed directly to the substrate, preferably with DIN 7991 screws with an M8 thread.

  • finish: satin
  • material: AISI 304 steel
  • for glass thickness: from 12 to 17.52 mm
  • height: 182 mm

The clamp stabilizes the glass and is responsible for the safety of the entire structure.

The product has a satin finish and looks attractive.

A cover that hides the fixing is included with the clamp.


Material:

stainless steel

Finish:

satin

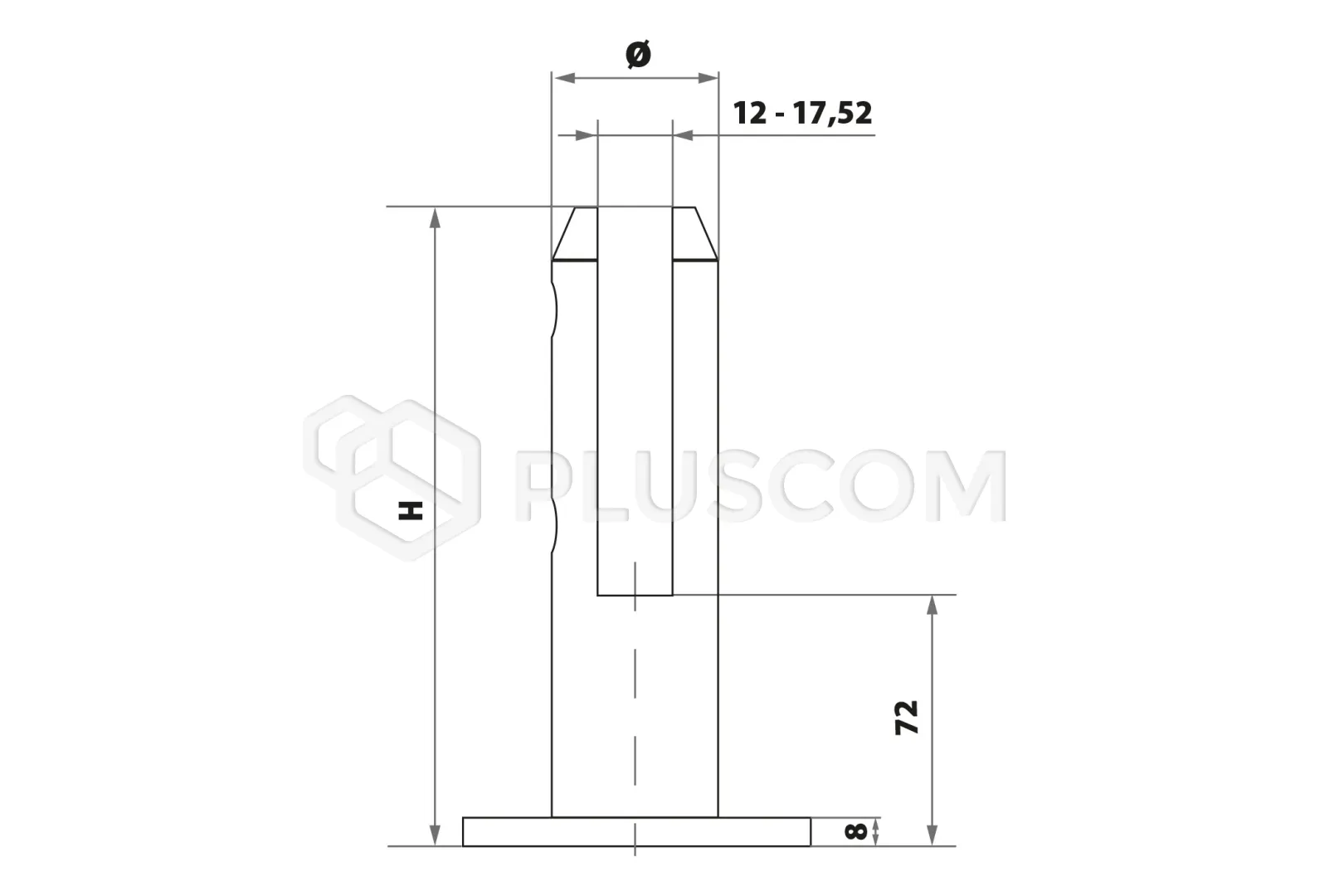

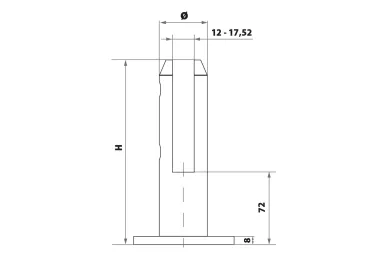

Glass thickness:

12-17.52 mm

Height:

182 mm

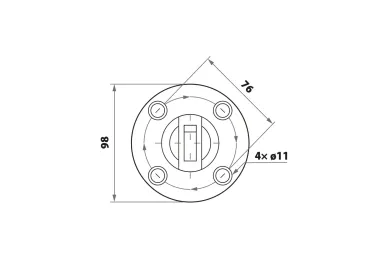

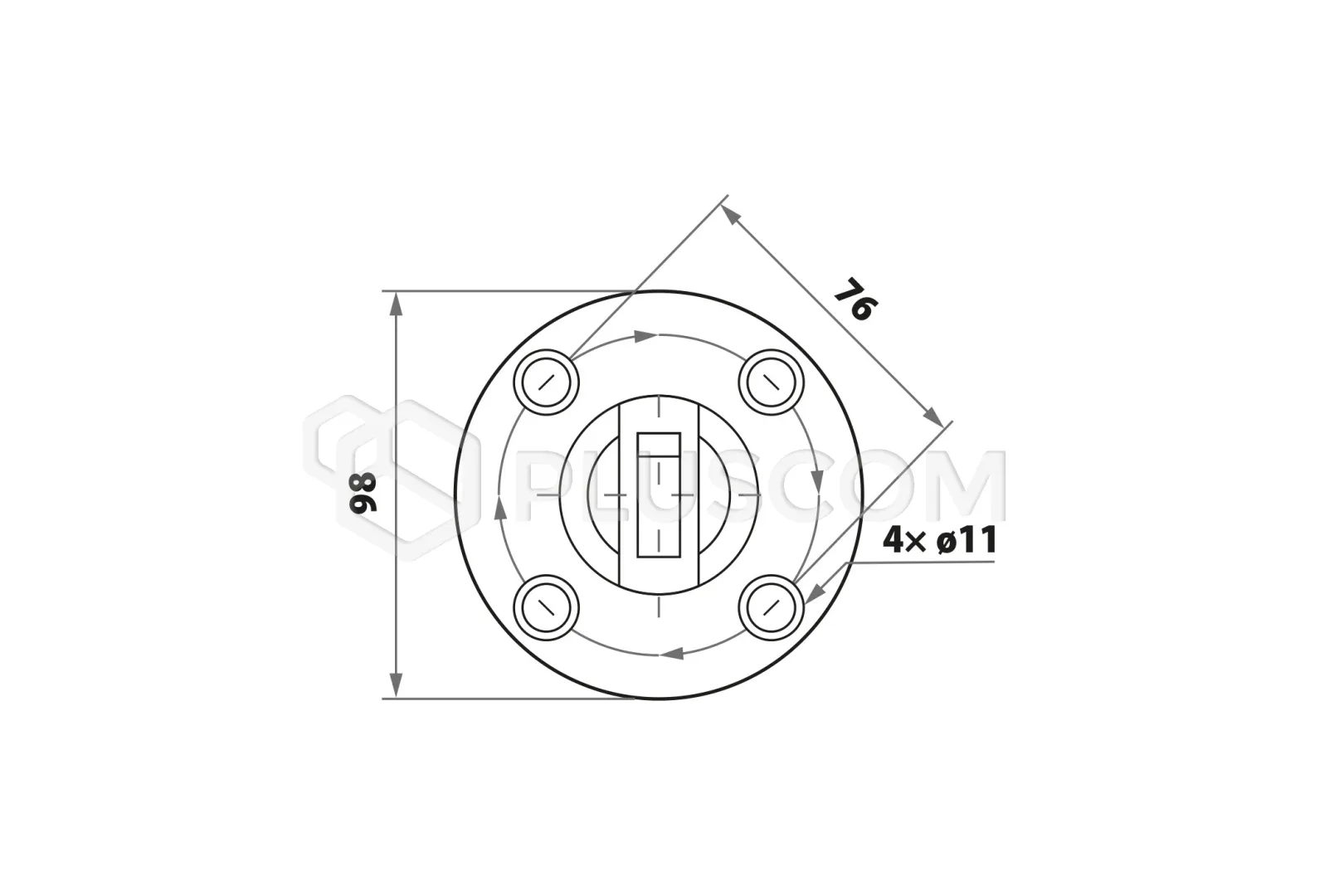

Base dimension:

dia. 98

Base thickness:

8 mm

Mounting method:

screw-on

TECHNICAL DATA:

  • H (mm): 182
