PSG N01.P3540.4BS Glass bracket 40X35X20 mm – AISI304 steel, system 42.4, satin

PSG N01.P3540.4BS Glass bracket 40X35X20 mm – AISI304 steel, system 42.4, satin

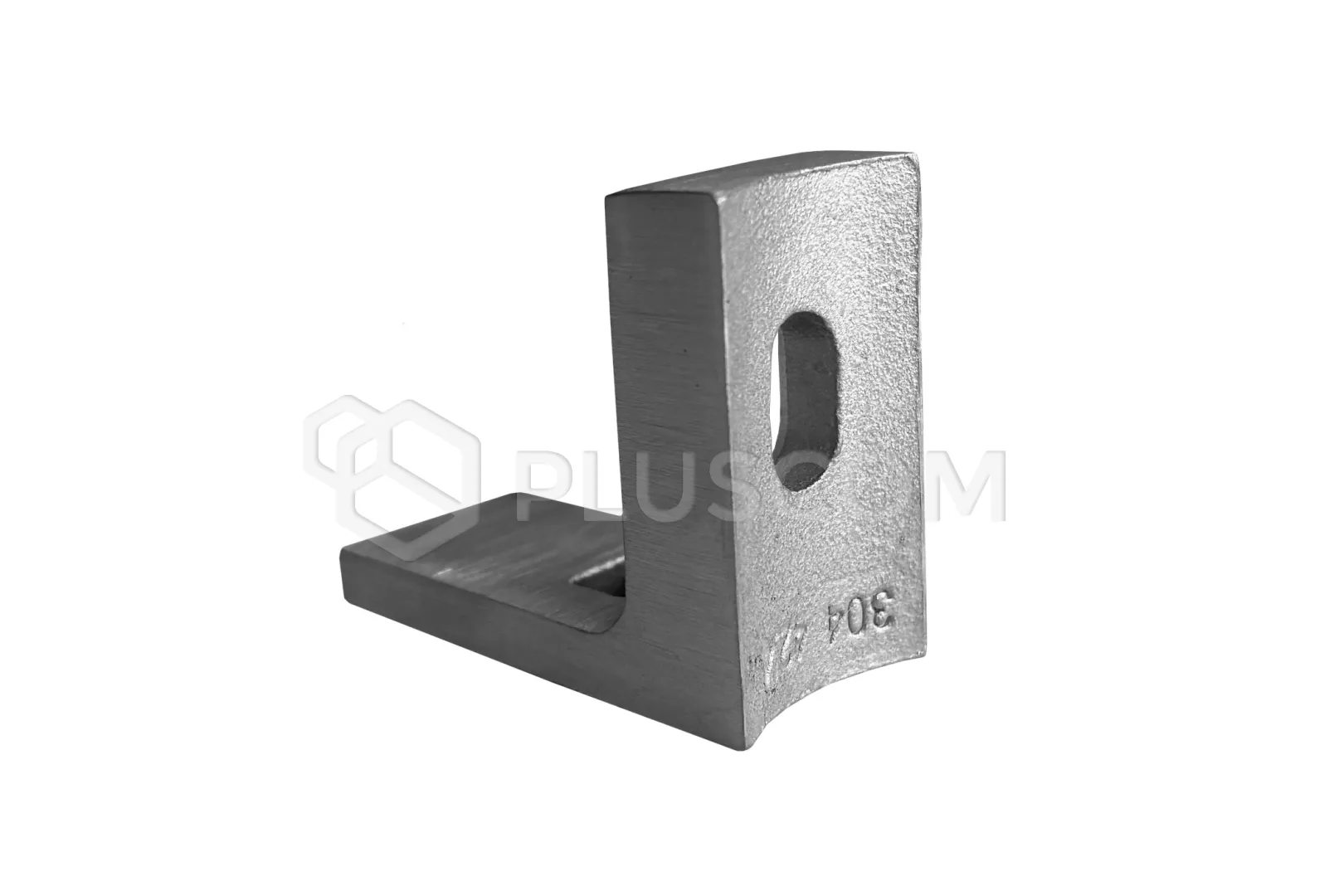

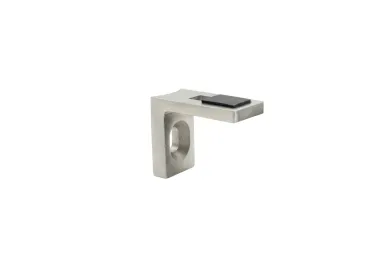

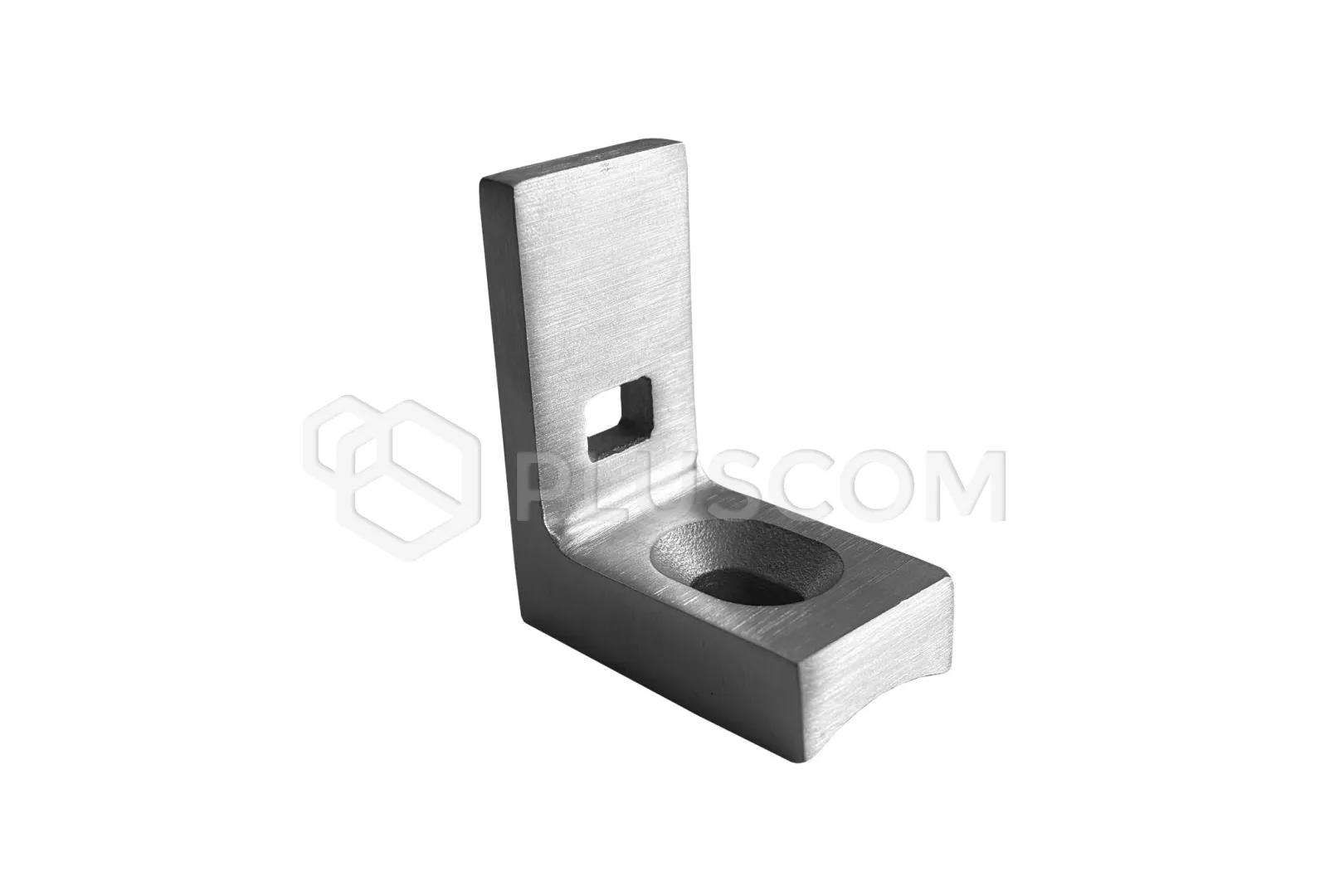

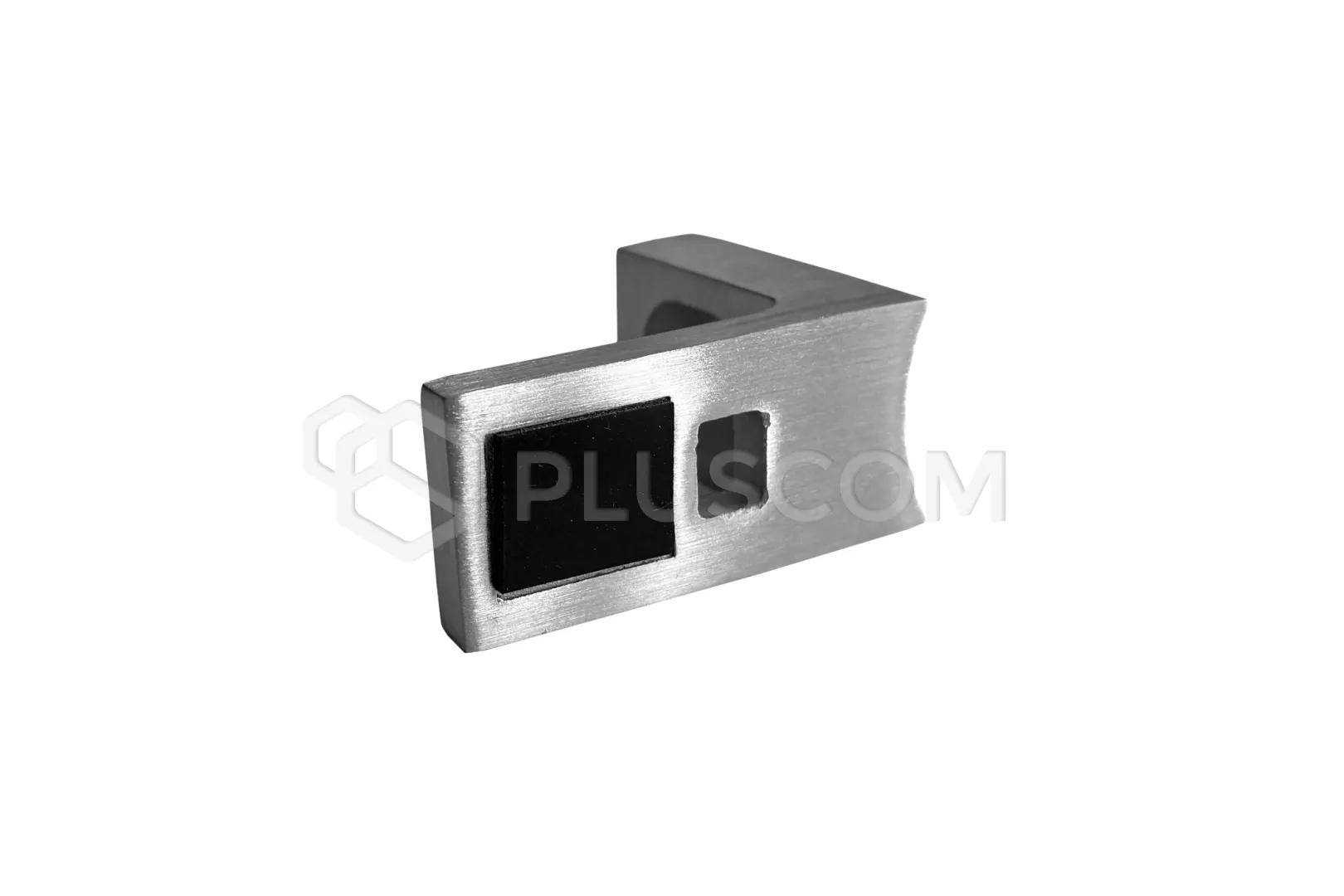

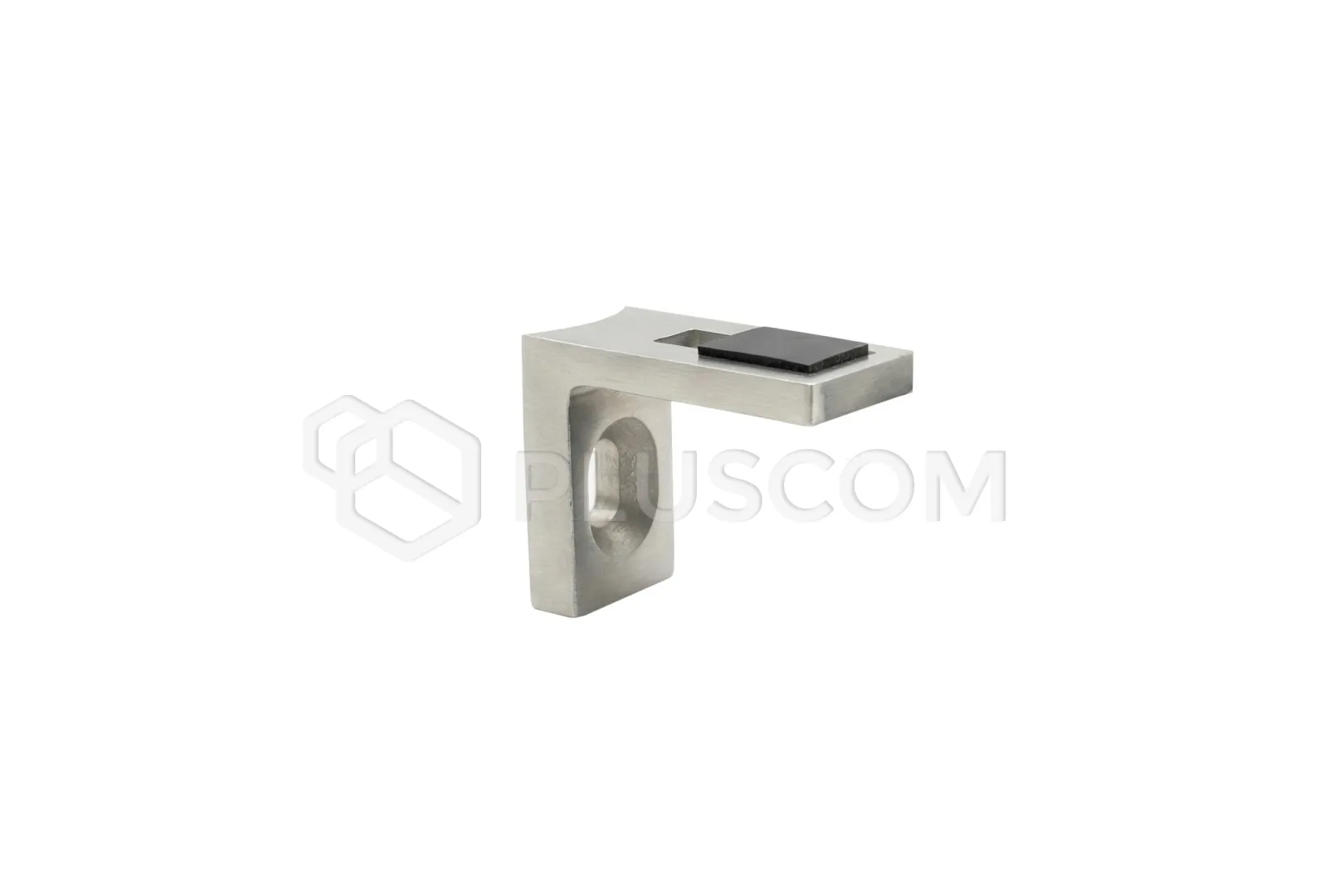

Pinox glass bracket

The 40 × 35 × 20 mm glass bracket is made of AISI 304 stainless steel with an elegant satin finish. It is designed for stable mounting of glass in indoor balustrades in residential and commercial buildings. The bracket works with the 42.4 system, providing secure support for the glass pane and its correct positioning. It is installed through a mounting hole and a fixing screw, forming a durable yet attractive solution.

Check the product features:

• glass bracket for indoor use: a part designed for mounting glass panes in balustrades inside residential and commercial buildings, such as staircases, mezzanines or galleries
• material: AISI 304 stainless steel: AISI 304 steel has high resistance to corrosion and mechanical damage, so the bracket keeps its properties for a long time
• finish: satin: the satin surface gives the bracket a modern, elegant look while reducing the visibility of minor scratches and fingerprints
• system: flat 42.4: the bracket is adapted to the flat 42.4 system, allowing trouble-free use in standard balustrade solutions

Durability and look of AISI 304 stainless steel

AISI 304 stainless steel works very well in balustrade elements exposed to everyday use. The material has high resistance to corrosion, mechanical damage and moisture, which translates into a long life for the bracket. The satin finish gives the whole a modern, elegant look and blends nicely with glass and the other balustrade elements. This gives you a product that not only holds the glass firmly but also enhances the look of the whole structure. By choosing this bracket, you invest in a proven solution that meets both technical and visual requirements.

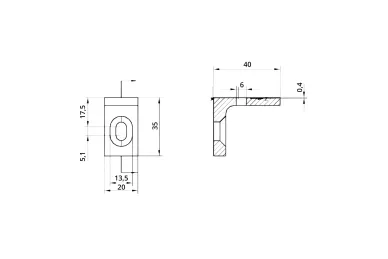

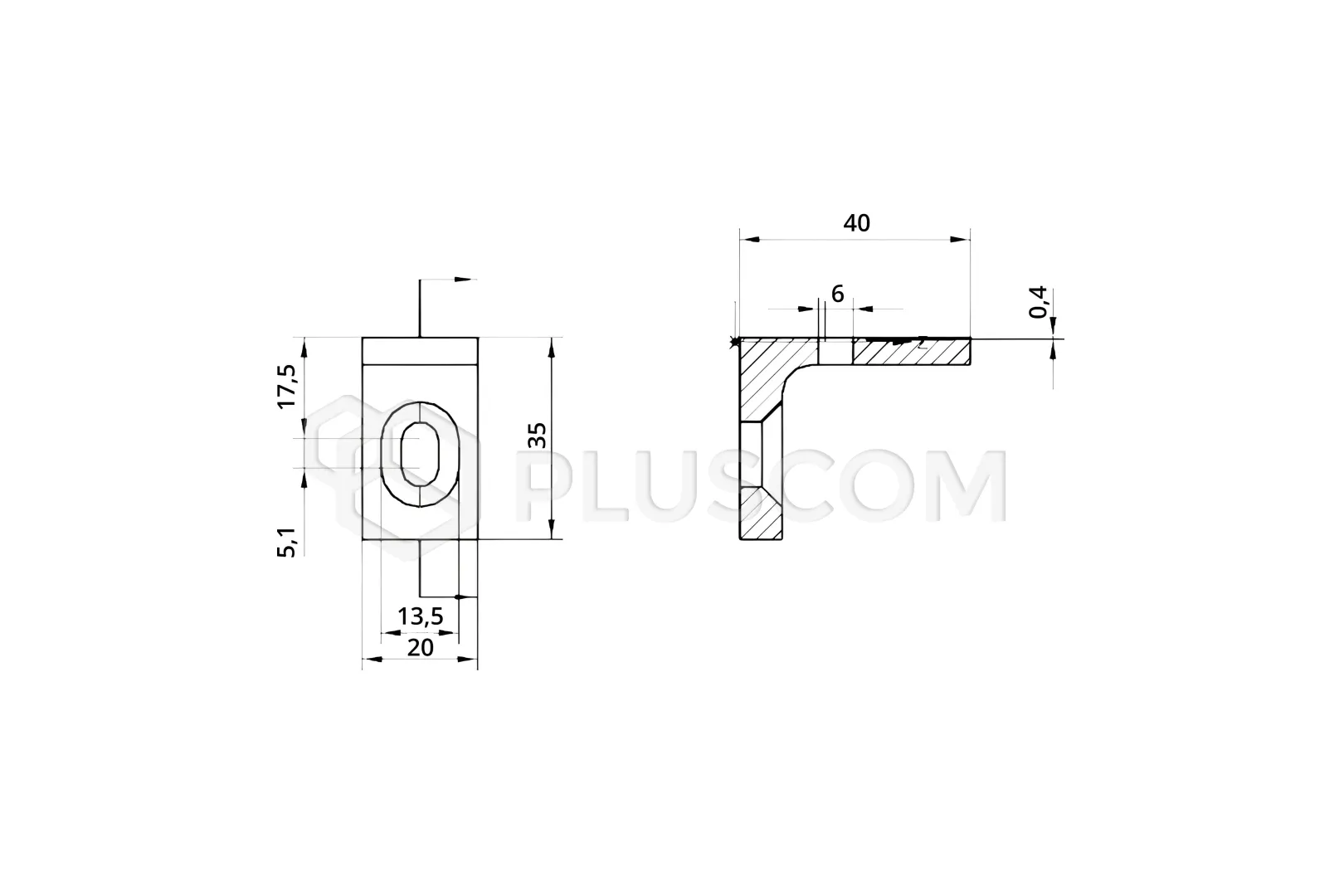

TECHNICAL DATA:

• L (mm): 40
• H (mm): 53
• Width (mm): 20
